Input voltage: AC100-240V, 47-60Hz, PF>0.9
Power supply mode: battery, 8800mAh 11.1V, full charge voltage 12.6, stop working voltage 9V
Built in charger: 13.2V * 4A. Full charge time of 4 hours
Rated power 35 watts, (25 ℃ typical power 33.2 watts @ 220V 50Hz)
Lamp efficiency: The narrow angle whole lamp emits 1120lm of light, and the large angle whole lamp emits 2000lm of light
Optical effect: TIR+convex lens variable angle optical path
Light source specifications: 3 15 watt dual color light sources with normal white, cool white, and a color temperature of 2700K to 6000K
Ra color rendering>70, with no visible difference in white light between lamps within the batch
Light field (10%) angle: Imaging lens 12-60 degrees
Reference center light intensity and distance for using 2000lx full on mixed color white fill light reference light:
15130cd@12 It is recommended to use it outdoors at a distance of less than 2.75 meters;
9850cd@15 It is recommended to use it outdoors within 2.22 meters;
6970cd@18 It is recommended to use it outdoors at a height of less than 1.87 meters;
5220cd@21 It is recommended to use it outdoors with a height of less than 1.62 meters;
4080cd@24 It is recommended to use it outdoors at a height of less than 1.43 meters;
Angle adjustment: Rotate a single head around the universal joint X-axis by 120 degrees and around the Y-axis by 90 degrees
Overflow light control: Deepen the natural cutoff angle of the light emitting surface by 62 degrees
Control buttons: 4 mechanical buttons, 2 physical knobs to control color temperature and brightness respectively
Display panel: digital tube display screen
Control signal: infrared remote control, free, voice control, can also be controlled using WH/T 32-2008 DMX512-A protocol
Refresh frequency: PWM>12KHz, no flicker in both camera and photography
Safety level: Electrical level I, input 3 * 1.5mm2 black rubber wire (VDE, CCC), fire-resistant V-1;

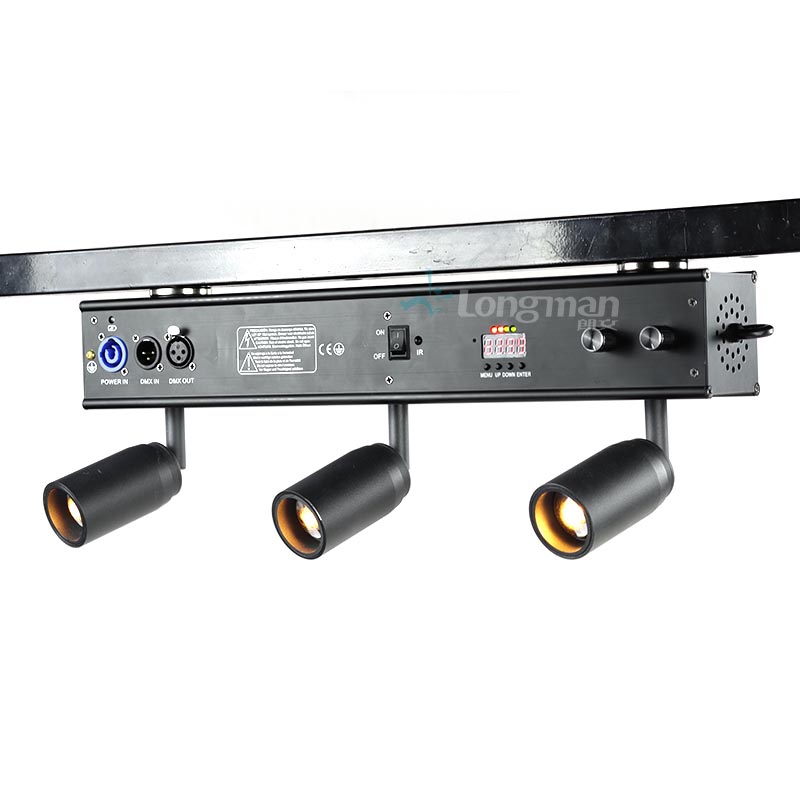

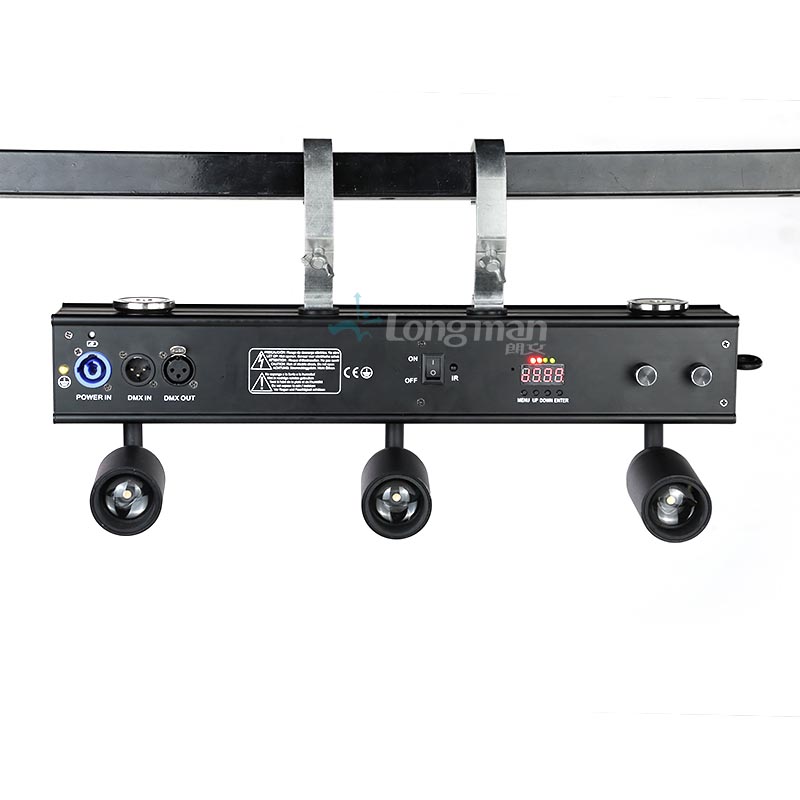

Installation: Can be installed horizontally or vertically, with dual magnetic suction cups and sliding rails, or using the equipped light hook and sliding rail
Shell material: 6063 aluminum shell, standard matte powder black, partially made of QR235 sheet metal

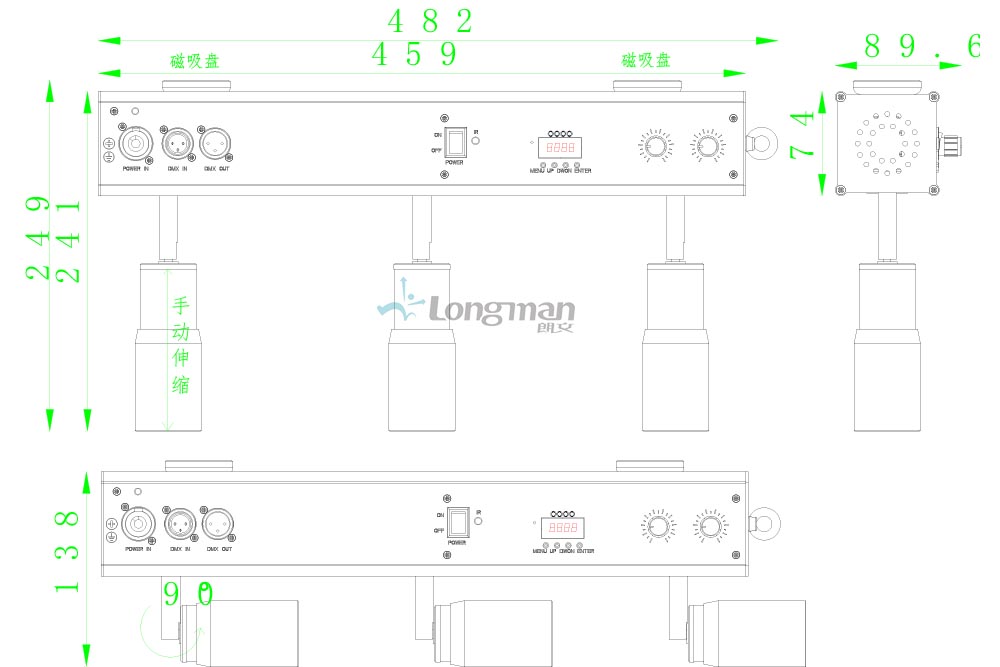

Reference dimensions: length 482mm * width 89.6mm * height 249mm (narrowest angle state)
The protection level of the whole lamp is IP20, and the maximum temperature of the shell is 70 ℃
Certification category: The product has passed CE, Rohs, GB7000.1, and the power supply has passed CQC, UL60950, UL8750, etc
Working temperature: -20~+40 ℃, with a lifespan of 10000 hours for the entire lamp
