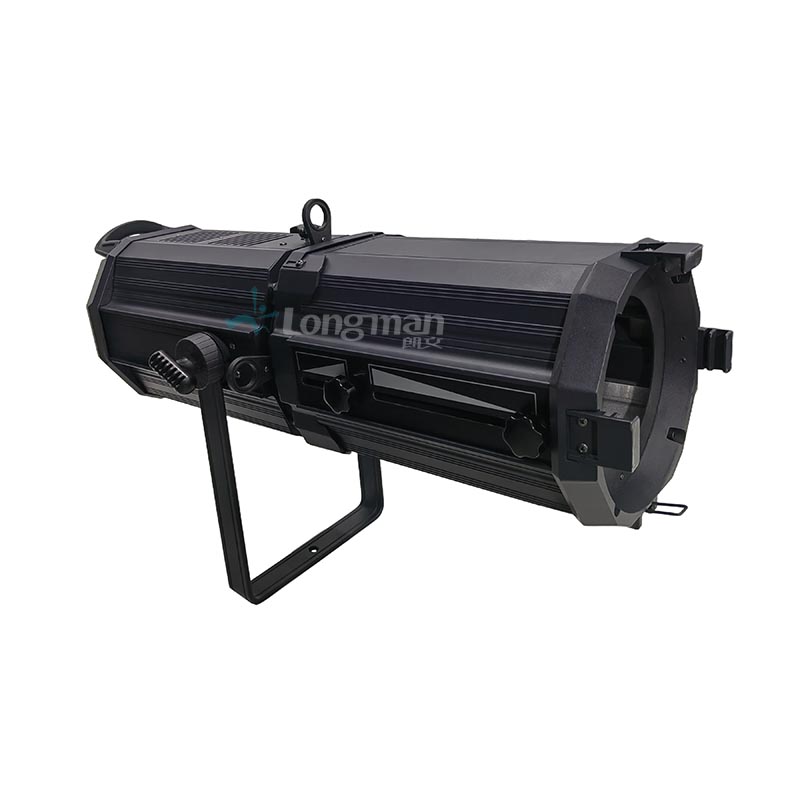

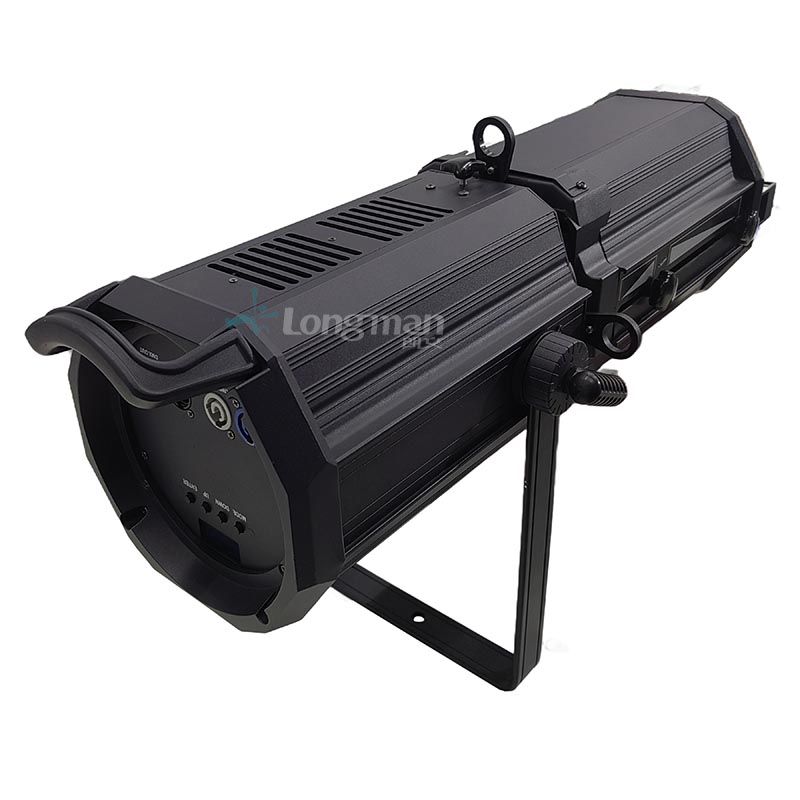

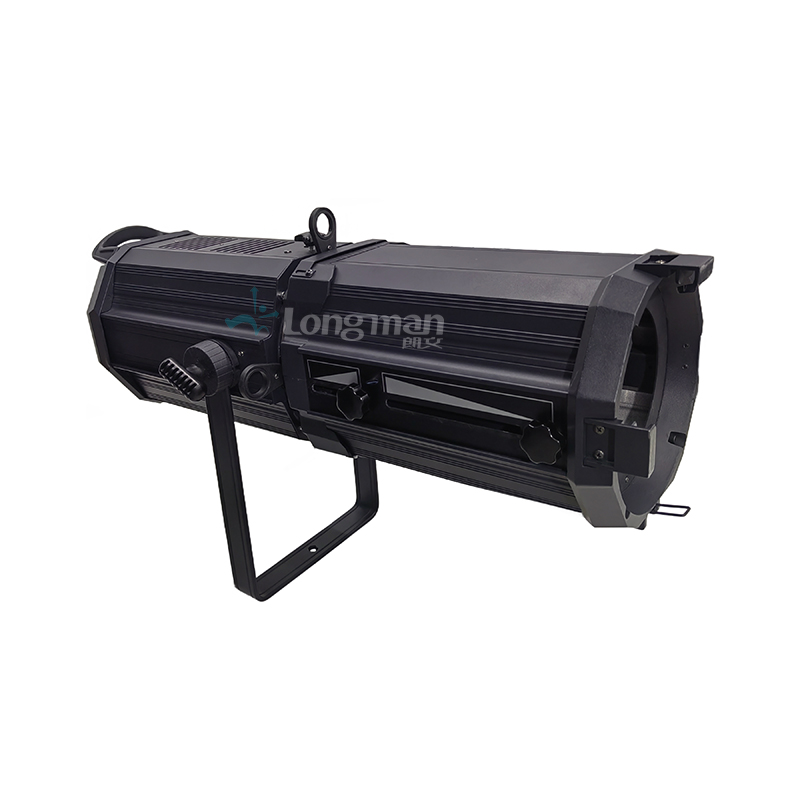

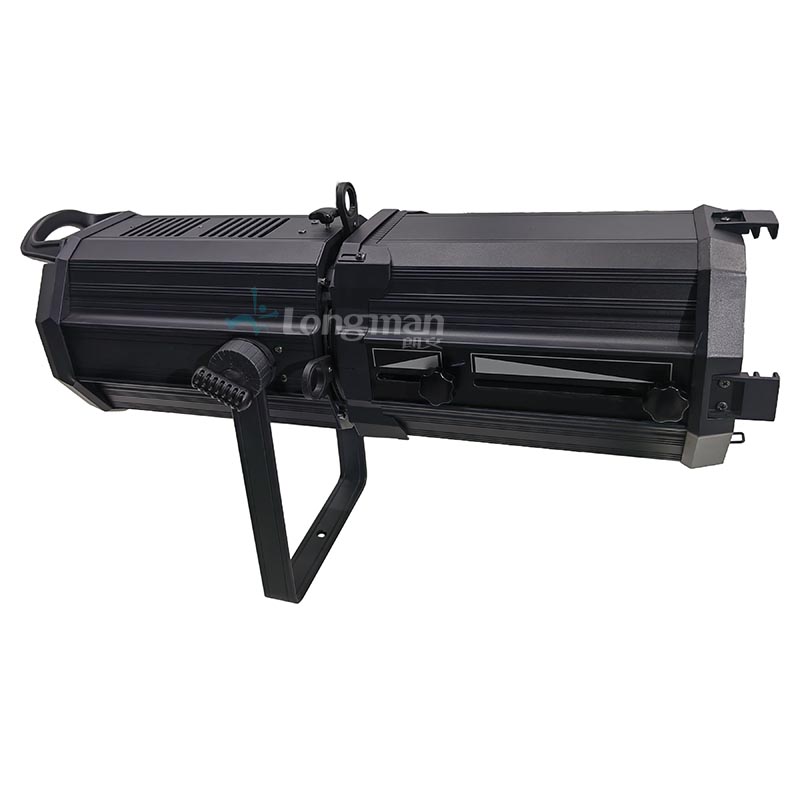

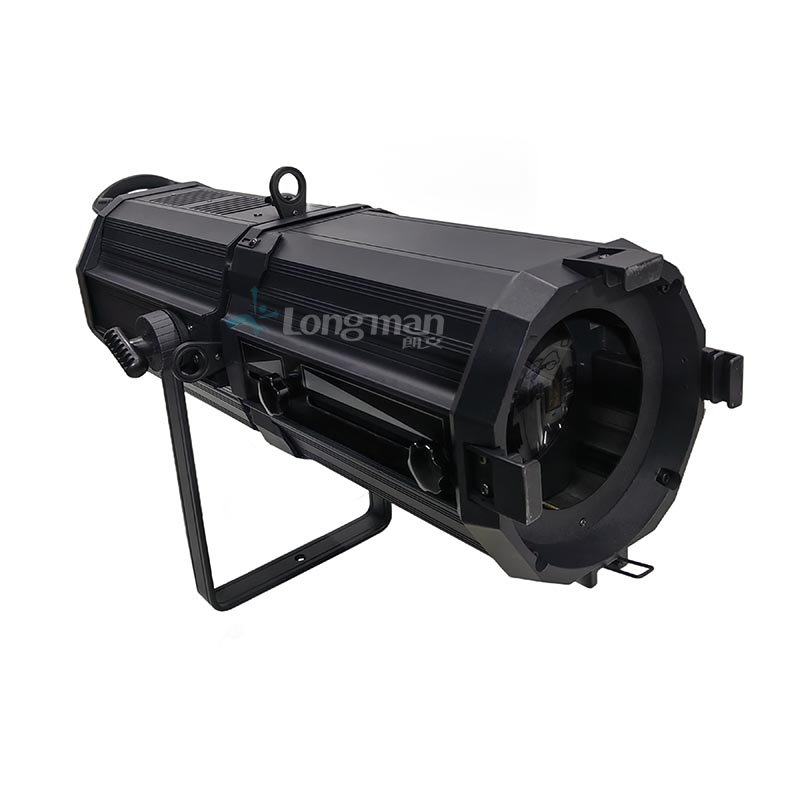

400W LED ZOOM Imaging Lights
Apllication Concept

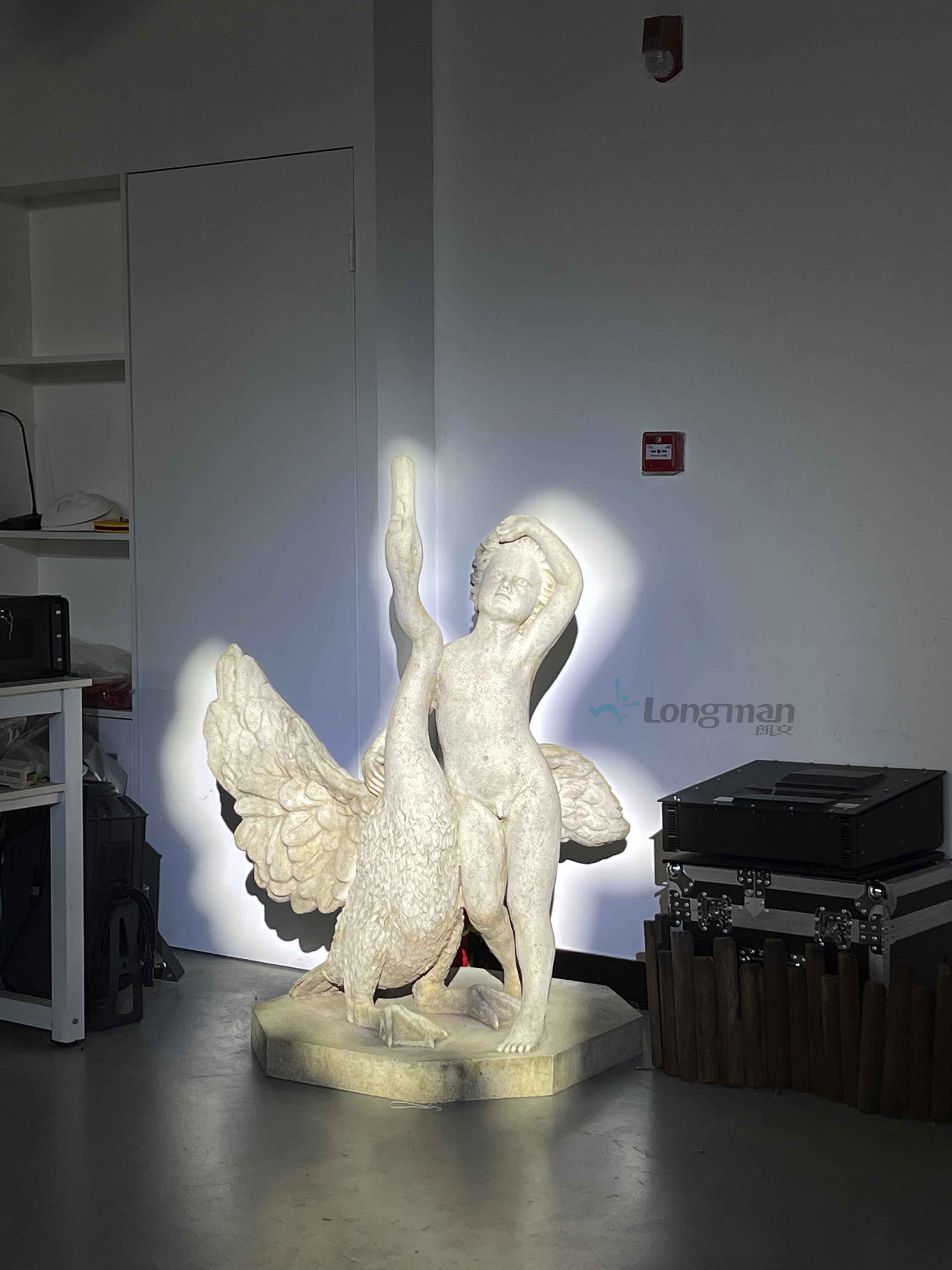

keen film 800 is designed for big size focus lighting as art collection and exhbition.
It is designed for precise and autoshape lighting, based on scale relationship.
detailed infomation and 3D drawing as 3D max and Sketch UP could express real need.

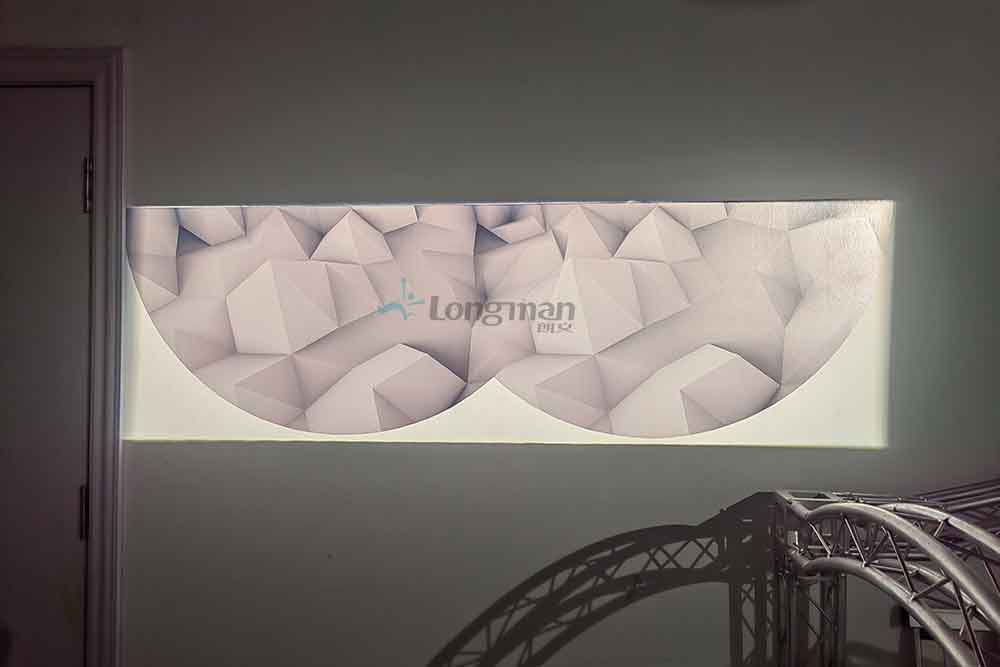

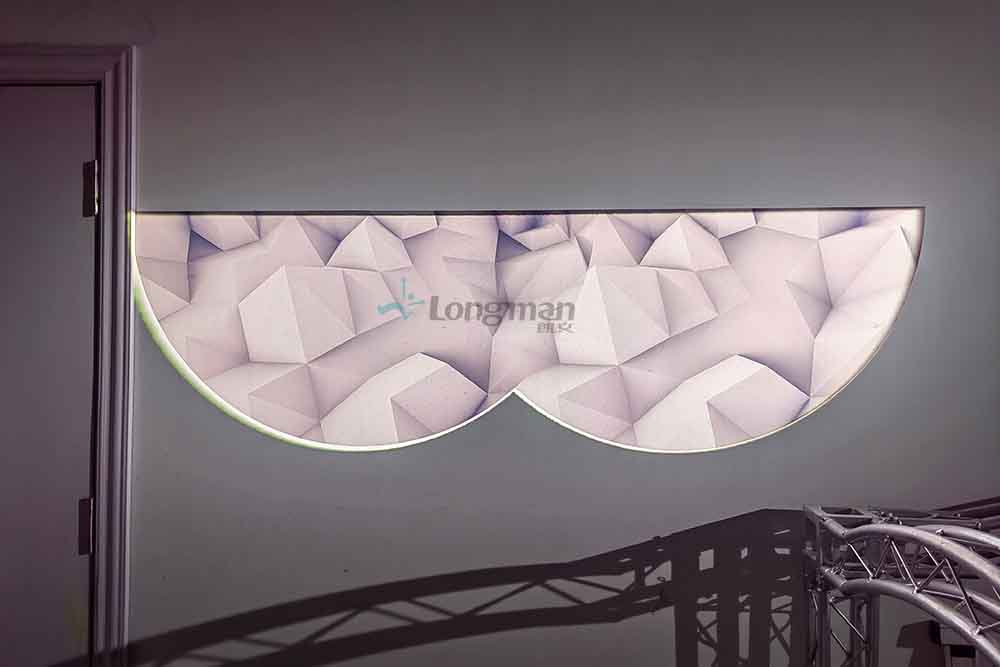

Rectyfied fade Glass Gobo could support blend light halo as one unit，especially for long rectangular needs.
Designed with Slot for preset autoshape steel framer.
Designed with Manual zoom and focusing，Loosening and readjusting the Nuts could find good beam.
Also Designed with 4 tradictional Lighting Adjustment Flakes. Designed with Color Chip frame Fixer.
Light Technical Correlated Color Temperature： LED3200K/5600K，or dual color temperature.
Color rendering index Ra>95, R9>95 for 3200K;Ra>85, R9>50 for 5600K.
10% intensity field angle 19°～45°, linear imaging technology. Luminous Flux（single 5600K output）: 11500lumens,
+/-10%. Luminous Efficacy (rated) :31.4lm/w white output.
Operating and Electrical
Input Voltage: AC100-240V Frequency 50 or 60 Hz. Rated power 400W，+/-10%, typical 373W
Power Factor>0.95. Protocal：Chinese WH/T 32—2008 DMX512-A，2Ch for single color, 3Ch for dual colors
Control interface：3XLR male and 3XLR female，could customized 5XLR for RDM protocal
display (LCD) could be set on and off
General Information
Ambient temperature range -20 to +40 °C. Max.Surface Temperature <65℃. Net Weight <15KG
Mechanical and Housing

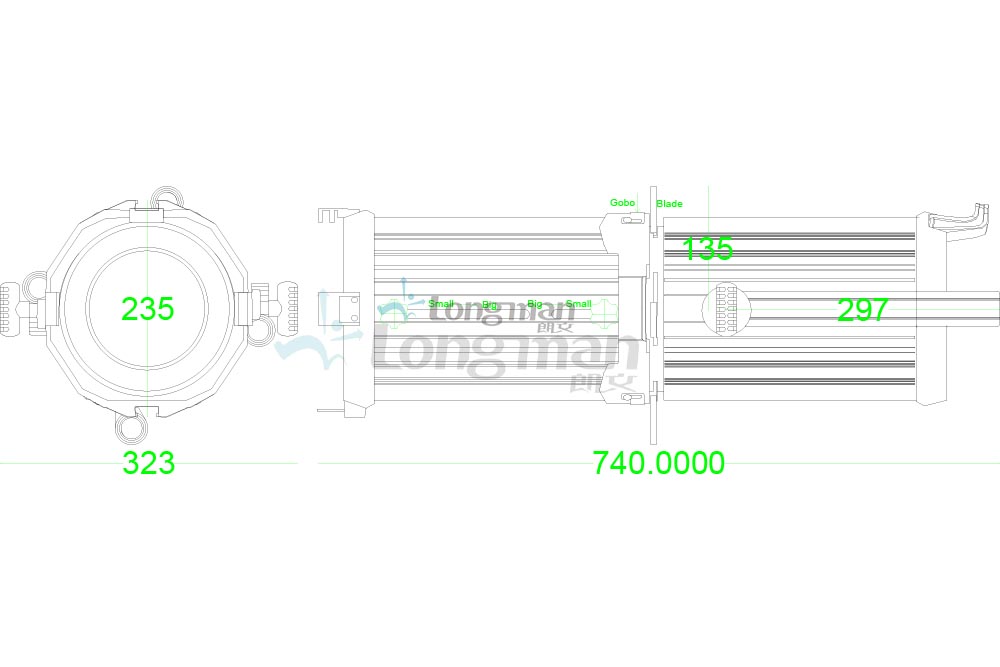

Size：740*323*432*MM stand mode，horizontal forward, length depends on lens barrel ；
Housing Material：Special Polycarbonate；Housing Color ：Black；
Dimensional drawing:with 3D .obj and 2D .dwg document support；
Ingress protection code Ip20； Protection class IEC ： Safety class I； Design Standard：CE mark,
Chinese GB7000，UL1573，EN55015 etc；
Indoor auto shape Profile Series
keen film 800
Apllication Concept
keen film 800 is designed for big size focus lighting as art collection and exhbition
It is designed for precise and autoshape lighting, based on scale relationship.
detailed infomation and 3D drawing as 3D max and Sketch UP could express real need.
Rectyfied fade Glass Gobo could support blend light halo as one unit，especially for long rectangular needs.
Designed with Slot for preset autoshape steel framer
Designed with Manual zoom and focusing，Loosening and readjusting the Nuts could find good beam
Also Designed with 4 tradictional Lighting Adjustment Flakes
Designed with Color Chip frame Fixer
Light Technical
Correlated Color Temperature： LED3200K/5600K，or dual color temperature
Color rendering index Ra>95, R9>95 for 3200K;Ra>85, R9>50 for 5600K
10% intensity field angle 19°～45°, linear imaging technology
Luminous Flux（single 5600K output）: 11500lumens, +/-10%
Luminous Efficacy (rated) :31.4lm/w white output
Operating and Electrical
Input Voltage: AC100-240V Frequency 50 or 60 Hz
Rated power 400W，+/-10%, typical 373W
Power Factor>0.95
Protocal：Chinese WH/T 32—2008 DMX512-A，2Ch for single color, 3Ch for dual colors
Control interface：3XLR male and 3XLR female，could customized 5XLR for RDM protocal
display (LCD) could be set on and off
General Information
Ambient temperature range -20 to +40 °C
Max.Surface Temperature <65℃
Net Weight <15KG
Mechanical and Housing
Size：740*323*432*MM stand mode，horizontal forward, length depends on lens barrel
Housing Material：Special Polycarbonate
Housing Color ：Black
Dimensional drawing:with 3D .obj and 2D .dwg document support
Approval
Ingress protection code IP20
Protection class IEC ： Safety class I
Design Standard：CE mark, Chinese GB7000，UL1573，EN55015 etc
keen film 800 Zoom Imaging Light Product Feature Promotion Information Key Highlights
1. Powerful Lighting PerformanceHigh Power Output: Rated at 400W (typical 373W), delivering bright and intense
lighting suitable for large-scale focus lighting.
Wide Field Angle: 10% intensity field angle ranging from 19° to 45°, providing versatile lighting coverage.
2. Precision and Autoshape Lighting
Auto Shape Technology: Based on scale relationship, ensuring precise and automated shaping of light beams.
Zoom and Focus Adjustments: Manual zoom and focusing capabilities allow for precise control of the light beam.
3. Innovative Optical Design
Rectified Fade Glass Gobo: Supports blend light halo as one unit, ideal for long rectangular lighting needs.
Slot for Autoshape Steel Framer: Designed for preset autoshape steel framers, enhancing versatility and ease of use.
4. High Color QualityGenuine Color and Wisdom Light: Shock your vision with true-to-life color rendering.
High CRI: Color rendering index Ra>95 for 3200K and Ra>85 for 5600K, ensuring accurate color reproduction.
5. Versatile Control Options
DMX512 Compatibility: Supports DMX512 control protocol for seamless integration with professional lighting systems.
Multi-Channel Control: 2Ch for single color and 3Ch for dual colors, offering flexibility in lighting control.
6. Efficient and ReliableLong Lifespan: Built to last with durable components and high-quality materials.
Energy Efficiency: Designed to be energy-efficient, reducing operational costs and environmental impact.
7. User-Friendly DesignColor Chip Frame Fixer: Easily replaceable color chips for customized color output.
Traditional Lighting Adjustment Flakes: Four traditional lighting adjustment flakes for fine-tuning the light beam.
8. Compact and Lightweight:Compact Size: Designed for easy handling and transport, suitable for various lighting setups.
Lightweight Construction: Weighing less than 15KG, making it portable and easy to maneuver.
9. Wide Application Range
Art Collection and Exhibition: Ideal for precise focus lighting in art galleries and exhibition spaces.
Versatile Uses: Can be used for a wide range of lighting applications, including theaters, studios, and event spaces.
