Power supply voltage: AC100~240V, 50/60Hz
Light source: 300W
Light source life: up to 50, 000 hours
Color index: Ra≥95
Special indication: R9≥90, R15≥90
Lens Angle: 19° /26 ° /36° / 50° optional
Color temperature: 3200K/5600K (standard)/ dual color temperature/RGBW (custom)
Control channel: (3200K/5600K) 2CH/dual color temperature 4CH
Effect: A pure beam of light without color and shadow, rich saturation and soft tone
Lighting: 0~100% linear dimming, a perfect dimming system with no color change from 0 to 100%
Control panel: LCD digital display + four keys
Optics: Special glue for imaging lamp HD combination lens, 19°/26°/36°/50° optional, built-in four light shields can be easily cut into various shapes, 24K non-flashing light source management system
Heat dissipation method: copper tube radiator + intelligent silent fan heat dissipation system
Noise: 1 meter noise less than 30db
Temperature monitoring: Built-in temperature protection sensor, through automatic adjustment of lamp power to protect over temperature, display panel real-time view of lamp working temperature.
Control mode: DMX wired, wireless signal optional/manual mode
Protection level: IP20
Parts: power cable, signal cable, pattern sheet clamp (optional)
Apllication Concept
keen film 600600AFA-- is designed for big size focus lighting as theater art collection and exhbition
It is designed for precise and autoshape lighting, based on scale relationship.
detailed infomation and 3D drawing as 3D max and Sketch UP could express real need.
Rectyfied fade Glass Gobo could support blend light halo as one unit，especially for long rectangular needs.
Designed with Slot for preset autoshape steel framer and Shrink aperture
Designed with Manual and focusing for optional lens，Loosening and readjusting the Nuts could find good beam
Also Designed with 4 tradictional Lighting Adjustment Flakes
Designed with Color Chip frame Fixer
Light Technical
Correlated Color Temperature： LED3200K/5600K，or dual color temperature
Color rendering index Ra>95, R9>95, R15≥90 for 3200K;Ra>85, R9>50 for 5600K
10% intensity field angle 10°, 19°, 26°, 36°, 50°optional reall data with IES ducuments support, linear imaging technology
Luminous Flux（single 5600K output）: 9420lumens, +/-10%
Luminous Efficacy (rated) :31.4lm/w white output
Operating and Electrical
Input Voltage: AC100-240V Frequency 50 or 60 Hz
Rated power 300W，+/-10%, typical 283W
Power Factor>0.95
Protocal：Chinese WH/T 32—2008 DMX512-A，2Ch for single color, 4Ch for dual colors
Control interface：3XLR male and 3XLR female，could customized 5XLR for RDM protocal
display (LCD) could be set on and off
Fans cooling with sound≤30Db in 1 meter
General Information
Ambient temperature range -20 to +40 °C
Max.Surface Temperature <65℃
Net Weight <9.5KG
Mechanical and Housing

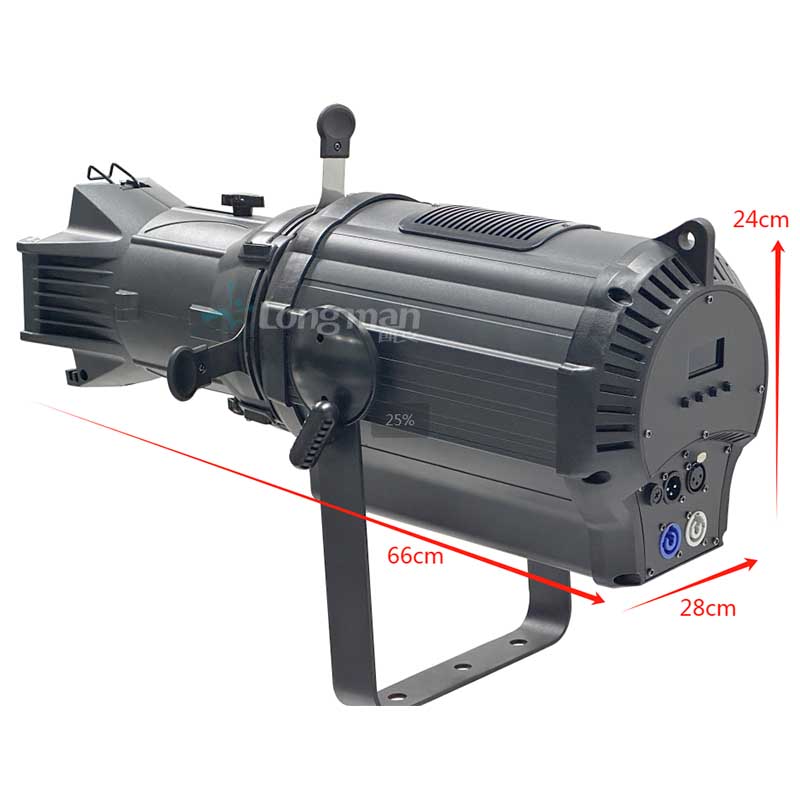

Size：638*294*410*MM stand mode，horizontal forward, length depends on lens barrel
Housing Material：Special Polycarbonate
Housing Color ：Black

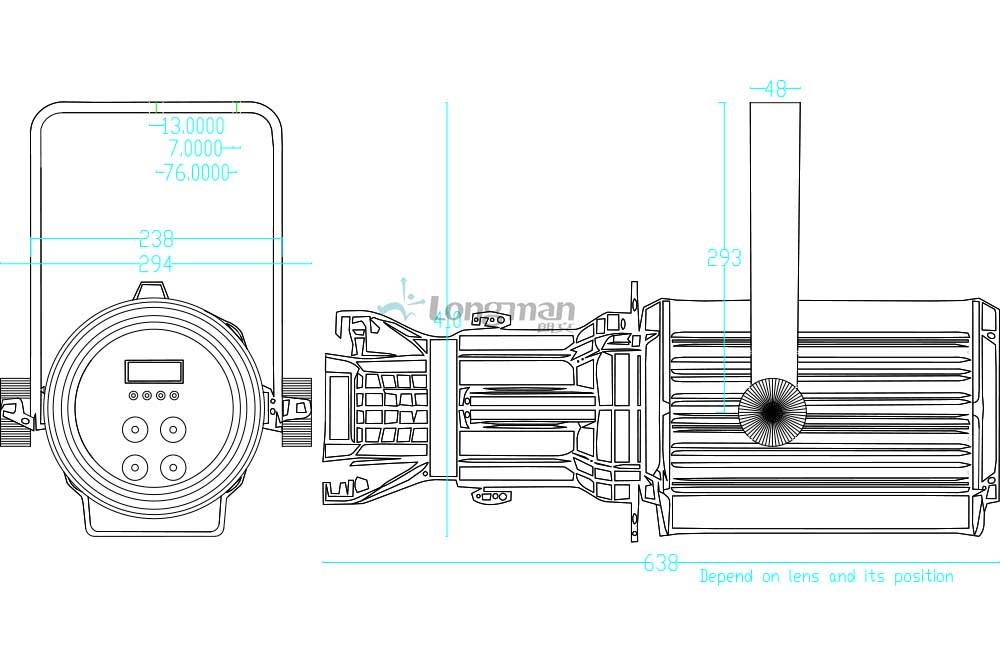

Dimensional drawing:with 3D .obj and 2D .dwg document support
Approval
Ingress protection code IP20
Protection class IEC ： Safety class I
Design Standard：CE mark, Chinese GB7000，UL1573，EN55015 etc
