200W LED ZOOM Imaging Lights
Rating Specifications：
Model :200W LED ZOOM Imaging Lights
Voltage :AC100-230V
Luminous: LED3200K/5600K/RGBW
Max.Ambient Temperature <40℃
Max.Surface Temperature <85℃
Net Weight：12.8KG
Gross Weight：14.2KG
Beam angle：19°～45°
Focusing function：Manual focus
Control：DMX512

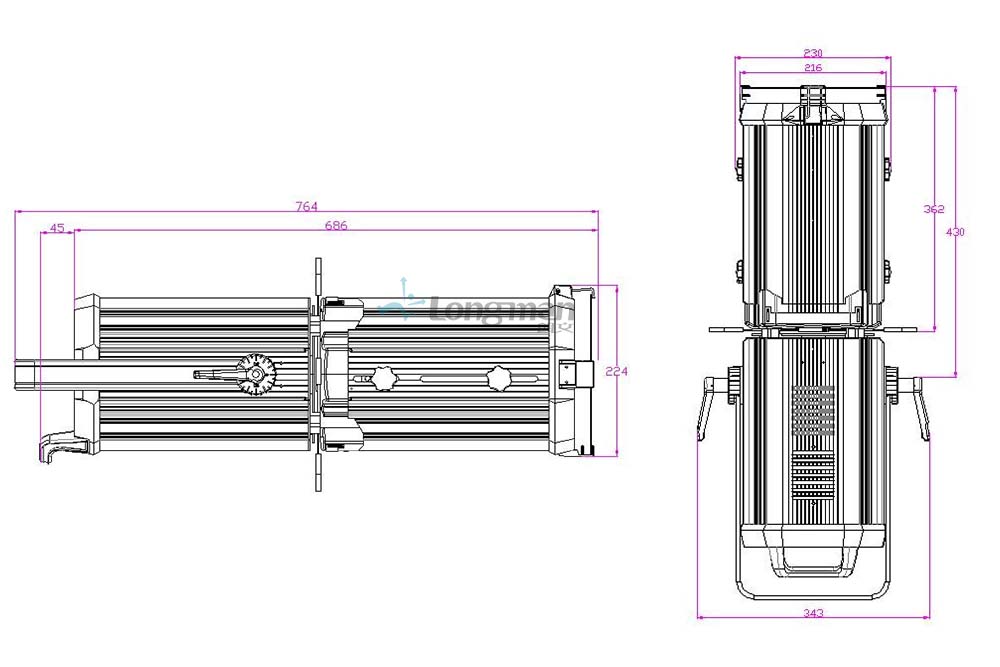

Light size：305*243*765MM
Packing size：305*355*825MM

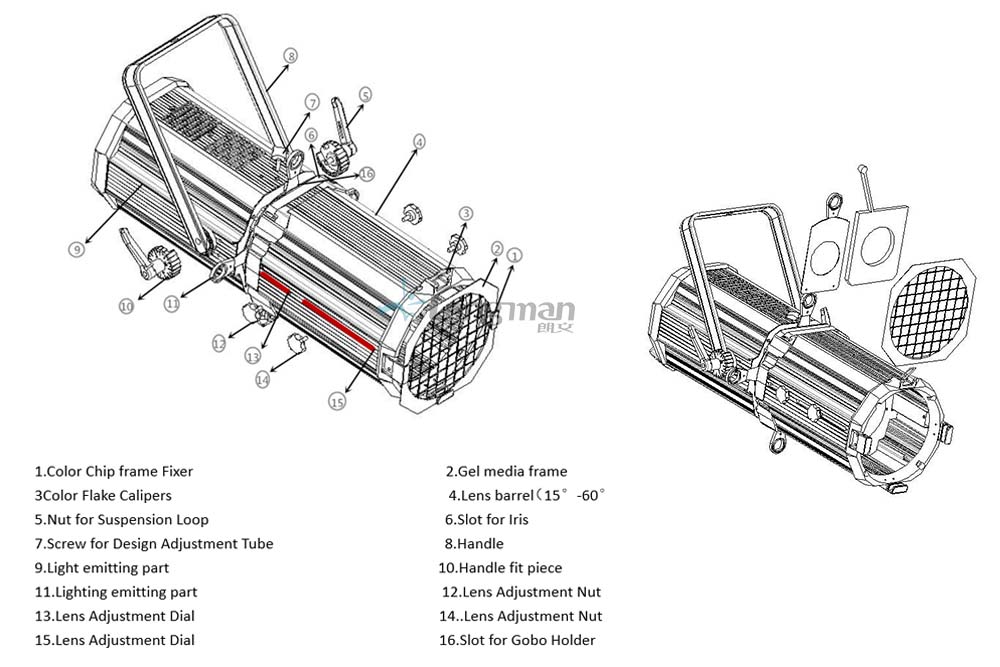

Draw out 4Lighting Adjustment Flakes⑪, connect the power supply, until the light spots are the brightest, loosen the Nut for the Front Drawtube⑫⑭, adjust the Front Drawtube⑬⑮fore and aft until the margin of the light spots are the cleraest.
keen film 400 LED ZOOM is a new light source adopts high density integration of professional imaging light, than the previous generation of imaging light intensity of illumination increased 1.5 times. Can match exactly professional 19°, 26°, 36°, 50°lens barrel, flare, LOGO image is clear. 3200 k, 5600 k color rendering index greater than 90. Professional for the theater, the theater, television, studio, banquet hall and imaging lamp design.
keen film 400 LED ZOOM is a new light source adopts high density integration of professional imaging light, than the previous generation of imaging light intensity of illumination increased 1.5 times. Can match exactly professional 19°, 26°, 36°, 50°lens barrel, flare, LOGO image is clear. 3200 k, 5600 k color rendering index greater than 90. Professional for the theater, the theater, television, studio, banquet hall and imaging lamp design.
Model 200W LED ZOOM Imaging Lights
Voltage AC100-230V
Luminous LED3200K/5600K/RGBW
Max.Ambient Temperature <40℃
Max.Surface Temperature <85℃
Net Weight 12.8KG
Gross Weight 14.2KG
Beam angle 19°～45°
Focusing function Manual focus手动调焦
Control DMX512
Light size 305*243*765MM
Packing size 305*355*825MM
200W LED ZOOM Imaging Light Product Feature Promotion Information Key Highlights
1. Advanced LED Technology
High-Density Integration: The 200W LED ZOOM adopts high-density integration of a professional imaging light source, providing a 1.5x
increase in illumination intensity compared to previous generations. Versatile Color Temperatures: Available in 3200K and
5600K, with a color rendering index greater than 90, ensuring accurate and vibrant color reproduction.
2. Professional Imaging Capabilities
Clear Imaging: Perfectly matches professional lenses ranging from 15° to 45°, delivering sharp and focused light spots and
clear LOGO imaging.Designed for Professionals: Specifically tailored for theaters, studios, banquet halls, and other pro
fessional lighting applications.
3. User-Friendly Design
Intuitive Operation: Easy-to-use interface with menu options for DMX address code setting, LED brightness control,
stroboscopic speed regulation, and DMX signal choice. Adjustable Features: Manual focus adjustment allows for precise
control of the light output, while color filters and gobos can be easily inserted for customized lighting effects.
4. Durability and Reliability
High-Quality Materials: Constructed with durable materials to withstand the rigors of professional use.
Safety Features: Equipped with fuse protection and designed to be earthed for added safety.
5. Energy Efficiency
Energy-Saving: The 200W LED source provides bright lighting while consuming less energy compared to traditional lighting
solutions. Environmentally Friendly: Reduces carbon footprint and operational costs.
6. Flexible Connectivity
DMX512 Compatibility: Fully compatible with DMX512 protocols, allowing for seamless integration into larger lighting control
systems. Master-Slave Mode: Supports master-slave functionality for synchronized lighting effects across multiple units.
7. Compact and Lightweight
Portable Design: With a net weight of 12.8KG and dimensions of 305243765MM, the CX200 is easy to transport and set up.
Space-Saving: Ideal for environments with limited space, such as smaller theaters or studios.
8. Enhanced Functionality
Multi-Angle Beam: Beam angles ranging from 19° to 45° offer versatility in creating different lighting effects.
Stroboscopic Effects: Adjustable stroboscopic speed for dynamic lighting applications.
9. Comprehensive AccessoriesIncluded Accessories: Comes with a power cord, signal cords, power plug socket,
and instruction manual. Optional Accessories: Additional accessories like LOGO clamps, shrink apertures, light hooks,
and safety cables are available for purchase.
10. Suitable for Various Environments Indoor Use: Designed for indoor environments, ensuring stable performance under
various conditions. Wide Temperature Range: Operates within a temperature range of -40°C to +40°C, making it suitable
for diverse climatic conditions.
Unique Selling Points 1. Advanced Imaging TechnologyProvides sharp and focused light spots with clear LOGO imaging,
ideal for professional lighting applications.2. High-Density LED IntegrationOffers significantly increased illumination
intensity compared to previous generations, enhancing overall lighting performance.3. User-Friendly InterfaceFeatures an
intuitive menu system and manual focus adjustment for easy operation and precise light control.4. Versatile Color and Beam
OptionsSupports multiple color temperatures and beam angles, allowing for a wide range of lighting effects.
5. Energy-Efficient and DurableCombines energy-saving LED technology with durable construction, ensuring
long-lasting performance and reduced operational costs.
