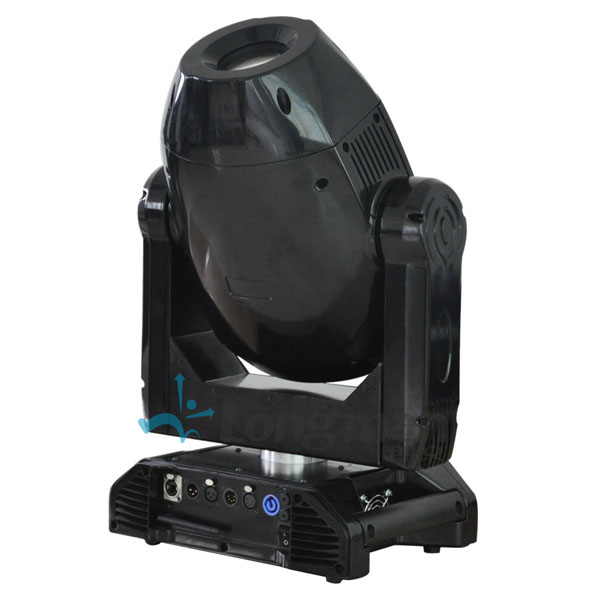

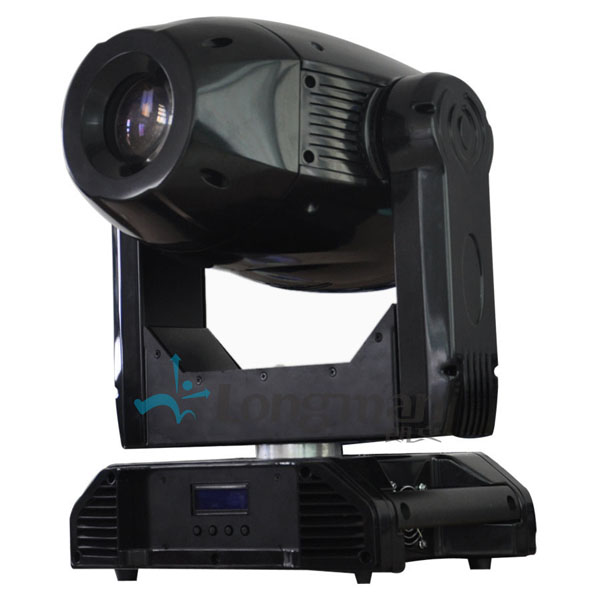

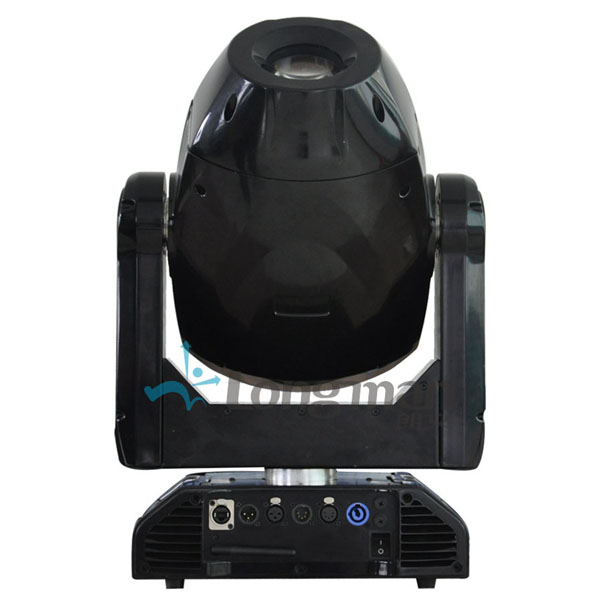

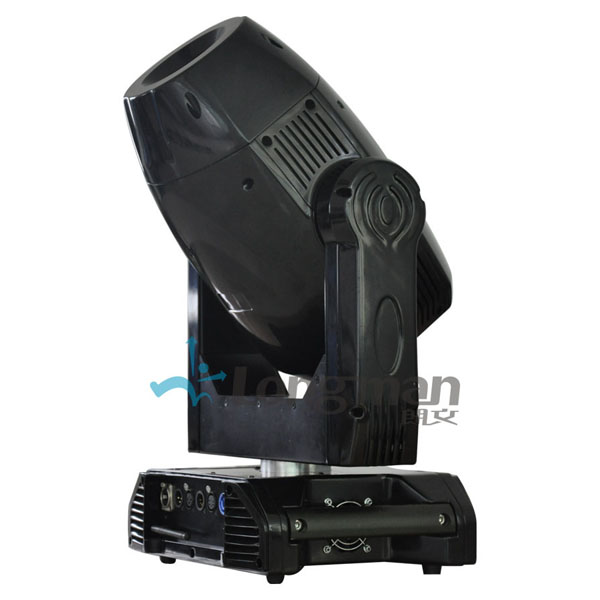

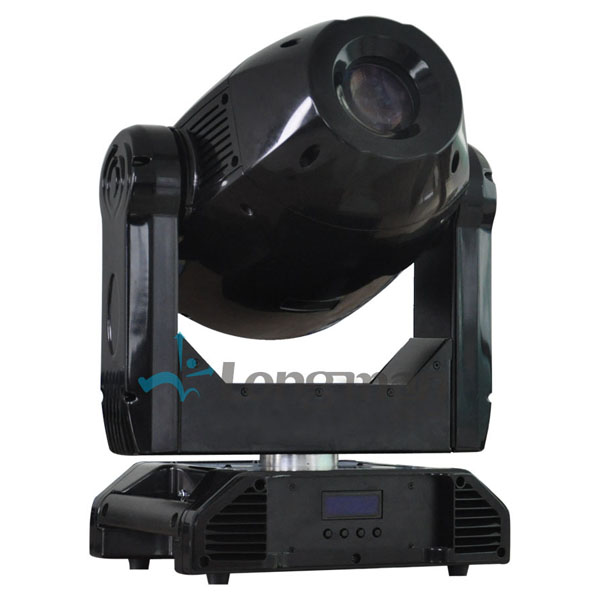

Loby M150 LED Moving Head GOBO Light

Brief description：
1. 150W white color LED
2. 7500 lumens output
3. 13 independent stepper motors
4. DMX-1990/DMX512A, standard 19 channel, 10 CH is a option

Size: 400*280*606.5 mm
Weight: 8.2kg

Inquiry

Pictures and video Specification User's document

Features:

Control: DMX-1990/DMX512A, standard 19 channel, channel 10 is optional.
LED display.
13 stepper motoes

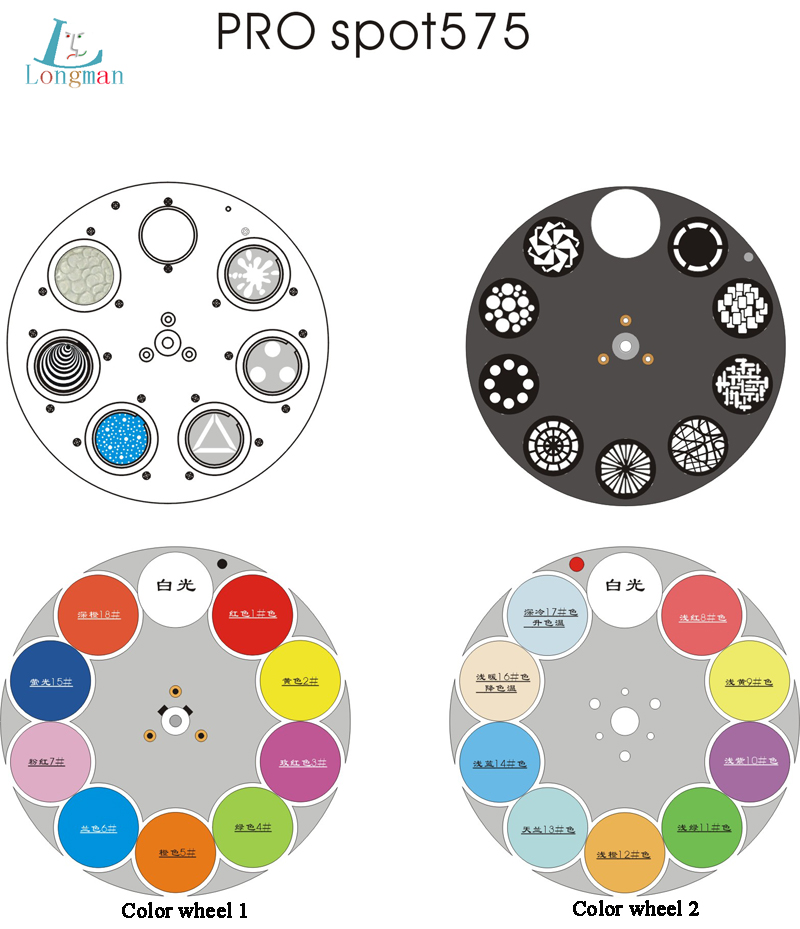

Two gobo wheels, one is fixed gobo wheel and the other is rotating gobo wheel, both include 7 gobos and one of them is empty for passing through white color.
Effect lens, one Prism plus one frosted lens.
Shutter: 0-20Hz.
Variable electronic dimmer (0-100%).
Focus: Variable motorized focus.
Pan: 540°/360°/180° (select from the menu), 8/16 bit movement resolution, automatic correction.
Tilt: 270°/180°/90° (select from the menu), 8/16 bit movement resolution, automatic correction.
Pre-programmed function include master and slave mode, activated by sound.

Specification:

Power Supply	AC 120V/230V 60/50Hz
Power Consumption	300W
Light Source	150W white color led, 7500 lm full output, standard white 6500K±150K, color rendering index> is 85
Beam Angle	Image optical zooming, from 15°to 35°, including spot and wash light beam
Connectors	Canon 3XLR/Canon 5XLR/LMDMXA1 wireless DMX 512/Built-in Artnet bidirectional board, compatible with all artistic license protocol
Brightness	20, 100Lux @ 1m – 17, 300Lux @ 1m
Size	L400W280H606.5mm
Net Weight	8.2Kg
Total Weight	10Kg
