Power
- Input Voltage: AC 100–240V, 47–63Hz | PF: >0.9
- Output Voltage: DC24V | Power Supply Lifespan: 15, 000 hours
- Rated Power: 760W (Typical 726W @220V/50Hz) | Max Power: 880W
- Fixture Efficiency: >0.7 | Luminous Efficacy: >31.4 lm/W
Optics
- Light Source: 19 × 40W Ostar RGBW 4in1 LEDs (1A drive, 19 pixels) | Total Output: 23, 860 lumens (>20, 000 lm)
- Color Spectrum: R=625nm, G=525nm, B=460nm, W=6500K | SDCM: <0.005
- Lens System: 19-lens array with individual pixel control
- Zoom Range: 5°–45° | Beam Angle: 9° (min, with haze) to 25° (50% beam overlap without haze)
- Light Intensity:
- 9°: 1, 524, 000 cd (15, 238 lux @10m)
- 27°: 157, 400 cd
- 45°: 54, 810 cd
Effects & Control
- Modes: Beam, Wash, FX (Kaleidoscope), Digital Wash-Beam Framing, Beam Edge Softening, Pixel Patterning Macros
- Color Control:
- Full RGBW mixing | White CT Emulation: 2500K–8000K
- Tungsten Lamp Emulation | Automatic RGBW adjustment for CT matching
- Front Lens: Bidirectional rotating lens for dynamic effects
- Strobe: 0–20Hz with macro sync | Dimming: 32-bit precision, smooth fade (PWM >1500Hz, flicker-free for cameras)
Movement & Mechanics
- Pan/Tilt: 540° horizontal / 205° vertical (16-bit precision)
- Zoom Mechanism: SMS light-guide + aspheric PMMA lens for linear mechanical zoom
- Frost Effect: Stepless motor-driven beam diffusion for 19 independent RGBW beams
Display & Interface
- LCD Screen: 180° rotatable, auto-off after 2 minutes
- Control Modes: Standalone, Sound-Activated, Master/Slave, DMX1990, DMX512A
- DMX Channels: 21 standard (22/35/36 optional) | Protocol: WH/T 32—2008 DMX512-A
Thermal & Build

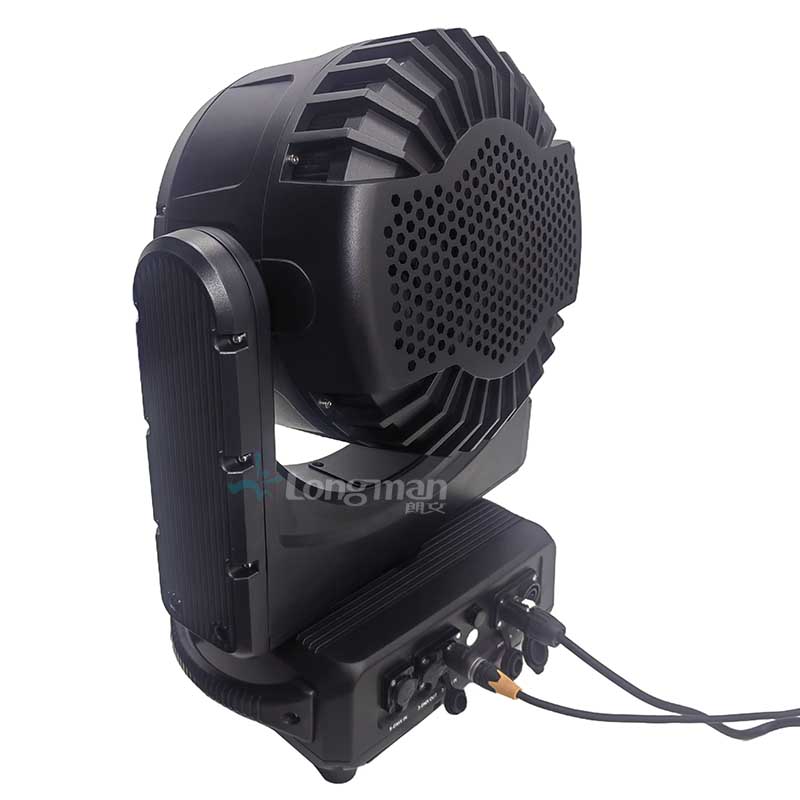

- Cooling: Aluminum fins + low-noise fans | Max Surface Temp: 90°C (194°F)
- Housing: ABS + QR235 steel, matte black | Mounting: Bow bracket + quick-release screws
- Soldering: 180°C low-temp reflow | PCB Lifespan: 15, 000+ hours
Safety & Certifications
- IP Rating: IP65 (water/dustproof) | Fire Rating: V-1
- Electrical Safety: Class I | Insulation: >2MΩ | Surge Protection: 1.5KV
- Certifications: CE, RoHS, CQC, UL60950, UL8750
Environmental
- Operating Temp: -20°C to +45°C (-4°F to 113°F) | PCB Temp Limit: 80°C (NTC protection)
Dimensions & Weight

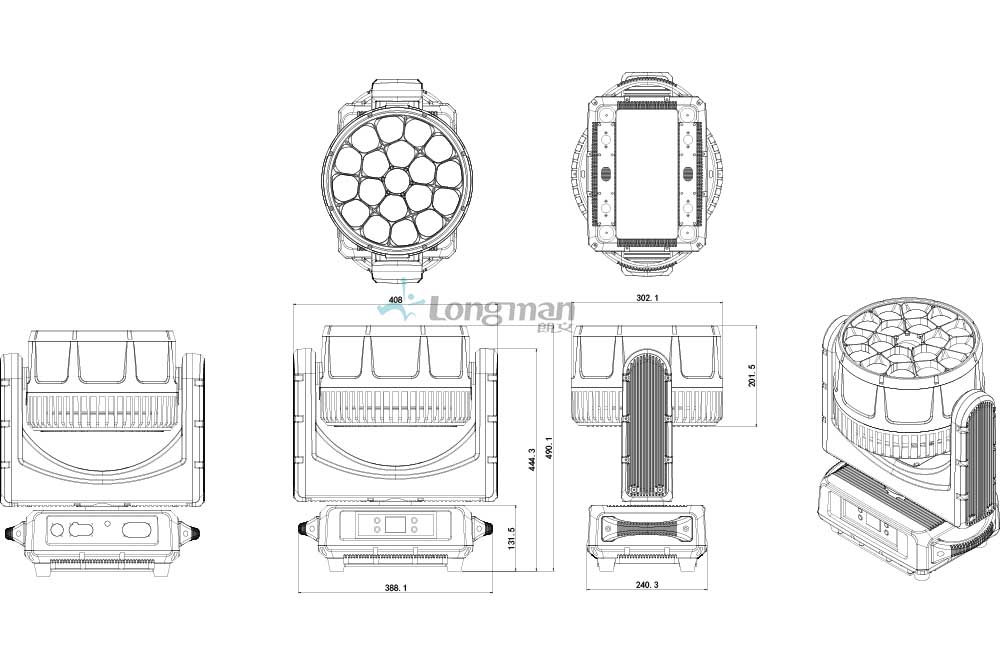

- Size: 408 × 302 × 490mm | Net Weight: 22.6kg
- Connectors: Waterproof power input | 3/5-pin XLR signal optional
Included Accessories
User Manual, Power Cable, Signal Cable, Omega Clamps
Optional Accessories
Lamp Hooks, Safety Wire
Introduction:

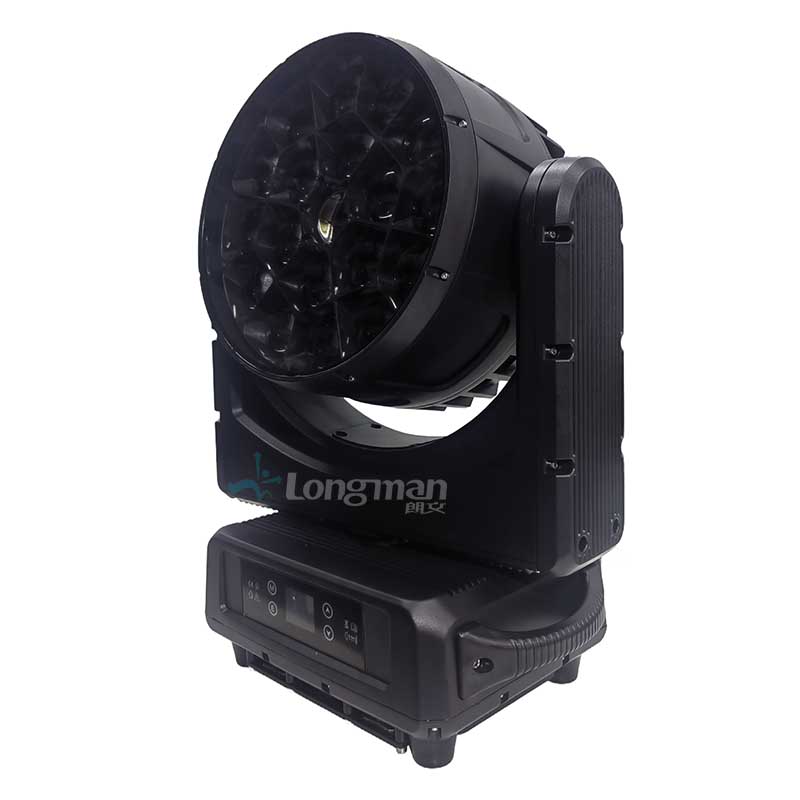

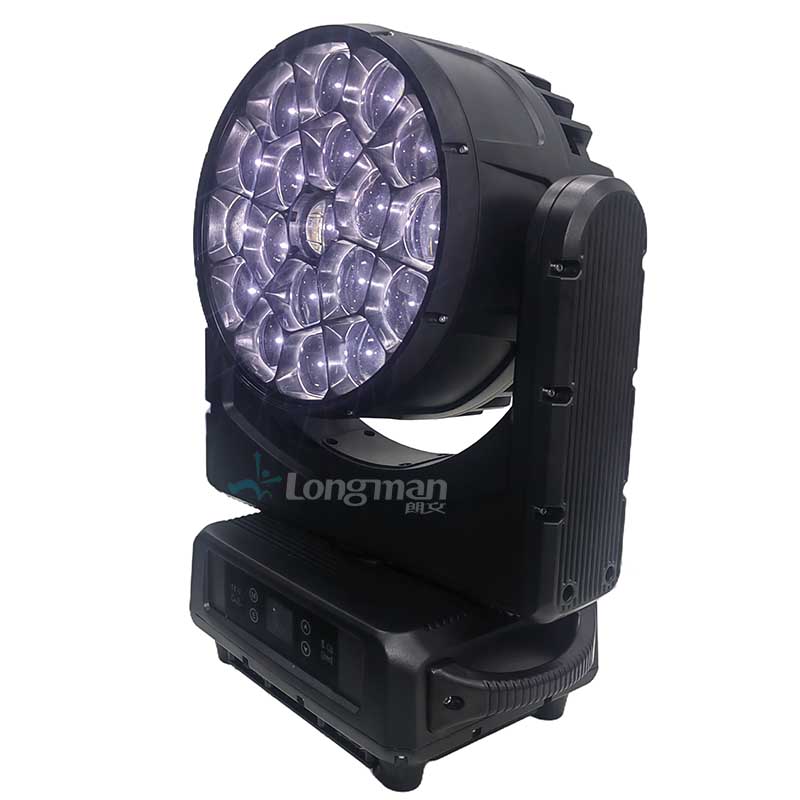

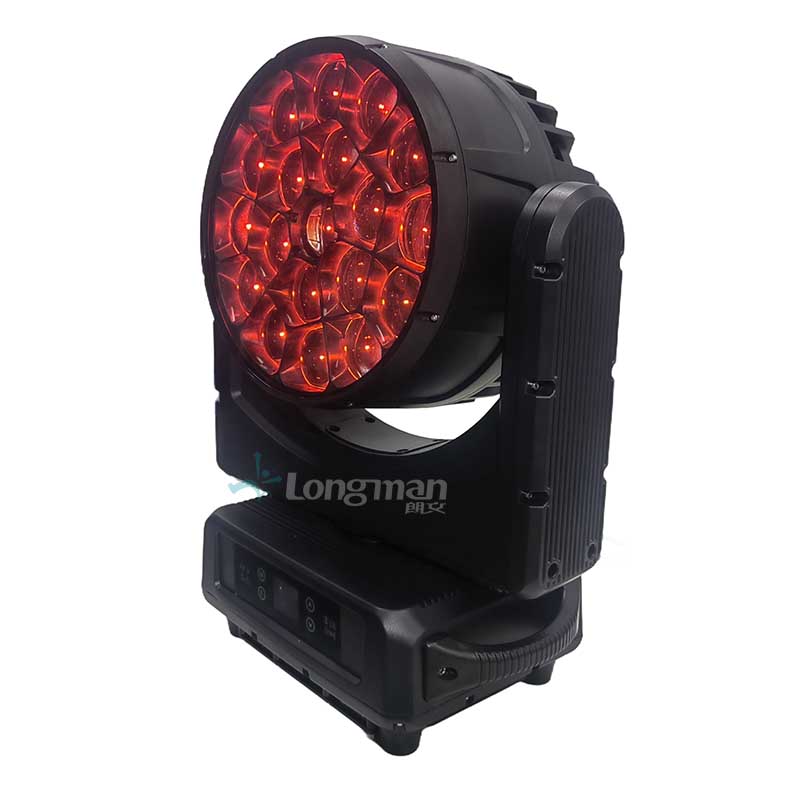

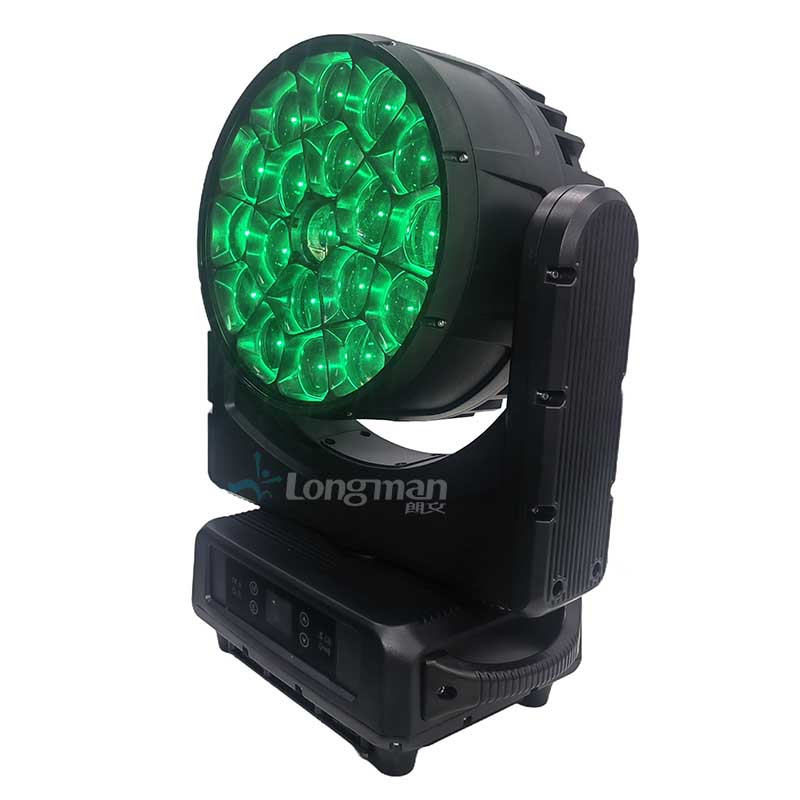

Longman Lorentz Transform 1000 IP: The Ultimate Zoom Moving Head Wash Light for Indoor/Outdoor Brilliance
The
Longman Lorentz Transform 1000 IP redefines stage lighting excellence as a
waterproof zoom LED moving light engineered to dominate both indoor spectacles and outdoor mega-events. Combining groundbreaking brightness, precision zoom, and IP65-rated durability, this fixture is trusted by leading lighting designers, rental companies, and event planners worldwide.
Key Innovations
- 23, 860 Lumens of RGBW Power: 19 × 40W Ostar LEDs deliver unmatched brightness, perfect for stadiums, festivals, or architectural lighting.
- 5°–45° Mechanical Zoom: Seamlessly transition from laser-sharp 9° beams to expansive 45° washes using SMS light-guide technology.

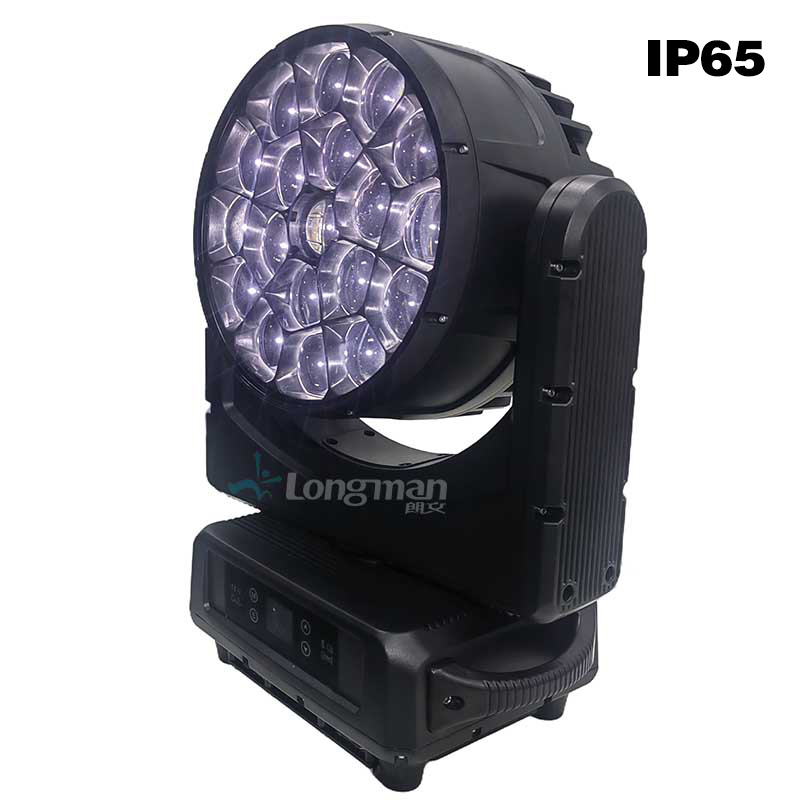

- IP65 Weatherproof Design: Built to withstand rain, dust, and extreme temperatures for year-round outdoor reliability.

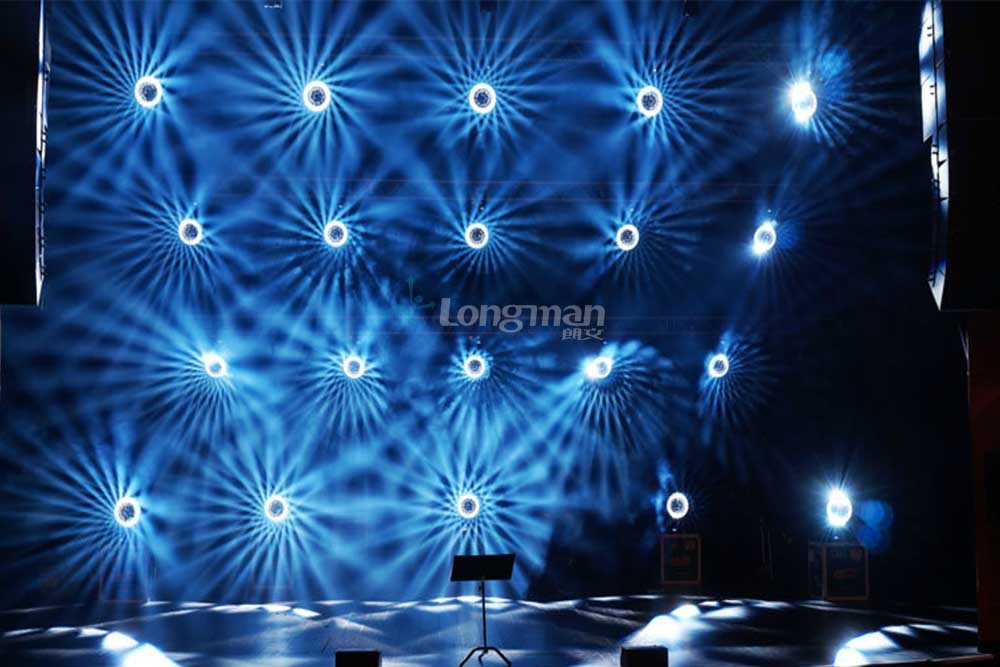

- Pixel-Level Control: Individually addressable 19-LED array for B-Eye effect moving head light patterns, kaleidoscope FX, and dynamic macros.
- Advanced Color Mastery: Full RGBW mixing, CT emulation (2500K–8000K), and tungsten lamp simulation for cinematic accuracy.
Pro-Grade Performance
- 540° Pan / 205° Tilt: 16-bit precision movement with auto-correcting positioning.
- 32-Bit Dimming & 20Hz Strobe: Butter-smooth fades (PWM >1500Hz) and high-energy strobes sync to music or DMX cues.
- Dual Frost Effects: Stepless motor-driven diffusion creates 19 independent RGBW beams or soft washes.
- DMX512A/RDM Control: 21 standard channels (expandable to 36) for seamless integration with industry consoles.
Built for the Rigors of Touring
- 15, 000-Hour Lifespan: Low-maintenance design with rugged ABS/steel housing and quick-release mounting.
- Silent Cooling: Aluminum fins + quiet fans ensure overheating never disrupts performances.
- Global Certifications: CE, RoHS, UL, and CQC certified for safety and reliability.
Why Professionals Choose the Lorentz Transform 1000 IP

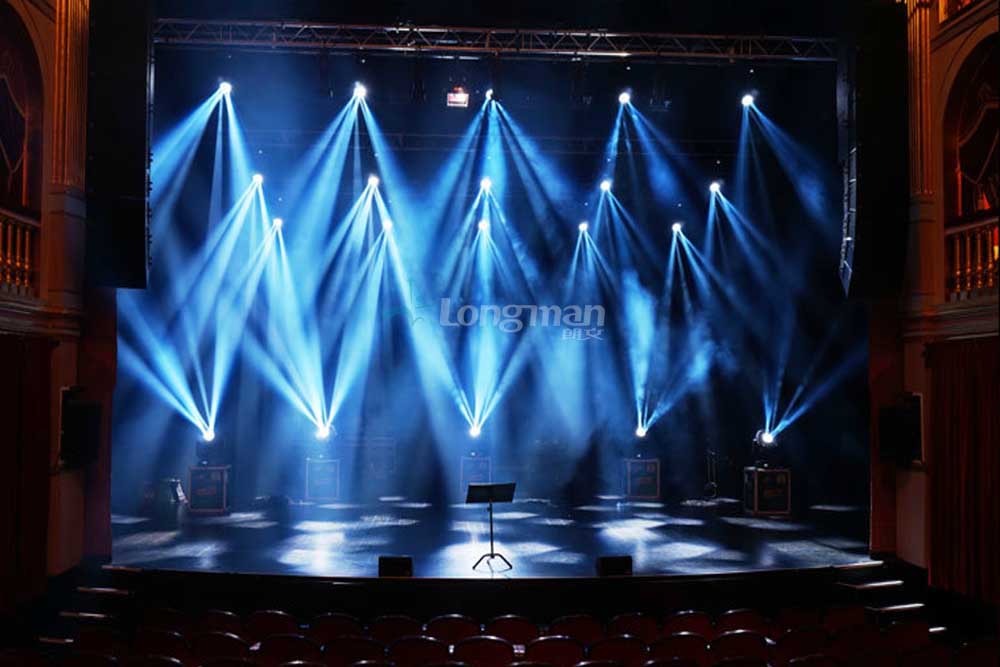

From concert tours to theater productions, this
zoom moving head wash light IP excels as:
- A Rental Workhorse: Durable, energy-efficient (760W), and easy to rig.
- A Creative Powerhouse: Pixel mapping, rotating lenses, and digital framing unlock limitless designs.

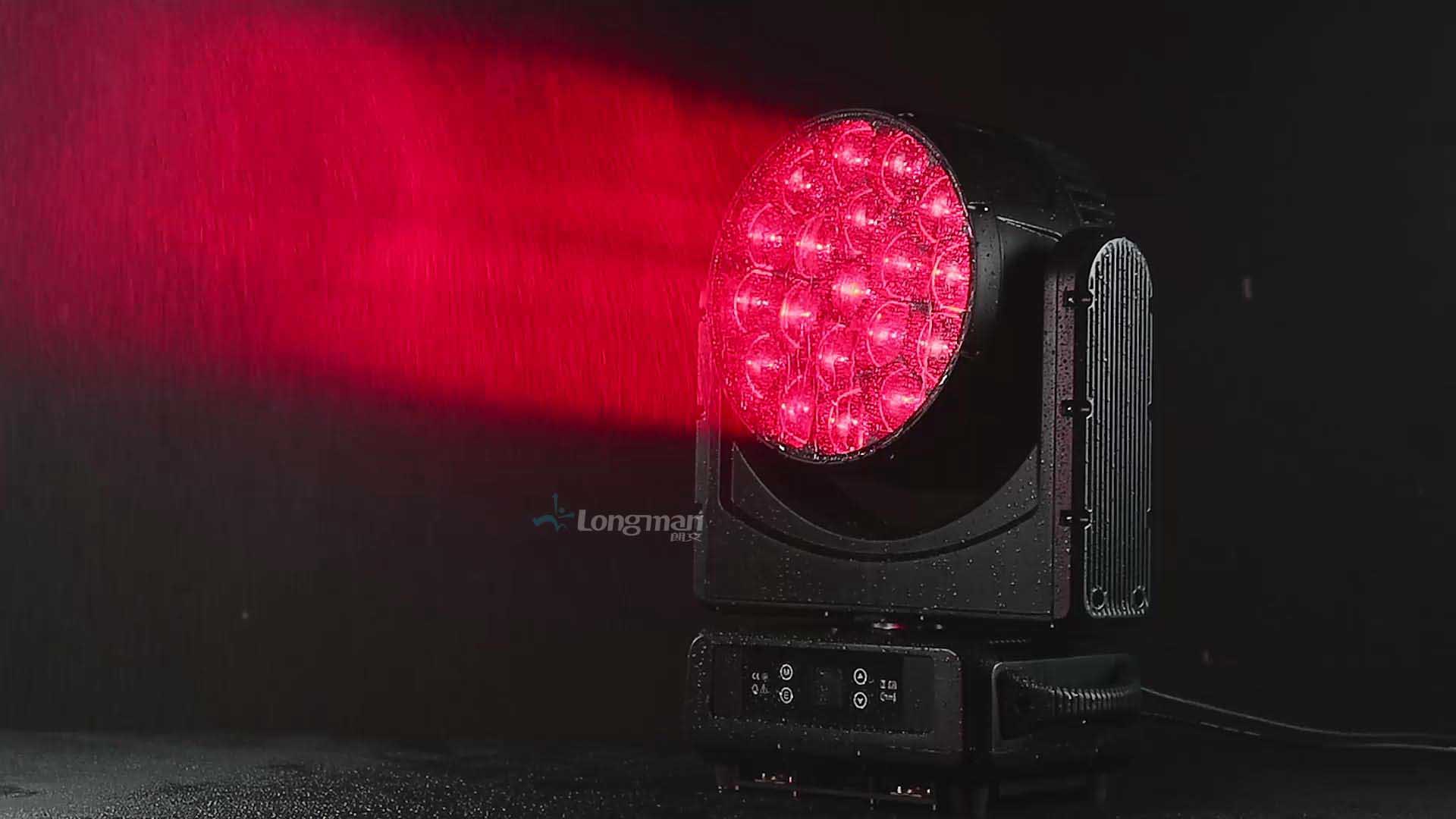

- An Outdoor Warrior: IP65 protection ensures flawless operation in monsoons or desert heat.
Trusted By
Lighting designers, concert producers, event planners, and venues worldwide rely on Longman’s
moving head LED light with zoom to elevate shows with intensity, versatility, and reliability.
Technical Highlights
- Input: 100–240V AC | Weight: 22.6kg (compact for touring).
- Beam Intensity: 1, 524, 000 cd (15, 238 lux @10m in 9° mode).
- Included: Power/signal cables, omega clamps, manual.
