Rate voltage: AC100V~240V，50-60HZ Rate
Power consumption: 380W
LED source : 250w White LED and 3 rings with 135 x 0.3W LEDs
LED color temperature: 8000K
Zoom range: 6°-28°
DMX channel mode: 26CH/35CH
3 kinds of control model:DMX512、、Sound、 Master/Slave
DMX , RDM Protocol Support . 2.4inch color display screen
Display screen can be 180° Reversible to fit the installation in different place
Indoor operation temperature:-20°C~40°C Dimmer:0-100% and 16bit dimming
Pan/Tilt:16bit pan/tilt fine
Smooth and accurate locating
Pan:540°, Tilt:270° rotating

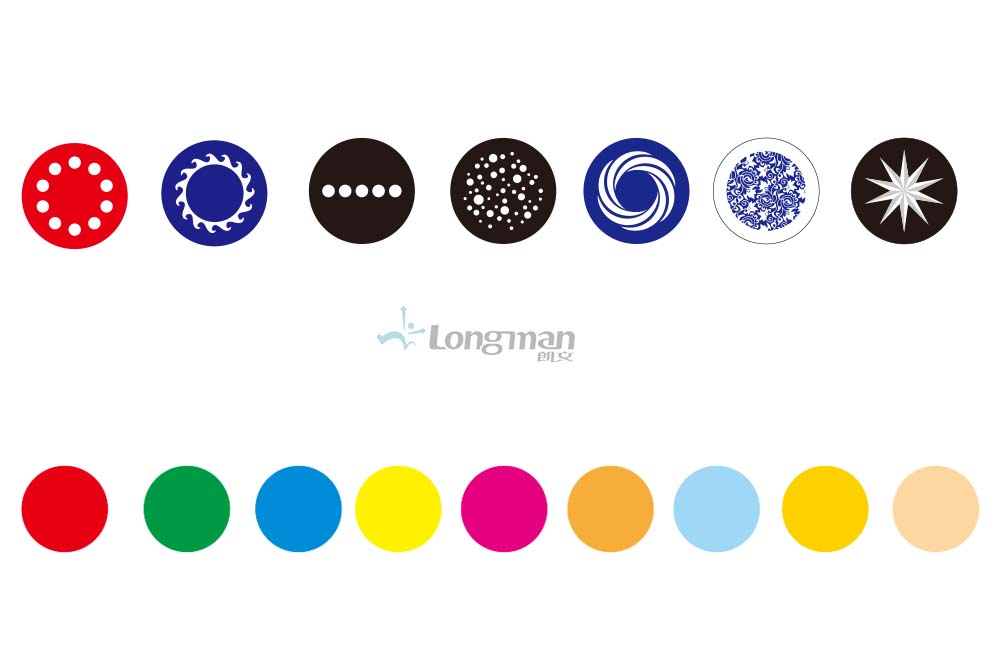

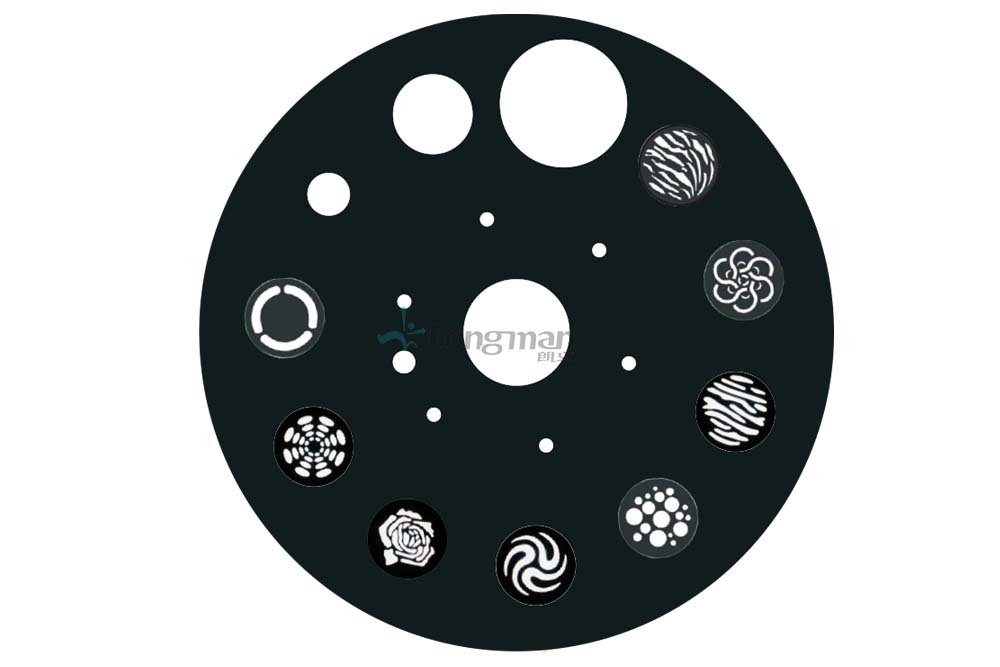

Static gobo wheel:9Gobo+Open and gobo shake , gobo continue bi-directional rotating
rotating gobo wheel : 7 gobo + open , and gobo shake , gobo continue bi-directional rotating
Color wheel:9 colors + Open，Split Color ,
continue bi-directional rotating
0-20HZ strobe、pulse strobe、oblique ascension strobe、oblique fall strobe、random strobe、 5-1s l strobe break effect
Frost filter for wash effect
Prism:8 facet and 6-faced linear facet rotatable prisms fan cooling(fan speed up as per temperature change)

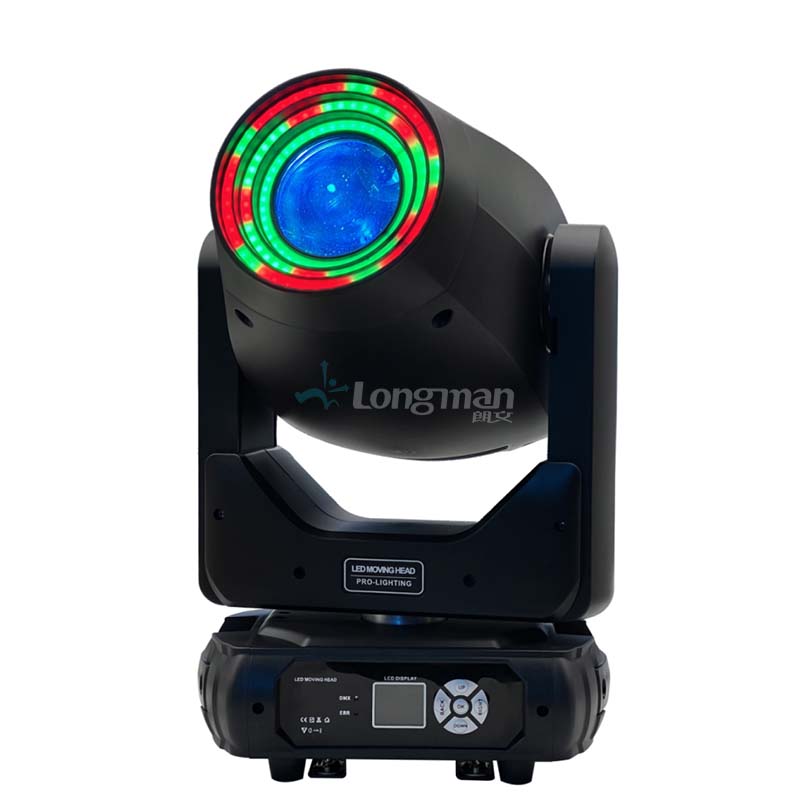

Fugue Hq600 – Professional 3-in-1 LED Moving Head Beam Spot Wash Light with 3D LED Ring Effects
Introducing the
Fugue Hq600, a cutting-edge
LED moving head light designed for high-impact stage lighting, events, concerts, and installations. This hybrid
beam spot wash moving head fixture combines power, precision, and stunning visual effects in one rugged unit.
Powered by a
250W white LED and
135pcs 0.3W RGB LEDs across three independent LED rings, the Fugue Hq600 delivers exceptional brightness, color depth, and dynamic movement. Its wide
zoom range of 6°–28° makes it versatile for tight beams or broader wash coverage, while advanced optics and dual gobo wheels allow for complex projection effects.
Key Features:
- Light Source: 250W White LED + 135×0.3W RGB LEDs (LED ring effect)
- Color Temperature: 8000K
- Beam Angle / Zoom: 6° to 28°, electronically adjustable
- DMX Channels: 26CH / 35CH selectable
- Control Modes: DMX512, RDM Protocol, Sound-Activated, Master/Slave
- Pan/Tilt Movement: 540° pan / 270° tilt with 16-bit precision

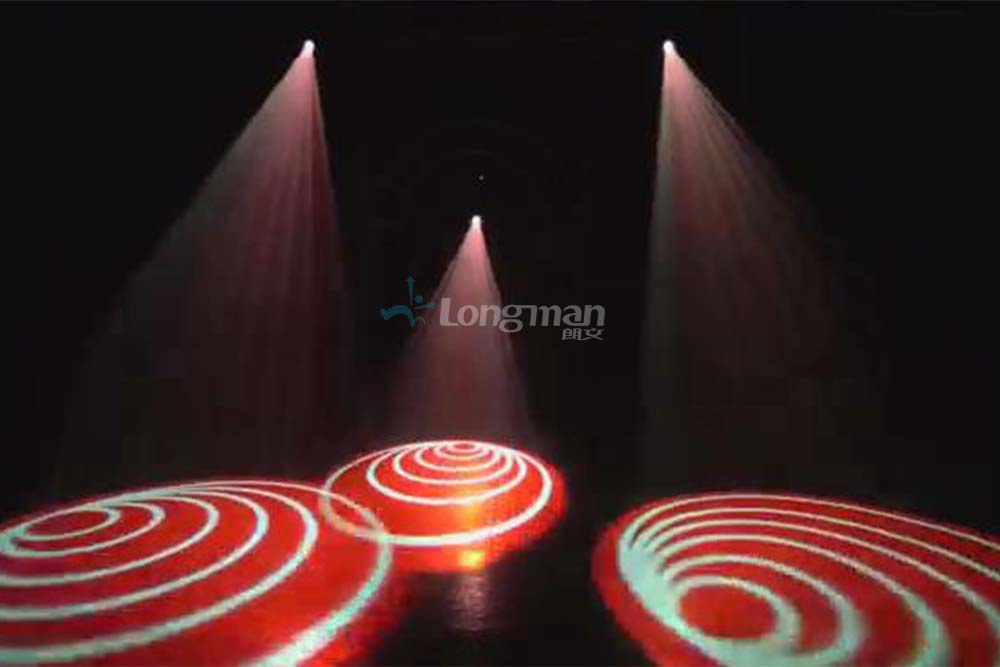

- Gobo System:
- 1 Rotating Gobo Wheel (7 gobos + open, shake & bi-directional rotation)
- 1 Static Gobo Wheel (9 gobos + open, shake & rotation)
- Color Wheel: 9 colors + open, split color, bi-directional scrolling
- Prisms: 8-facet and 6-facet linear rotating prisms
- Strobe Effects: 0–20Hz with multiple modes (random, pulse, oblique, break effects)
- Frost Filter for smooth wash

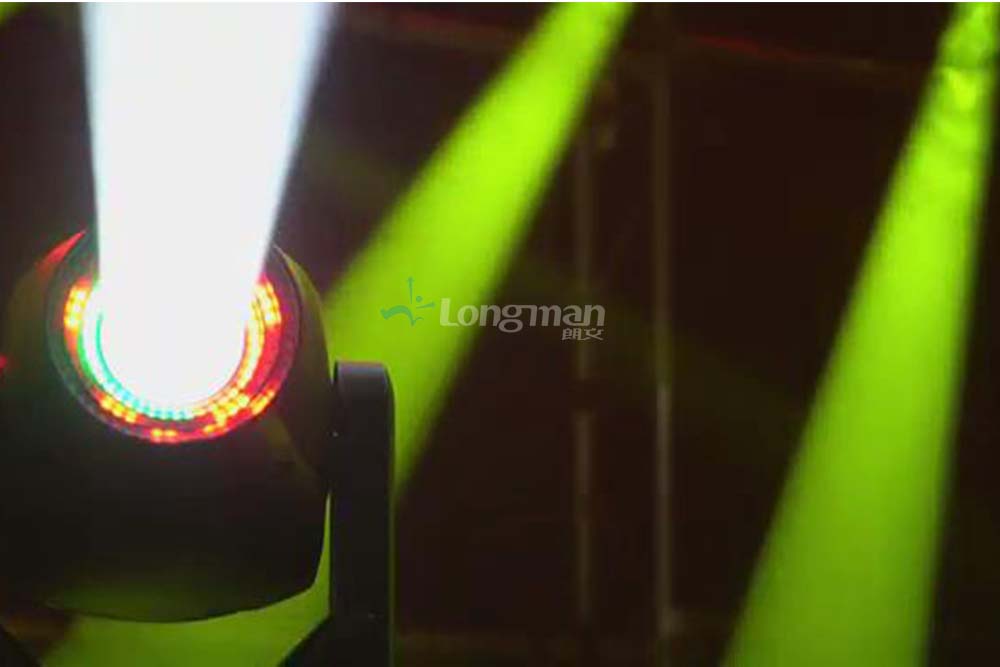

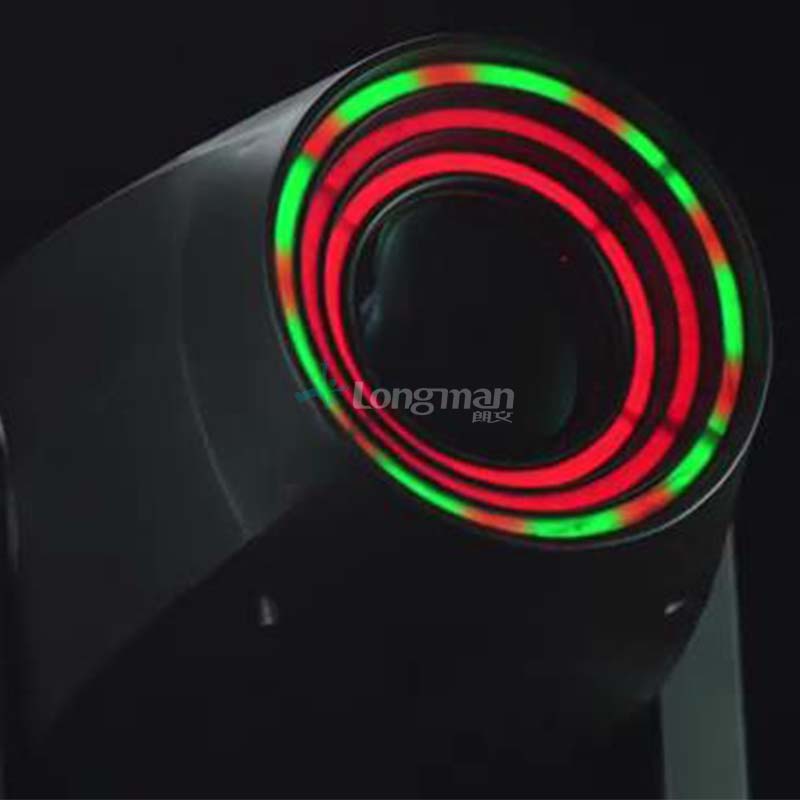

- LED Ring Effects: 3 RGB rings for 3D layered effects
- Display: 2.4" color LCD screen, 180° reversible for flexible mounting
- Cooling: Intelligent fan speed control based on internal temperature
- Operating Temp: -20°C to +40°C
- Power: 380W / AC 100–240V, 50–60Hz
Why Choose Fugue Hq600?
- Hybrid 3-in-1 fixture: Beam + Spot + Wash
- 3D LED ring effects for eye-catching visual depth
- Smooth motorized movement with high precision
- RDM-compatible and flexible control options
- Durable for touring, shows, theaters, and club use
