Foresight 400IP-waterproof profile- framing system – CMY CTO










• Voltage: AC 100–240V, 50/60Hz
• Power Consumption: 600W
• Light Source: High-power 400W white LED
• Lifespan: 20, 000 hours
• Color Temperature: 7000K
• CRI: ≥72 / ≥90 (dual modes)
• Color Wheel:
  • Smooth CMY + CTO mixing system
  • 7 fixed color filters + white light
  • Half-color effect, customizable positioning
  • Bidirectional rotating rainbow effect
• Rotating Gobo Wheel:
  • 7 slot-in rotating gobos + white circle
  • Gobo shake and random positioning
• Fixed Gobo Wheel:
  • 7 fixed patterns + white circle
  • Gobo shake effect
• Prism Wheel: Rotating 4- or 8-facet prism (bidirectional)
• Framing Shutter System:
  • 4-blade shutter for fast, smooth cutting
  • 8 adjustable angles/directions
• Zoom: 6°–50° linear zoom
• Focus: Ultra-smooth electronic micro-adjustment
• Iris: 5%–100% smooth adjustment
• Strobe: Up to 25Hz with random/pulse modes
• Dimmer: 0–100% linear dimming
• Frost: Linear frost effect
• Operating Modes: Standalone, sound-activated, master/slave, DMX512
• Channels: 32 international standard DMX512 channels
• Display: Color LCD with RDM support
• Cooling: Silent fans + copper pipe/fin heat dissipation
• IP Rating: IP65 (weatherproof)

Introduction:

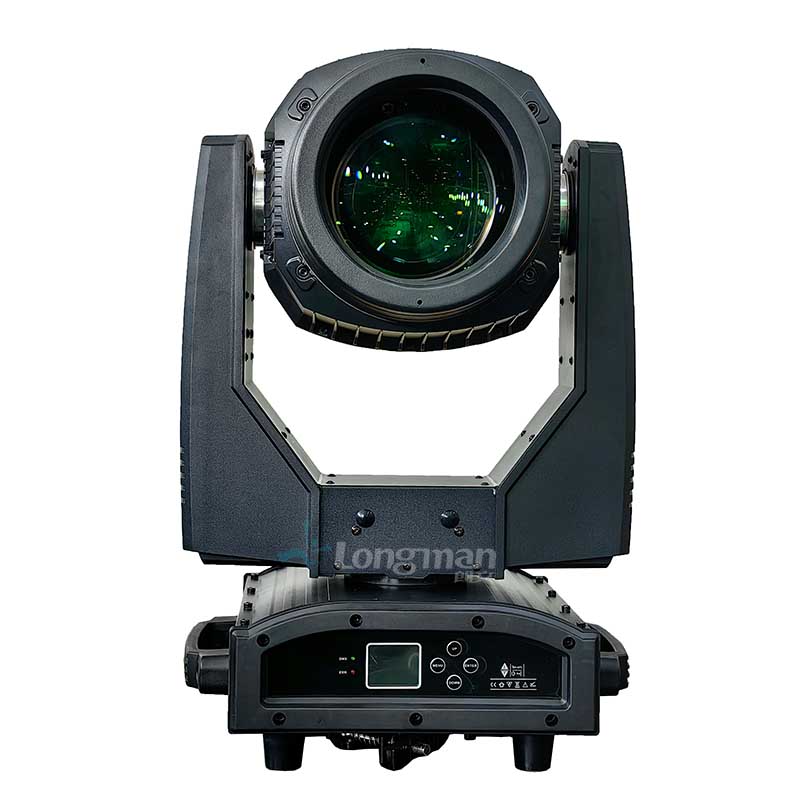

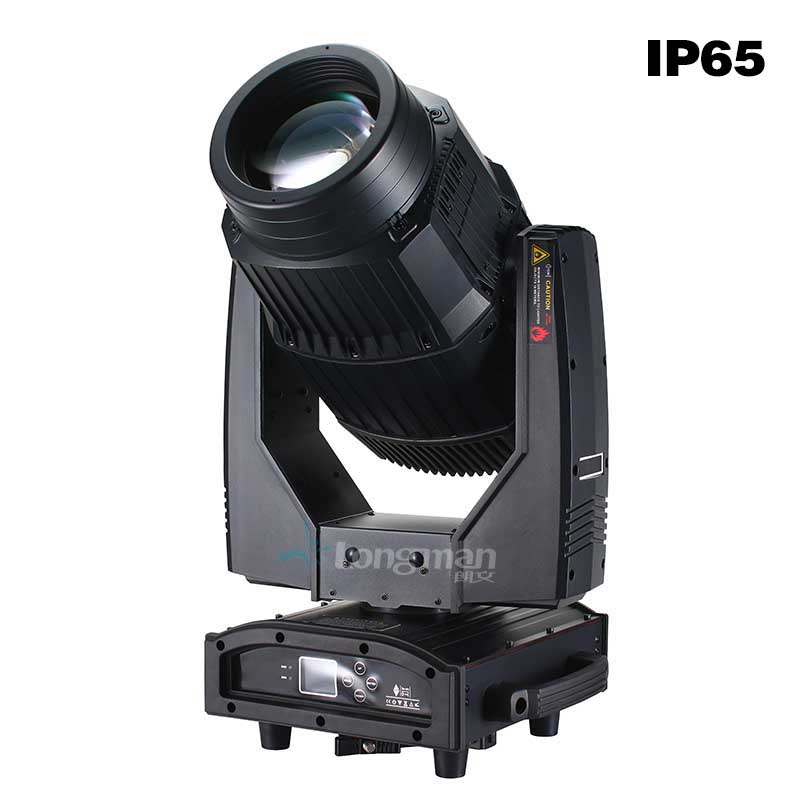

Longman Foresight 400IP: The Ultimate Moving Head Profile Light for Uncompromised Stage Excellence
The Longman Foresight 400IP stands at the forefront of stage lighting innovation, merging cutting-edge technology with rugged reliability to redefine what a moving head light with framing shutter can achieve. Designed for both grand stadium spectacles and intimate theatrical performances, this IP65-rated powerhouse delivers precision, versatility, and durability, making it a top choice for lighting professionals worldwide. Unmatched Brightness and Clarity
At its core, the Foresight 400IP boasts a 400W high-output white LED that generates an astounding 17, 000+ lumens of crisp, 7000K light. This ensures vibrant gobo projections and razor-sharp beam definition, even in expansive outdoor venues or under challenging lighting conditions. With a CRI of ≥72/90, it reproduces colors with remarkable accuracy, making it ideal for broadcast environments, live concerts, and theatrical productions where color fidelity is non-negotiable. Precision Framing and Beam Control
The fixture’s 4-blade framing shutter system sets a new standard for creative flexibility. Each blade operates independently, allowing designers to shape beams across eight adjustable angles or create soft-edge transitions for seamless scene transitions. Whether framing a solo artist, projecting architectural accents, or crafting geometric patterns, the system’s surgical precision empowers limitless design possibilities.
Complementing the framing system is a 6°–50° linear zoom, enabling rapid adjustments from narrow spotlights to sweeping washes without sacrificing brightness. Paired with ultra-smooth electronic focus control, the Foresight 400IP ensures every projection remains sharp, whether illuminating a stage backdrop or a distant audience. Advanced Color and Effect Capabilities

• Full CMY Color Mixing: Seamlessly blend subtle pastels or bold, saturated hues for dynamic mood shifts.
• CTO Color Temperature Control (2800K–6800K): Match ambient lighting or transition from warm candlelight to cool daylight in seconds.
• Dual Gobo Wheels: Combine 7 rotating gobos (with shake and positioning effects) and 7 fixed patterns (including abstract and water effects) for layered visual storytelling.
• 4/8-Facet Rotating Prisms: Add depth and texture to beams, transforming simple projections into multidimensional displays.

Built for the Rigors of Live Performance
The Foresight 400IP’s IP65 waterproof rating ensures unwavering performance in rain, dust, or extreme temperatures, making it a standout choice for permanent outdoor installations or touring rigs. Its compact, modular design prioritizes ease of use:

• Quick-Swap Effects Modules: Replace gobos, prisms, or filters in under a minute, minimizing downtime during live events.
• Silent Cooling System: Copper heat pipes and low-noise fans prevent overheating without disrupting performances.
• Tour-Ready Durability: A lightweight yet robust chassis withstands the demands of frequent transport and rigging.

Smart Integration and Control

• 32-Channel DMX512/RDM Compatibility: Integrate seamlessly with industry-standard lighting consoles for pixel-perfect control.
• Sound-Activated Mode: Sync strobes, color changes, or gobo rotations to live music or ambient audio cues.
• 25Hz Ultra-Fast Strobe: Create pulse-pounding effects with adjustable random, pulse, or linear strobe modes.
• Linear Dimming and Frost: Achieve smooth transitions from 0–100% intensity or soften beams for atmospheric washes.

Trusted by Industry Leaders
The Foresight 400IP has earned acclaim across the entertainment industry:

• Lighting Designers: Leverage its framing shutters and gobo precision to isolate performers or build immersive environments.
• Rental Companies: Offer clients a cost-efficient, high-output solution with minimal maintenance.
• Event Planners: Elevate corporate events, festivals, or weddings with dynamic, weatherproof lighting.
• Theaters and Concert Halls: Utilize its studio-grade color accuracy for nuanced scene transitions or dramatic reveals.

Technical Specifications

• Voltage: AC 100–240V, 50/60Hz
• Power Consumption: 600W
• Lifespan: 20, 000 hours
• Optics: 6°–50° zoom, 5%–100% iris adjustment
• Pan/Tilt: 540° horizontal, 270° vertical (16-bit precision)
• Display: Full-color LCD with RDM support
• Weight: Optimized for portability with IP65-rated construction

Why Choose the Foresight 400IP?
As an intelligent moving head with gobo cutting, the Foresight 400IP transcends traditional stage lighting. It bridges the gap between the raw power of a moving head beam light with framing system and the meticulous control of a framing moving head light, offering unmatched adaptability for modern productions. Whether projecting intricate gobos under a starry sky or weathering a storm during an outdoor festival, it empowers creatives to push boundaries without compromise.
Explore the future of stage lighting with Longman—where innovation meets reliability.
