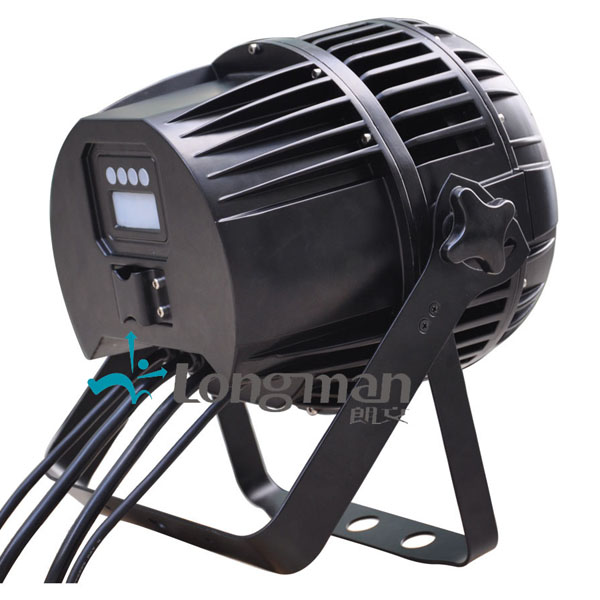

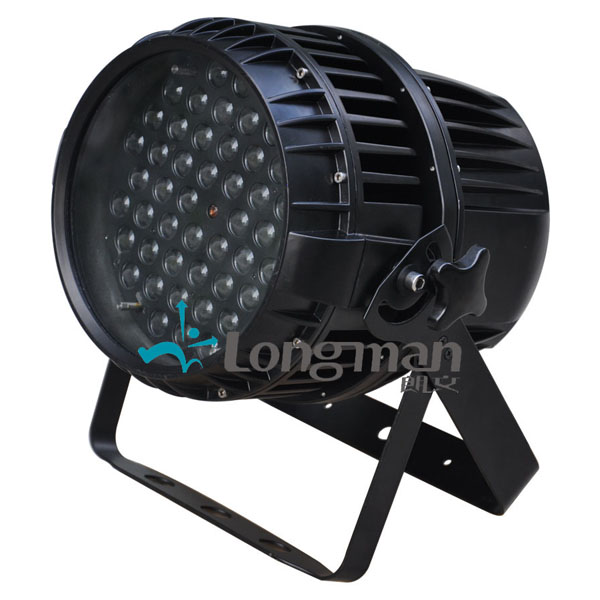

Parco Zoom 543 Outdoor Zoom LED Par Light

Parco Zoom 543 Outdoor Zoom LED Par Light

Brief description:
1. 54pcs*3W RGBW zoom LED
2. 4890 lumens output
3. Stepper motor DMX control linear zooming
4. SMT and low temperature reflow soldering technology

Size: 260*328*370 mm
Weight: 10KG

Inquiry

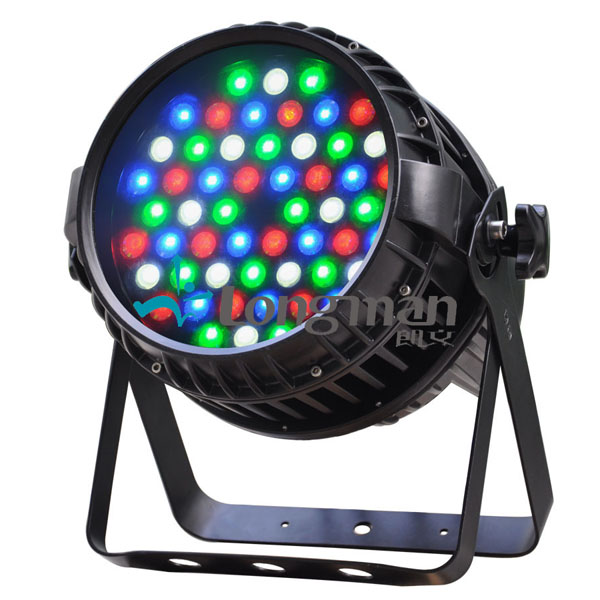

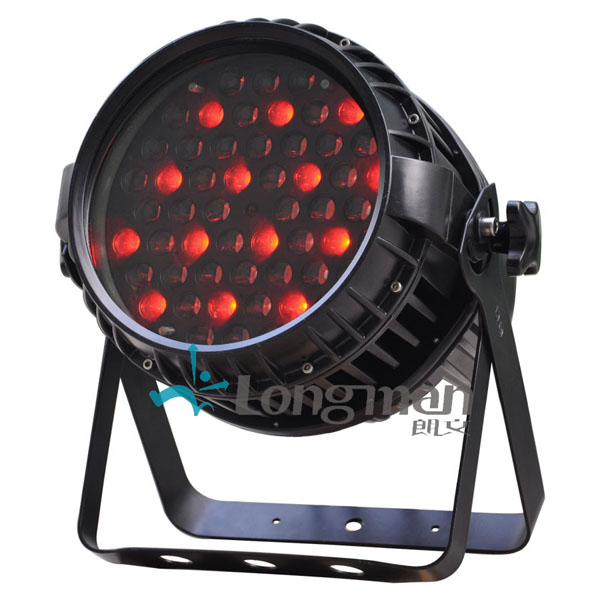

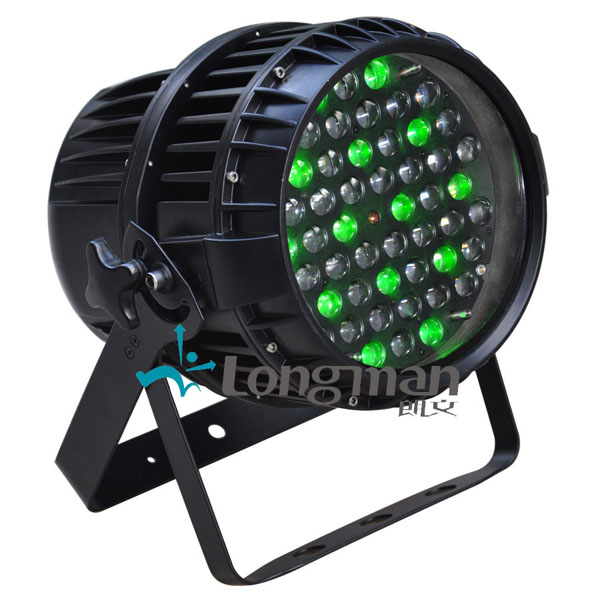

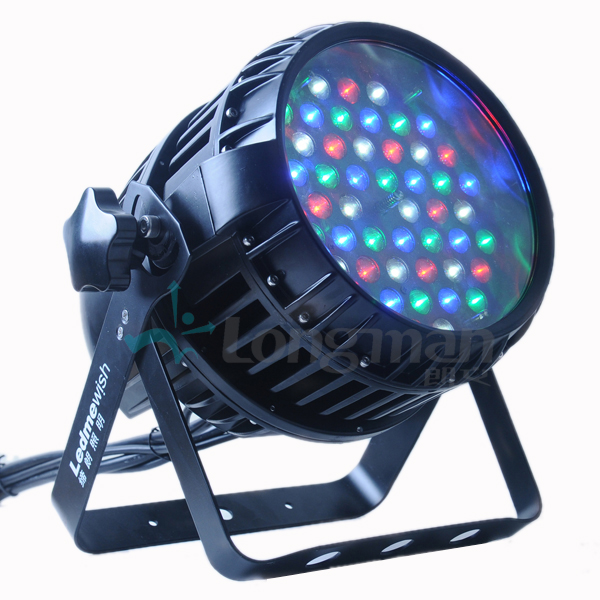

Parco Zoom 543 led par light real effect
Features:
  • Each color has LED dimming up to 16666. RGB can be mixed more than 16.7 million kinds of colors which can produce large amount of lighting effects.
  • Stepper motor DMX control linear zooming, field Angle 10-52°, suit for installations at higher place of buildings.
  • 4890 lumens output, even color mixing, SDC<0.005, high efficiency light output 90% lumens within 10% intensity at 52°.
  • Using SMT and low temperature reflow soldering technology, heat dissipation is fine.
  • DMX512 signal control, 4 buttons address setting for LED screen.
  • Dim 4 Square law smooth dimming for 0-100%, video flicker free, with inbuilt strobe/gradual change/color jump programs.
  • Each LED electronic circuits is 620mA and uses PWM dimming.
  • NTC temperature control system inside, intelligently reduce the power output when LED working temperature is overheat.
  • Field Angle standard 30°, could choose other angles, and frosted piece, 60*1° third optical piece.
  • Strong die cast lamp housing, more than 15000 hrs longevity of motherboard and power switch.

Specification:
Input Voltage AC 90-240V 47-63Hz, PF>0.9
Output Voltage DC32V, SMPS longevity 15000 hours
Rated Power 160W (133W 220V 50Hz)
Luminaire Efficiency >0.9, light efficacy >30 lm/W
LED Lumens 54pcs*3W RGBW mixing, 700mA current, full load 4890 lumens
LED Color Red is 625nm(12), Green is 525nm(14), Blue is 460nm(14), White is 6000K(14)
Field Angle(10%) Min8 °, Max52°, adjustable medium angles
Control Signal DMX512, 32 bit Dim 4 square law dimming, smooth in low DMX value dimming, no vision shock
Control Mode DMX1990/DMX512A/stand alone/master and slave
Chanel Option Standard 9, 3/4/5/8/CH
PWM Frequency PWM>400Hz(16666), video flicker free
Housing Material Die cast aluminum ADC12, standard matte black, customized glossy white painting, barn door available.
Cables Power=3C 2.5mm2 VDE cable, signal=3C 0.75mm2, shielded cable
Operate Temperature -20~+45℃, light board peak temperature 80℃, intelligent control
Safety Appliance Class II, flammability rating UL 94 V-1, IP code IP65
Certificate Product passes CE, RoHS, SMPS pass CQC or UL60950, UL8750
Weight 10KG, with two yokes, 3mm thick supporting bracket
Size 260*328*370 mm
> Parco Zoom 543-FA28 Download
