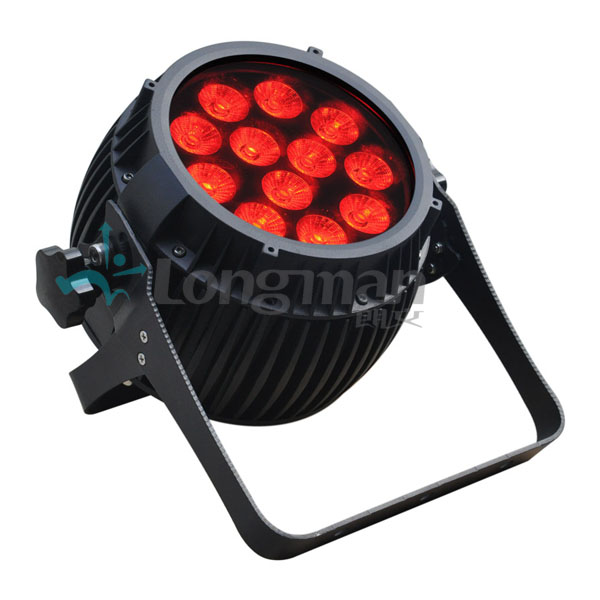

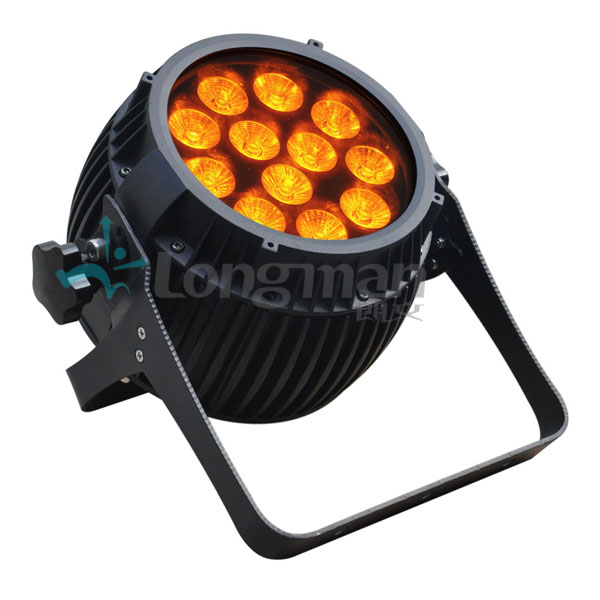

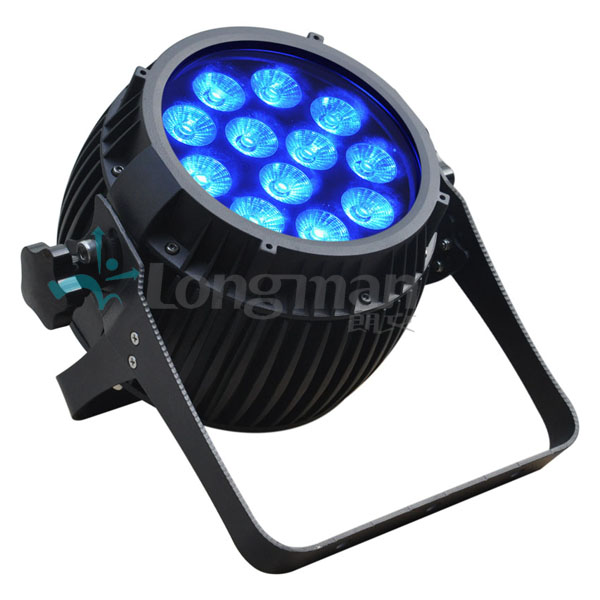

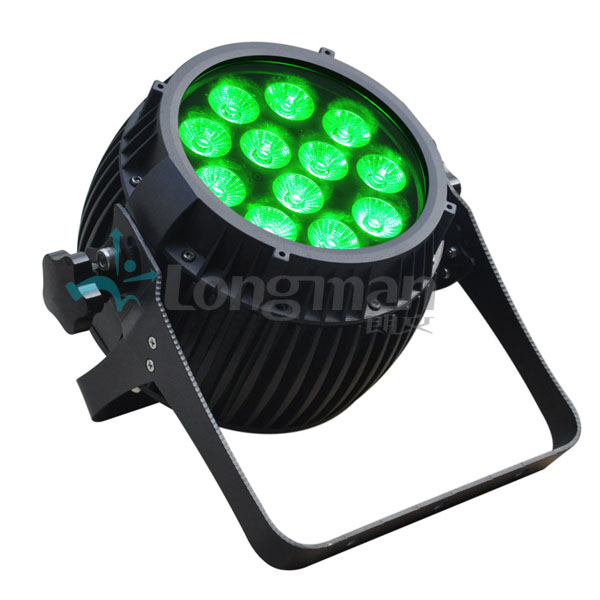

Parco R500 Outdoor LED Spot Light

Brief description：
1. 12 pcs 12W Full RGBAW
2. 5940 lumens output
3. New design lamp body with own patent
4. Touch LED display, no easy broken buttons

Size: 270*166*284 mm
Weight: 5.2KG

Inquiry

Specification Photometric User's document

Features:

Outputs nearly 6000 lumens when full loaded, light rendering same as metal-halide lamp.

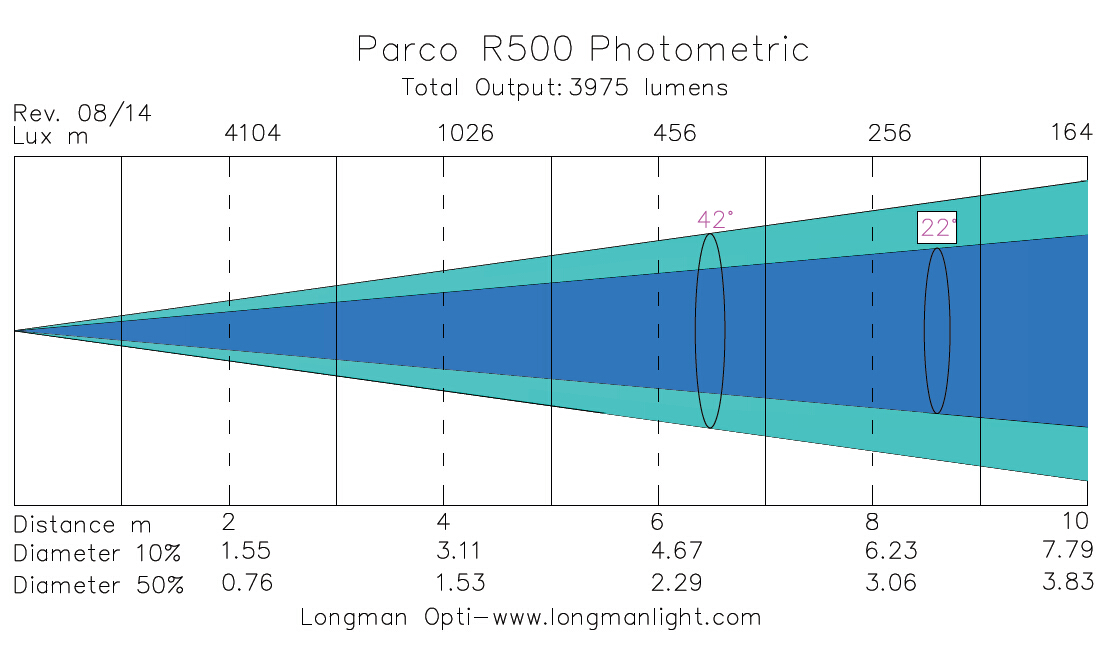

Field angle (10% intensity) is standard 51 degree, optional 37 degree.
New design pumpkin appearance, for the meaning of nature.
Whole lamp body fully used as heat sink, support heat dissipation 120W at 35℃ rise, built-in high temperature protection, lower output intensity from full to 70%-80% when overheated.

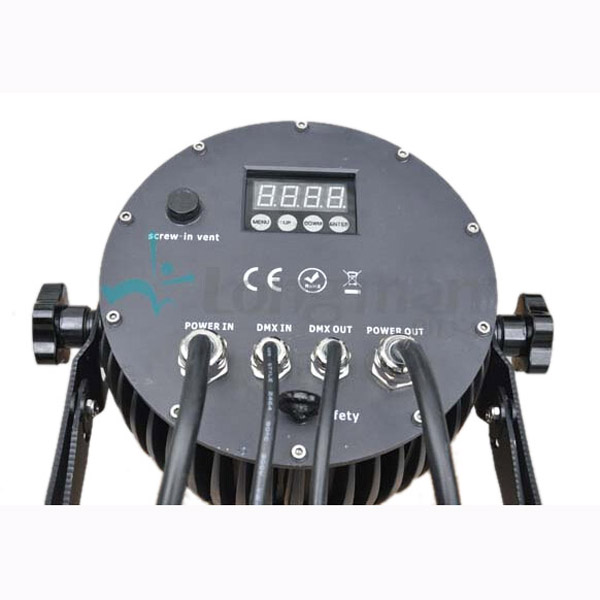

Touch LED display, no easy broken buttons, after 2 minutes if no operations at all, the screen will turn off by itself.
LED display board shows DMX signal, offering dimming curve from Dim0 to Dim4.
With waterproof air valve to balance pressure, get rid of moisture on glass.

Specification:

Input Voltage	AC 100V-240V/47-63HZ
Output Voltage	DC 24V
Rated Power	120W
Lamp Spec	LED 5-in-1 12W FULL RGBAW total 12 LED
Light Output	5940 lumens
PWM Dimmer	>400HZ(16666 grades)
Life Span	50000~100000 hrs
Control Signal	DMX512, 32 bit precise dimming, smooth in low DMX value dimming, not jumping, no vision shock
Channels	4CH, 8CH, 9CH, 10CH
Color Mixing Index	Standard deviation of chromaticity SDC<0.005
Lighting Effects	dimmer, strobe, gradual change, sound activated
Beam Angle	37°, 51°
Cooling Mode	Natural Convection
IP Rating	IP65
Housing Material	Die cast aluminum
Operating Temperature	-20℃ - +55℃
Size	270166284 mm
Net Weight	5.2 Kg
Certificate	CE, UL, RoHS
