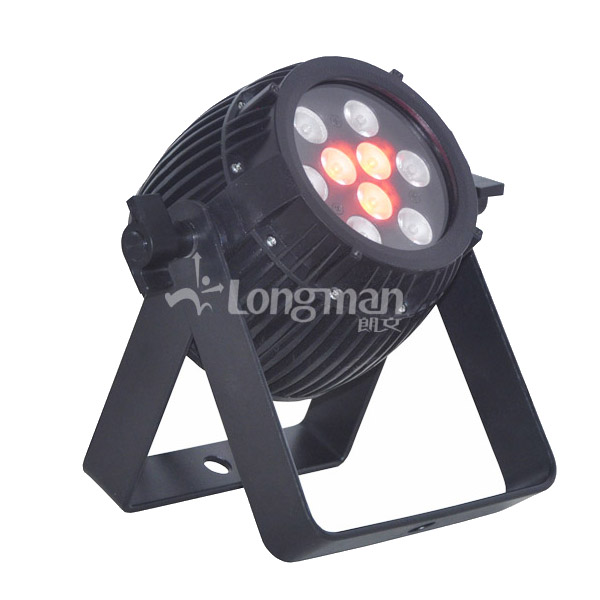

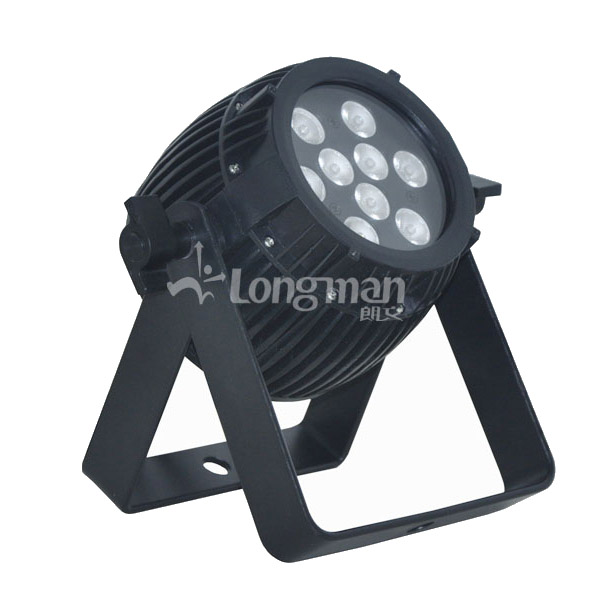

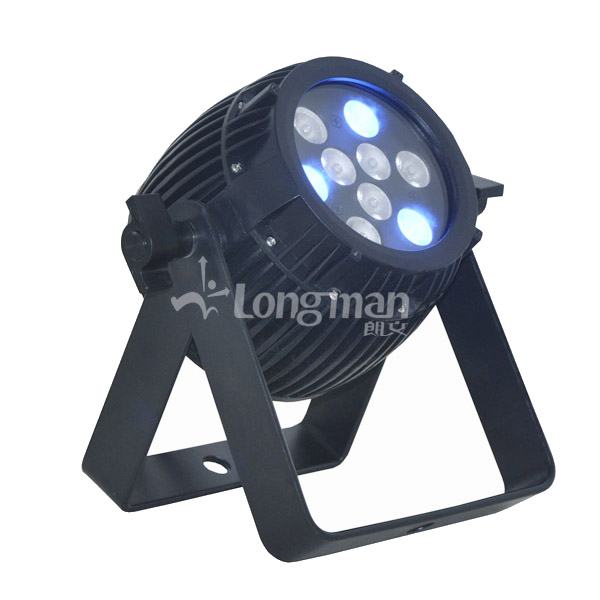

Bowerbird X9 Outdoor LED Par Lighting

Bowerbird X9 Outdoor LED Par Lighting

Brief description:
1. 9PCS 3W RGB 700mA LED bulbs
2. Almost 1000 colorful lumens output, various light distributions
3. Appearance design patent, idea originated from Bowerbird, express the beauty of nature.

Size: 103*181*207 mm
Weight: 1KG, with 2 mm thick double bracket

Inquiry
Features:
  • Appearance design idea originated from bowerbird, express the beauty of our nature.
  • Nearly 1000 colorful lumens outputs, various light distribution options.
  • Good color mixing, SDC<0.005, stable color among all fixtures.
  • Whole housing can conduct heat, support heat sink 30W at 30℃ rise, with NTC thermistor inside.
  • LED display could show DMX signal status, the screen will be turned off if no operations after 2 minutes.
  • 5 dimming curve including Dim4 theatre standard strict smooth dimming.
  • With waterproof air valve to balance pressure, get rid of moisture on glass.
Specification:
Voltage Input AC220V 47-63Hz, power factor > 0.95, could be customized for DC24V
Rated Power 30W (23W 220V full load)
Luminaire Efficiency 41lm/W, 9PCS 3W RGB 700mA driving current LED bulbs, 920 lumens
LED Color R=625nm, G=525nm, B=450nm, offer multiple color mixing, SDC<0.005
Field Angle(10%) standard 30 °(10800Cd on axis), 8°, 15°, 45°, 61*19°, 75*10°, 120*10°
Control Signal Meet E1.11 - 2004 USITT DMX512-A standard, could be customized for constant voltage PWM dimming input
Dimming Curve 32 bit linear dimming, PWM>1500Hz, flicker free
Housing Material ADC12 die cast, color is matte black, support other color and barn door.
Safety Appliance Class III, 2 3*1mm VDE cable for input, shielded cable for signals, both are daisy chain, flammability rating UL 94 V-1, IP code IP65
Operate Temperature -20~+45℃, light board peak temperature 30℃
Certificate Product passes CE, RoHS.
Weight 1KG,with two 2mm thick bracket
Size 103*181*207 mm

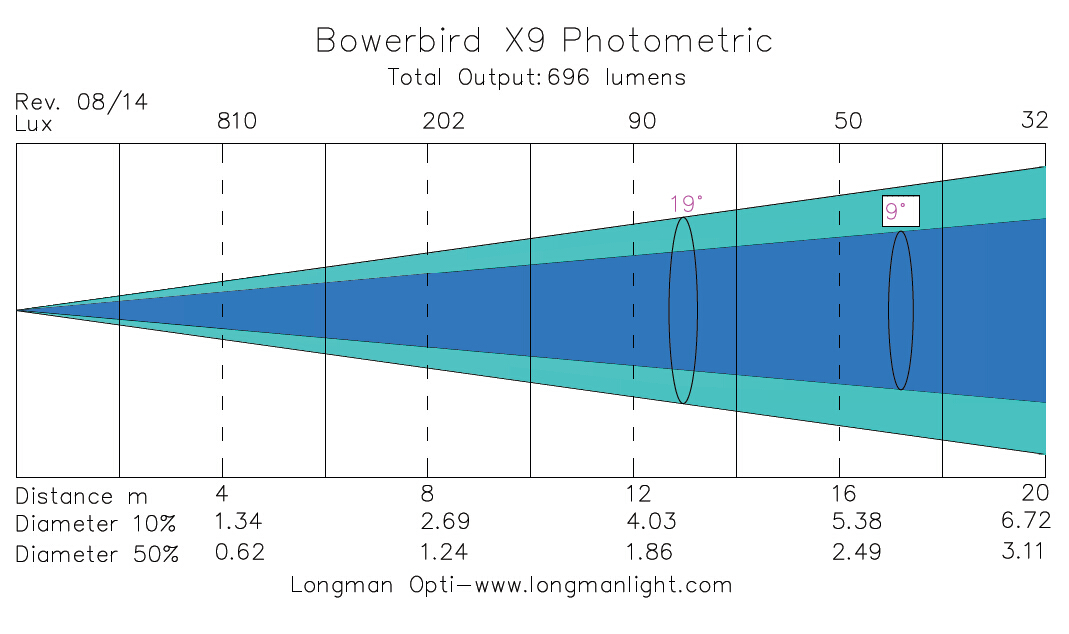

Bowerbird X9 led par photometric graph
carton packageflight case package
> Bowerbird X9-FA19 Download
