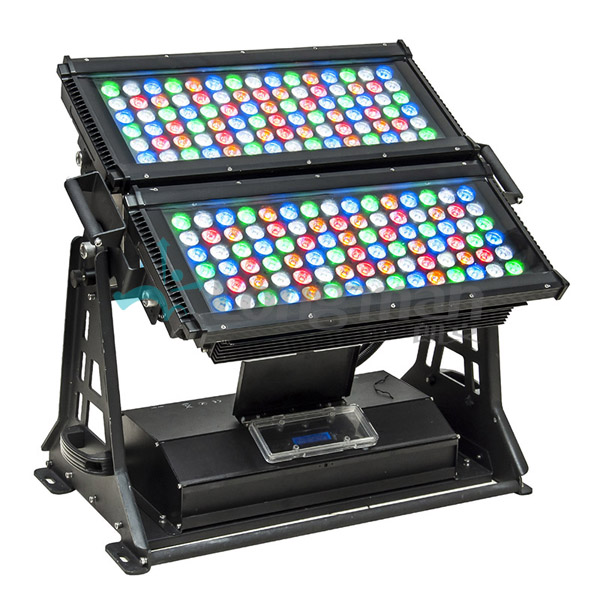

I ARC 1805 LED city color, wall washer

Brief description：
1.180pcs*5W RGBAW LED
2.32800 Lumens output
3.better color mixing,SDC<0.005
4.NTC temperature control system inside

Size and weight:745*562*549mm/55Kg(Net weight)

Inquiry

Specification

Features:
1.High quality LED light source, 5W RGBAW, better color mixing, SDC<0.005.
2.32800Lumens Output, hight effieciency light output 90% Lumens within 10% Intensity field angle. 3.Adopt 32 Bit MCU, Dim 4 Square law dimming for 0-100%, no visible shock at low DMX Value. 4.Adopt 1602 Type LCD Display, 4 buttons setting, with sunshine cover.
5.Independent circuit driving, each 550mA, even ampere distribute.
6.NTC temperature control system inside, MCU reduce the power output when LED working temperature is too high;
7.Seperated heatsink design between LED and DIriving, make sure more than 15000 Hours Longevity for SMPS and Main board.
8.Field Angle standard 30°, could choose other angle, and also frosted piece and 25 x 65° third optical piece.
9.With waterproof air valve to balance pressure, get rid of mosuisture on glass innerface.

Specification:

Voltage input	AC 100V-130V or 170-240V 47-63Hz PF:>0.9
Voltage output	DC48V, double SMPS, longevity 15000Hours
Rated power	760W(@220V 50Hz)
Luminaire Efficiency	>0.9, Light Effiacy >43lm/W
Light source	180pcs*5W RGBAW LED each 36PCS, 1000mA driving total 32800 Lumens output
LED CCT	R=625nm, G=525nm, B=460nm, A=590nm, W=6500K, offer multi-Color and many white color, SDC<0.005
Field Angle(10%)	standard 30 °(393600Cd on axis), 8°, 15°, 45°, 60°, 25 x 65°Etc optional
Control signal	Meet E1.11 - 2004 USITT DMX512-A, 32 bit Dim4 square law dimming, smooth in low DMX Value, no vision shock, PWM>600Hz, Flicker free
Control mode	DMX1990/DMX512A/stand alone/master and slave
Chanel option	3/4/5/9/10 CH all inside menu
Housing material	Extrusion 6063, anodized Matte balck, customized other color and barndoor
Safty	Class II, 3C 2.5mm2 VDE cable, Endure 5ms 1.5KV shock, Insulated Resistance>2MΩ Flame Rating V-1, Protect Rated IP65
Operate temperature	-20~+45℃, Light board peak temperature 80℃ with NTC protection
Cerficated	CE/RoHs/UL/CQC
Size	745562549mm
Weight	55KG, with 5mm thick WEDM bracket
