Voltage input: AC 100V-264V/47-63HZ, PF:>0.7
Rated Power：400W, Typical Consumption 317W/220V
LED Specification：10W LED 4-in-1 R, G, B, W(40PCS)
Luminaire Efficiency:57.2lm/W
LED Color：Standard 3000, Ra>90，R9>50，other Optional, SDCM<5.
Field Angles(10%) : Standard 9°（127Lux@80M）, other optional, and also 120*10°, Barndoor available
Control signal:Meet E1.11 - 2004 USITT DMX512-A，4CH\5CH\10CHannel.
MCU Feature:Arm Cored 32 bit Arm MCU, PWM>1.5KHz, video flicker free
Dimming Curve: Dim4 Square Law smooth dimming, especially in low DMX Value dimming, no vision shock
Flash Rate Endurance Full Load:>12Hz Full load/void load flash

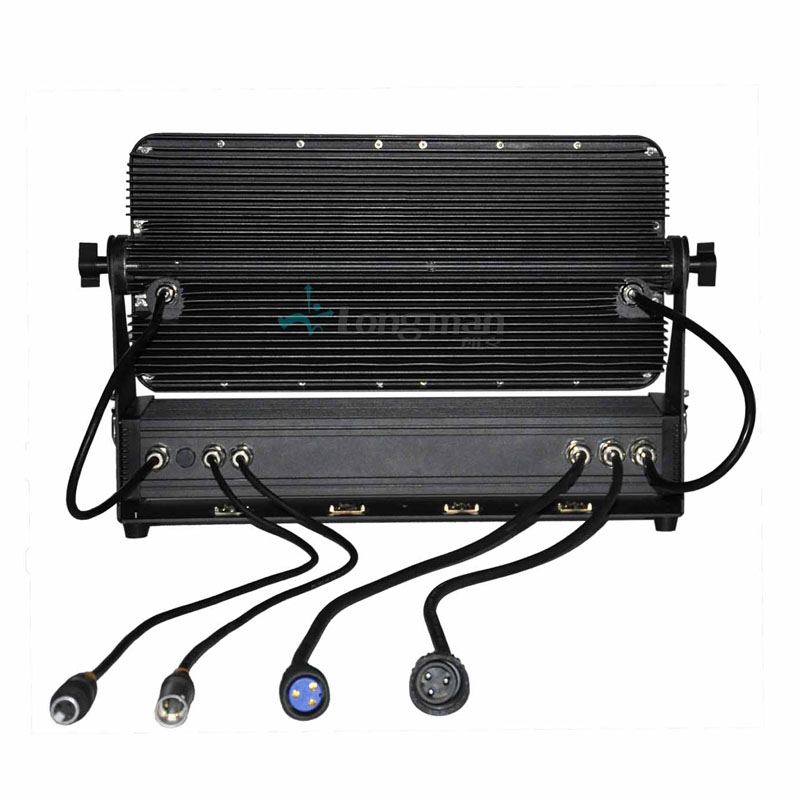

Connectors and Cables:IP67 Male/Female for fixed application
Control signal:DMX512，32 bit precise dimming,
Safty: Class II, 3C 2.5mm2 VDE cable, Flame Rating V-1, Protect Rated IP65.
Cerficated:Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750.
Housing material: Extrusion 6063, anodized matt black
Soldering technology：180℃Reflow Soldering, makesure 15000 hours Longevity for SMPS and mainboard
Operating temperature：-20℃ - +55℃, 0-95%RH, NTC overheat protection balance at light board 80℃
Net Weight: 15 Kg(Icluding 5mm thick Bracket)
Size: 568*376*118mm
| Voltage input |
AC 100V-264V/47-63HZ |
| Power Consumption |
400W |
| Lamp Type |
10W RGBW 4-in-1 LED(40PCS) |
| Life span |
50000~100000hours |
| PWM Dimmer |
4200HZ(16666 grades) |
| Control Signal |
DMX512 |
| Control mode |
stand alone/ Master Slave/Sound activated |
| Chanel option |
10CH、6CH、4CH |
| Function Effect |
dimmer, strobe, gradual change
Built-In temperature control measurement function, when LED work overheated, Intelligent reduce LED output power. |
| CoolIng mode |
Natural Convection |
| Anti-electricity Intension |
1.5KV |
| Insulation Resistance |
>2MΩ |
| Weight |
15.8Kg |
| Size |
568*376*118mm |
| Beam Angle |
25, 45 degree optional |
| IP Rate |
IP65 |
Features:
Could customized multi CCT white to achieve variable White in all seasons.
Adopt 32 Bit ARM MCU to have PWM>1.5KHz for expert video camera.
Adopt 1602 Led Display which shows DMX Address and Channel information.
Display show DMX situation, ,make installation and testing easier.2 minutes no operation turn dark.
Intelligent NTC built-in，LED Module peak temperature 80℃.
LED DMX function, address setup by 4 buttons LED display，protest by steel board from Sun UV.
With waterproof air valve to balance pressure，get rid of mosuisture on glass innerface.
