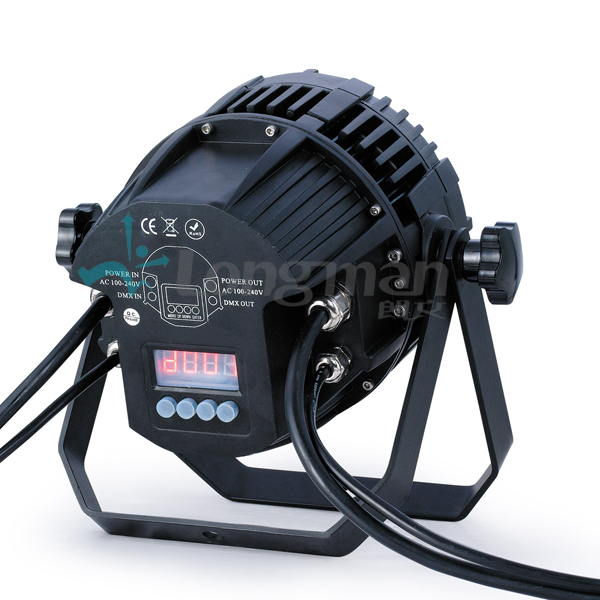

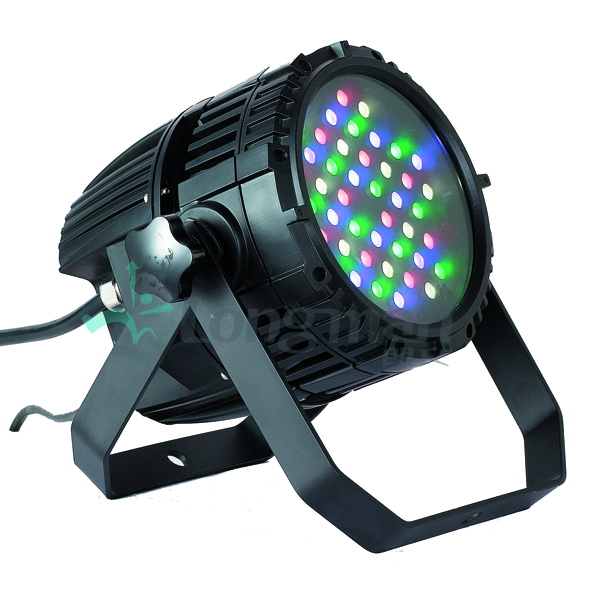

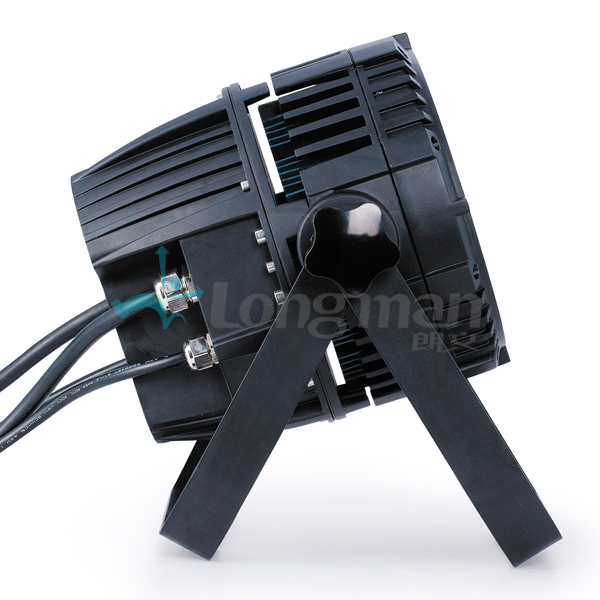

Parco R300 Outdoor LED Stage Lighting

Brief description：
1. 48pcs*3W RGBW LED
2. 4150 lumens output
3. Each color can 16666 dimming
4. Linear dimming from 0-100%, flicker free

Size: 284*193*254 mm
Weight: 5KG

Inquiry

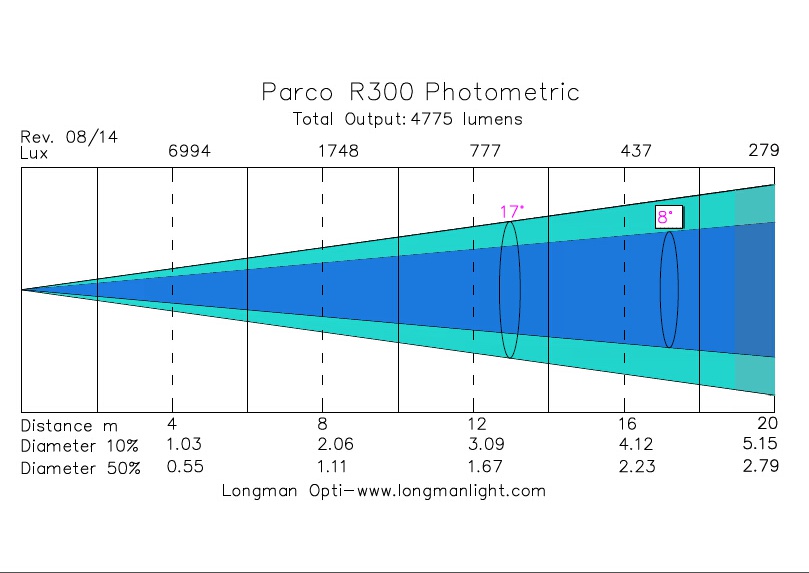

Specification Photometric User's document

Features:

Good quality of LED, low power consumption, high luminance, stable performance, long life.
Each color has 16666 dimming, 16.7 million color can be mixed, so many lighting effects could be achieved with white color.
DMX512 signal control, 4 buttons address setting for LED display.
Linear dimming from 0 to 100%, flicker free, built-in strobe/gradual change/color change/water effects programs.
Stand alone, sound activated, master/slave mode, multiple machines interconnection.
Power switch.
Temperature control system inside, intelligent reduce the power output when LED working temperature is too high.
Lens: 15/25/45 degree.
Protection rating: IP65.

Specification:

Voltage Input	AC100-240V (47-63Hz)
Voltage Output	DC 24V
Max Power Consumption	100W
Light Source	48pcs*3W RGBW 3535 package LED, 4150 lumens output
LED Quantity	R(12PCS), G(12PCS), B(12PCS), W(12PCS)
LED Life	50000-100000 hours
Field Angle(10%)	45°( 15° /25°, optional)
PWM Frequency	>400Hz(16666)
Control Signal	DMX512, 32 bit precise dimming, smooth in low DMX value dimming, not jumping, no vision shock
Control Mode	stand alone/master and slave
Chanel Option	3/4/5/8/9 CH
Housing Material	tensile aluminum
Housing Color	White/black/silver
IP code	IP65
Cooling Method	Natural cooling
Weight	4.7Kg，with two yokes 3 mm thick supporting bracket
Size	303239 cm
