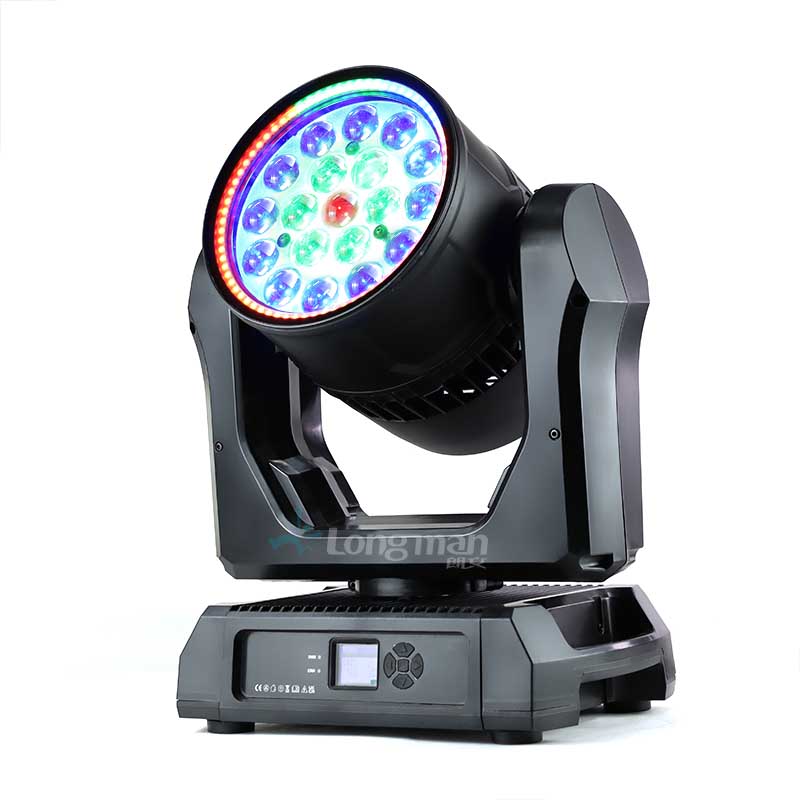

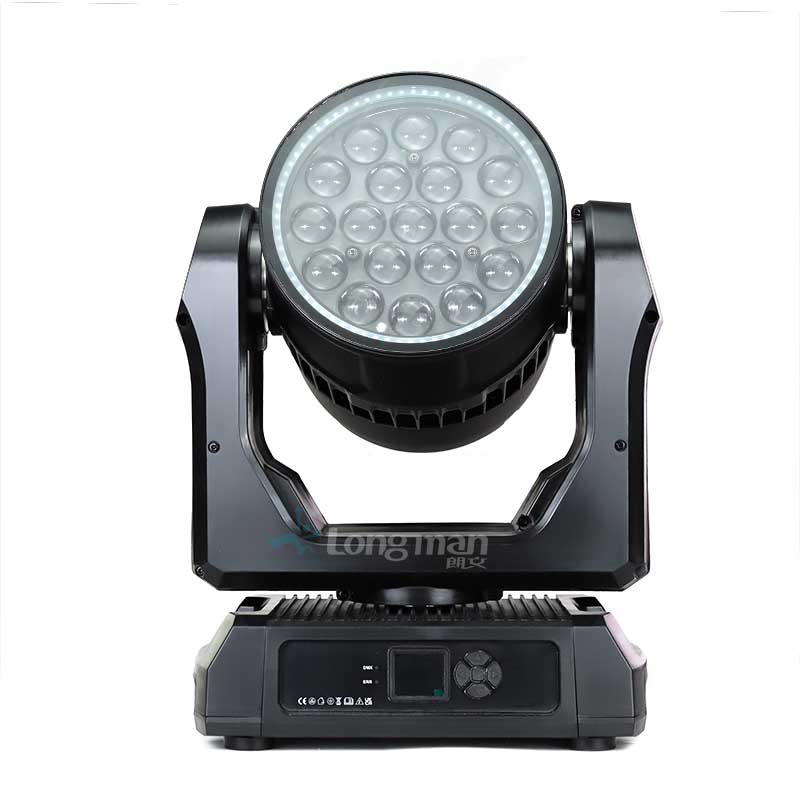

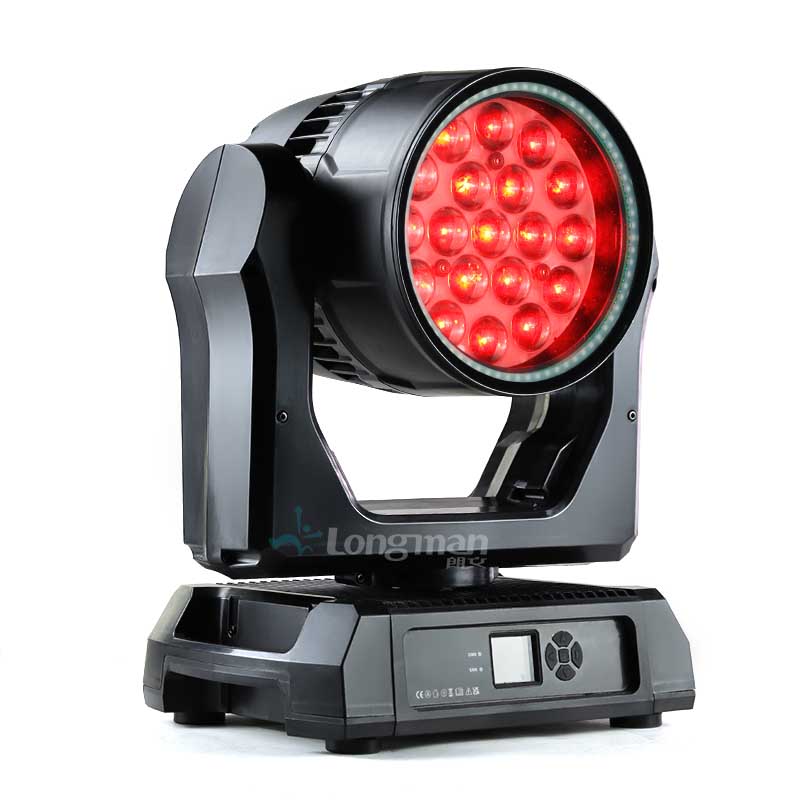

Lorentz Transform 300 IP-zoom led wash



Specifications:
Power System

• Input Voltage: 100-240V 50/60Hz (Auto-Sensing)
• Rated Power: 250W

Optical System

• Light Source: 19×15W RGBW Quad-Chip LEDs (4-in-1)
• Lifespan: 20, 000 hours
• Optics: High-Efficiency Condenser Light Pipe + Integrated PMMA Lens
• Zoom Range: 6.3°-36° (Motorized Continuous Zoom)
• Light Intensity: 6, 165 lux @ 6m (6.3° beam)

Effects System

1. Focus Adjustment: Spot size morphing (5°-50° field)
2. Infinite Color Mixing: Full-spectrum RGBW blending
3. Ambient Lighting: Outer RGB halo ring (chase/flow effects)
4. Strobe Effects: 1-20Hz (Pulse/Sync/Async modes)
5. Dimming: 0-100% Linear Smooth Fade

Control Protocol

• DMX512 (18CH/26CH Switchable)
• RDM Compatible

Movement Performance

• Pan/Tilt Range: 540° (Horizontal) / 270° (Vertical)
• Positioning: 16-Bit Microstepping + Auto Position Reset

Thermal Management

• IP65-Rated Silent Axial Fans
• Die-Cast Aluminum Heatsink (Monoblock Structure)

Physical Specifications

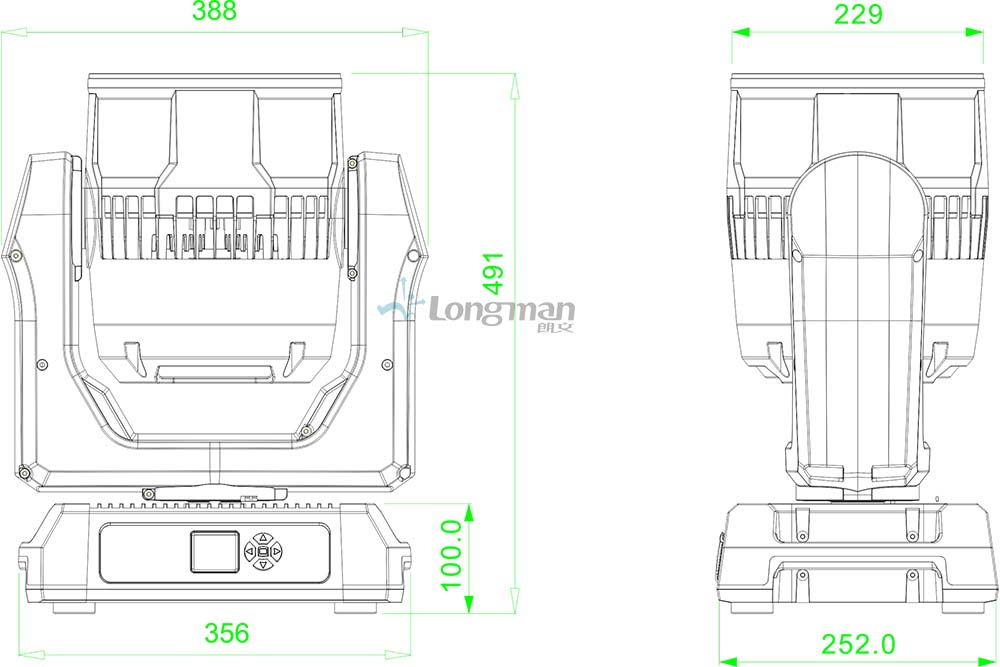

• Dimensions: 388×256×491 mm (15.3×10.1×19.3 in)
• Weight: 14 kg (30.9 lbs)

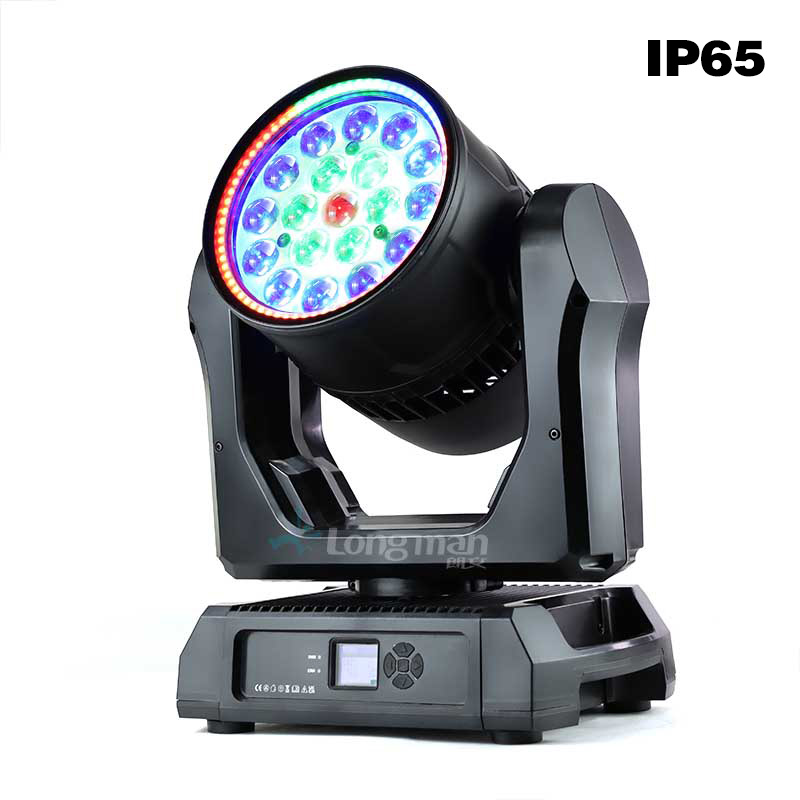

• IP Rating: IP65 (Dust/Water Jet Protected)
• Operating Temp.: -10°C to 40°C (14°F to 104°F)

Introduction:

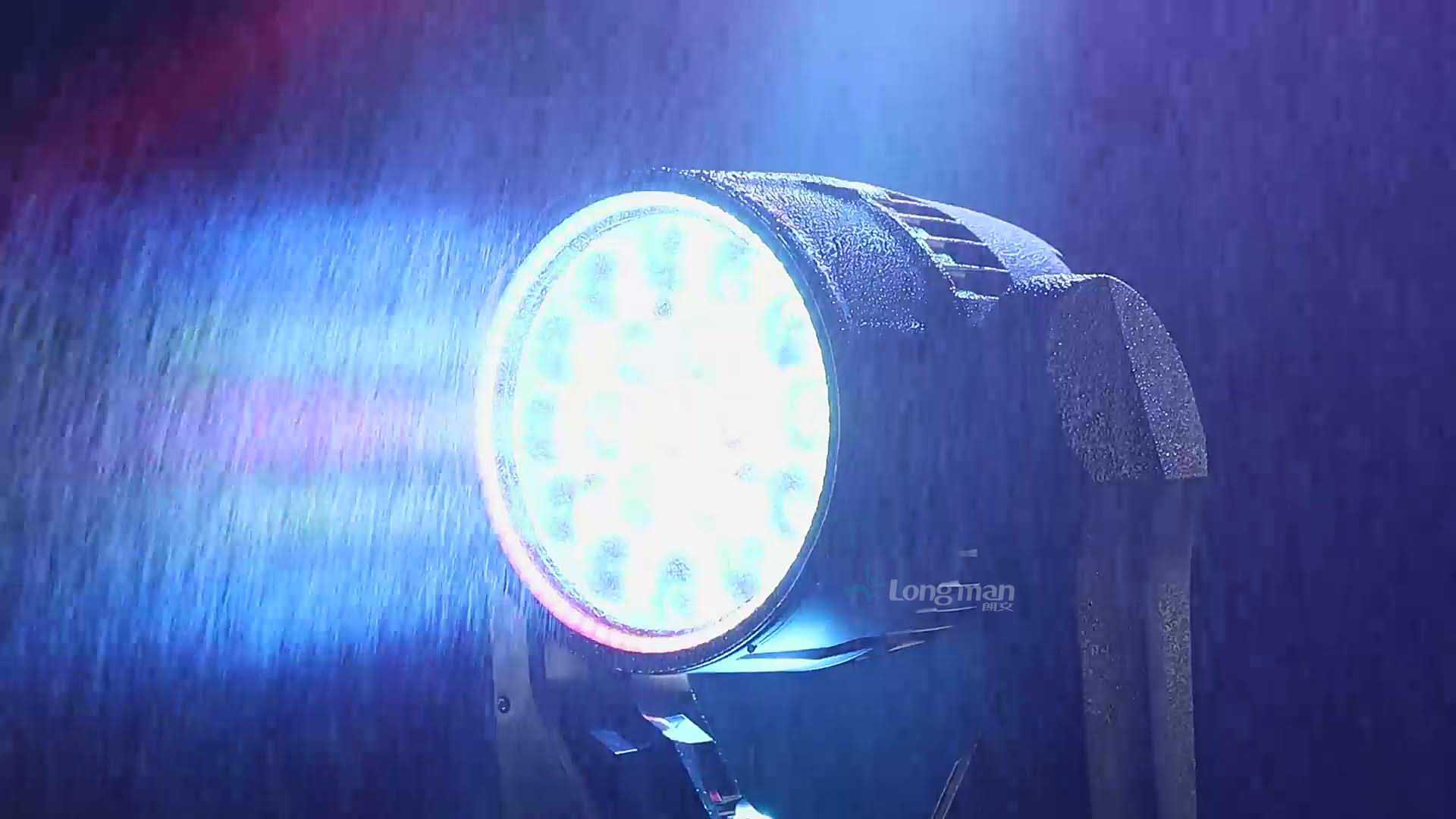

Lorentz Transform 300 IP: Where Torrential Rain Meets Pixel-Perfect Beams
The World's First Truly All-Climate Zoom Moving Head

Defying Nature's Curtain Call
When monsoons drown outdoor festivals or desert storms batter stage rigs – the Lorentz Transform 300 IP stands unflinching. Engineered with QuantumSeal™ weather-tech, this IP65 fortress delivers 6, 165-lux (at 6.3 degree and 6 meters distance) razor beams through rain, snow, and sandstorms while weighing 40% lighter than "waterproof" competitors. Finally: studio-grade zoom optics that thrive where other lights short-circuit.

Core Innovation: Climate-Immune Optics
StormCore™ Protection System
 Hermetic Lens Chambers: Self-drying silica gel barriers prevent fogging
 Corrosion-Proof Gears: Marine-grade aluminum withstands salt/sand abrasion
 Subzero Lubricants: -10℃ arctic to 40℃ desert performance

Precision Warfare Lighting
19×15W RGBW Quad-Engines:
Museum-grade color fidelity (96 CRI)
 5° surgical spot → 36° panoramic flood (motorized zoom)

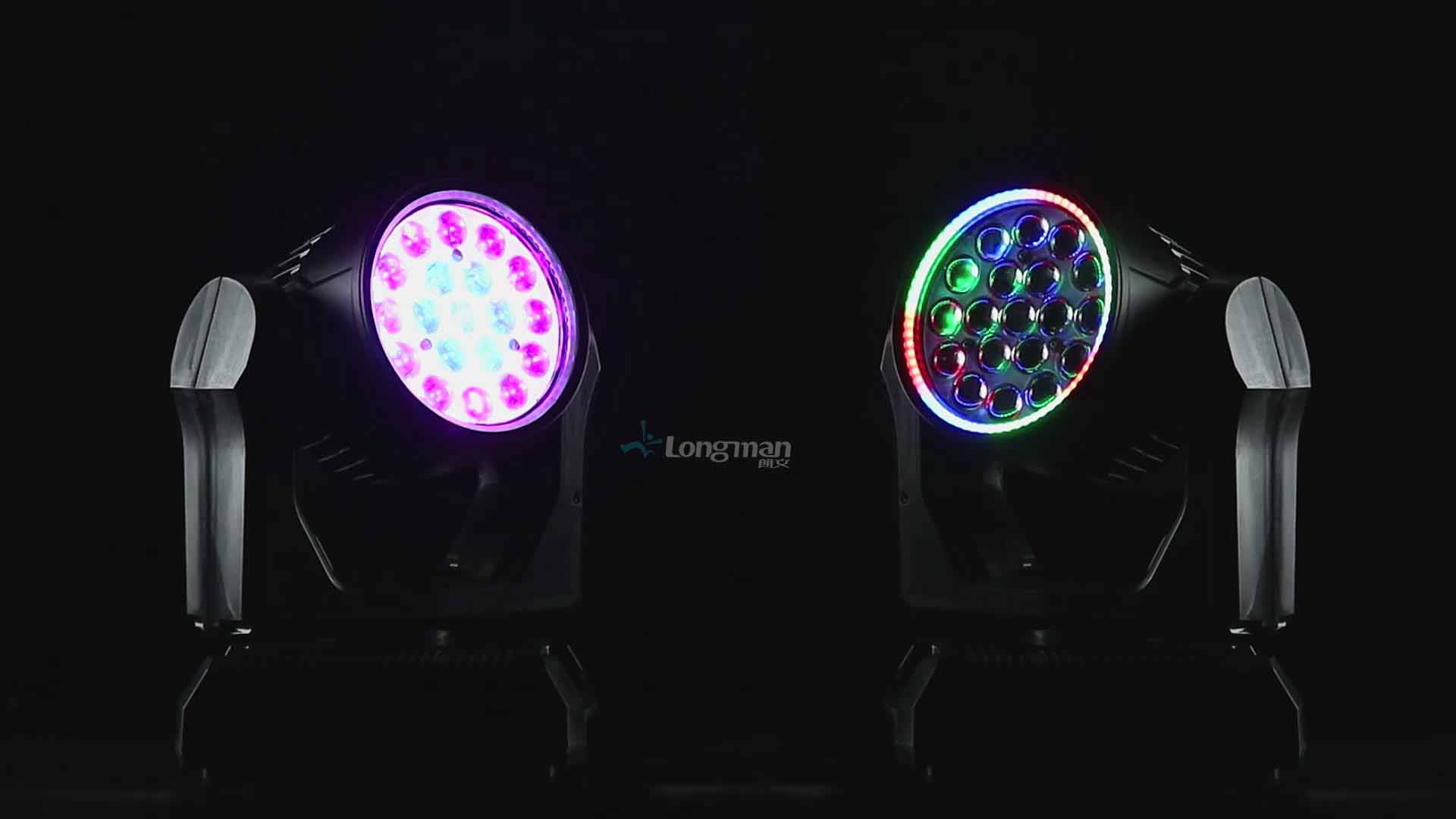

HaloFX™ Ambient System: Outer RGB ring creates 3D depth illusions
 *"At Burning Man, sandstorms killed 7 'IP65' fixtures. The Lorentz 300 IPs survived – we even hosed them down mid-set to cool the dust."*
— Marcus T., Production Chief, Desert Eclipse Festival

Movement Artillery
540°/270° Battlefield Sweep: Track performers through wind gusts
 16-Bit Hydraulic Dampers: Anti-vibration stabilization on unstable ground
Auto Position Recall: Reboots to pre-storm aim after power loss

Technical Dominance
6, 165 Lux @ 6m: Cut through downpours with 300W efficiency
 Zero-Noise Cooling: IP65 axial fans (23dBA) for ceremonies
 Military-Grade Chassis: 14kg forged aluminum

 Transform Any Apocalypse
Hurricane-Proof Applications
 Coastal Raves: Salt-spray resistant beam shaping
 Mountain Festivals: -10℃ zoom accuracy
 Tropical Events: 100% humidity strobe endurance
 Control Sovereignty
26CH DMX512/RDM: Individual LED cluster control
 PhotonSync™ Wireless: 500m range through concrete walls
 Ambient Reactivity: Auto-adjusts color temp to weather

Technical Specifications
Optics: 6.3°-36° Motorized Zoom (PMMA Lens)
Output: 6, 165 lux @ 6m (6.3°)
Movement: 540° pan / 270° tilt (0.001° microstep)
Color System: 19×15W RGBW Quad-Chip LEDs
Protection: IP65 (6K Pa water jet rating)
Thermal: -10°C to 40°C operational
Weight: 14 kg (30.9 lbs)
Control: DMX512 (18/26CH), RDM, Wireless DMX
