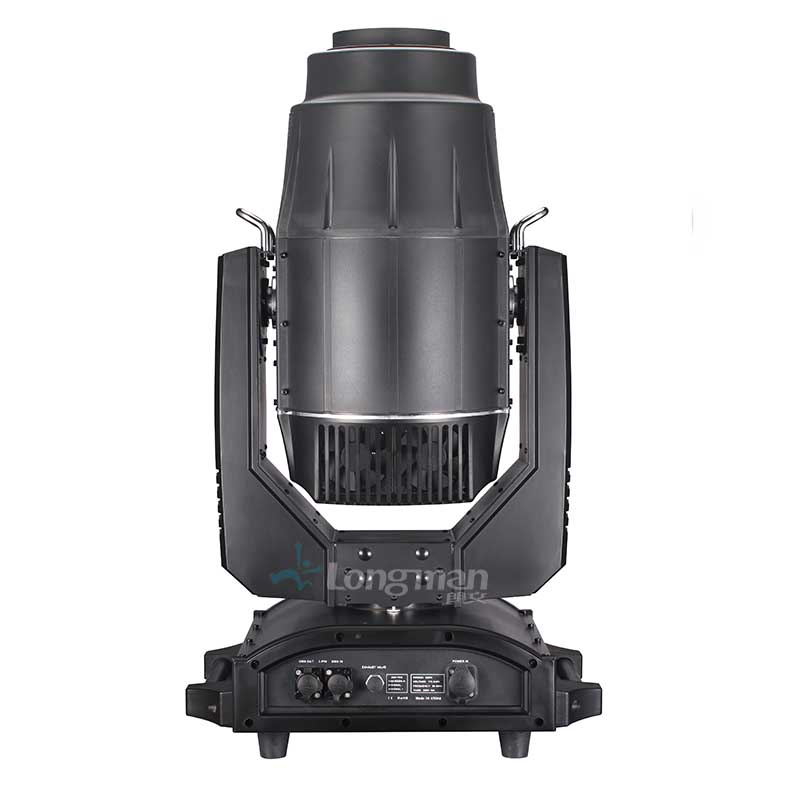

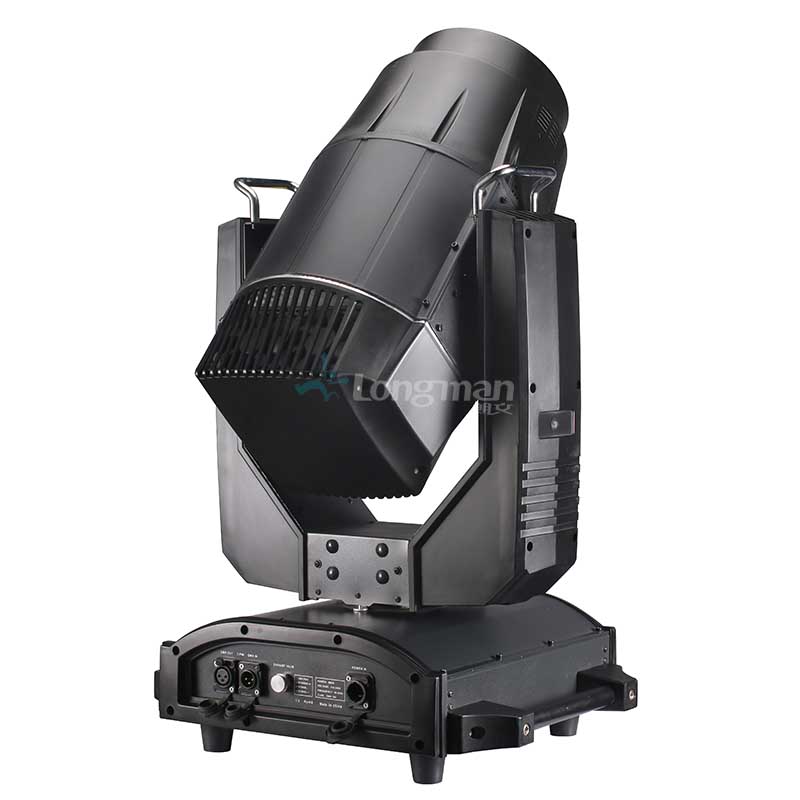

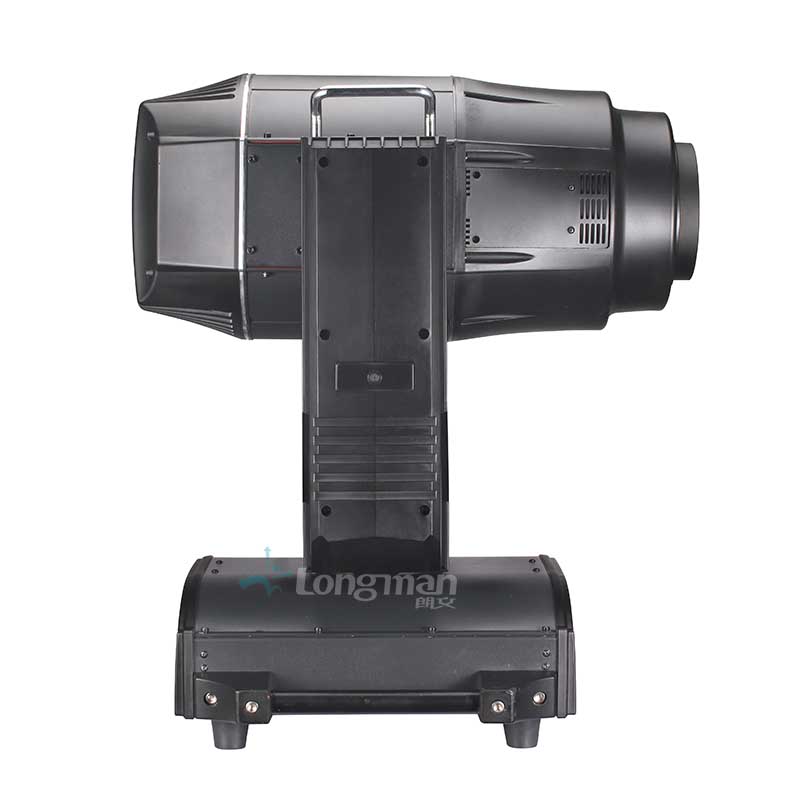

Foresight 800IP-framing profile light-shutter system– CMY CTO







Specifications:

• Voltage: AC 100–240V, 50/60Hz
• Power Consumption: 1000W

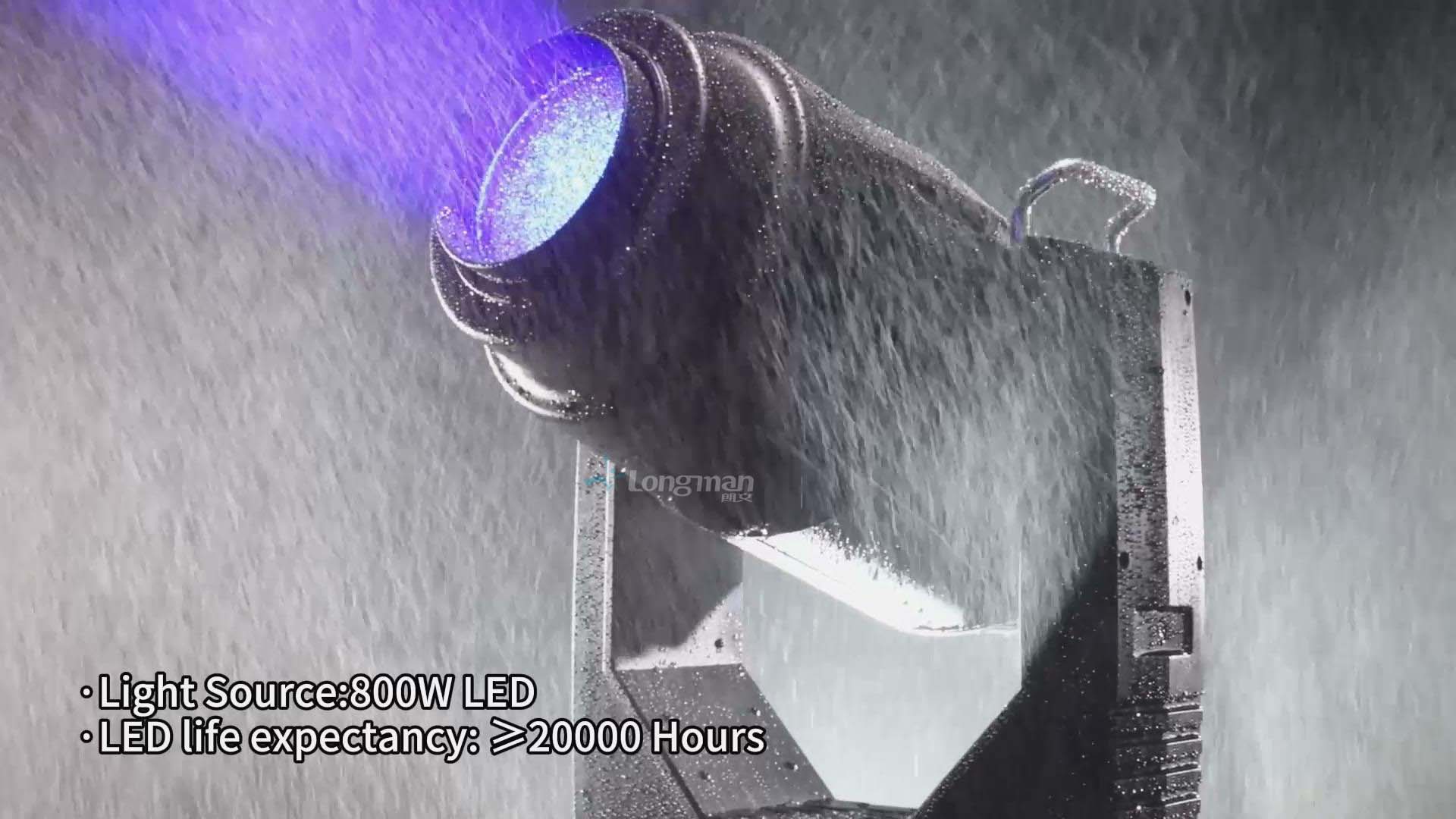

• Light Source: High-power 800W white LED
• Lifespan: 20, 000 hours
• Color Temperature: 7000K
• CRI: ≥72 / ≥90 (dual modes)
• Color Wheel:
  • Smooth CMY + CTO mixing system

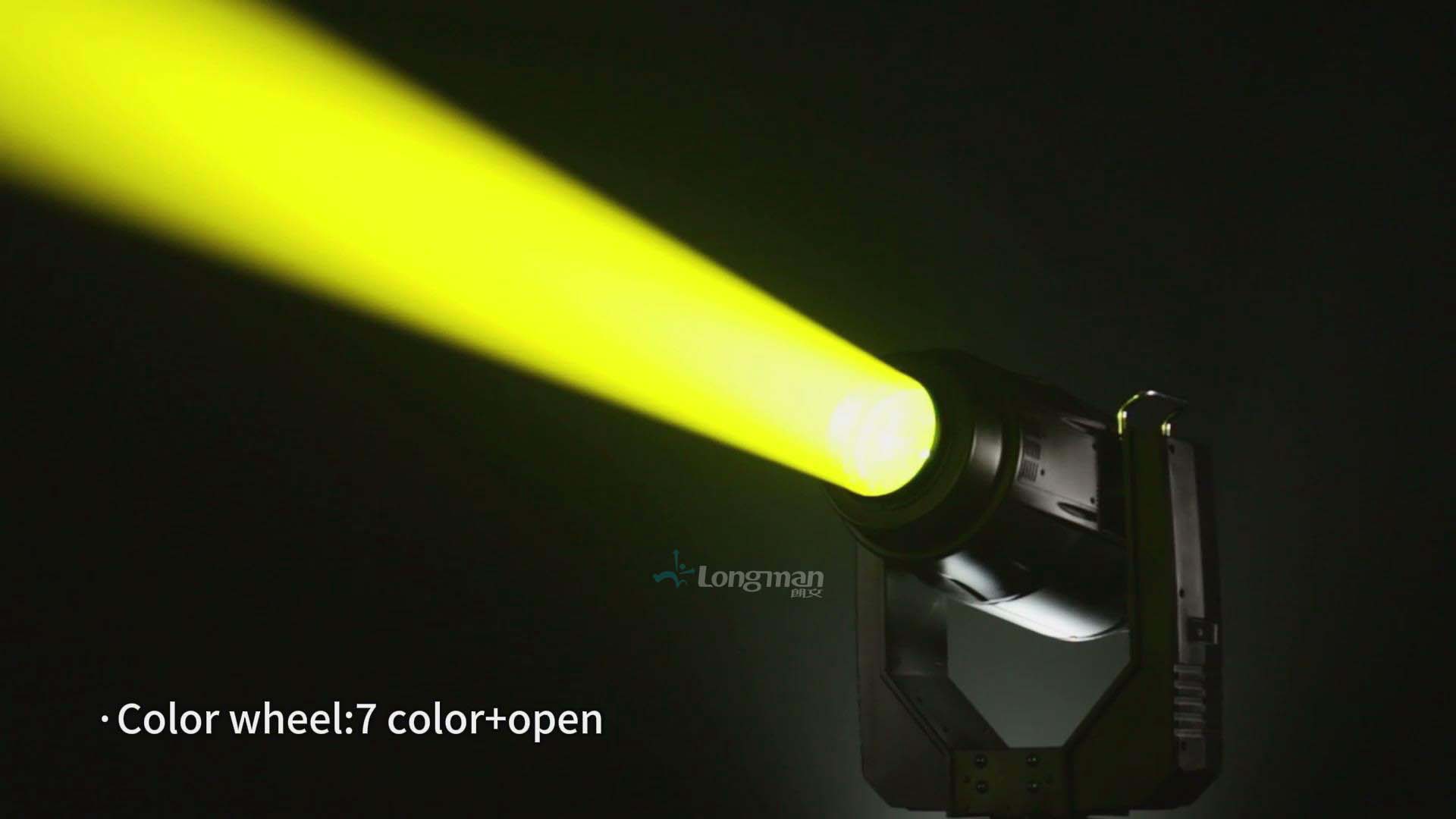

  • 7 fixed color filters + white light
  • Half-color effect, customizable positioning
  • Bidirectional rotating rainbow effect

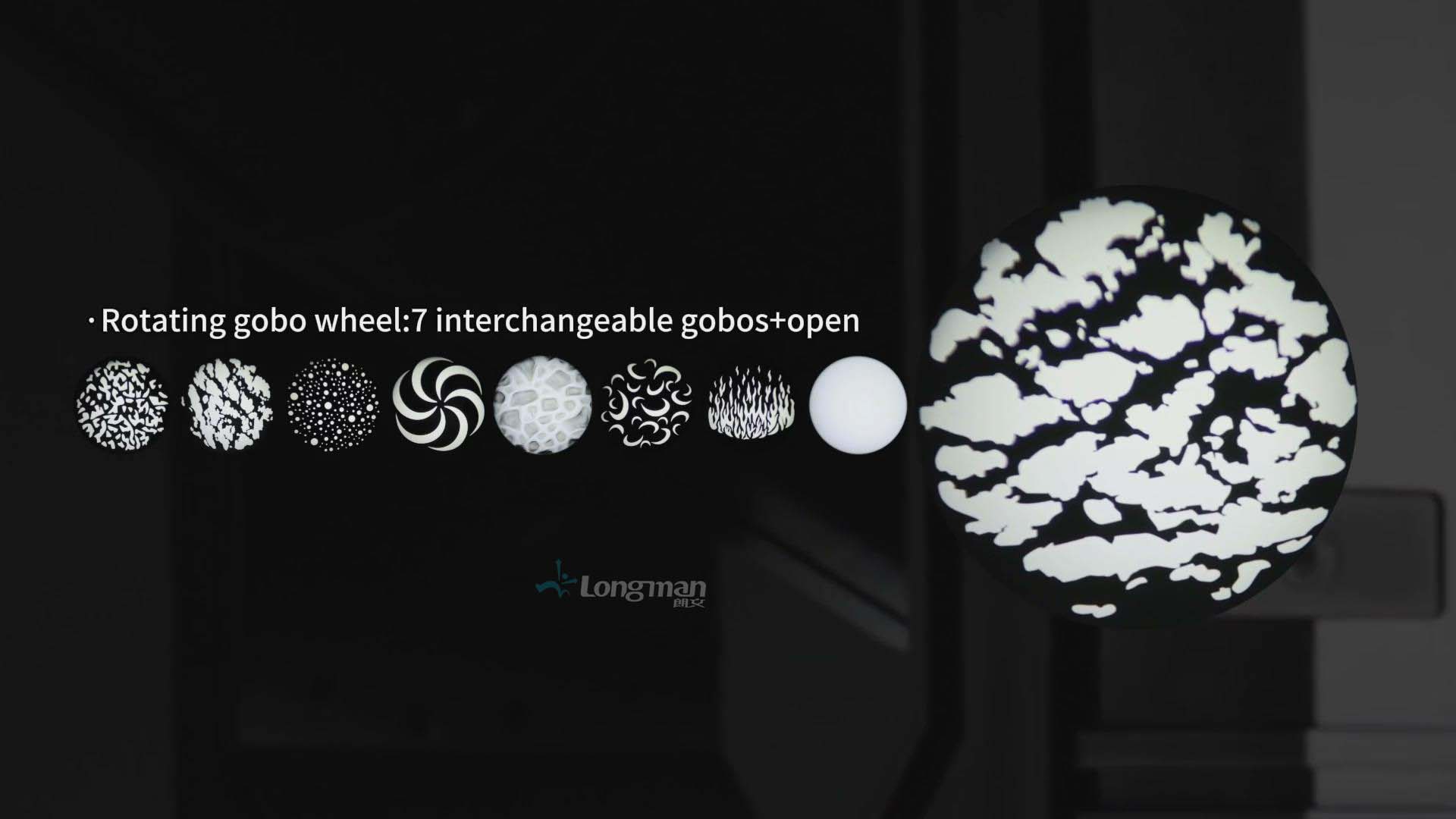

• Rotating Gobo Wheel:
  • 7 slot-in rotating gobos + white circle
  • Gobo shake and random positioning
• Fixed Gobo Wheel:
  • 7 fixed patterns + white circle
  • Gobo shake effect
• Prism Wheel: Rotating 4- or 8-facet prism (bidirectional)

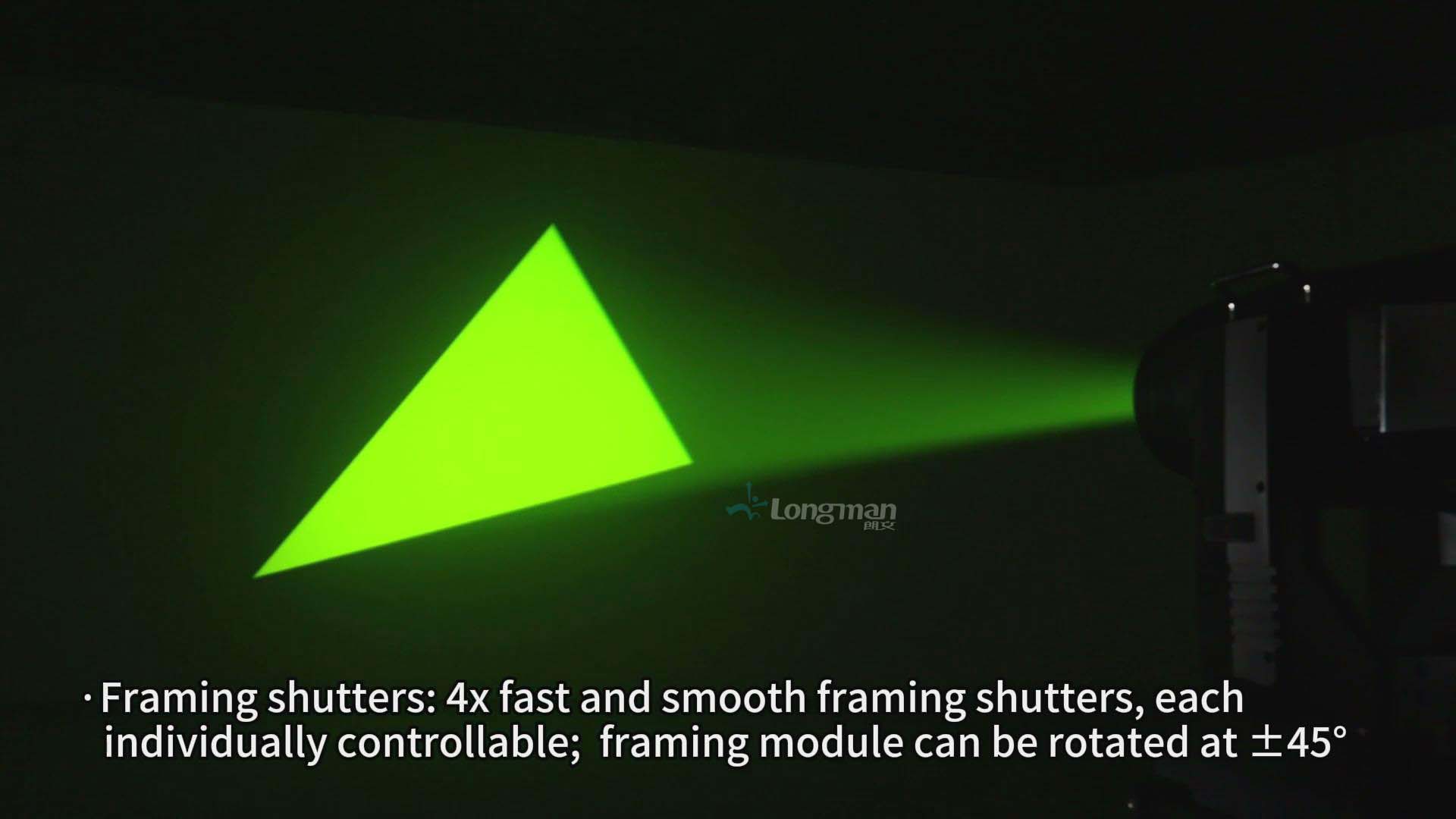

• Framing Shutter System:
  • 4-blade shutter for fast, smooth cutting
  • 8 adjustable angles/directions
• Zoom: 6°–50° linear zoom
• Focus: Ultra-smooth electronic micro-adjustment
• Iris: 5%–100% smooth adjustment
• Strobe: Up to 25Hz with random/pulse modes
• Dimmer: 0–100% linear dimming
• Frost: Linear frost effect
• Pan/Tilt:
  • Pan: 540° or 630° (16-bit precision)
  • Tilt: 270° (16-bit precision)
  • Auto-reset function
• Operating Modes: Standalone, sound-activated, master/slave, DMX512
• Channels: 32 international standard DMX512 channels
• Display: Color LCD with RDM support
• Cooling: Silent fans + copper pipe/fin heat dissipation

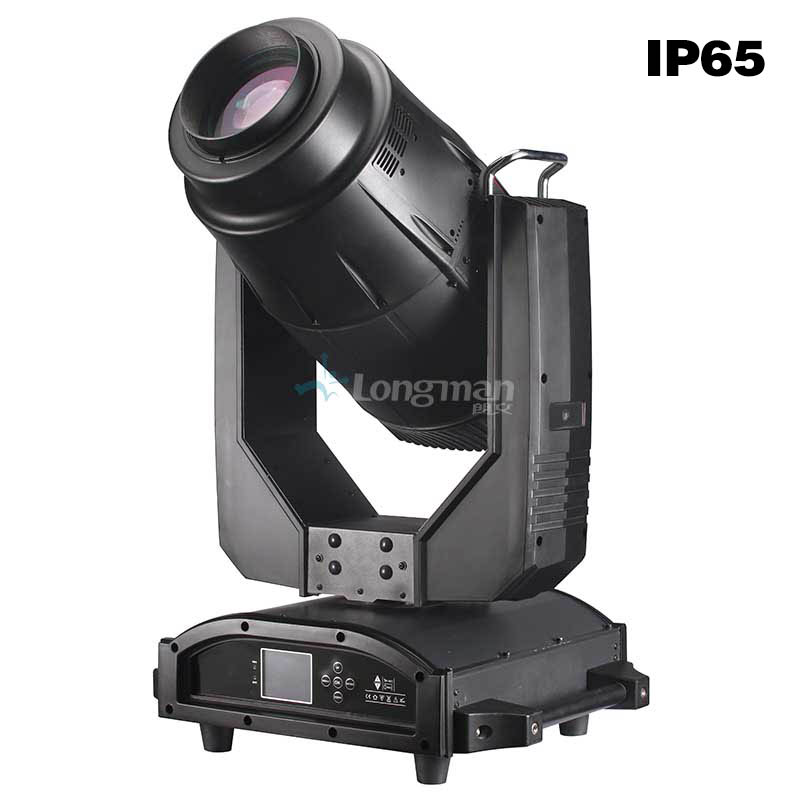

• IP Rating: IP65 (weatherproof)

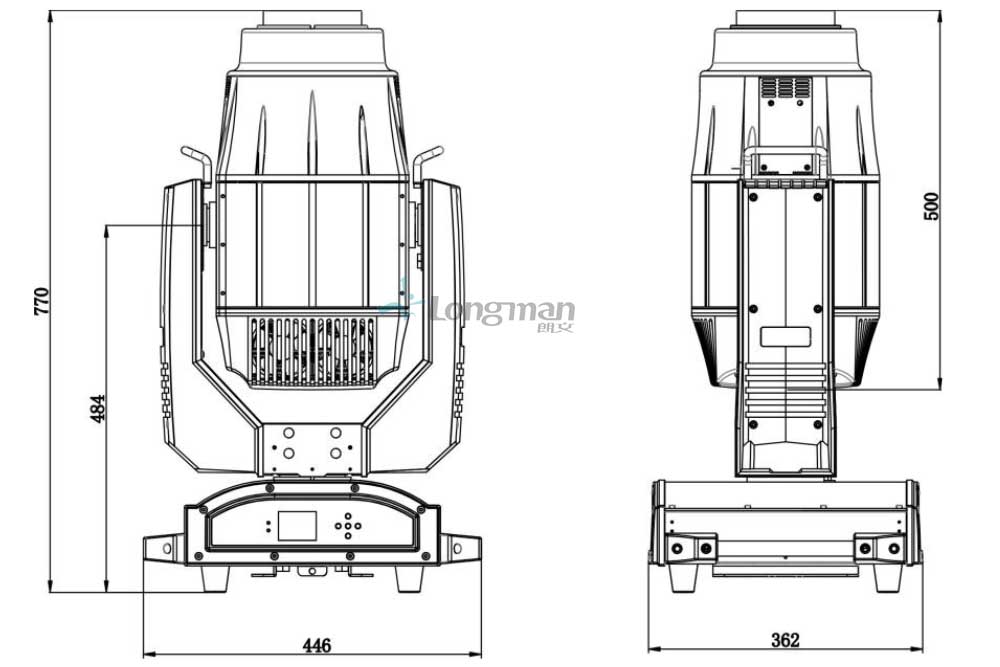

• Dimensions: 446mm (L) × 362mm (W) × 770mm (H)
• Net Weight: 31kg
• Package Size: 690mm × 600mm × 485mm (gross weight: 39kg)



Introduction:
Longman Foresight 800IP: Precision Meets Power in Stage Lighting
The Longman Foresight 800IP moving head light with framing shutter revolutionizes stage and event lighting with its ultra-bright output, rugged design, and unmatched versatility. Built for both indoor spectacles and outdoor mega-events, this IP65-rated fixture combines a groundbreaking 800W white LED engine with Longman’s proprietary optical and framing technologies, making it a top choice for lighting professionals worldwide. Key Innovations

• 800W High-Intensity LED: Delivering 30, 000+ lumens at 7000K, the Foresight 800IP ensures razor-sharp gobo projections and vibrant colors even in expansive venues.
• 4-Blade Framing System: Four independently adjustable blades enable eight cutting angles and soft-edge shaping.
• 6°–50° Linear Zoom: Instantly transition from tight spotlights to sweeping washes without losing brightness or clarity.
• Advanced Color Control: Full CMY mixing, a dedicated CTO wheel (2800K–6800K), and seven fixed color filters with bidirectional rainbow effects unlock limitless creative possibilities.

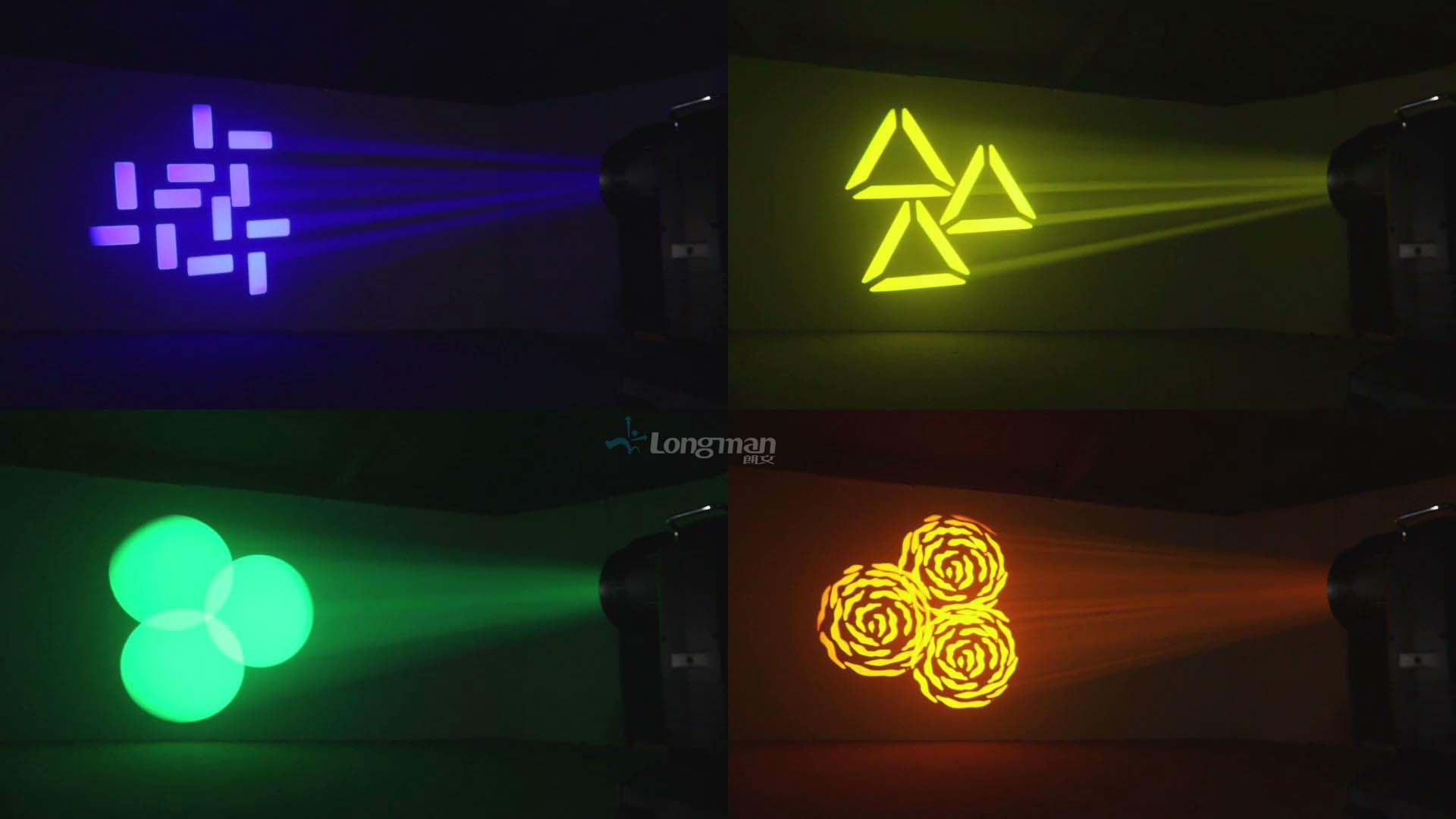

• Dual Gobo Wheels: Seven rotating and seven fixed gobos (including geometric and water effects) paired with 4/8-facet prisms and frost filters create layered, immersive visuals.

Built for Demanding Environments

• IP65 Waterproof Design: Thrives in rain, dust, or extreme temperatures, ideal for permanent outdoor installations or touring rigs.
• Compact & Tour-Ready: At just 31kg, its modular design ensures quick setup, easy maintenance, and effortless rigging.
• Silent Cooling System: Copper pipes and quiet fans prevent overheating during extended performances.

Smart Features for Modern Productions

• DMX512/RDM Control: 32-channel compatibility integrates seamlessly with industry-standard consoles.
• 25Hz Strobe & Dimming: Pulse, random, or linear strobe effects synchronized to music or cues.
• Auto-Correcting Pan/Tilt: 540°/630° horizontal and 270° vertical movement with 16-bit precision.

Trusted by Professionals
From concert tours and theater shows to corporate events and architectural installations, the Foresight 800IP is the go-to framing moving head light for:

• Lighting Designers: Craft pixel-perfect beams or atmospheric washes.
• Rental Companies: Offer clients a durable, high-output solution.
• Event Planners: Elevate productions with studio-grade color and effects.

Why Choose the Foresight 800IP?
As an intelligent moving head with gobo cutting, it merges the intensity of a moving head beam light with framing system with the precision of a studio spotlight. Whether framing performers, projecting logos, or weathering outdoor rigors, it empowers creativity without compromise.
