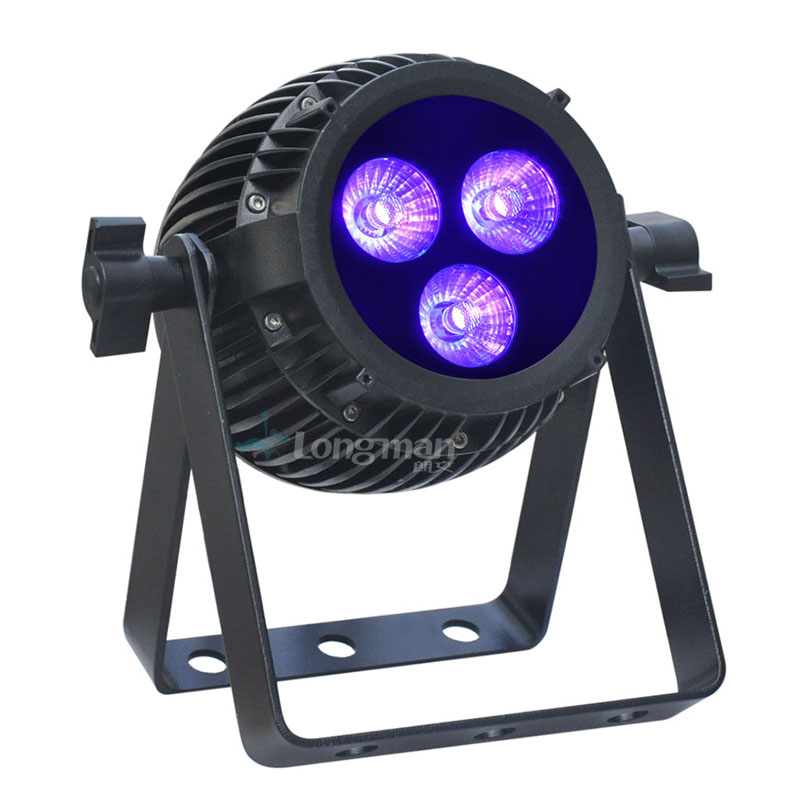

Bowerbird X3 RGBAW+UV oudoor stage light

Bowerbird X3 RGBAW+UV oudoor stage light

Brief description:
1. 3PCS 14W Full RGBAWUV LED bulbs
2. 1220 lumens output
3. New appearance design patent, design idea is from Bowerbird
4. Wireless DMX solution and full chromaticity

Size: 103*181*207mm
Weight: 1KG, with 2mm thick double bracket

Inquiry
Bowerbird X3-outdoor LED par can stage effectBowerbird X3-outdoor LED par can production lines
Features:
  • Lamp appearance design idea is inspired by bowerbird, one beautiful bird.
  • Almost 1000 colorful lumens output, various light distribution as choices.
  • Good color mixing, SDC<0.005, stable color among all fixtures.
  • Whole lamp body fully used as heat sink, support heat dissipation 30W at 30℃ rise, with NTC overheat protection.
  • LED display could show DMX signal status, if no operations in 2 minutes, the screen would turn off.
  • RF-ID 7 independent wireless DMX universe to be used.
  • 5 dimming curve including Dim4 theatre standard strict smooth dimming.
  • With waterproof air vent to balance pressure, get rid of moisture on internal side of glass.
Specification:
Voltage Input AC220V 47-63Hz, PF>0.95, could be customized for DC24V
Rated Power 40W (32W 220V full load)
Luminaire Efficiency 41lm/W, 3PCS 14W Full RGBAWUV 500mA current, 1220 lumens
LED Color R=625nm, G=525nm, B=460nm, A=590nm, W=6500K, UV=390nm,offer multi-Color mixing,SDC<0.005
Field Angle(10%) standard 51°(4280 Cd on axis with LMTXL43HY), optional 37°
Control Signal Meet E1.11 - 2004 USITT DMX512-A standard, able for PWM dimming constant voltage input
DMX Channels LM-DMXA0 2.4GHz wireless, compatible with PAD PEN, 6CH, 7CH, 8CH, 10CH, 11CH
Dimming Curve 32 bit linear dimming, PWM>600Hz, flicker free
Housing Material ADC12 die cast aluminum, matte black, support other colors and barn door
Safety Appliance Class II, 3*1 mm VDE cable for electric power input, shielded cable for signal, both are daisy chain,  flammability rating UL 94 V-1,  IP code is IP65
Operate Temperature -20~+45℃, board peak temperature 30℃
Certificates Product passes CE, RoHS
Weight 1KG, with 2mm thick double bracket
Size 103*181*207 mm
Bowerbird X3 photometric graph
carton packageflight case package
