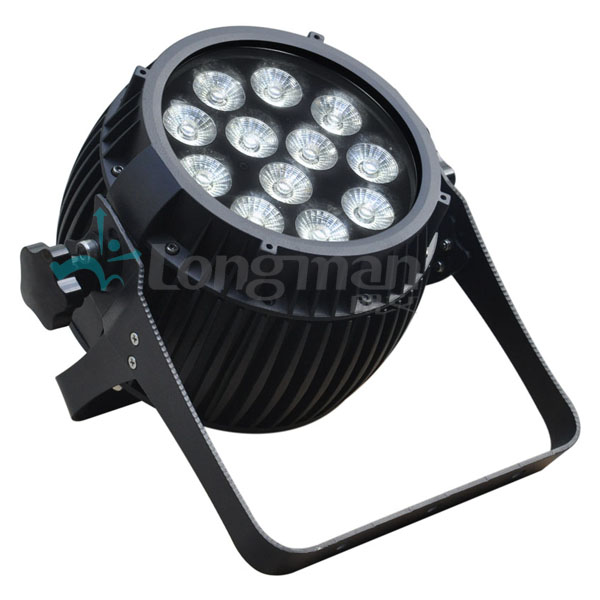

Parco B12- outdoor waterproof led par light

Parco B12- outdoor waterproof led par light

Brief description:
1. 12 PCS 5w of CREE XP-E2 or XPG LED bulbs
2. 4200 lumens output
3. New lamp body of pumpkin design
4. Beam Angle standard 3.6°

Size: 270*166*284 mm
weight: 5.2kg

Inquiry
Parco B12 led par light outdoor effect
Features:
  • Pumpkin appearance.
  • Touch LED display, can't affected by ultraviolet lights.
  • LED display show DMX status, 2 minutes no operation no display.
  • Cree XP-E2 or XPG LED, 4200 lumens output, could replace any 75 Watt traditional metal-halide lamp one by one.
  • Beam Angle standard 3.6°, could choose other angles, and also barn door.
  • Able to wash tall building like chimney by 63Lux at 100M on axis, also offer perfect light beam with fog machine.
  • Could make 2 mixing color to offer variable CCT.
  • Dim 4 Square law dimming for 0-100%, video flicker free.
  • NTC temperature control system inside, MCU reduce the power output when LED working temperature is too high.
  • With waterproof air valve to balance pressure,  no moisture on glass.

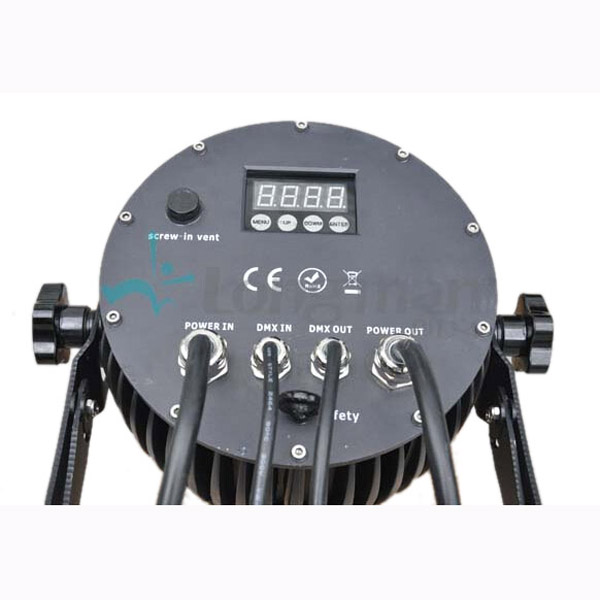

  • LED display board shows DMX signal for the convenience of installation and testing.
Specification:
Power Input AC 100-240V, 47-63 Hz, output 48V DC, power factor>0.7
Rated Power 60W, typical consumption 45.6W/220V
Light Source 12 PCS of CREE XP-E2 or XPG LED, drive current for each chip 1000mA
Light Output 4200 lumens, luminaire efficiency 92.1 lm/W
Beam Angles(50%) Standard 120*10°or 3.6°(peak intensity 652050 Cd)
LED Color 3000, 4000K, 5500K
Color Rendering Index Ra>90, R9>50
Color Mixing Index Standard deviation of Chromaticity SDC<0.005
Control Signal Meet E1.11 - 2004 USITT DMX512-A standard, 32 bit Arm MCU
Control Master/Slave, Dim 4 smooth in low DMX value dimming, no vision shock
PWM Frequency >400Hz flicker free, full load flash rate>12Hz, full load/void load flash
Housing Material Die cast aluminum, protection rate IP65
Housing Color Standard matte black or pumpkin color(PANTONE 150U)
Cooling Method Natural cooling, thermal protection: NTC overheat protection balance at light board 80℃
Connectors and Cables IP67 Male/Female connectors, IP65 Blue/Yellow connector without cables for rental
Safety Appliance Class II, 3* 2.5mm 2 VDE cables, Flammability rating UL 94 V-1, IP code IP65
Accessories Barn door, hook, safety cable, signal extension cable, power extension cable
Soldering Technology 180℃ reflow soldering, at least 15000 hours longevity for SMPS and main board
Size L*W*H=270*166*284 mm
Weight 5.2 Kg, with two yokes
Operating Temperature -20ºC - +55ºC
Certificates Product passes CE, Rohs, SMPS pass CQC or UL60950, UL8750
Parco B12 photometric graph
