Light Source:
Red: 638nm / 8W；Green: 520nm / 10W；Blue: 445nm / 12W
Scanning Speed: 30Kpps
Input Voltage: AC 90–245V, 50–60Hz
Total Power: 825W
Laser Beam Parameters: Beam diameter at outlet aperture ＜ 3 mm, divergence angle ＜ 1.5 mrad
Laser Safety: Overload Protection
Laser Source Lifespan: Over 20, 000 hours
Scanning Speed: 30Kpps
Scanning Angle: 60°
DMX Channels: 27 Channels
Dimming: 0–100% linear dimming
Control Modes: DMX / ILDA PC Control / Automatic
Basic Patterns: 200 pieces (3000 extended patterns, 255 animations)
Horizontal Rotation: Stepless Rotation (available angles: 540°, 630°, 900°, 1800°, etc.)
Vertical Rotation: Stepless Rotation (available angles: 270°, 180°, 540°, 1080°, etc.)

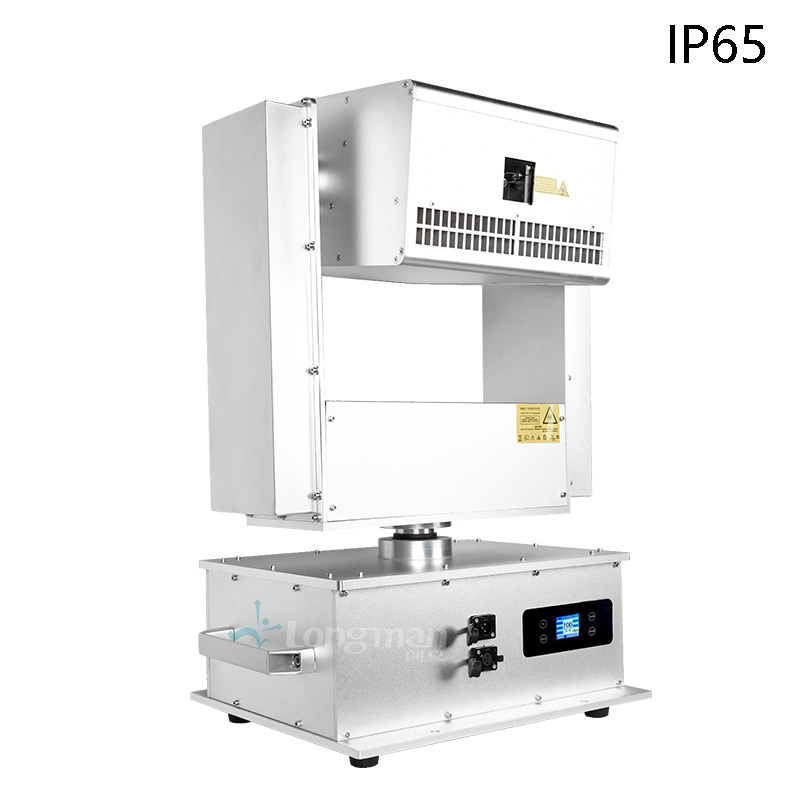

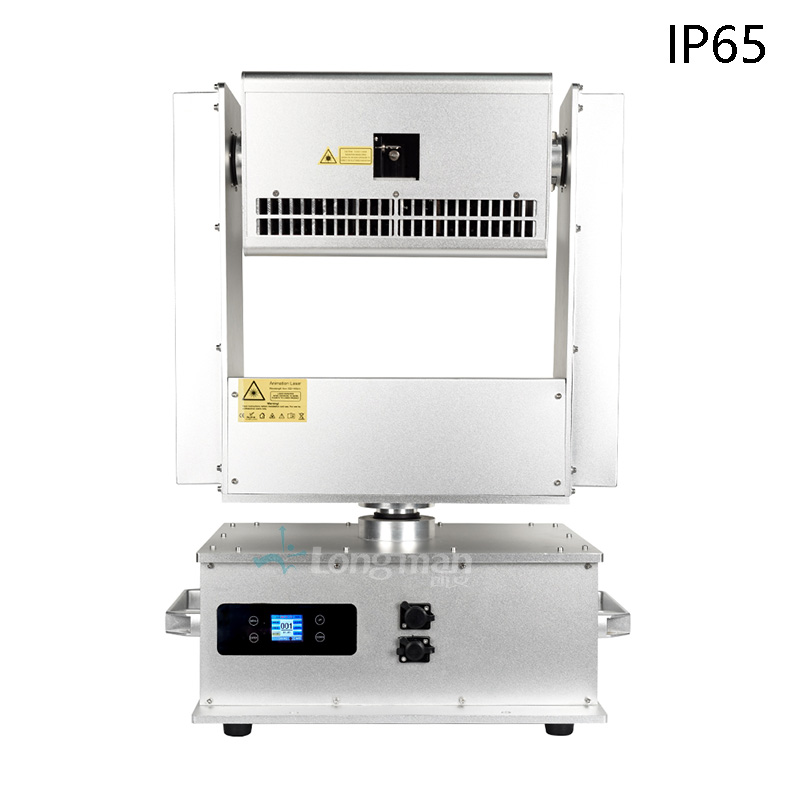

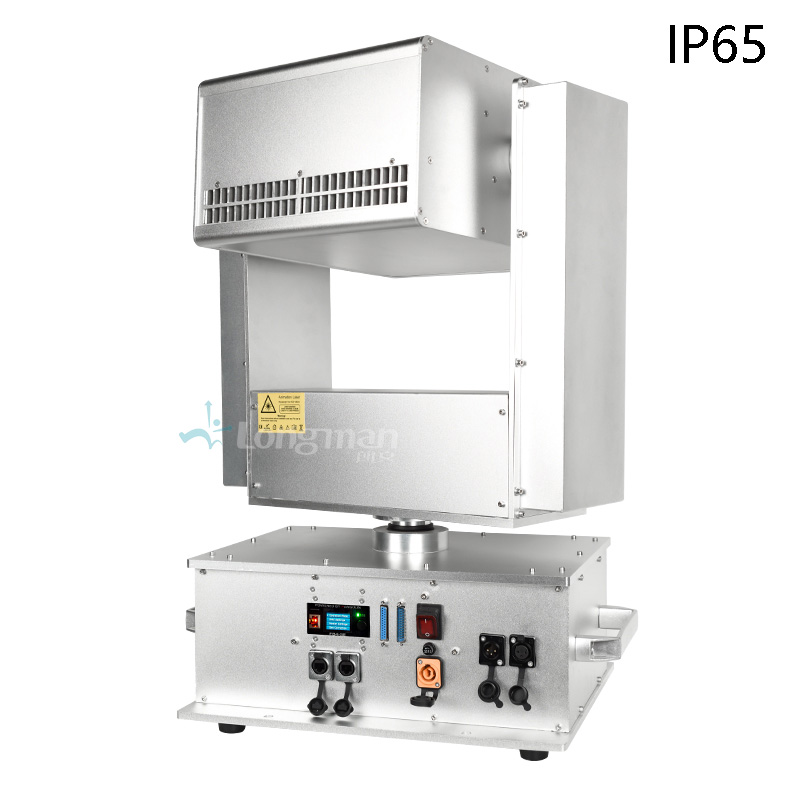

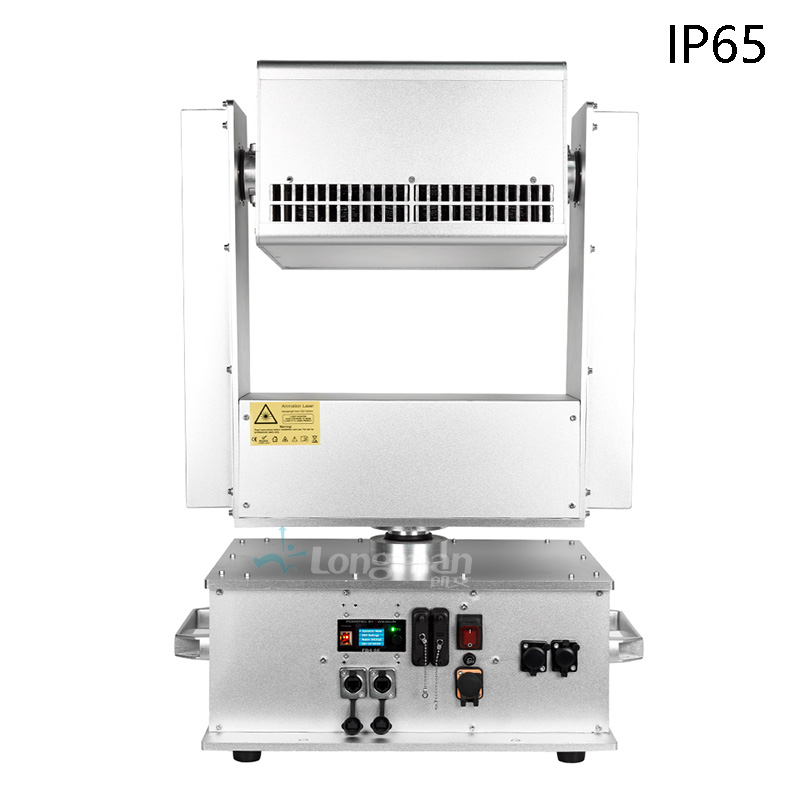

Ingress Protection Rating: IP65
Fanless structure, heat dissipated via aluminum housing; equipped with new-generation light source driver for low heat output.
Applications: Cultural tourism landscape projects, outdoor landmark lighting, water screen & movable screen projection, large-scale performances
