virtuoso Ap62

Brief description：
Input Voltage: AC 100~240V / 50~60Hz
Rated Power: 1500W；Fuse: 10A
Red: 635nm / 14W；Green: 520nm / 24W；Blue: 445nm / 24W
Scanning Speed: 50K

Red: 638nm / 18W + Green: 520nm / 20W + Blue: 445nm / 24W
Output Colors
True Color, Red, Green, Blue, Yellow, Cyan, Purple, White
Scanner
Galvo Speed: 40Kpps
Scanning Angle: 60°

Inquiry

Pictures and video Specification

Input Voltage: AC 100~240V / 50~60Hz
Rated Power: 1500W
Fuse: 10A
Red: 635nm / 14W；Green: 520nm / 24W；Blue: 445nm / 24W
Scanning Speed: 50K
Model, Laser Color, Wavelength / Power
RGB 60W
Red: 638nm / 18W + Green: 520nm / 20W + Blue: 445nm / 24W

Output Colors
True Color, Red, Green, Blue, Yellow, Cyan, Purple, White
Scanner
Galvo Speed: 40Kpps
Scanning Angle: 60°

Working Modes

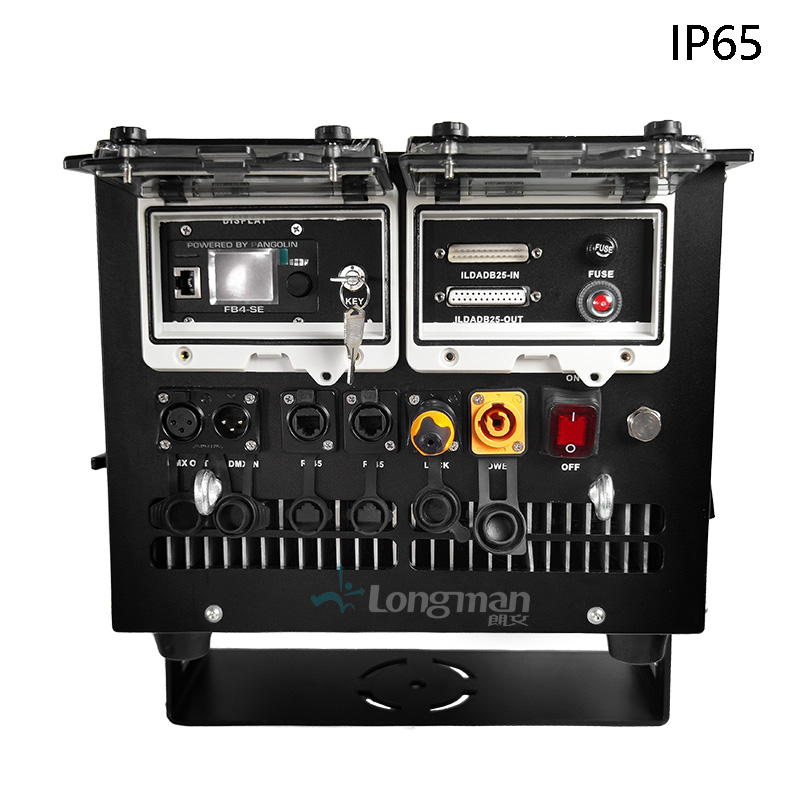

ILDA, Automatic, DMX, LAN, Pangolin FB4

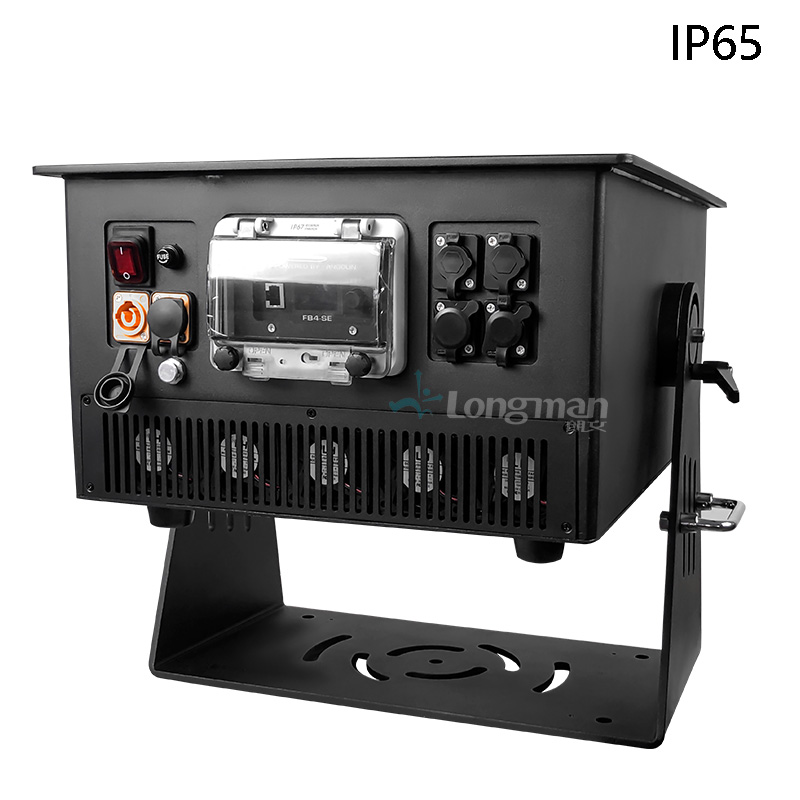

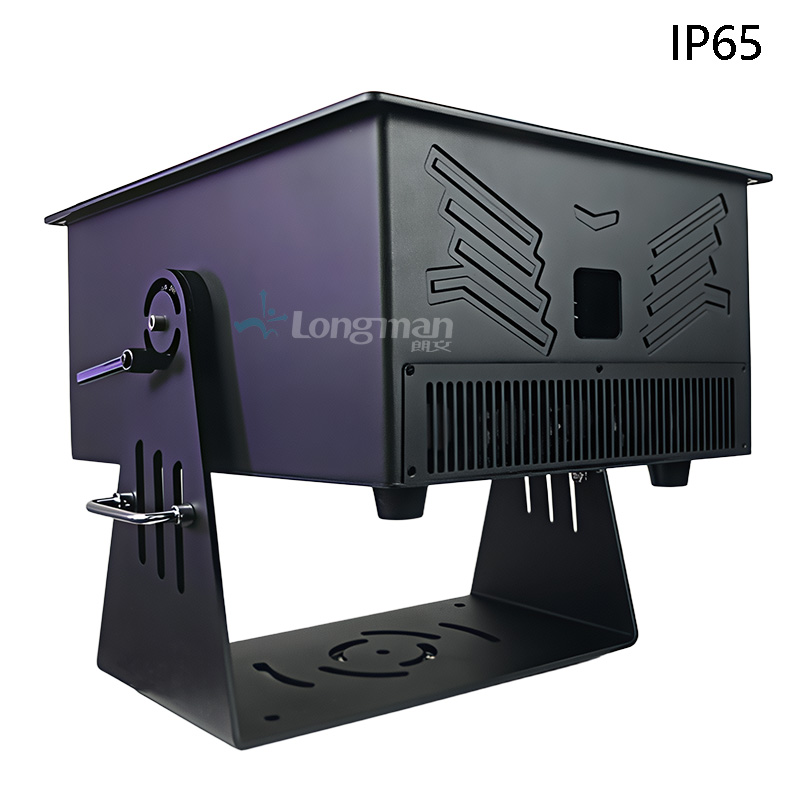

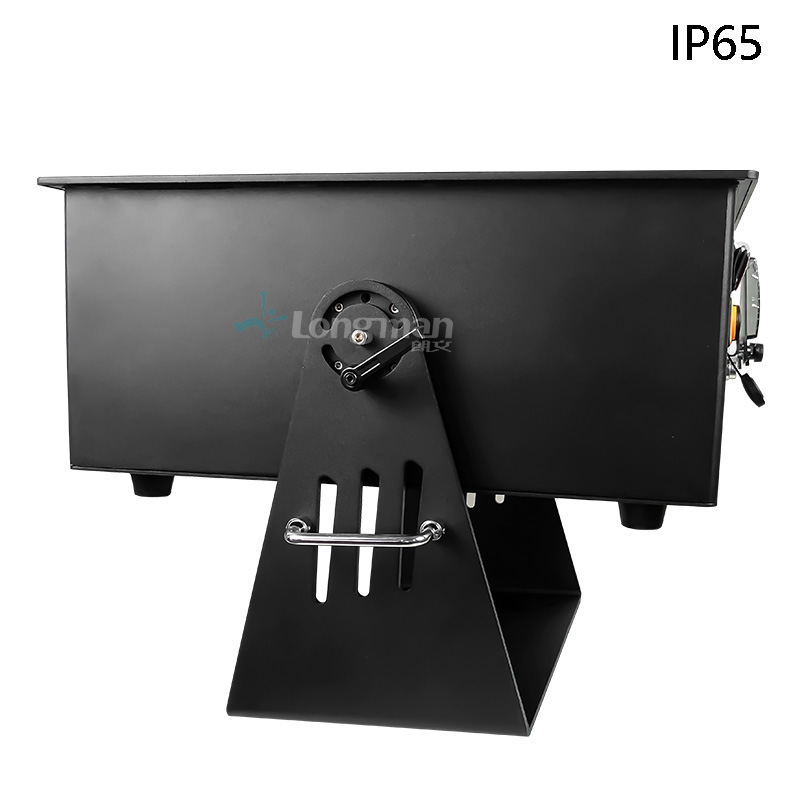

Ingress Protection Rating: IP65
Projection Distance: 5000 meters
Projection Coverage: 1500m × 1500m
Fixture Dimensions: L 66 × W 50 × H 40 cm
Net Weight: 49.4 kg
Flight Case Dimensions: L 85 × W 52 × H 50 cm
Gross Weight: 75 kg
