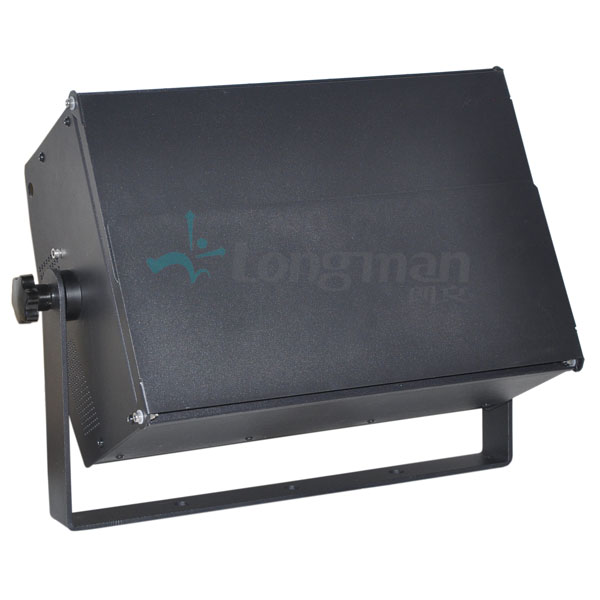

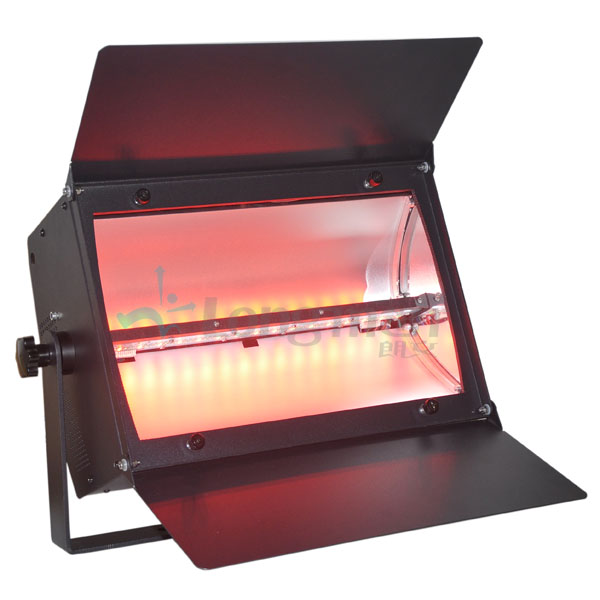

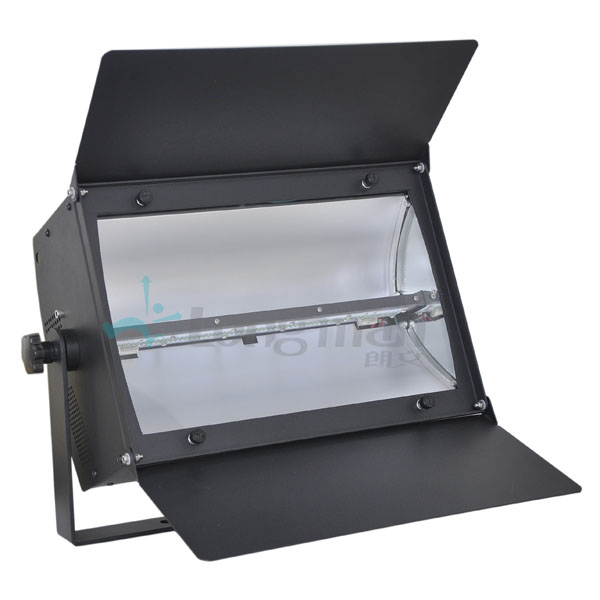

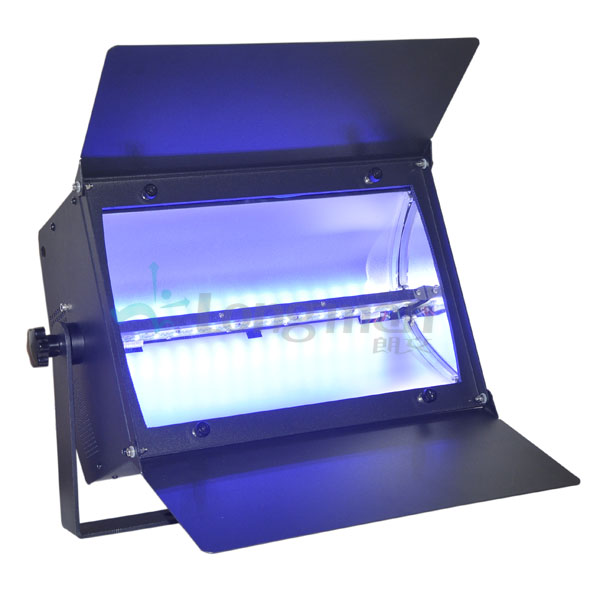

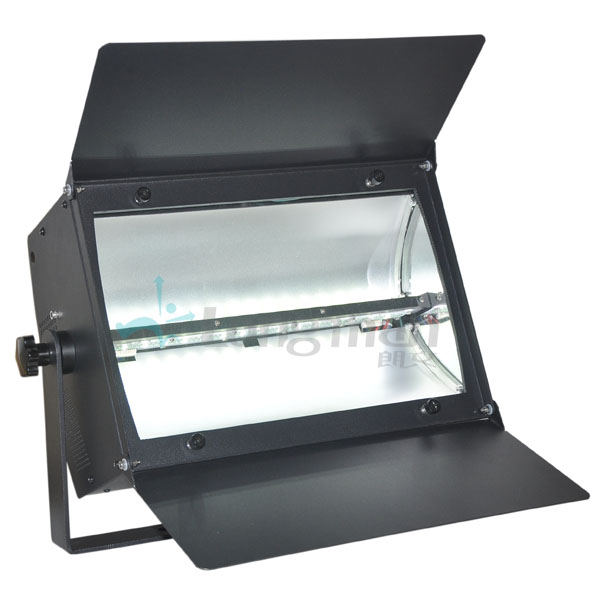

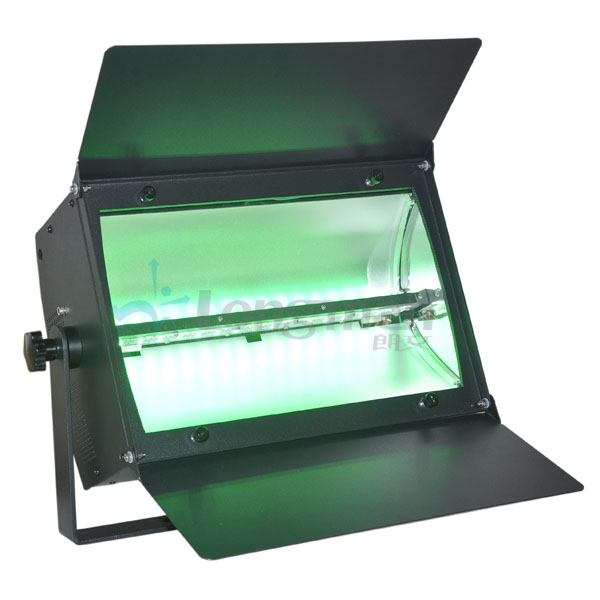

Strobeholic 1000 LED ParCAN Light

Strobeholic 1000 LED ParCAN Light

Brief description:
1. 256pcs 3W RGBW 4 in 1 LED
2. 28660 lumens output
3. Strobe DMX signals have no time delay among fixtures
4.Could also use as flood light color rendering

454*152*312 mm / 7.5KG

Inquiry
Features
  • Endurance > 12Hz full/void load flash rate, SMPS no shortcut protection.
  • No time delay of strobe DMX signals among fixtures.
  • RGBW color mixing to achieve even color and tunable white.
  • Could also use as flood light color render.
  • Frosted aluminium reflector, even optical distribution.
  • 28660 lumens output, output 90% lumens within 10% intensity.
  • LCD display, easy read menu, no operations during 2 minutes then no display.
  • Display board can show DMX signal condition, assure an easier cable testing.
  • Use SMT and low temperature reflow soldering tech to make sure heat conduct and heat dissipation.
Specification
Input voltage AC 90-240V 47-63Hz, PF>0.9.
Output voltage DC 48V, SMPS longevity 15000 Hours.
Rated Power 800W(Typ.731W@220V 50Hz), Flash Rate Endurance > 12Hz full/void load.
Luminaire Efficiency 256pcs 3W 700mA Driving, Full on 28660 lumens, efficacy > 39.2lm/W.
Color Evenness performance class, standard deviation of chromaticity SDC<0.005, Ra>90, R9>5.
LED Color Red 625nm, Green 525nm, Blue 460nm, White 6000K.
Field Angle(10%) 160X140°, peak intensity 14330Cd Full on.
Control mode Meet E1.11 - 2004 USITT DMX512-A, master/slave mode, able to set color and program with fade time and sustain time.
Control 7/13 channel options, 32 bit dimming, smooth in low DMX value dimming, no vision shock.
Dimming Curve optional Dim0-4 curve, PWM > 1500Hz, video flicker free.
Display Touch operation, LED display show DMX signal status and automatically turn off when no operation.
Housing material AL6063 and QR235 for lamp body, standard matte black, could customize silver.
Cooling method Fan cooling, NTC overheat protection.
Socket Compatible powerCON blue socket, signal with 3XLR/5XLR socket.
Soldering technology 180℃ reflow soldering, 15000 hours longevity of SMPS and main board.
Accessories Standard power adaptor cable, frosted glass, hook, safety cable available.
Operation temperature -20~+55℃, light board peak temperature 80℃, intelligent control.
Safety Appliance Class I, Flammability rating UL 94 V-1, Protection Rate IP20.
Certificate Product passes CE, RoHS, SMPS pass CQC or UL60950, UL8750.
Weight 7.5KG, with 180 degree rotatable yoke.
Size L*W*H=454*152*312 mm.
> Led strobe light Strobeholic 1000-page Download
