Home > Products > Indoor LED Par Can Light

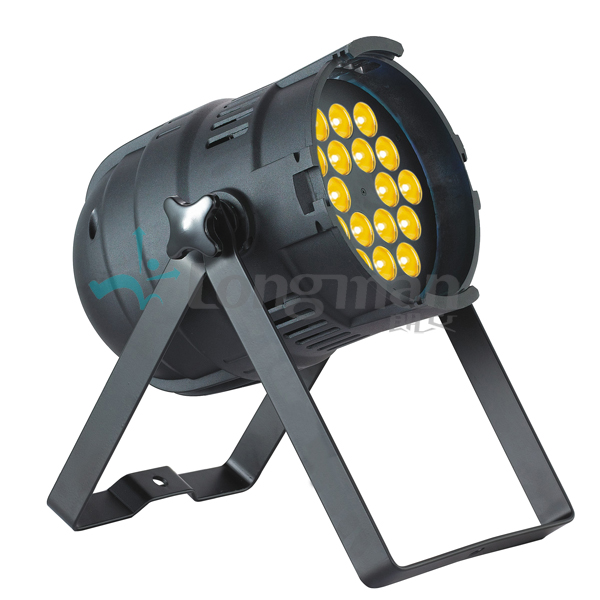

F Resun 300B- led indoor par 64 light

F Resun 300B- led indoor par 64 light

Brief description:
1.18pcs*5W Full ACW LED
2.6000Lumens Output
3.New die cast model, similar size as traditional Par 64
4.New Full CCT Capsulation LED

Size and Weight:30*32*39CM/4.7Kg

Inquiry
F Resun 300B indoor led par 64 structure
Features:
1.Patent New die cast Lampbody, same size as traditional Par 64, direct heatsink, true silent, could customized white Lambody.
2.6000Lumens Output with multi-CCT to acheive Metal hilide light Rendering, 90% Lumens within 10% Intensity field angle.
3.New Full CCT Capsulation LED, Popular application in stage, studio room, concert, business exhibition and all rental projects.
4.DMX512 signal control, 4 buttons address setting with LED screen.
5.Dim 4 Square law dimming for 0-100%, video flicker free, with strobe/gradual change/color change inbuilt programs;
6.Independent circuit driving, each 550mA,even ampere distribute.
7.NTC temperature control system inside, MCU reduce the power output when LED working temperature is too high;
8.Field Angle standard 30°,could choose other angle, and also frosted piece and 60*1° third optical piece.

Specifications:

Voltage input AC 90-240V 47-63Hz,PF>0.9
Volatage Output 24V, SMPS longevity 15000Hours
Rated Power 92W(@220V 50Hz)
Luminaire Efficiency >0.9, Light Effiacy >66lm/W
Light source 18pcs*5W Full ACW LED,Amber 1300lm, Cool white 2600lm, Warm white 2100lm, ACW mixing 6000lm
LED CCT Amber=590nm, C=8000K.W=3300K, Offer multi-CCT conbination 1700-6500K, SDC<0.005, ACW=3010K, Ra>95
Life span 50 000 -100 000 hours
Beam Angle standard 30 °(12000Cd/Klm)、45°、60°、60*1°Etc optional
Control signal DMX512,32 bit Dim 4 square law dimming, PWM>400Hz, smooth dimming, no vision shock flicker free
Control mode DMX1990/DMX512A/stand alone/master and slave
Channel 3/4/5/6/8 CH all inside menu
Housing material Die cast aluminum ADC12,standard Matte balck, customized glossy White painting, barndoor Color Gel available
Safty Class II, 3C 1.5mm2 VDE cable, Flame Rating V-1, Protect Rated IP20
Operate temperature -20~+45℃,Light board peak temperature 80℃
Cerficated Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750
Net Weight 4.7Kg,with double yokes 3mm thick supporting bracket
Size 30x32x39CM
IP Rate IP 20



F Resun 300B indoor led par 64 photometric graph
> LED par64 F Resun 300B-page Download
> F Resun 300B-FA17 Download
