Features:
1.4430Lumens Output, could replace 250 watt traditional Halogen.No need to change original primary dimmer rack, no need to add extra DMX system, suits for applications as stage, studio room, save wire and labour cost.
F200UDMX is DMX dimming,for new project, F200USW is sinewave dimming, suitable for 1 to 1 changing Halogen 250, no need adding DMX signal, compatible to be dimming with
halogen
2.Structure: New die cast model, similar size as traditional Par56, more stronger, good for rental application;
3.Patent new lamp body is designed to support heat sink, with better ventilation, no fans cooling, no noise! Suitable for strict control noise studio room.
4.Finished:Matte Balck, Could customize Matte white housing, Barndooravailable, color filter should be install under Steel Lens Cover.
5.Optic Design: Standard 3200K white light output, standard white, nature white, warm white, blue, etc, different colors to customize;
6.Field angle (10% intensity) 30 degree standard, 45 degree, 60-1 degree Optional.
7.Wattage: 75 Watt max consumed, power factor 90%;
8.More than 15000 Hours Longevity for SMPS and Main board.
Specification:
Voltage input |
DMX version AC 90-240V 47-63Hz Sinewave Version 40-240V 47-63Hz |
Max power consumption |
75W |
PF |
0.9 |
Light source |
18pcs*5W Cree XPG White color, 2800K-8000K optional, standard 3200K, each BIN 150K, neutral White 4500K, each BIN 200K, 4430Lumens output; |
Light Output |
4430 Lumens |
LED Life Span |
50 000 – 100 000 hours |

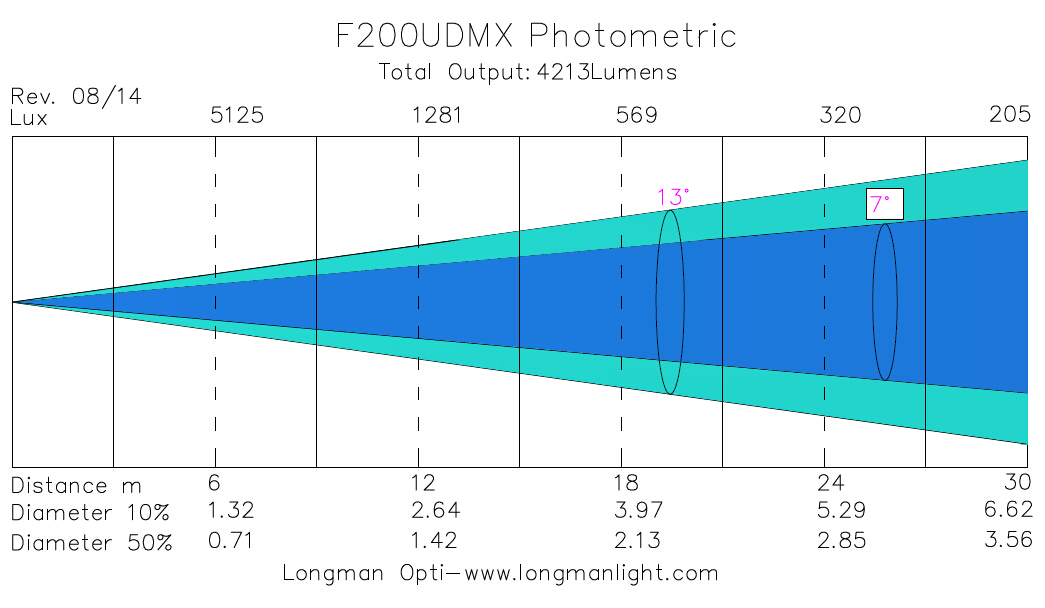

Beam Angle |
15°、25°、45°、60°、60*1°optional |
Dimming |
F200UDMX for DMX Dimming, 9 Channel,with Dim0-Dim4 5 dimming curve, F200USW for Sinewave Dimming, 40-240V, 7%-105% intensity, Smooth dimming curve |
Cerficated |
UL CE, Rohs |
PWM Frequency |
>7.8KHz, flicker free |
Cooling method |
Natural cooling |
Net Weight |
3.5Kg |
Size |
27*23*29CM |
IP Rate |
IP 20 |
