Power input |
AC 100-240VAC,47-63 Hz |
| Output |
28V DC,Power Factor>0.7 |
| Rated Power |
120W,Typical Consumption 106W/220V |
| Light Source |
Osram Ostar 7 PCS 15W 4-in-1 FULL RGBW LED |
| Light Output |
5760Lumens,Luminaire Efficiency 54.3lm/W |
| Peak Intensity |
236700Cd |
| LED Color |
R=625nm,G=525nm,B=465nm,A=590nm,White=6000K |
| Color rendering Index |
Ra>90,R9>50 |
| Color mixing index |
Standard deviation of Chromaticity SDC<0.005 |
| Control signal |
Meet E1.11 - 2004 USITT DMX512-A,32 bit precise dimming, smooth in low DMX Value dimming,no vision shock |
| Channels |
3CH,4CH,5CH,8CH,9CH |
| Display |
Touch operation,LED display show DMX situation and aotu turn off when no operation |
| Dimming |
with Dim0-Dim4 5 dimming curve, smooth dimming |
| PWM frequency |
>600Hz,Flash Rate Endurance Full Load:>12Hz Full load/void load flash |
| Beam Angles Optional |
8°,15°,18°,45*15°Etc |
| Housing material |
Die cast aluminum |
| Protection Rated |
IP65 |
| Cooling Method |
Neutral Heasink,Thermal protection:NTC overheat protection |

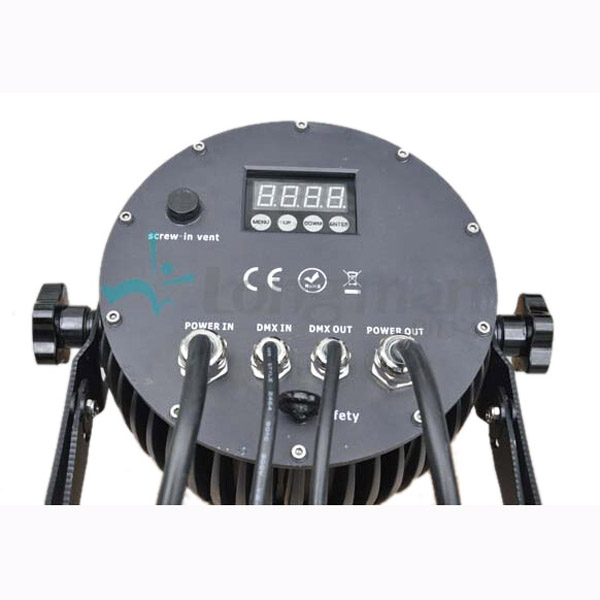

| Connectors and Cables |
IP67 Male/Female for fixed application IP65 Blue/Yellow connetor without cables for rental |
| Soldering technology |
180ºCReflow Soldering,makesure 15000 hours Longevity for SMPS and mainboard |
| Housing color |
Standard Matte Black, could customized Pumkin color |
| Accessories |
Barndoor,Hook,Safty Cable,Signal Extesion Cable,Power Extesion Cable |
| Size |
270*166*284mm |
| Weight |
5.2 Kg,with double yoke |
| Operating temperature |
-20ºC - +55ºC
|
