| Power input | AC 100-240VAC,47-63 Hz |
| Output | 48V DC,Power Factor>0.7 |
| Rated Power | 100W,Typical Consumption 86W/220V |
| Light Source | 1pcs*100W FULL RGBW LED meet ZHAGA standard,R=625nm,G=525nm,B=450nm,W=6500K |
| Light Output | 3302 Lumens,Luminaire Efficiency 38.7lm/W |
| Field Angles(10%) | 97°,Light beam(50%)70°,2311Cd on axis,Optical available at 25°but less good color mixing |
| Color mixing index | Standard deviation of Chromaticity SDC<0.005,good saturation; Perfect color mixing |
| Control signal | Meet E1.11 - 2004 USITT DMX512-A,32 bit precise dimming, Dim 4 smooth in low DMX Value dimming, no vision shock |
| Control | Master and slave, DMX Channels 3CH,4CH,5CH,8CH,9CH |

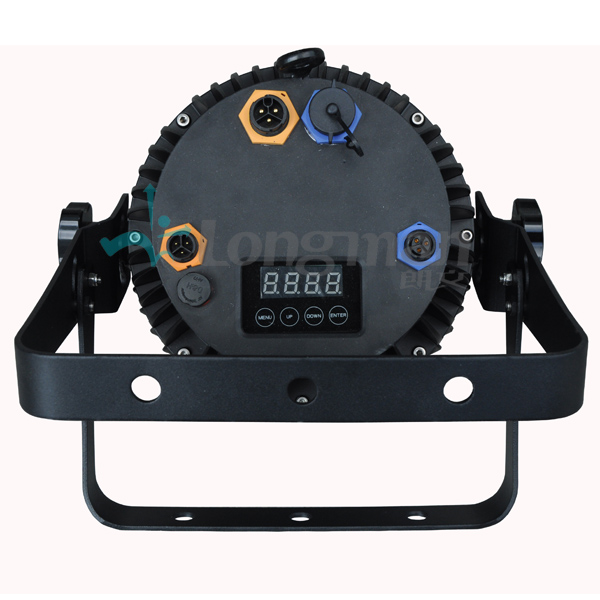

| Display | Touch operation,LED display show DMX situation and aotu turn off when no operation |
| Dimming | with Dim0-Dim4 5 dimming curve, smooth dimming |
| PWM frequency | >1500Hz flicker free,Flash Rate Endurance Full Load:>12Hz Full load/void load flash |
| Cooling Method | Natural Convection,NTC overheat protection balance at light board 80℃ |
| Housing color | ADC12 Standard Matte Black, could customized others |
| Connectors and Cables | IP67 Male/Female for fixed application |
| Safty | Class II, 3C 2.5mm2 VDE cable, Flame Rating V-1, Protect Rated IP66 |
| Accessories | Barndoor,Hook,Safty Cable,Signal Extesion Cable,Power Extesion Cable |
| Soldering technology | 180℃Reflow Soldering,makesure 15000 hours Longevity for SMPS and mainboard |
| Size | 265*209*286mm |
| Weight | 5.2KG,with double yoke |
| Operating temperature | -20℃ - +55℃ |
| Cerficated | Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750 |
 |
