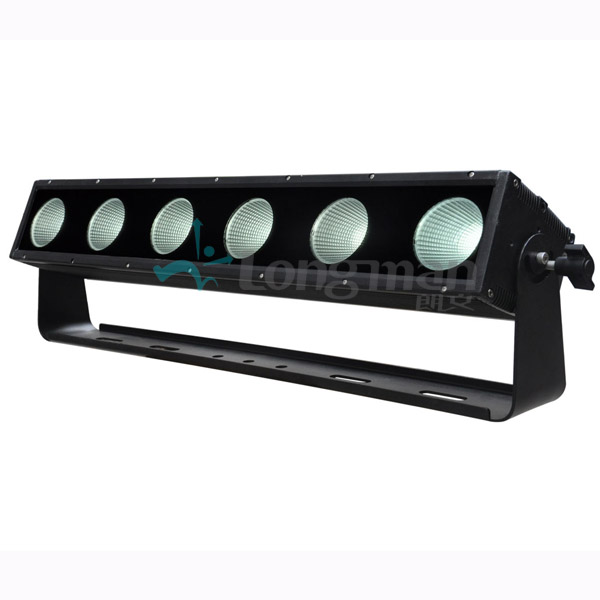

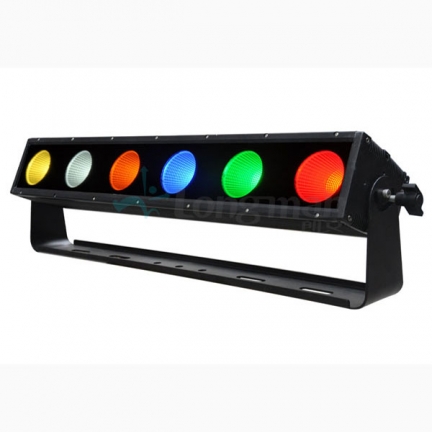

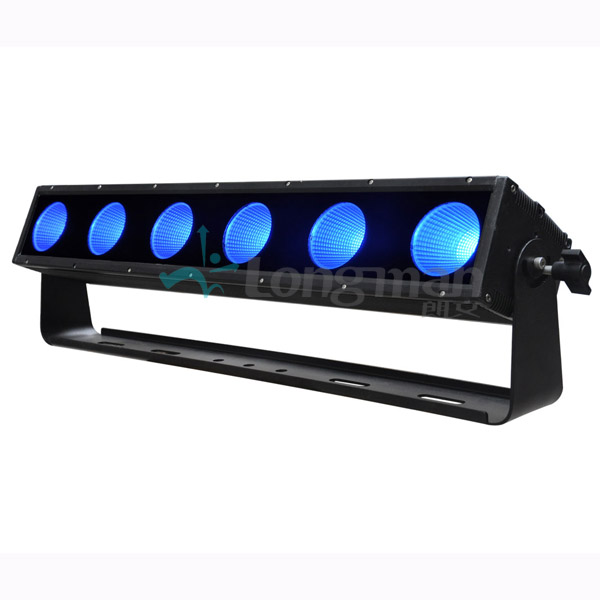

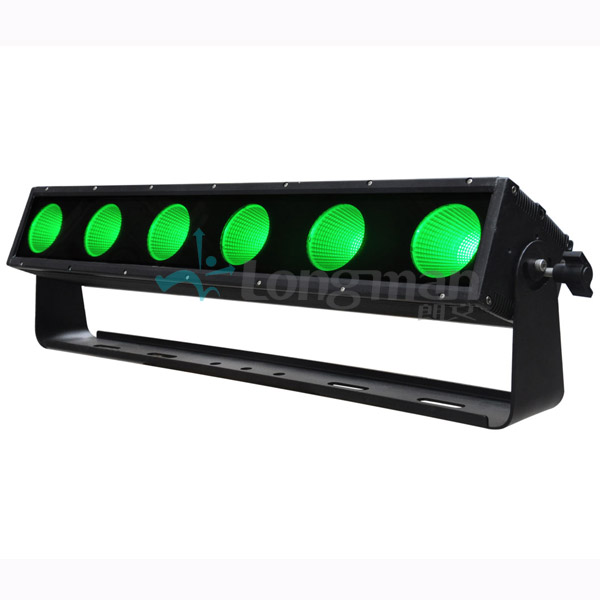

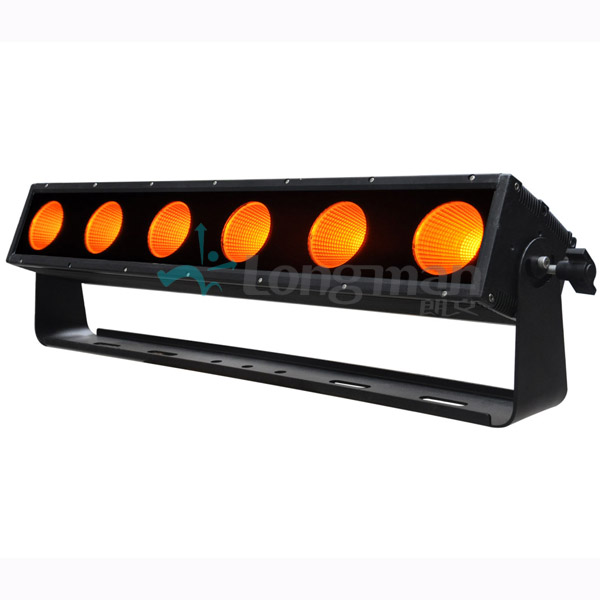

Phenix 625-outdoor led pixel bar

Phenix 625-outdoor led pixel bar (No: Phenix 625)

Brief description:
1.6pcs*25W Full RGBAW LED
2.5960Lumens output
3. Precise Lens curve,better color mixing
4.32 Bit MCU,Dim 4 Square law dimming for 0-100%

Packaging:Carton. If you want to pack by flight case, you should buy the flight case additional.
Size and Weight: 766*108*213mm/11kg(Net Weight)
Delivery time: within 15 days
List price:$298.00 Specials:$219.00
Quantity: - + (Stock:12pcs) Minimum Order:1pcs

Features:
 1.High quality LED light source, 25W COB RGBAW
 2.Precise Lens curve,better color mixing,SDC<0.005.
 3.11926Lumens Output,hight effieciency light output 90% Lumens within 10% Intensity field angle.
 4.With Function ID and adress ID, for 1 controller to run more lights
 5.32 Bit MCU,Dim 4 Square law dimming for 0-100%, no visible shock at low DMX Value.
 6.Display auto turn off when no operation and Auto show DMX signal come or not
 7.Independent circuit driving, each 450mA,even ampere distribute.
 8.NTC temperature control system inside, could show temperature at real time;
 9.More than 15000 Hours Longevity for SMPS and Main board.
 10.Field Angle standard 30°,could choose other angle, and also frosted piece and 30x 90° third optical piece.




Specification:
Voltage input AC 100V-240V 47-63Hz PF:>0.7
Voltage output DC15V,longevity 15000Hours
Rated power 150W(132@220V 50Hz)
Luminaire Efficiency >0.9,Light Effiacy >41.1lm/W.
Light source 6pcs*25W Full RGBAW LED,6 pixels,450mA driving total 5960Lumens output
LED CCT R=625nm,G=525nm,B=460nm,A=590nm,W=6500K,offer multi-Color and many white color,SDC<0.005.
Field Angle(10%) standard 97 °(4174Cd on axis),60°Etc optional.
Control signal DMX512,32 bit Dim4 square law dimming, smooth in low DMX Value, no vision shock,PWM>1500Hz,Flicker free.
Control mode DMX1990/DMX512A/stand alone/master and slave/Sound Active
Chanel option 5/6/11/18/23/30/38CH all inside menu.
Display Touch disaply,Could choose auto turn off no operation,Auto show DMX signal come or not
Housing material Extrusion aluminium,anodized matt black, customized other color and barndoor.
Safty Class II, Powercon Blue and white souket, Endure 5ms 1.5KV shock,Flame Rating V-1, Protect Rated IP65.
Operate temperature -20~+45ºC,Light board peak temperature 80ºC by neutral cooling and with NTC protection.
Cerficated Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750.
Weight 11KG,with 3mm thick bracket
Size 766*108*213mm
