Main Function
1)high quality LED: low consumption, brightness, stable capability and long life.
2)each color of LED with 16666 dimming. RGB can make over 16.7 million colors, adding W can achieve many effects.
3)Liner dimming from 0-100%, strobe, gradual change, jumping change etc effects
4)Touch Buttoms,Unusual feeling to you.

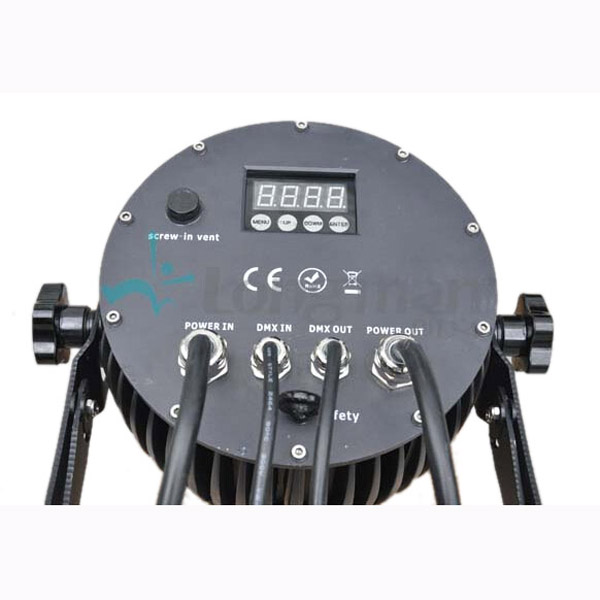

5)DMX512 Controller，4 button set DMX ID address with led display
6)auto run /sound activated/master slave/interconnected multi-machine control
7)using switching power supply to protect the LED to work well
8)Built-in temperature control function : The output of LED will be reduced when LED is too hot.
9)lens degree: 15°、25°、45° optional
10)Protection grade: IP65
Specification:
| Input voltage |
AC 100V-264V/47-63HZ |
| Output voltage |
DC24V |
| Consume |
144W |
| Lamp Spec |
6-in-1 14W(12PCS) High Power LED |
| Constant current driver |
500MA |
| PWM Dimmer |
>400HZ(16666 grades) |
| Life span |
50000~100000hours |
| Control Signal |
DMX512, sound activated, auto run |
| Control mode |
stand alone/ sound activated |
| Channel |
6CH,7CH,8CH,11CH |
| Color effect |
RGBAW UVmixing |
| Function Effect |
dimmer, strobe, gradual change, sound activated |
| Beam Angle |
15°,25°,45° |
| Cooling mode |
Natural Convection |
| IP rate |
IP65 |
| Anti-electricity intension |
1.5KV |
| Insulation Resistance |
>2MΩ |
| Size |
287.3*270.1*166.0mm |
| Net Weight |
5.2 Kg |
