Product Features：
1. Function：Double directions converter,node and server mode，build big system.
2. Allow to set IP, DMX Univers by published but free software.
3. 32 Bit MCU as main process IC.

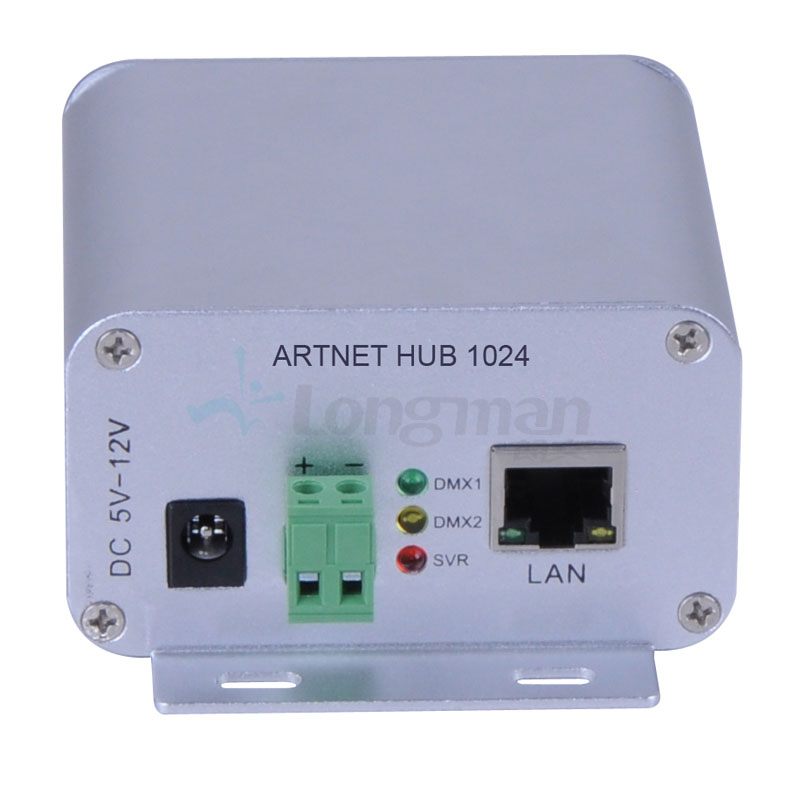

4. Provides the RJ45 network interface as well as standard DMX512 output interface.
5. Works with many existing famous control interface and software.
6. Mini volume, easy carry for rental lighting service, could also install in rainproof box.
7. Node Mode receives ArtNet signal through Ethernet and then convert it to DMX signal,Server Mode convert the DMX signal to ArtNet.
Product Specifications：
| Protocol Introduce |
Artnet is a new stage lighting protocol published by Artistic License in 2009,based on TCP/IP, it is recognized and recommended by USITT,PLASA,ESTA |
| Protocol Ambition |
Set up a bigger real time system, Offers more DMX Univers, stronger and faster |
| Protocol Standard |
《Specification for the Art-Net II Ethernet Communication Standard》 |
| Net Structure |
Artnet,DMX, Bi-direction converter, Artnet node (Artnet to DMX) and Artnet server (DMX to Artnet)，could enlarge to have optical fiber and WIFI |
| IP Address |
A Type IP can set to both 2.xxx and 10.x.x.x, subnet mask 255.0.0.0，255 IP Commonly,also available more Univers by giant software platform |
| Setting Software |
Artnet1024_v2.5_en,could set up IP,node and server mode,DMX Univers |
| Test Software |
DMX-Workshop，offer easy control and output |
| Related Application |
Artistic license, Grand MA, Avolite, Sunlite, ENTTEC, SHOWTEC, Luminair,all those output artnet Etc from windows Apple,Android |
| Connector |

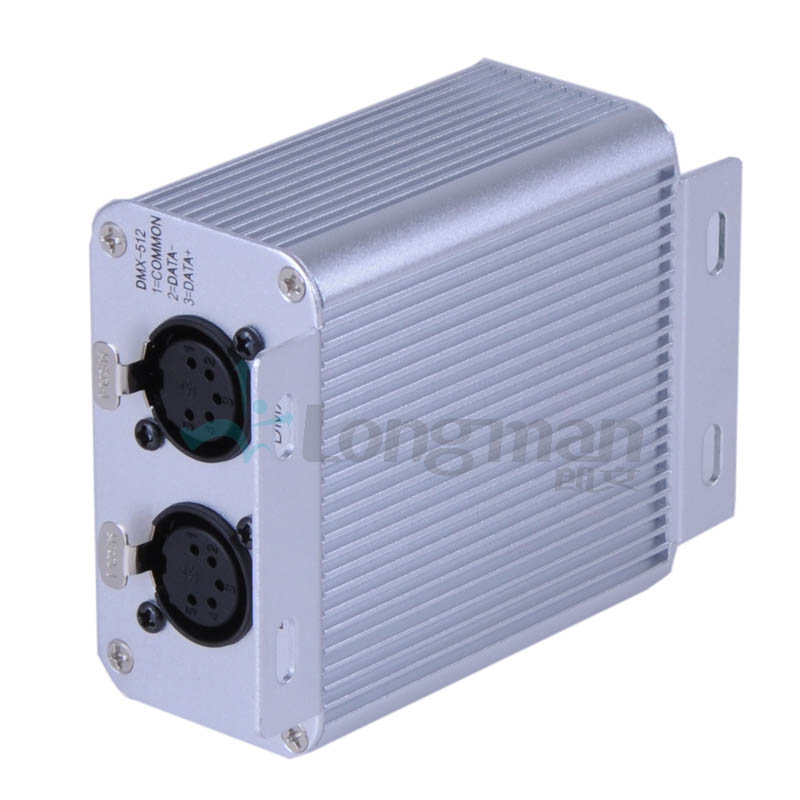

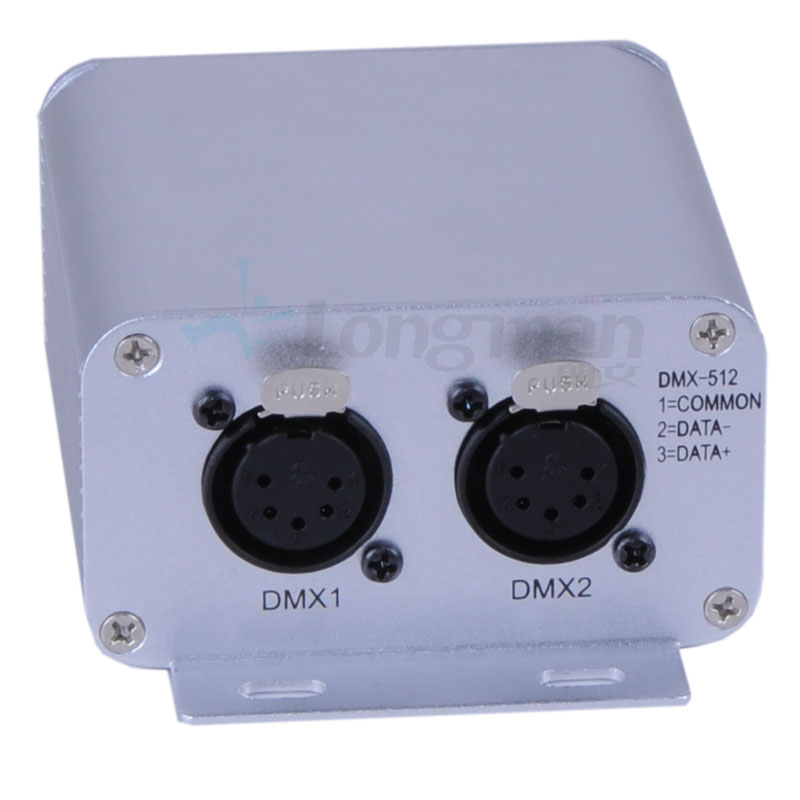

RJ45 female socket, DMX female socket |
| Size |
80 x 45 x 80 mm |
| Weight |
390 g |
| Main source |

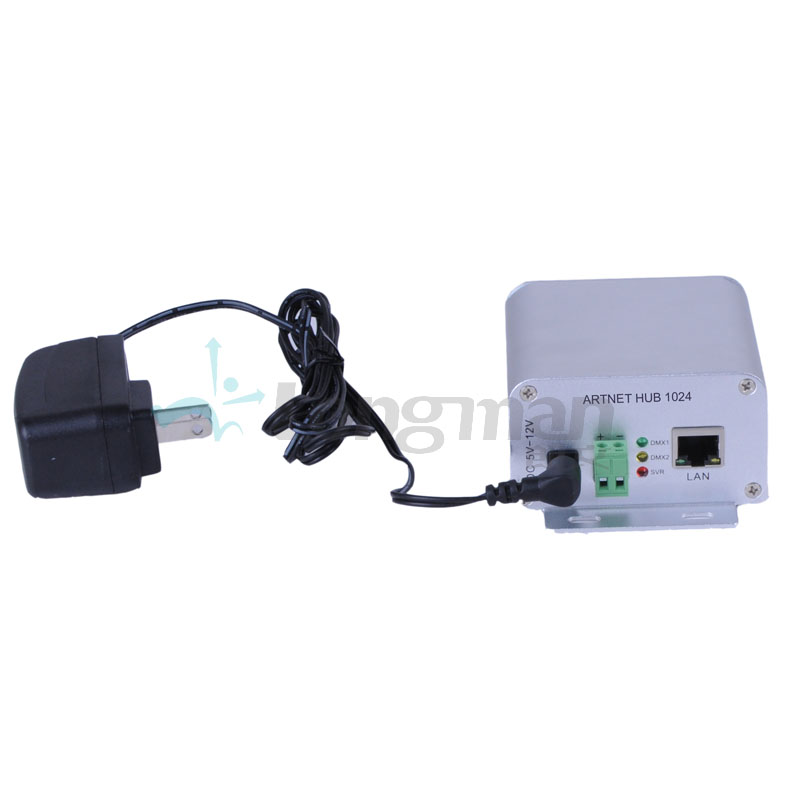

DC 9V, 500mA |
| Network protocol |
Art-Net/DMX512 |
