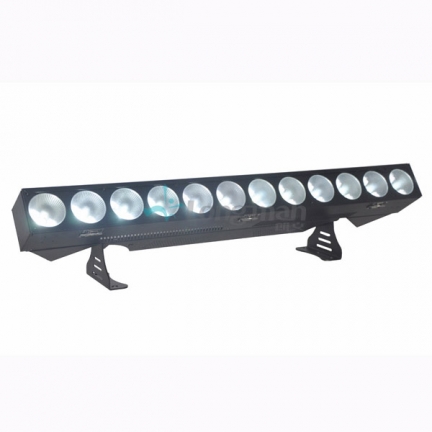

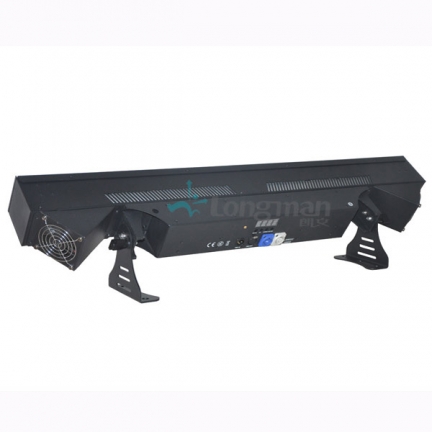

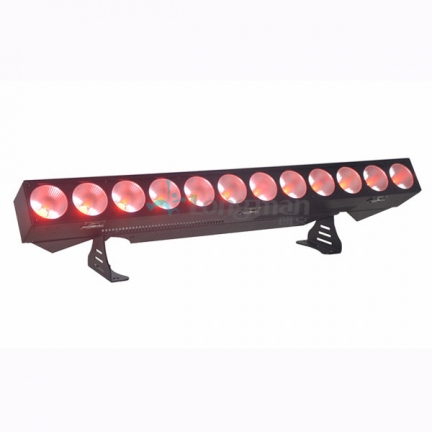

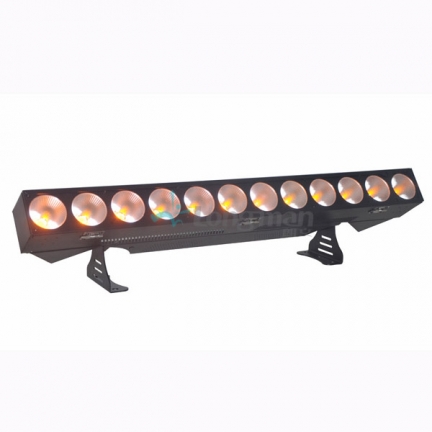

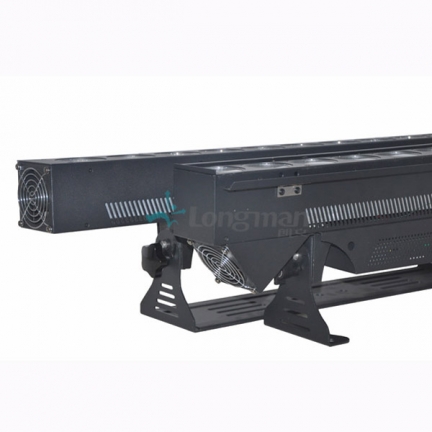

Phenix 300B cob led pixel bar stage light (No. Phenix 300B)

Watch demonstration video on Youtube: http://youtu.be/jYMLSIBqwc0

Features:
1.High quality LED light source, 25W COB RGBAW
2.Precise Lens curve, better color mixing, SDC<0.005.
3.11926Lumens Output，hight effieciency light output 90% Lumens within 10% Intensity field angle.
4.With Function ID and adress ID, for 1 controller to run more lights
5.32 Bit MCU, Dim 4 Square law dimming for 0-100%, no visible shock at low DMX Value.
6.Display auto turn off when no operation and Auto show DMX signal come or not
7.Independent circuit driving, each 450mA，even ampere distribute.
8.NTC temperature control system inside, Max speed of fans adjustable;
9.Seperated heatsink design between LED and DIriving, make sure more than 15000 Hours Longevity for SMPS and Main board.
10.Field Angle standard 30°，could choose other angle, and also frosted piece and 30x 90° third optical piece.



---

Specifications:

Voltage input	AC 100V-240V 47-63Hz PF:>0.9
Voltage output	DC15V, longevity 15000Hours
Rated power	360W(290@220V 50Hz)
Luminaire Efficiency	>0.9, Light Effiacy >41.1lm/W
Light source	12pcs*25W Full RGBAW LED, 12 pixels, 450mA driving total 11926 Lumens output
LED CCT	R=625nm, G=525nm, B=460nm, A=590nm, W=6500K, offer multi-Color and many white color, SDC<0.005
Field Angle(10%)	standard 97 °(8348Cd on axis), 60°Etc optional
Control signal	DMX512, 32 bit Dim4 square law dimming, smooth in low DMX Value, no vision shock, PWM>1500Hz, Flicker free
Control mode	DMX1990/DMX512A/stand alone/master and slave/Sound Active
Chanel option	5/6/11/18/23/28/60/68CH all inside menu
Display	Could choose auto turn off no operation, Auto show DMX signal come or not
Housing material	QR235 Steel board, Painted Matte balck, customized other color and barndoor
Safty	Class II, Powercon Blue and white souket, Endure 5ms 1.5KV shock, Insulated Resistance>2MΩ Flame Rating V-1, Protect Rated IP20
Operate temperature	-20~+45ºC, Light board peak temperature 80ºC by fans cooling and with NTC protection
Cerficated	Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750
Weight	11KG, with 3mm thick bracket
Size	912*136*240mm
