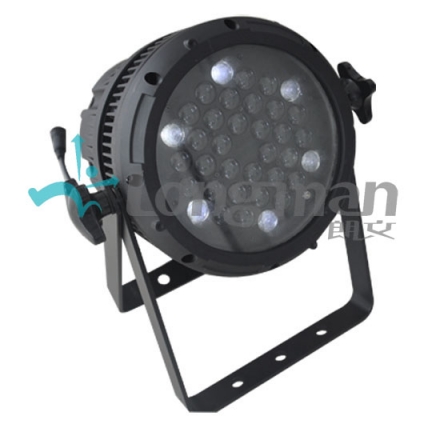

Aladdin A320 Outdoor LED PARcan Lighting

Brief description：
1. 36pcs 3W ACSW LED
2. 4470 lumens output
3. Stepper motor DMX control, linear zooming
4. Field Angle 8-52°
5. Suit for lighting test on spot.

Size: 325*265*330 mm
Weight: 7KG

Inquiry

Share This Products:

Picture&Video Specification Download

Aladdin A320 par can light theater outside effect 1

Aladdin A320 par can light theater outside effect 2

Features:

Stepper motor DMX control, linear zooming, field angle 8-52°.
All white color gamut, from 1800 to 8000K.
4470 lumens output, even color mixing, SDC<0.005, high efficiency light output 90% lumens within 10% intensity at 52°.
SMT and low temperature reflow soldering tech, make sure heat is dissipated well.
DMX512 signal control, 4-button address code for LED screen.
Dim 4 square law smooth dimming for 0-100%, video flicker free, with strobe/gradual change/color jump inbuilt programs.
Each LED circuit employs constant current and PWM Dimming, each is 620mA.
Built-in NTC temperature control system.
Durable die-casting mold LED lamp, cooling is sufficient, hot isolated driver installation, the switching power and motherboard are all up to 15, 000 hours of life.
With the help of air valve, air pressure is balance inside and outside, no fog on the inside glass surface.

Specification:

Input Voltage	AC 90-240V 47-63Hz，PF>0.9
Output Voltage	DC 24V, SMPS longevity is 15000 hours
Rated Power	120w (@220V 50Hz)
Luminaire Efficiency	>0.9, luminaire efficacy >37 lm/W
LED Lumens	36pcs*3W ACSW 1800-8000K, 700mA driving, full load 3300K 4470 lumens
LED CCT	Amber590nm(10)，White=Cool 8000K(10)+Standard 6000K(6)+Warm 3000K(10)
Field Angle(10%)	Min 8 °, Max 52°, medium angles are adjustable
Control Signal	Meet E1.11 - 2004 USITT DMX512-A standard, 32 bit Dim 4 square law dimming, smooth in low DMX value dimming, no vision shock
Control Mode	DMX1990/DMX512A/stand alone/master and slave
Chanel Option	Standard 9, 3/4/5/8/CH all in the menu
PWM frequency	PWM>400Hz(16666), video flicker free
Housing Material	Die cast aluminum ADC12, standard matte black, you also can choose glossy white painting, barn door is available

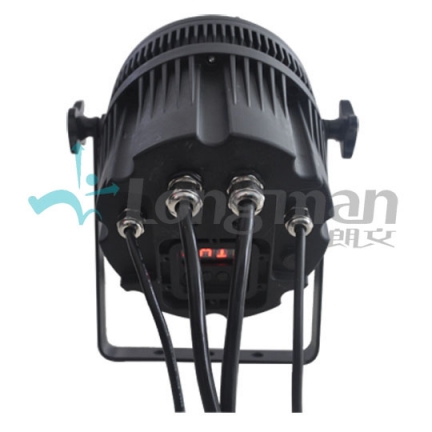

Cables	Power=3C 2.5mm2 VDE cable in and out, signal=3C 0.75mm2, shielded cable in and out
Operate Temperature	-20~+45℃, Light board peak temperature 80℃, intelligent control
Safety	Appliance Class II, flammability rating UL 94 V-1, Protect Rating IP65, 3C*2.5mm2 power cable and shielded signal cable both are daisy chain
Certificate	Product passes CE, RoHS, SMPS pass CQC or UL60950, UL8750
Weight	7KG, with two yokes, 3mm thick supporting brackets
Size	325265330 mm
