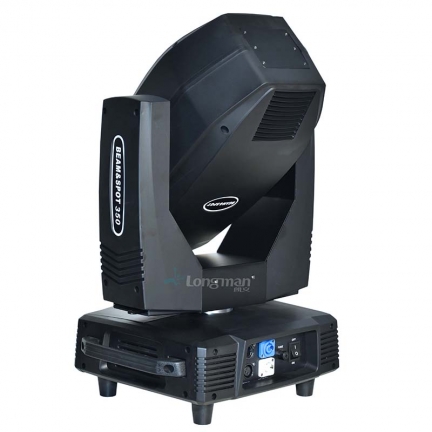

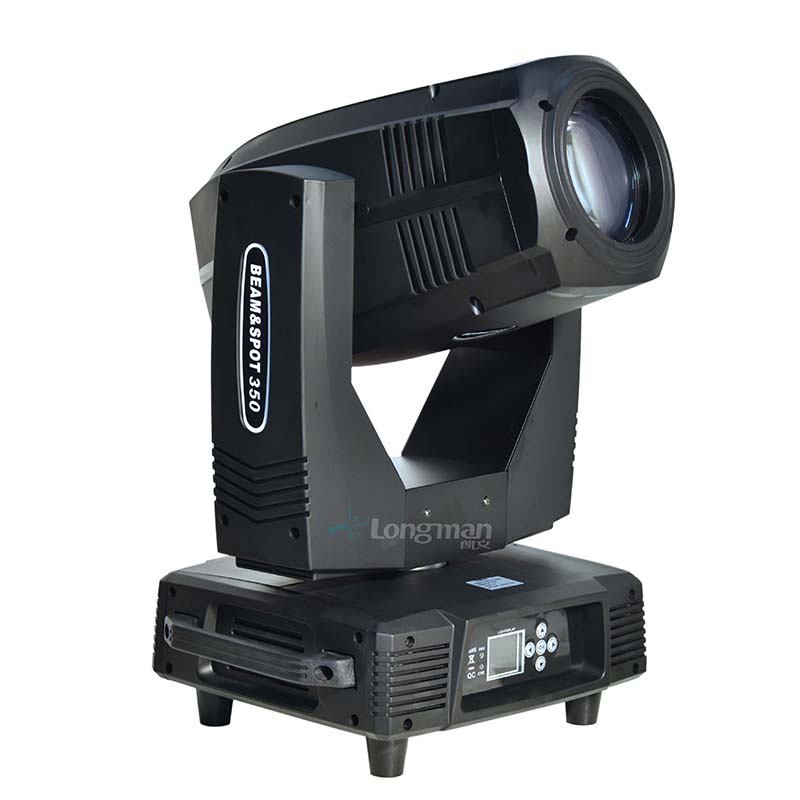

Fugue Hq760-Led moving head light






Power supply: AC110-240V, 50/60Hz power 600W
Light source: 350W
Dimming: 0-100% linear adjustment
Strobe: Dual chip strobe (0.5-9 times/second)
Focusing: Linear focusing
Zoom: Linear zoom
Beam angle: 2-38 degrees
Optical lens: high-precision laminated optical lens combination
Color: 1 fixed color palette, 13 colors+white light, rainbow effect speed adjustable, half step color effect
Fixed image: 1 fixed pattern disc, 14 patterns+white light, capable of bidirectional variable speed rotation
When the pattern is printed on the rotating disc, a soft light plate is automatically added to make the light spot more uniform: 1 rotating pattern disc, 9 replaceable pattern discs+white light, the pattern flows back and forth from slow to fast
Prism disk: Any two prism effects that can be stacked and combined to create dynamic prism effects, and can be rotated in both directions to switch effects
XY axis motor, ultra quiet, ultra high speed three-phase motor
There are a total of 16 motors in the entire machine
Horizontal scanning: 540 degrees (160 bit precision scanning) with electronic error correction
Vertical scanning: 270 degree (160 bit precision scanning) electronic error correction
Channel mode: 20 international standard DMX512 channels, master-slave mode
Display: Color key display screen
Rectifiers: Electronic rectifiers make products lighter in weight, brighter, more stable in light bulbs, more environmentally friendly, and energy-efficient
