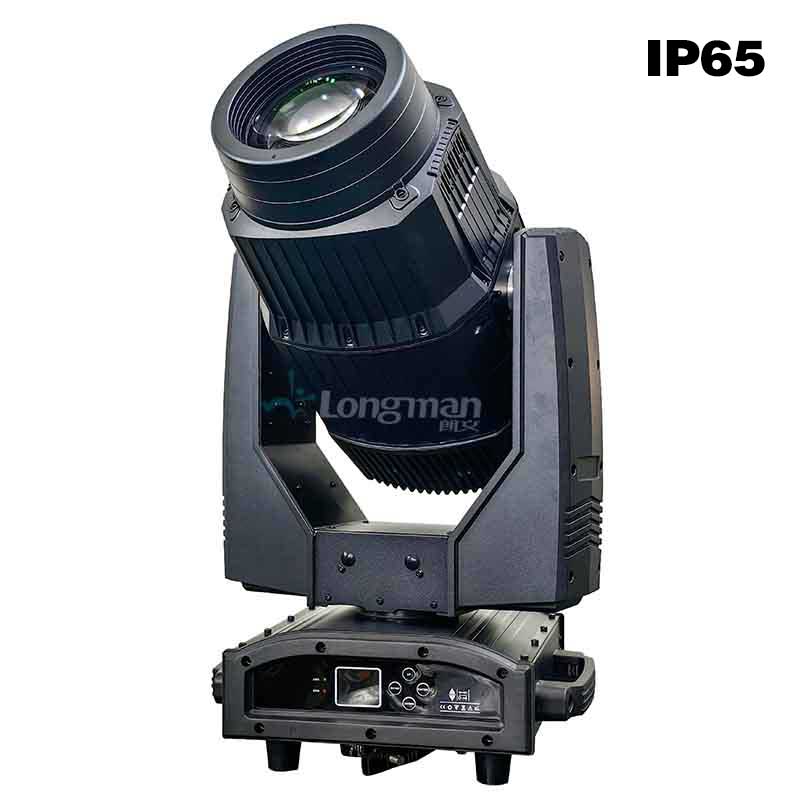

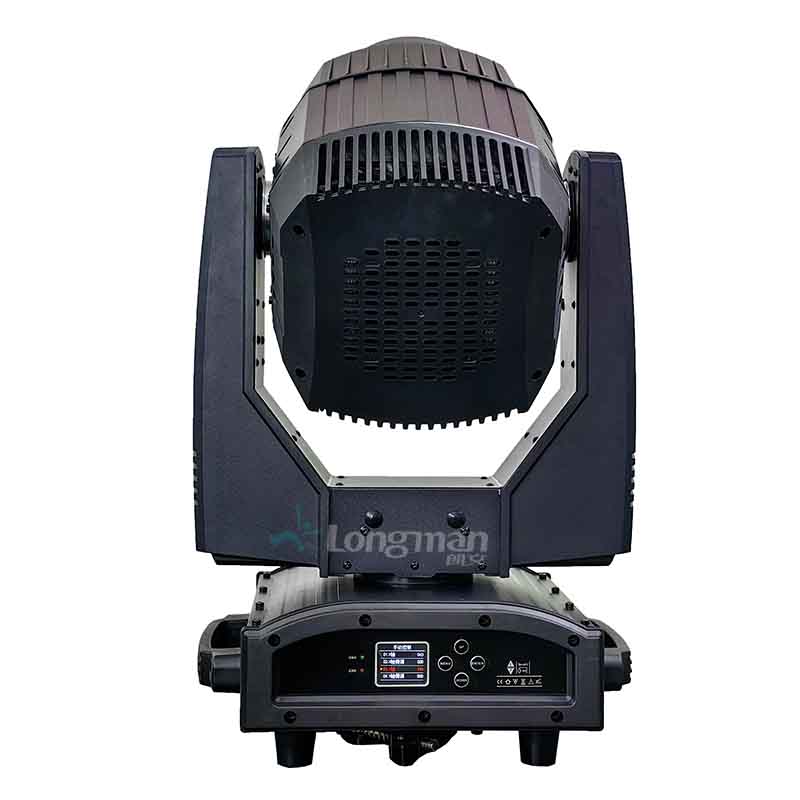

Foresight 600IP-moving head beam light with framing system

Brief description:
Power Supply:AC 100-240V,50/60Hz
·Power consumption:600W
·Light Source:High Brightness 400W White LED
·LED life expectancy: ≥20000 Hours
·Color Temperature:7500K
·Color Wheel:linear CMY color mixing,Variable CTO: 3200K-6800K,
·Rotating gobo wheel:7

Inquiry
Picture&Video Specification Photometric Parts&Packaging


moving head light with framing shutter, moving head beam light with framing system, Intelligent Moving Head with Gobo Cutting, Framing Moving Head Light moving head light with framing shutter, moving head beam light with framing system, Intelligent Moving Head with Gobo Cutting, Framing Moving Head Light

moving head light with framing shutter, moving head beam light with framing system, Intelligent Moving Head with Gobo Cutting, Framing Moving Head Light moving head light with framing shutter, moving head beam light with framing system, Intelligent Moving Head with Gobo Cutting, Framing Moving Head Light

moving head light with framing shutter, moving head beam light with framing system, Intelligent Moving Head with Gobo Cutting, Framing Moving Head Light moving head light with framing shutter, moving head beam light with framing system, Intelligent Moving Head with Gobo Cutting, Framing Moving Head Light
Product technical specification (shaking head lamp series)
Lamp specification parameter
Product name LED 400W BSWF 4in1 with CMY+CTO IP65 Product model Foresight 600IP ·Power Supply:AC 100-240V, 50/60Hz
·Power consumption:600W
·Light Source:High Brightness 400W White LED
·LED life expectancy: ≥20000 Hours
·Color Temperature:7500K
·Color Wheel:linear CMY color mixing,Variable CTO: 3200K-6800K,

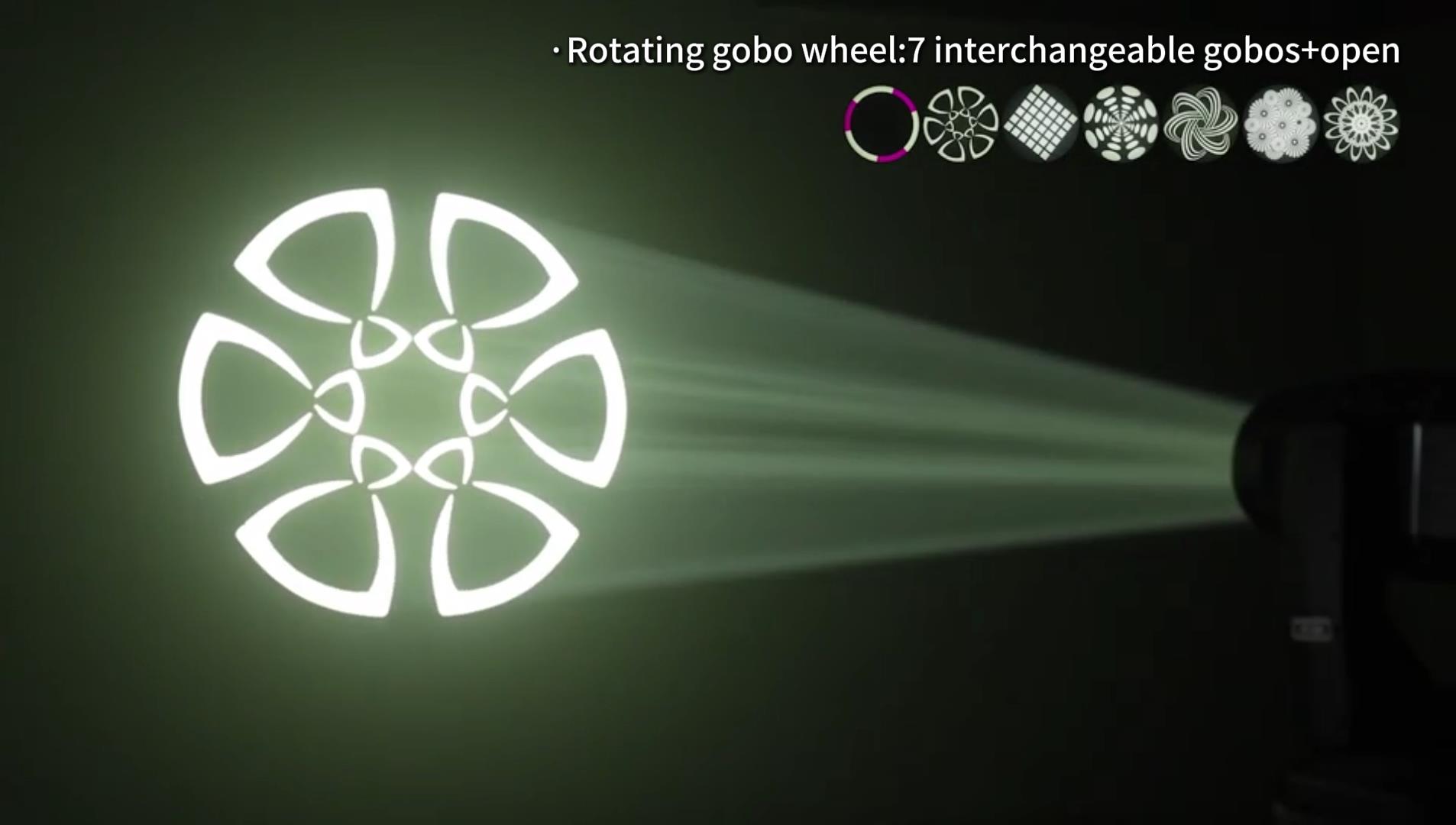

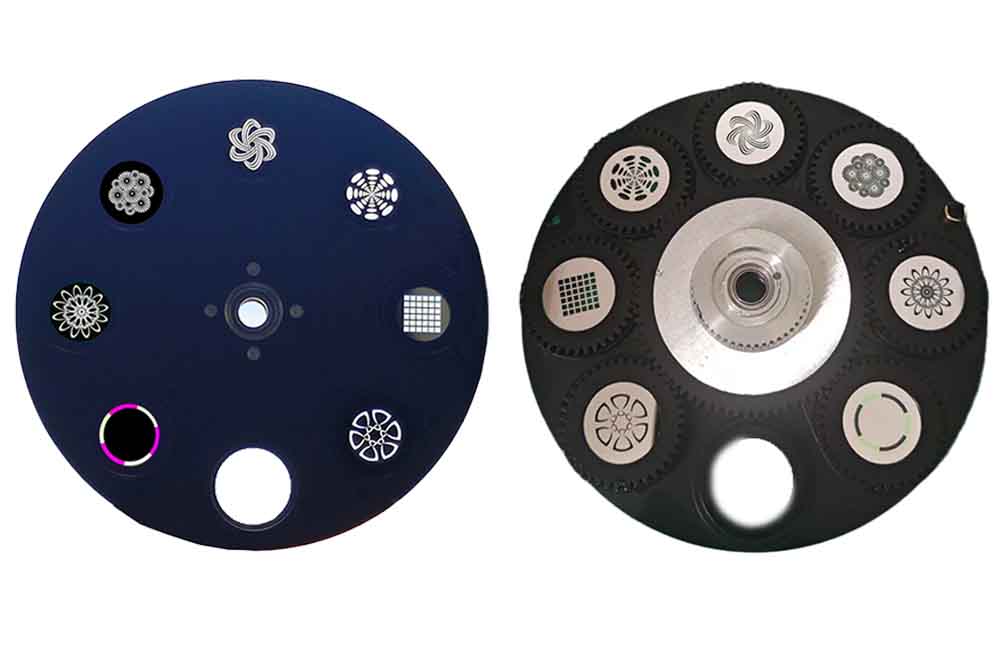

·Rotating gobo wheel:7 interchangeable gobos+open, gobo shake
 (adjustable rotating speed and direction)
·Animation wheel:Water ripple wheel
·Prism:3-facet prism, adjustable rotating speed and both directions;
·Framing shutters: 4x fast and smooth framing shutters, each individually controllable; framing module can be rotated at 90°;

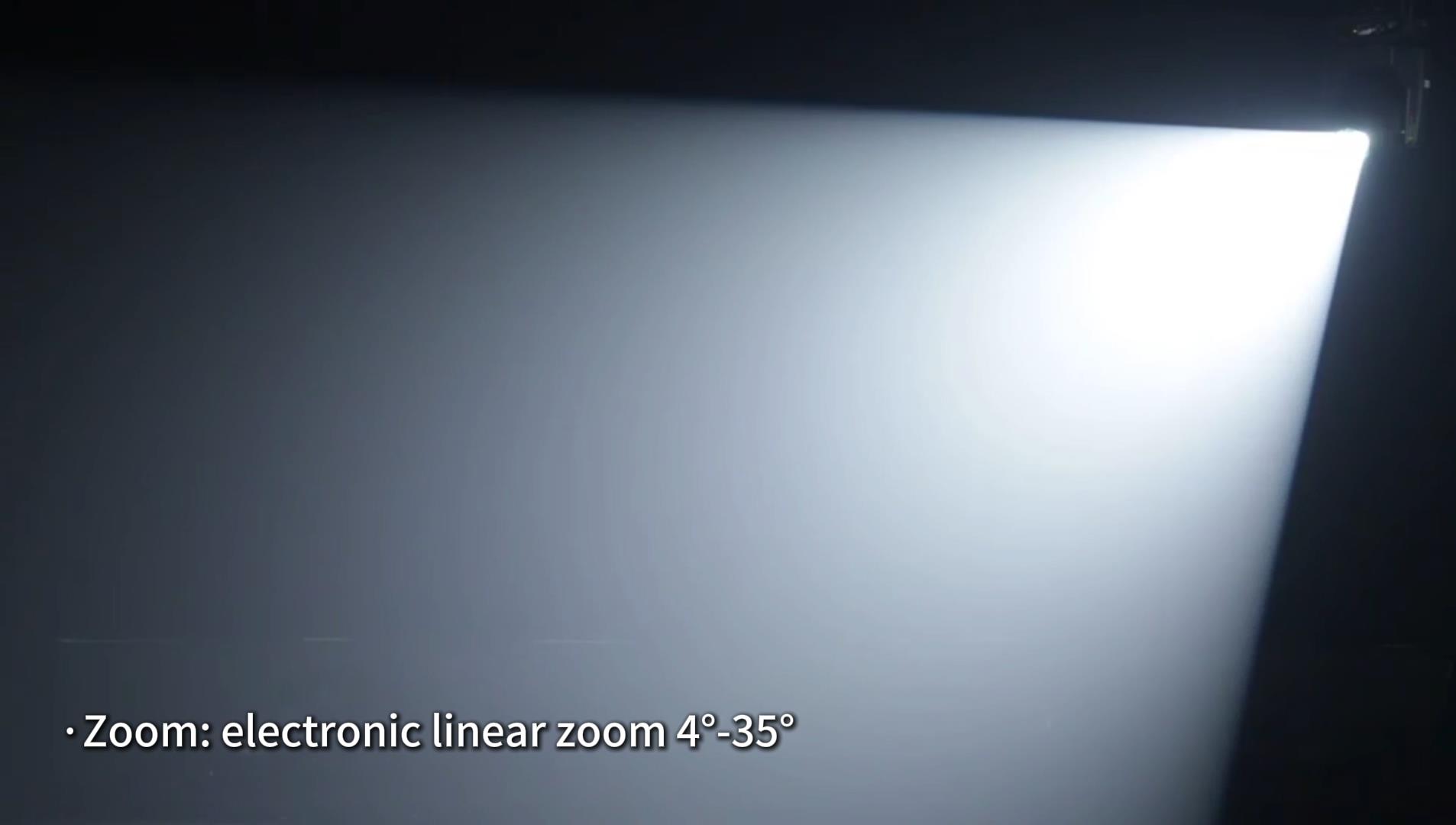

·Zoom: electronic linear zoom 4°-35°
·Iris: 5%-100% linear adjustment
·Strobe: 1-25Hz/s, adjustable speed
·Dimmer: 0-100% linear electronic dimmer
·Frost: 0-100% linear frost
·Movement:Pan: 540°, 16 Bit movement resolution
  Tilt: 270°, 16 Bit movement resolution
  Automatically accurate positioning
·Control mode:DMX512, RDM, Master/Slave, Auto
·DMX Channel:30/43 CH

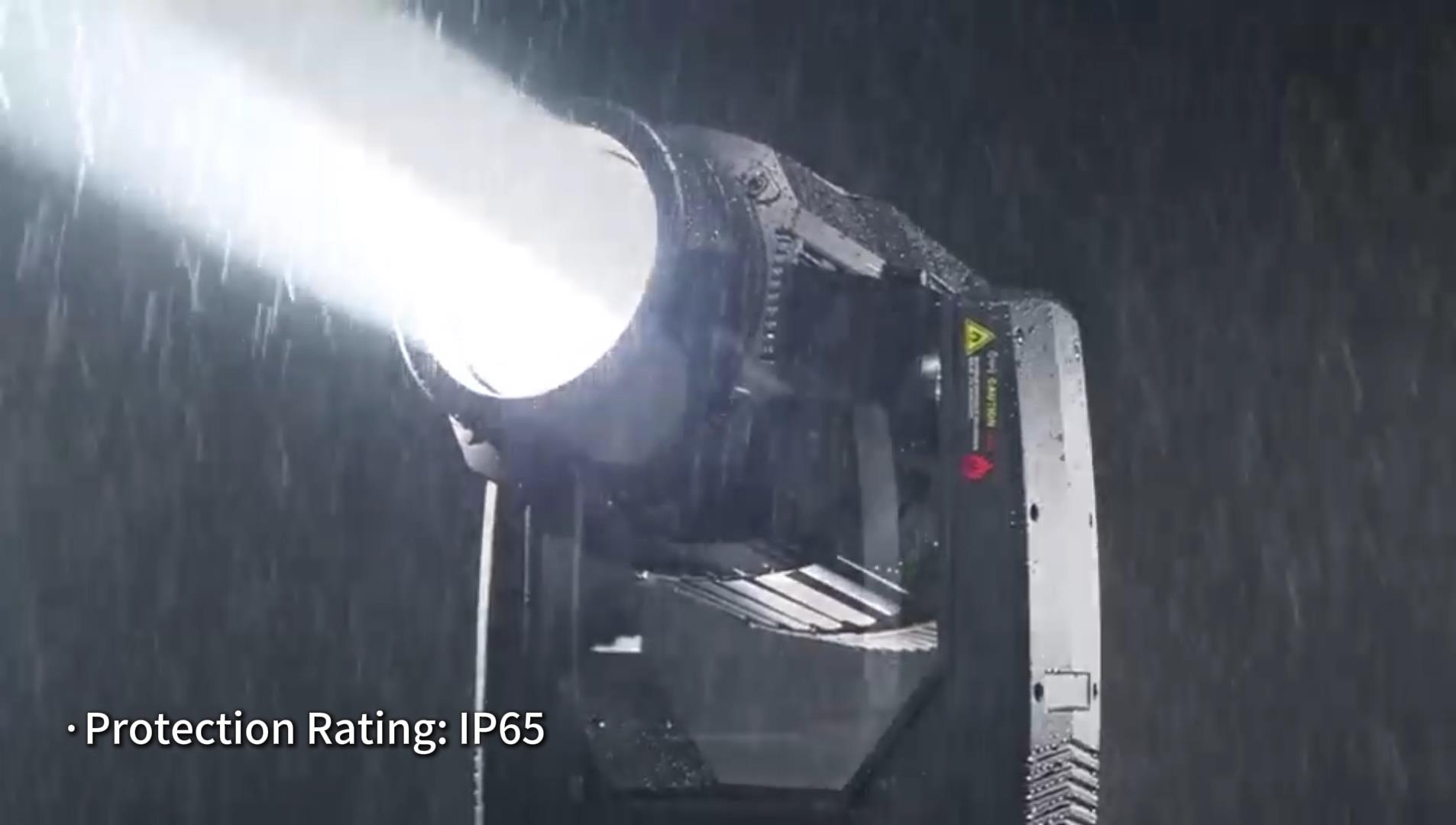

·Protection Rating: IP65

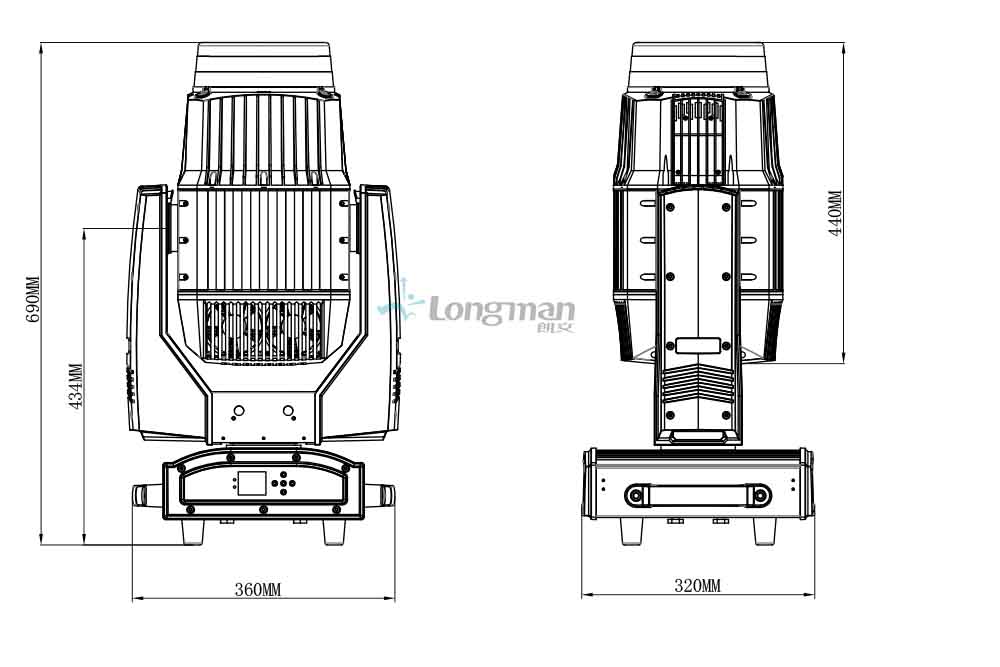

·Product Size:360x320x690mm, N.W.:29kg
·Carton Size:690x600x485mm, G.W.:33kg
Lamp color Black
Net weight 29kg Gross weight 33kg
Product size 360x320x690mm Package size 690x600x485mm
Protection Rating IP65 Lamp material Aluminum alloy, high temperature and ultraviolet resistant engineering plastics
Optical system Effect system
Light source High Brightness 400W White LED Color wheel linear CMY color mixing,Variable CTO: 3200K-6800K;
Light source life ≥20000 Hours Gobo wheel Rotating gobo wheel:7 interchangeable gobos+open, gobo shake(adjustable rotating speed and direction)
Animation wheel:Water ripple wheel
Zoom electronic linear zoom 4°-35° Framing shutters 4x fast and smooth framing shutters, each individually controllable; framing module can be rotated at 90°;
Diameter of lens 132mm Prism 3-facet prism, adjustable rotating speed and both directions;
Color temperature 7500K Frost  0-100% linear frost
Iris 5%-100% linear adjustment Strobe 1-25Hz/s, adjustable speed
Dimmer 0-100% linear electronic dimmer Animation wheel Water ripple wheel
Electrical connection Control system
Input voltage AC 100V-240V, 50/60Hz Movement Pan: 540°, 16 Bit movement resolution;Tilt: 270°, 16 Bit movement resolution;
Automatically accurate positioning
Whole lamp power 600W Communication design DMX wired / wireless transmission, convenient and fast software upgrade through DMX data cable.

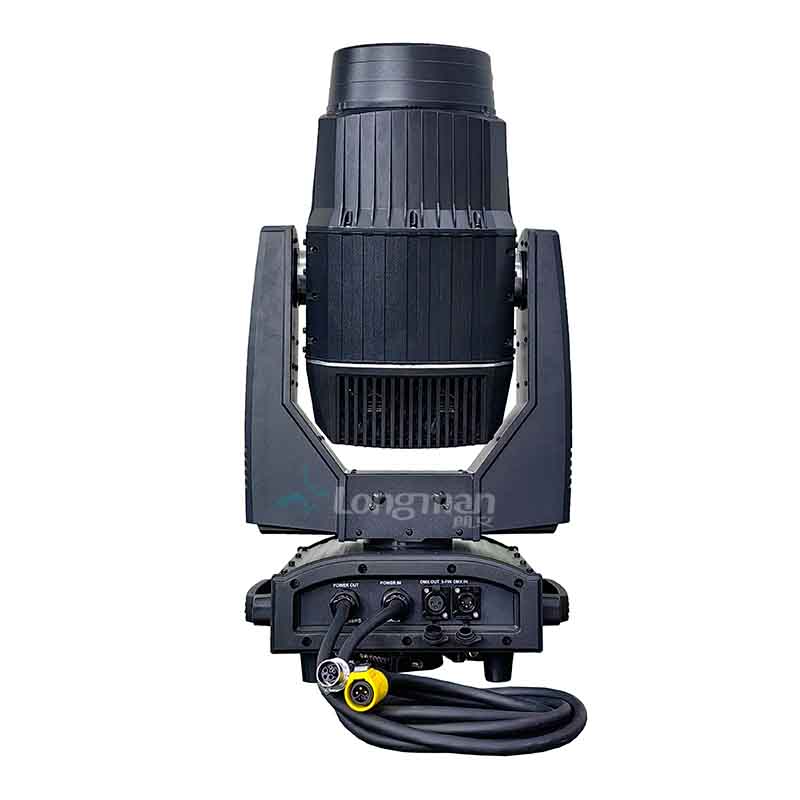

Signal connection 3Core IP65 XLR I / O Heat dissipation system Copper tube + fan heat dissipation structure and temperature intelligent monitoring technology are adopted to automatically adjust the heat dissipation system and effectively control the lamp temperature.
Power connection IP65 power head input Control mode DMX512, RDM, Sound, Master/Slave, Auto
Display Lamps and lanterns can be queried, and the service time of bulbs is convenient for maintenance Channel mode 30/43CH
