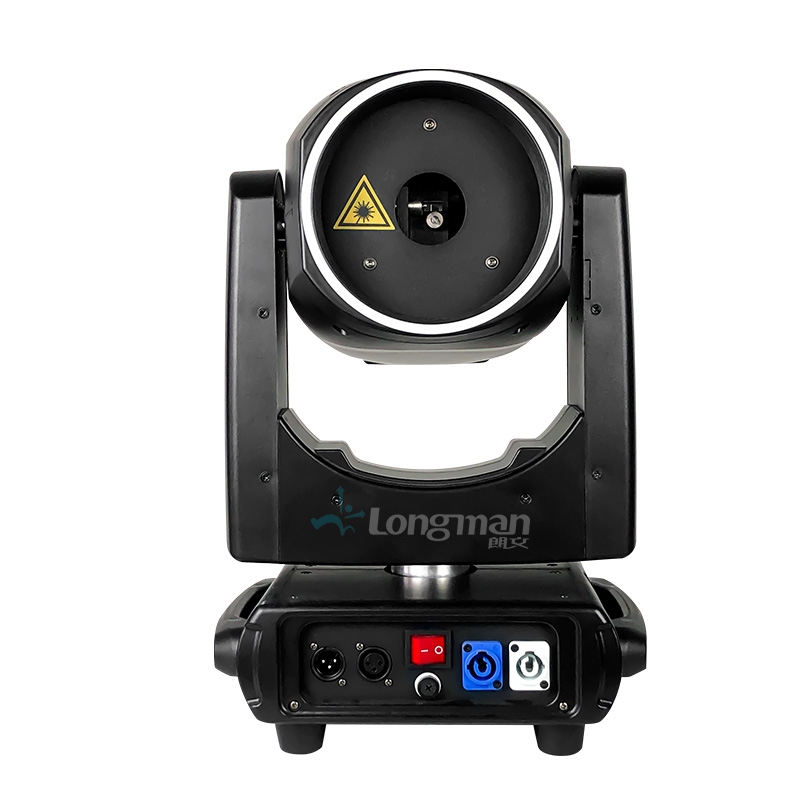

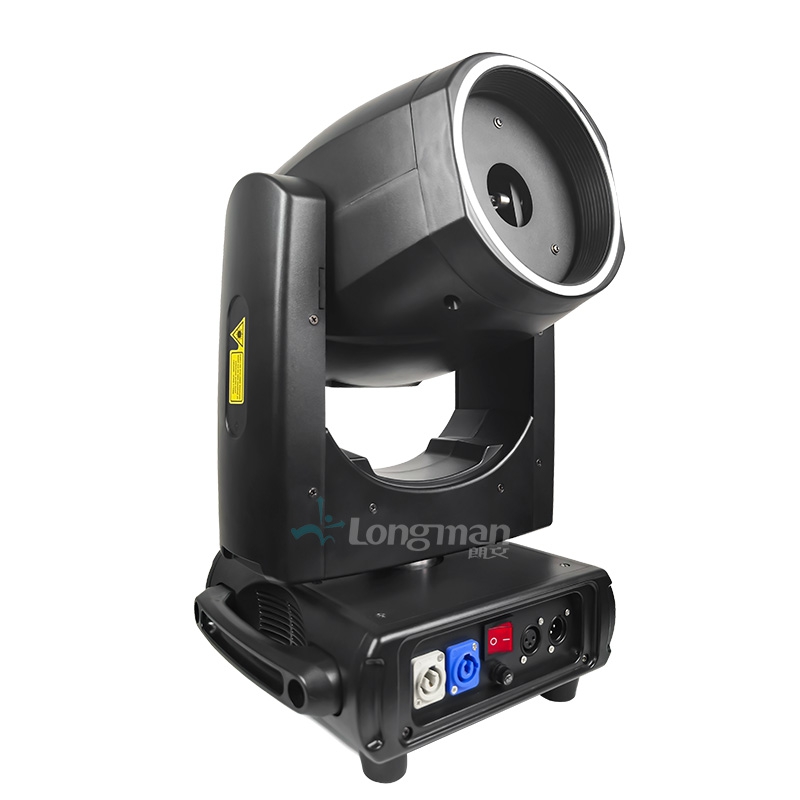

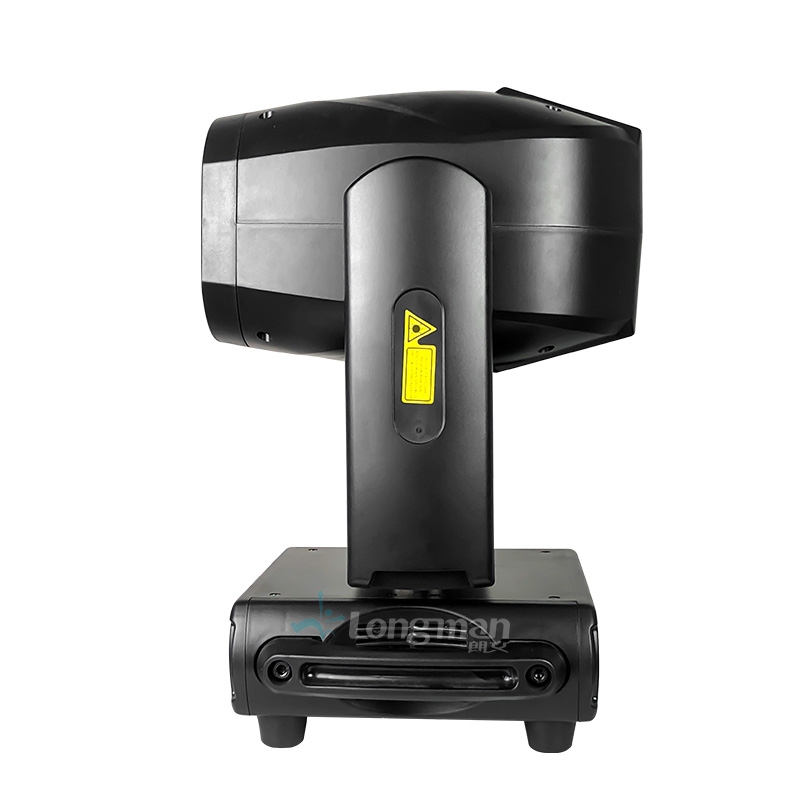

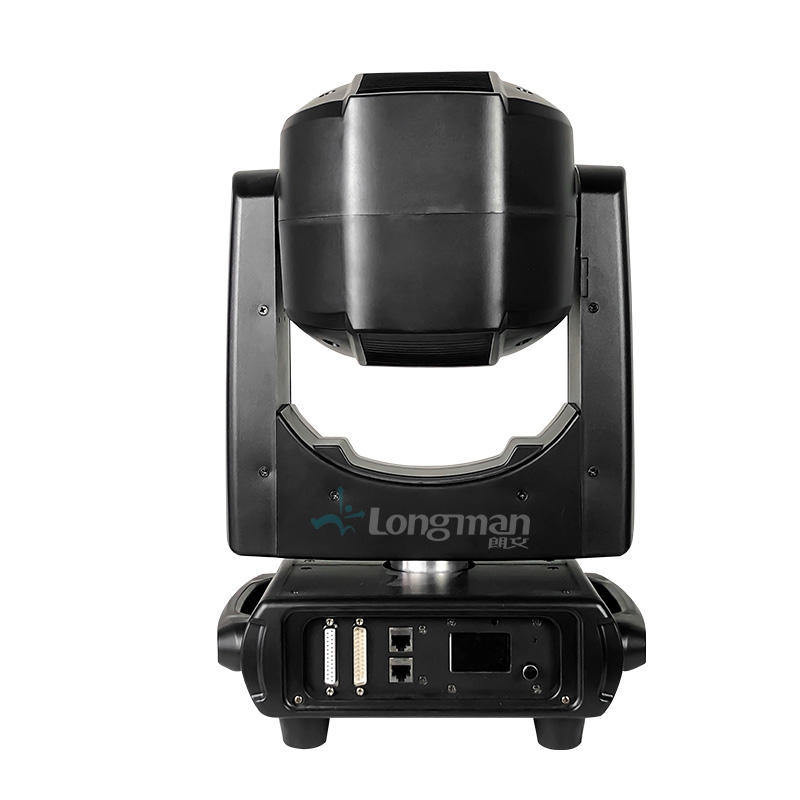

15W Moving‑Head Full‑Color Animation Laser (Aperture‑assisted)

Features

Supports RDM function; address code adjustable via lighting console. Compact size with two installation options: embedded and wall‑mounted, easy for transportation. Adopts laser source with low power consumption, superior light output, long service life and environmental‑friendly performance. Faster and more stable operation with powerful and sharp laser beams. Equipped with intelligent temperature‑controlled fan for quieter operation. Ideal for entertainment venues such as bars, nightclubs, music restaurants and KTV halls.

Technical Specifications

Laser Power: 15W (Red: 4W / Green: 5W / Blue: 6W) Total Power Consumption: 200W Voltage: AC100‑240V, 50/60Hz Playback System: High‑speed galvanometer 25K; Horizontal‑20° scanning angle; Linear input‑signal distortion compensation

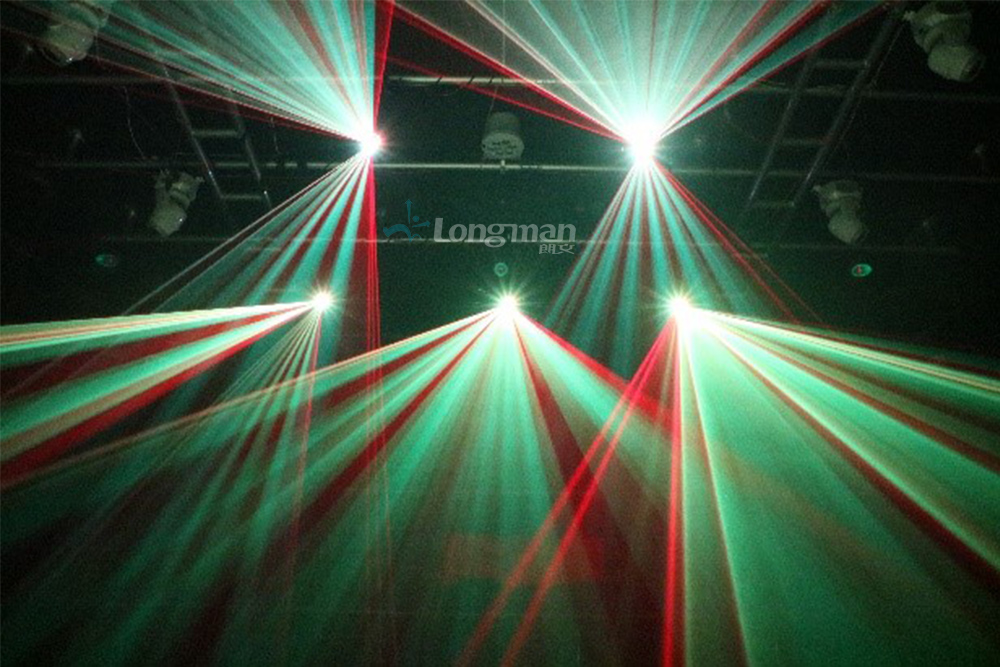

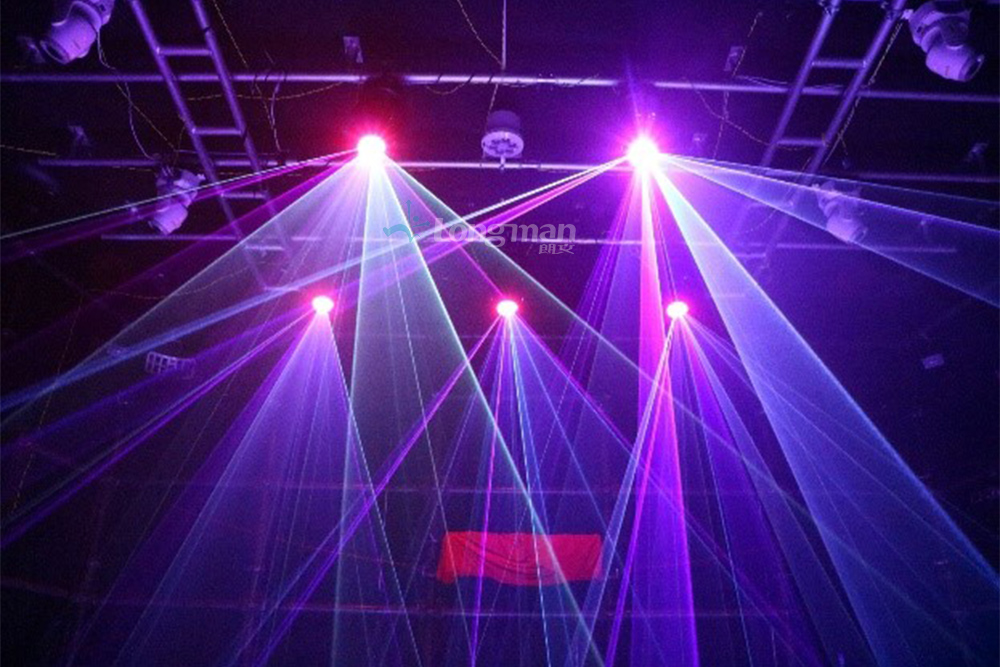

Program Effects: Diverse beam effects, complex graphics and broken‑pen effects; hundreds of built‑in animated line‑pattern programs

Operation Modes: DMX512, Master‑Slave, Auto‑run, Sound‑active Control Channels: 29 Channels

Pan / Tilt: 540° / 270°, 16‑bit resolution Display Panel: Color LCD screen, Chinese‑English switchable; normal / flipped display selectable

Product Dimension: 22.5cm×21cm×36cm, Weight: 8.5kg Single‑Package Dimension: 42×28×29cm, Weight: 10kg
