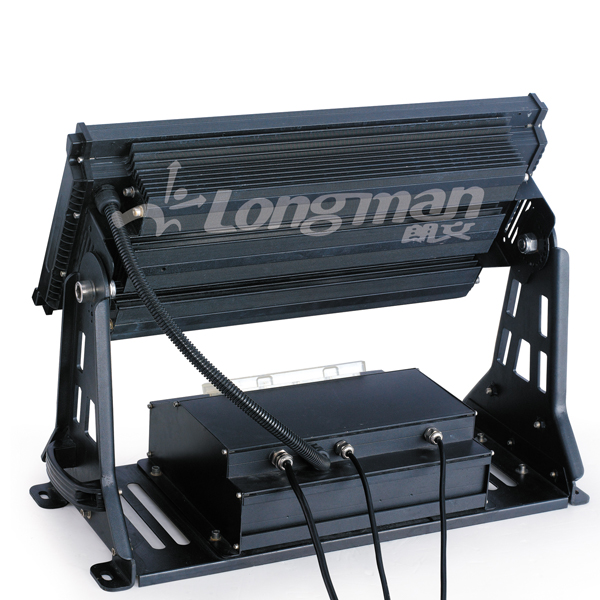

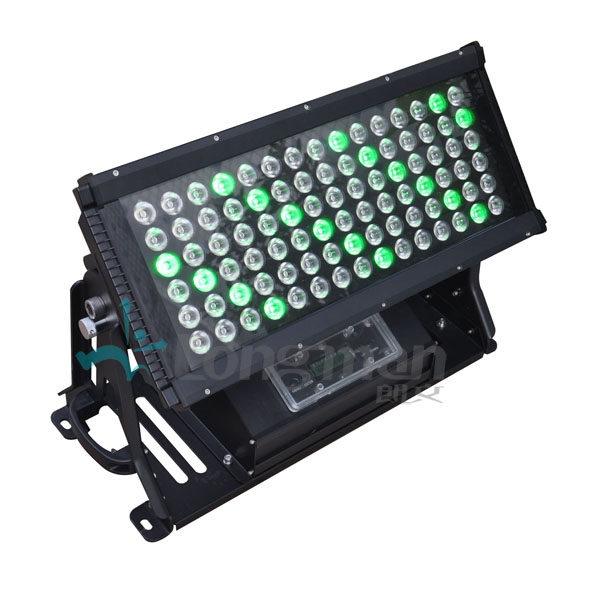

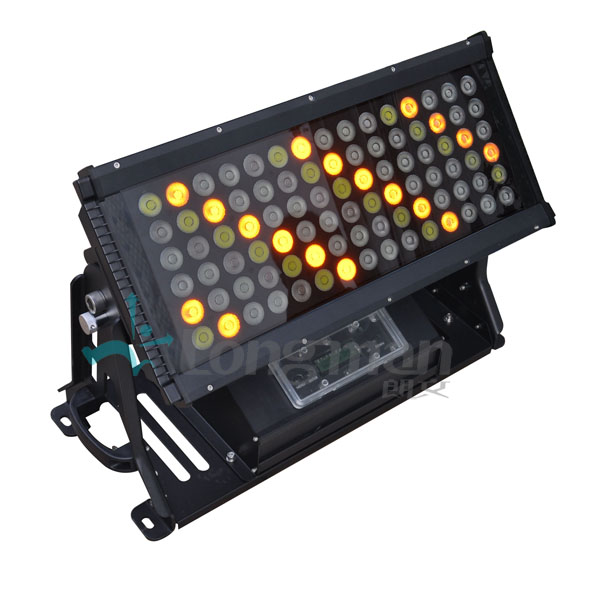

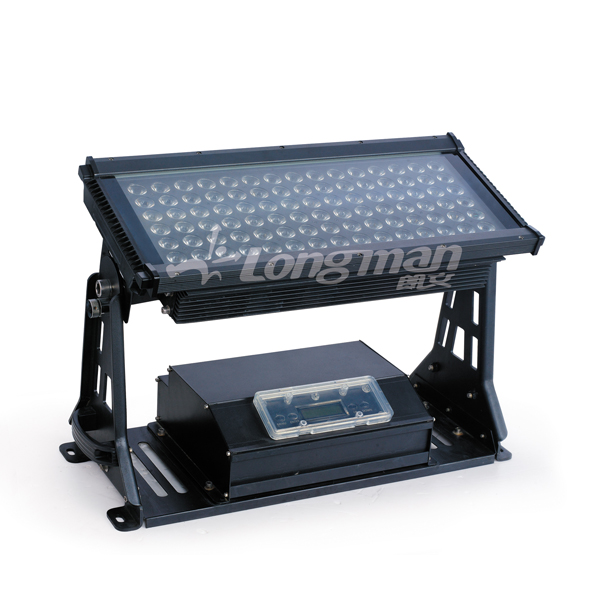

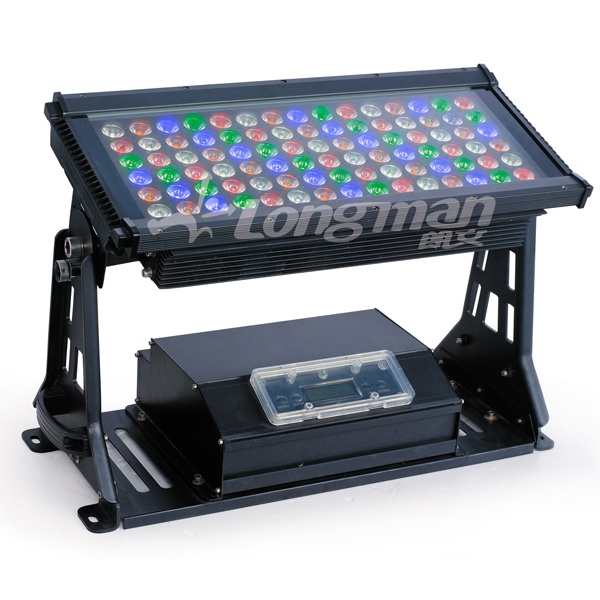

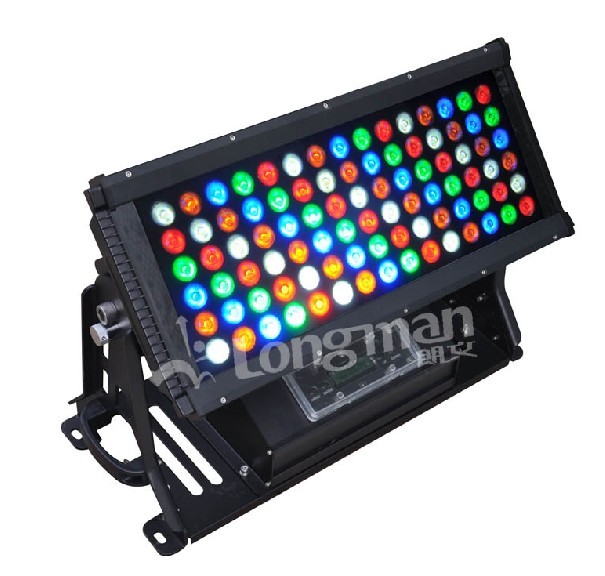

I ARC 905 LED city color, wall washer

I ARC 905 LED city color, wall washer

Brief description:
1.90pcs*5W RGBAW LED
2.13480 Lumens output
3.better color mixing,SDC<0.005
4.NTC temperature control system inside

Size and weight:670*270*422mm/29KG(Net weight)

Inquiry
Features:
1.High quality LED light source, 5W RGBAW,better color mixing, SDC<0.005.
2.13480Lumens Output,hight effieciency light output 90% Lumens within 10% Intensity field angle.
3.Adopt 32 Bit MCU, Dim 4 Square law dimming for 0-100%, no visible shock at low DMX Value.
4.Adopt 1602 Type LCD Display, 4 buttons setting, with sunshine cover.
5.Independent circuit driving, each 550mA,even ampere distribute.
6.NTC temperature control system inside, MCU reduce the power output when LED working temperature is too high;
7.Seperated heatsink design between LED and DIriving, make sure more than 15000 Hours Longevity for SMPS and Main board.
8.Field Angle standard 30°,could choose other angle, and also frosted piece and 25 x 65° third optical piece.
9.With waterproof air valve to balance pressure,get rid of mosuisture on glass innerface.


Specification:
Voltage input AC 100V-130V or 170-240V  47-63Hz PF:>0.9
Voltage output DC48V,SMPS longevity 15000Hours
Maximum power consumption 350W(293W@220V 50Hz)
Luminaire Efficiency >0.9, Light Effiacy >46lm/W
Light source: 90pcs*5W RGBAW LED each 18PCS, 1000mA driving total 13480 Lumens output
LED Color  R=625nm,G=525nm,B=460nm,A=590nm,W=6500K,offer multi-Color and many white color,SDC<0.005
Field Angle(10%) standard 30 °(157700Cd)、8°、15°、45°、60°、25 x 65°Etc optional
Control signal Meet E1.11 - 2004 USITT DMX512-A,32 bit Dim4 square law dimming, smooth in low DMX Value, no vision shock,PWM>600Hz,Flicker free.
Control mode DMX1990/DMX512A/stand alone/master and slave
Chanel option 3/4/5/9/10 CH all inside menu
Housing material Extrusion 6063,anodized Matte balck, customized other color and barndoor
Safty Class II, 3C 2.5mm2 VDE cable, Endure 5ms 1.5KV shock, Insulated Resistance>2MΩ Flame Rating V-1, Protect Rated IP65
Operate temperature -20~+45℃,Light board peak temperature 80℃ with NTC protection
Cerficated Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750
Weight 29KG,with 5mm thick WEDM bracket
Size 670*270*422mm


> led city color I ARC 905-page Download
