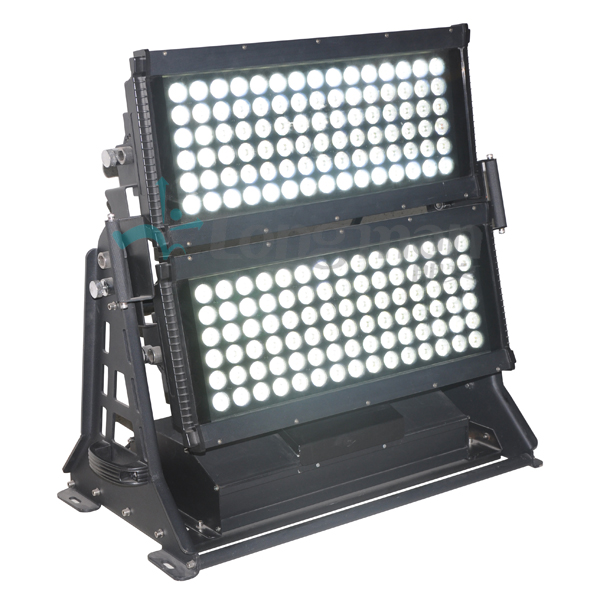

I ARC 1805S LED city color, wall washer

I ARC 1805S LED city color, wall washer

Brief description:
1.180pcs*5W Cree XPG White LED
2.48800 Lumens output
3.Adopt 32 Bit ARM MCU and Dimming Curve, 0-16666 Grade
4.With waterproof air valve to balance pressure

Size and weight:745*562*549mm/55Kg(Net weight)

Inquiry
Features:
1.180 Cree XPG LED, long life, low power consumption, stable performance and high brightness.
2.Designed to directly replace tradictional HMI 2500 City Color by precise second optical design.
3.Adopt 32 Bit ARM MCU and Dimming Curve, 0-16666 Grade , >400Hz dimming frequency
4.Adopt 1602 Led Display which shows DMX Address and Channel information.
5.Dim4 Square Law dimming, with strobe, jump change, gradual change, water effect, etc.
6.Intelligent Heat Controlling , LED Module peak temperature 80℃.
7.LED DMX function, address setup by 4 buttons LED display, protest by steel board.
8.DMX1990/DMX protocal, 512A 4CH/5CH/10CH optional
9.With waterproof air valve to balance pressure, get rid of mosuisture on glass innerface.
10.Adopt PFC Energy Conservation SMPS, with >90% efficiency, seperated heat driving install base from light head.
11.All IP65 Rated pass spray test before delivery.


Specification:
Voltage input AC 100-240V/50-60HZ
Voltage output DC 48V, 2 SMPS full load 760W
LED Specification 180pcs*5W Cree XPG White LED, 48800 Lumens output, many CCT and BIN available
Drive current  1000mA
PWM frequecy >400Hz(16666), video flicker free
Control signal DMX512, 32 bit precise dimming
Dimming Curve Dim0 original Linear, Dim4 Square Law smooth dimming, especially in low DMX Value dimming, not Jumping, no vision shock
Control Mode DMX mode, Master / Slave mode, Stand alone control mode
Channels 4 CH, 5CH, 10CH
olor effect White color, Ra>80, or many CCT mixing 2800-6000K, SDC<0.005
Effect dimming, strobe, gradual, etc
Field Angel Standard 25°degree ( 8°, 15°, 45°, 60*1°, 25 x 65°available)
Shoot direction Main Y axis 180 degree, indepedent head axis 180, could shine 2 directions
Cooling Mode 6063 Aluminium light head, direct heatsink and neutral convection
IP Rate IP 65
Anti-electricity Strength 1.5KV
Insulated Resistance >2MΩ
Size 745*562*549mm
Net Weight 55 Kg
