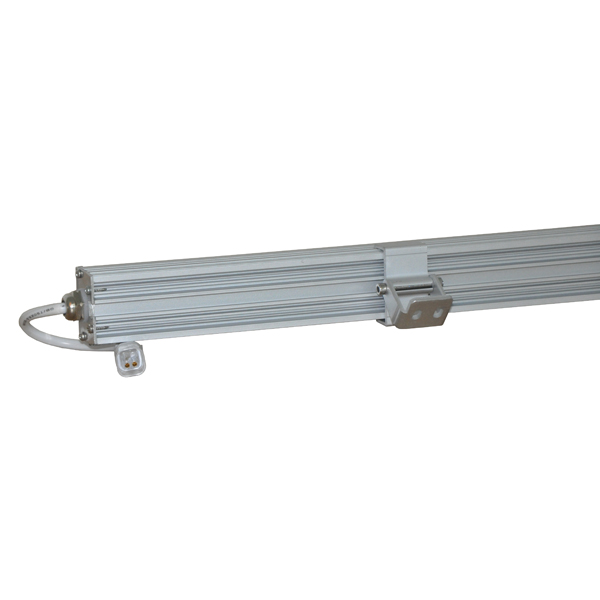

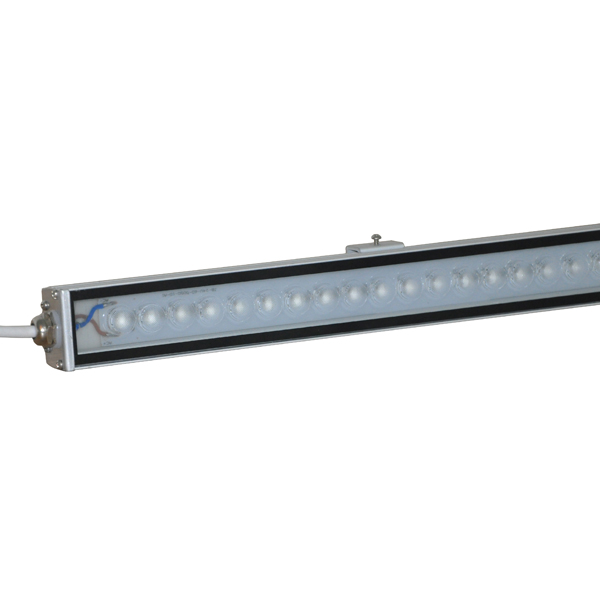

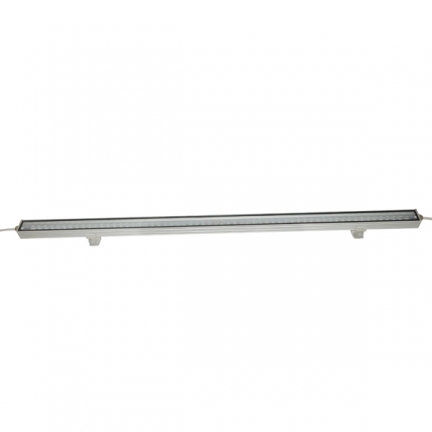

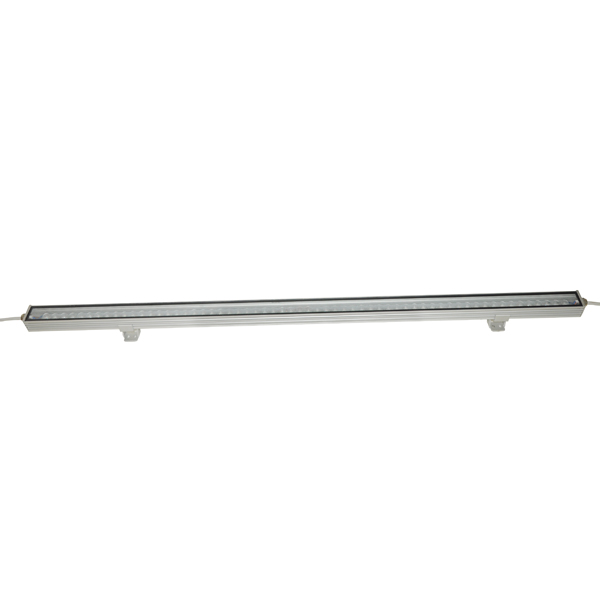

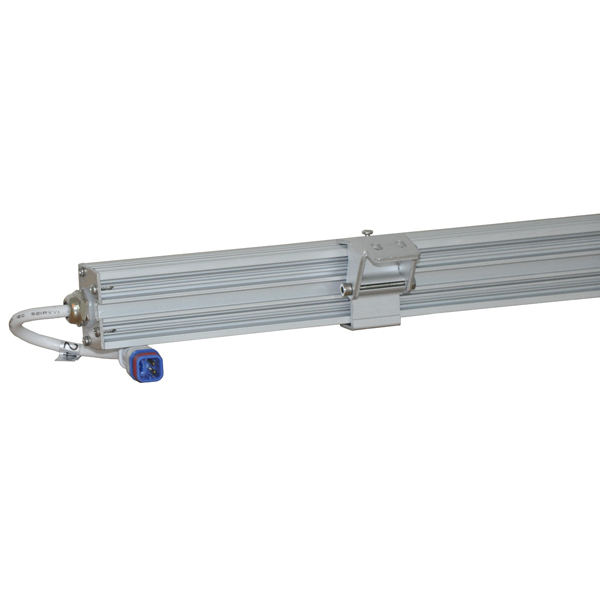

Excelsior 60FRGB-outdoor LED wall washer lights

Excelsior 60FRGB-outdoor LED wall washer lights

Brief description:
1.60pcs*0.2W Full RGB LED
2.530 Lumens output
3.1 D-D-R3 controller could support 25 PCS fixtures
4.3 circuits pubilc positive cable Constant PWM dimming

Size and Weight: 1006*62*41mm/2KG

Inquiry
Features:
1)3 circuits pubilc positive cable Constant PWM dimming, could connects with 4 cables V+ 4mm, 3*V- 2.5mm.
2)1 D-D-R3 controller could support 25 PCS fixtures.
3)each fuxture with 1 D-D-R3A could controll independently
4)60 PCS LED in 2 layers , better light distribution, 61*19 degree available
5)530Lumens Output, hight effieciency light output 90% Lumens within 10% Intensity field angle
6)Good color mixing, SDC<0.005, wash wall with no sawtooth.
7) Could work with third party CV PWM controller, any signal it work is OK, DMX, SPI, Differential, 10V
8)Field Angle standard 30°, could choose other angle, and also frosted piece and third optical piece.
9)With waterproof air valve to balance pressure, get rid of mosuisture on glass innerface.

Specifications:

Voltage input DC24V, PF>0.95
Rated Power 15W(11.8W@24V Full on)
Luminaire Efficiency >45lm/W,with high brightness Green Color
LED Lumens 60pcs*0.2W Full RGB LED each chip 20mA driving total 530 Lumens output
LED Color R=625nm,G=525nm,B=460nm,offer multi-Color mixing,SDC<0.005
Field Angle(10%) standard 45 °(1173Cd on axis)、8°、15°、30°、61*19°、75*10°Etc optional
Control signal Constant Voltage PWM Dimming, public positive Cable 3 circuits
Dimming Curve 8 bit linear diming, PWM>400Hz, fliker free
Housing material  Extrusion 6063, anodized Matte silver, customized other color and barndoor
Safty Class III, 4C*0.75mm2 VDE cable, Flame Rating V-1, Protect Rated IP66
Operate temperature -20~+45℃, Light board peak temperature 60℃
Cerficated Product pass CE, Rohs Etc
Weight 2KG,with 2mm thick double bracket
Size 1006*62*41mm
