Brief description：
1. 18 pcs 10W Full RGBW
2. 5760 lumens output
3. New lamp body design with own patent
4. Field angle (10% intensity) 43 degree standard, great mixing colors
Size: 270*166*284 mm
Weight: 5.2KG
| Power Input | AC 100-240VAC, 47-63 Hz |
| Output | 24V DC, power factor>0.7 |
| Rated Power | 150W, typical consumption 138W@220V |
| Light Source | 10W 4-in-1 FULL RGBW 18 pcs LED. Drive current for each chip: 0.7A |
| Light Output | 5760 lumens, luminaire efficiency 49l m/W |
| Peak Intensity | 38630 Cd (43Degree Field Angle) |
| LED Color | R=625nm, G=525nm, B=465nm, A=590nm, White=6000K |
| Color Rendering Index | Ra>90, R9>50 |
| Color Mixing Index | Standard deviation of chromaticity SDC<0.005 |
| Control Signal | Meet E1.11 - 2004 USITT DMX512-A regulation, 32 bit precise dimming, smooth in low DMX value dimming, no vision shock |
| Channels | 3CH, 4CH, 5CH, 8CH, 9CH |

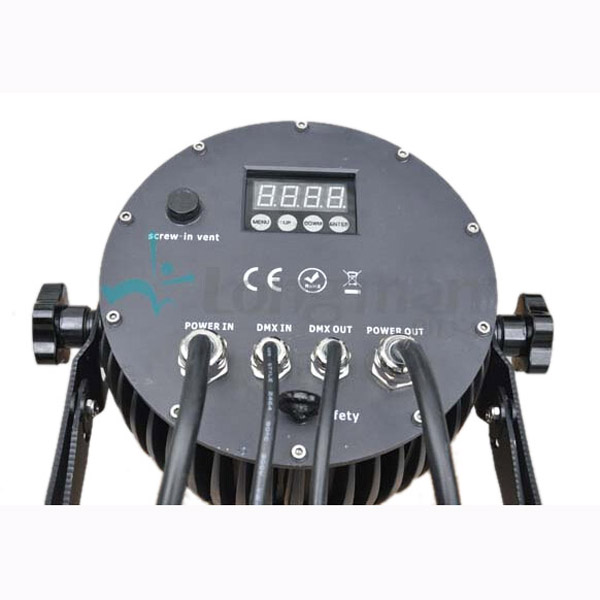

| Display | Touch operations, LED display show DMX single status and automatically turn off when no operation |
| Dimming | with from Dim0 to Dim4, 5 dimming curves, include smooth dimming |
| PWM Frequency | >600Hz, flash rate full load>12Hz full load/void load flash |
| Beam Angles | 25°, 62° |
| Housing Material | Die cast aluminum |
| IP code | IP65 |
| Cooling Method | Natural cooling, thermal protection, NTC overheat protection |
| Connectors and Cables | IP67 Male/Female for fixed applications, IP65 Blue/Yellow connectors without cables for rental |
| Soldering Technology | 180ºC reflow soldering, 15000 hours longevity for SMPS and main board |
| Housing Color | Standard matte black, pumpkin color also available |
| Accessories | Barn door, hook, safety cable, signal extension cable, power extension cable |
| Size | 270*166*284 mm |
| Weight | 5.2 Kg, with two yokes |
| Operating temperature | -20ºC - +55ºC |
| Certificate | CE, RoHS |
 |
 |
 |
 |
