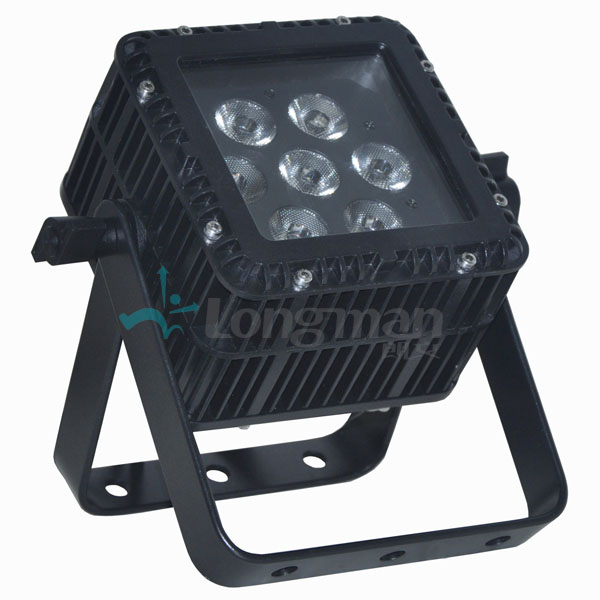

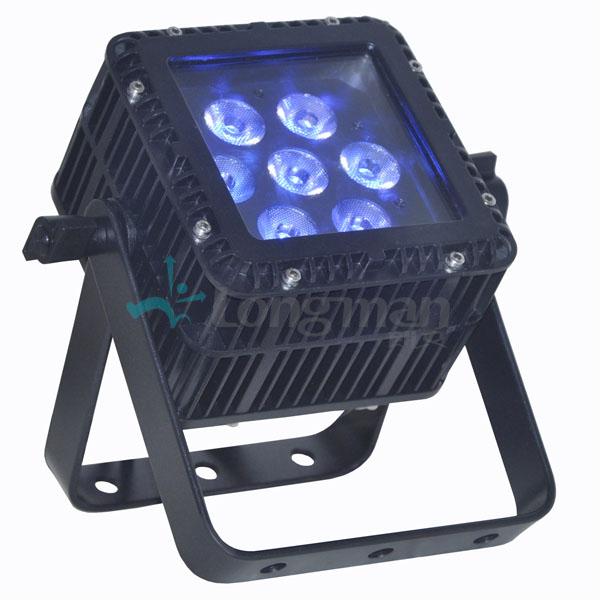

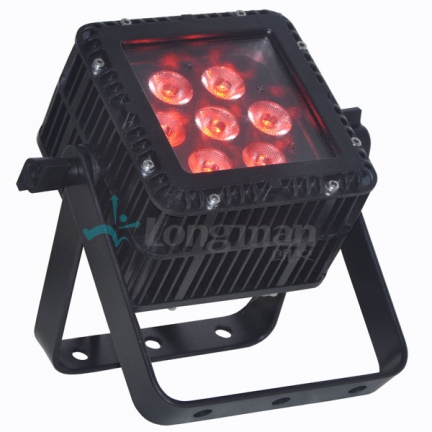

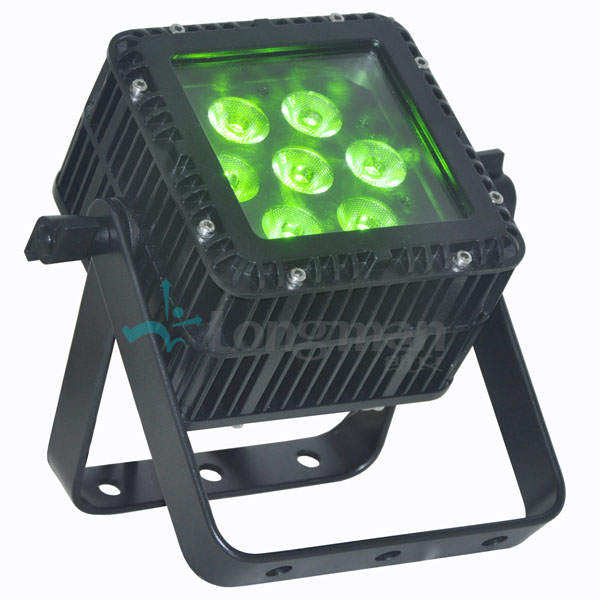

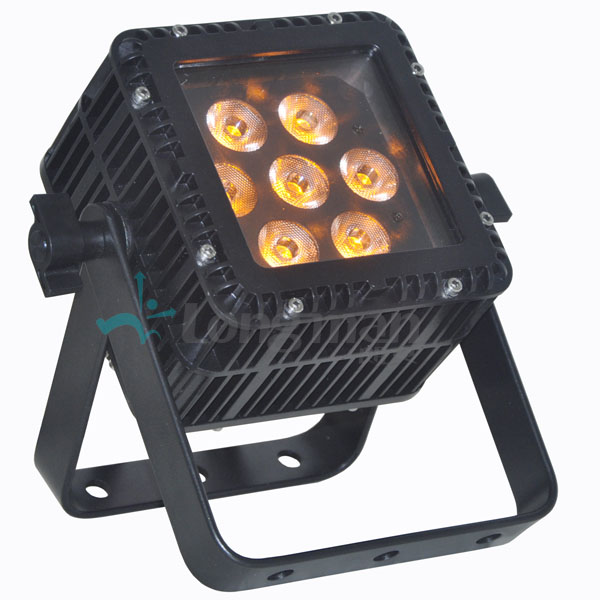

Eden Quad7 -Outdoor Led Par Lighting

Eden Quad7 -Outdoor Led Par Lighting

Brief description:
1. 7 PCS 10W 4-in-1 FULL RGBW LED
2. 2092 lumens output
3. Field angle (10% intensity) 33 degree standard, even color mixing
4. Mini square looking, with barn doors

Size:165*145*184 mm
Weight: 2.2KG

Inquiry
Features:
  • Outputs more than 2000 lumens full load, suitable for rental stage and architecture lighting.
  • Field angle (10% intensity) standard 33 degree, even color mixing.
  • Square looking, could be equipped with barn door.
  • Whole lamp body fully used as heat sink, support 40W heat dissipation at 35℃ rise, built-in NTC.
  • LED Display board shows DMX signals, offers dimming curve square law Dim4.
  • With waterproof air valve to balance pressure, no moisture on glass.

Specification:
Input Voltage AC 100-240VAC, 47-63 Hz
Output Voltage 28V DC, Power Factor>0.7
Rated Power 60W, typical consumption 48W/220V
Light Sources 7 PCS 10W 4-in-1 FULL RGBW LED. Drive current for each chip 450mA total light output 2092 lumens, luminaire efficiency 39.7 lm/W
Peak Intensity 11088C(10% field angle 33 Degree)
LED Color R=625nm, G=525nm, B=465nm, A=590nm, White=6000K
Color Rendering Pure White Ra>90, R9>50
Color Mixing Standard deviation of chromaticity SDC<0.005
Control Signal Meet E1.11 - 2004 USITT DMX512-A standard, 32 bit precise dimming, smooth in low DMX value dimming, no vision shock
Channels 3CH, 4CH, 5CH, 8CH, 9CH

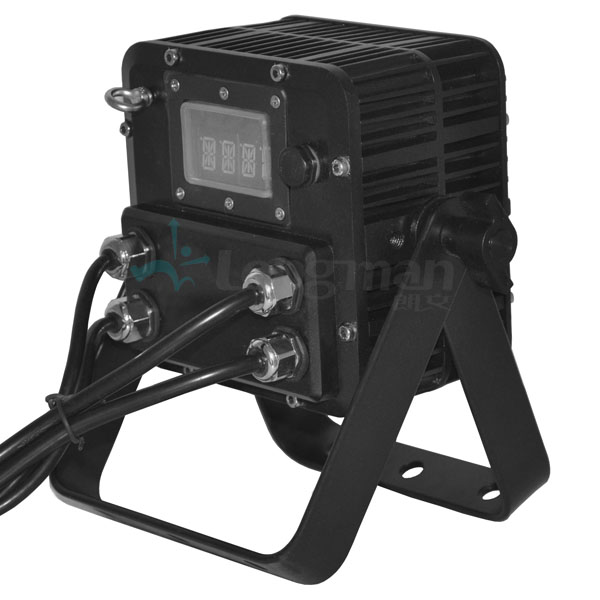

Display Touch screen operation, LED display show DMX status and turn off by self when no operations
Dimming with Dim0-Dim4, 5 dimming curve, smooth dimming
PWM frequency >1.5KHz, flash rate endurance full load>12Hz, full load/void load flash
Beam Angles 8°, 15°, 18°, 45*15°, etc.
Housing Material Die cast aluminum, protection rate IP66
Cooling Method Natural cooling
Thermal Protection NTC thermistor overheat protection
Connectors and Cables IP67 male / female connectors
Accessories Barn door, hook, safety cable, signal extension cable, power extension cable
Housing Color Standard matte black, could customized pumpkin color
Soldering Technology 180℃ reflow soldering, at least 15000 hours longevity for SMPS and main board
Size 165*145*184 mm
Net Weight 2.2 Kg
Operating Temperature -20℃ - +55℃
Certificate CE, Rohs

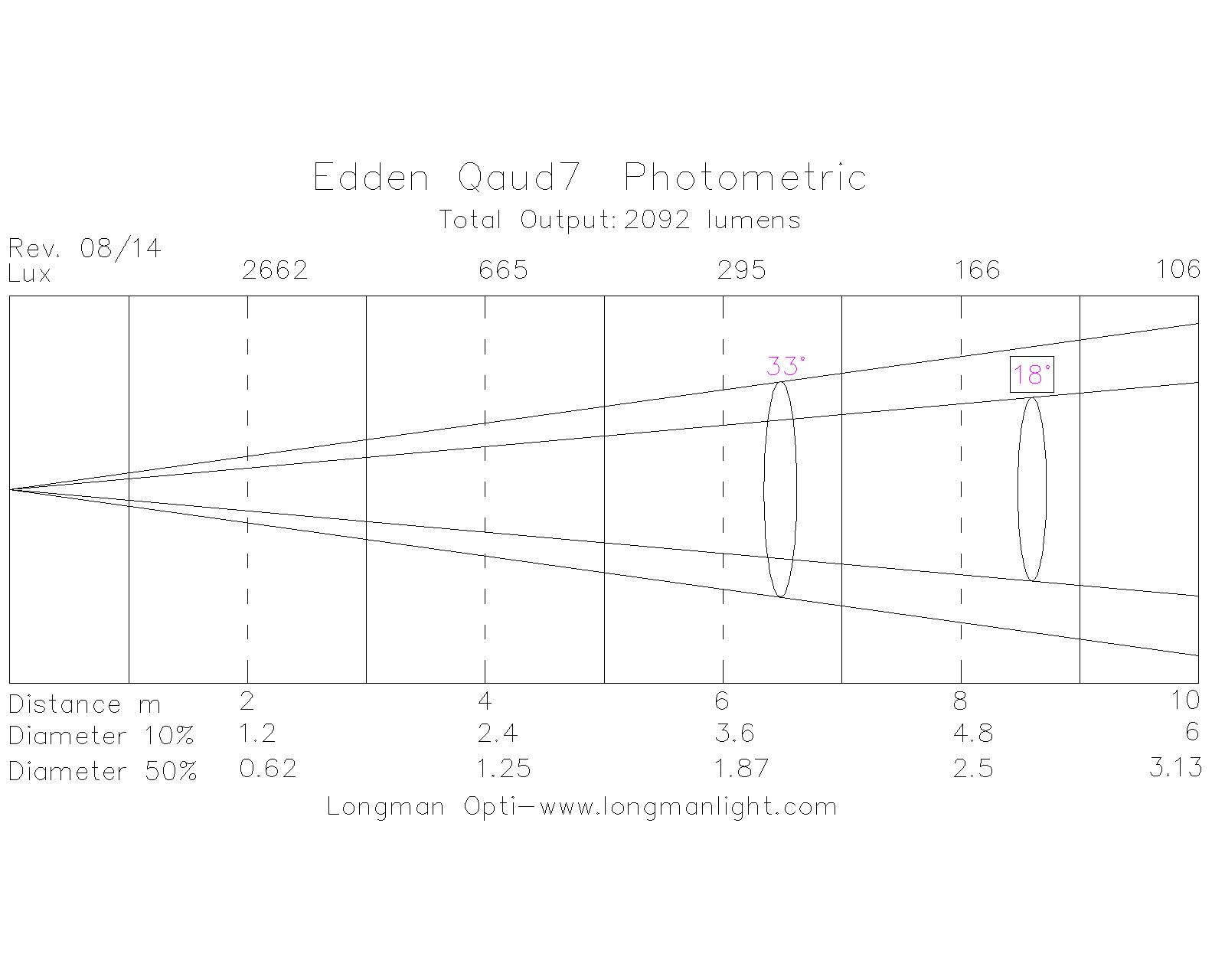

outdoor Eden Quad7 led par photometric
> Par lighting Eden Quad7 page Download
