Loby 600 LED Moving Head Lighting

Loby 600 LED Moving Head Lighting

Brief description:
1. 36pcs 10W FULL RGBW LED
2. 13500 lumens output
3. High power light source, low consumption, high luminance, long life.
4. Linear dimming from 0-100%

Size: 320*242*385 mm
Weight: 9.5KG

Inquiry

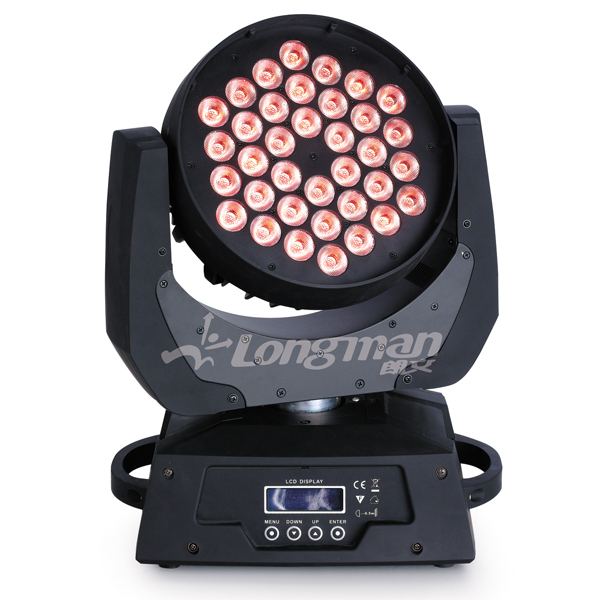

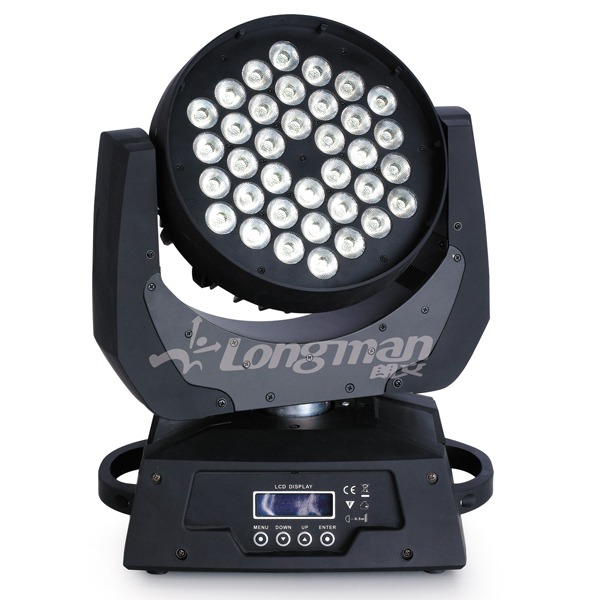

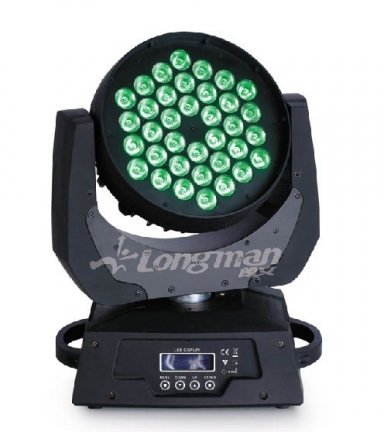

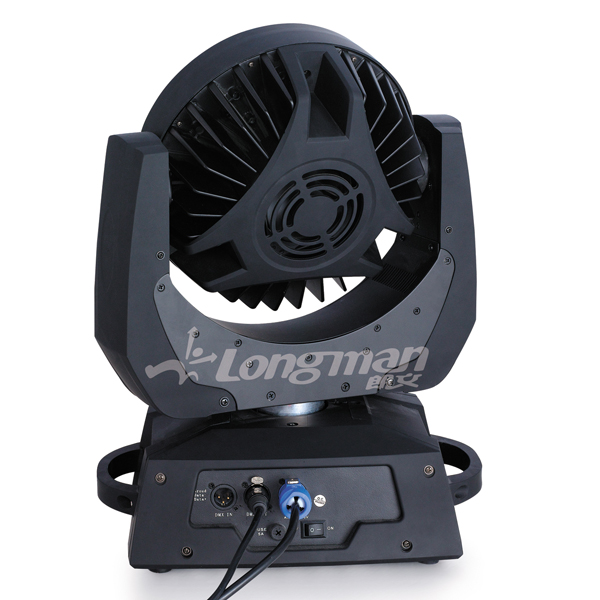

Loby 600 led moving head product
Features:
  • High power light source, low consumption, high luminance, long life.
  • Each color of LED has 256 dimming, 1670 colors. With white color, the mixing effect is better.
  • Linear dimming for 0-100%, flicker free, with strobe/gradual change/color change/water effect inbuilt programs.
  • DMX 512 signal control, 4 bit digital display DMX address code, easy to operate.
  • Stand alone, master/slave mode, multiple machine interconnection.
  • Power switch, good for LED working.
  • Lens: 15/25/45 degree.
  • Pan rotation for 540°, tilt for 270°, with automatic correction function.

Specification:
Voltage Input AC 100V-240V/47-63HZ
Voltage Output DC 24V
Max Power Consumption 360(W)
Light Source 36pcs 10W FULL RGBW LED, R=625nm, G=525nm, B=450nm, good saturation, White=6500K, Ra>85, perfect color rendering
Light Output 13500 lumens
LED Drive Current 500mA (single color drive)
Dimming Frequency >400Hz
Life Time >50000 hrs
Control Signal DMX512, sound active, auto-run
Control Mode Stand alone, master and slave
Channel 14CH, 10CH
Colors RGBW color mixing
Effects dimming, strobe, gradual, sound active
Pan 540°, tilt:270°, automatic correction
Pan Fine Tuning 2.1°, tilt fine tuning:1.0°
Cooling Method Air cooling
Beam Angle 15°, 25°, 45°
Anti-electricity Strength 1.5KV
Insulated Resistance >2MΩ

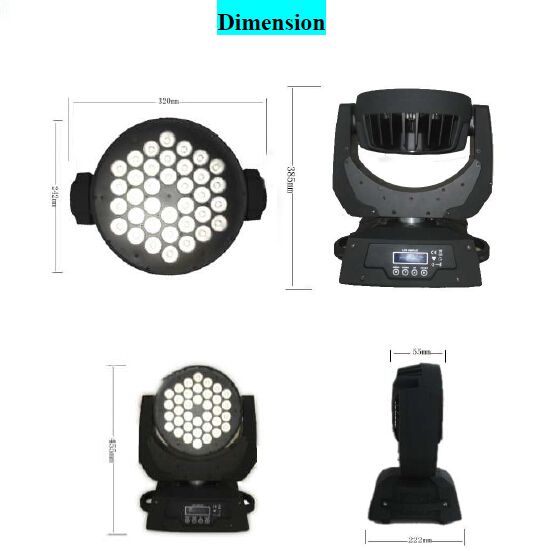

Size 320*242*385 mm
Weight 9.5 Kg

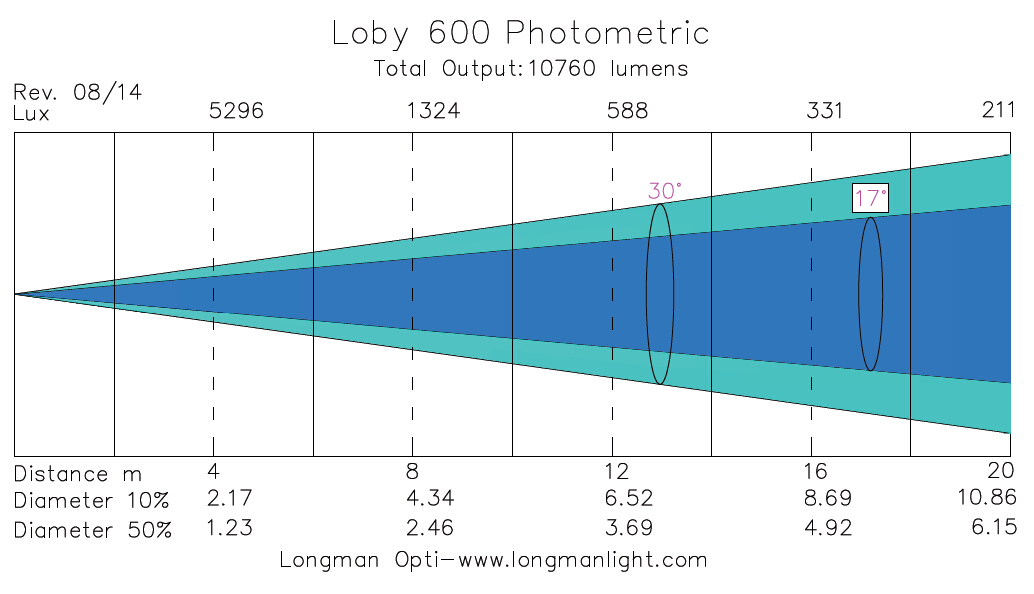

Loby 600 led moving head photometric graph
