Ledmemove F1 Endless Rotating LED Moving Head

Ledmemove F1 Endless Rotating LED Moving Head

Brief description:
1. 7pcs 15W OSRAM RGBW 4-IN-1 LED
2. 3358 lumens output
3. Endless rotating, offer fast and non-stop light beam
4. Narrow beam and even color make it able to work at 15m height of stage

Size: 220*200*275 mm
Weight: 4.1kg

Inquiry

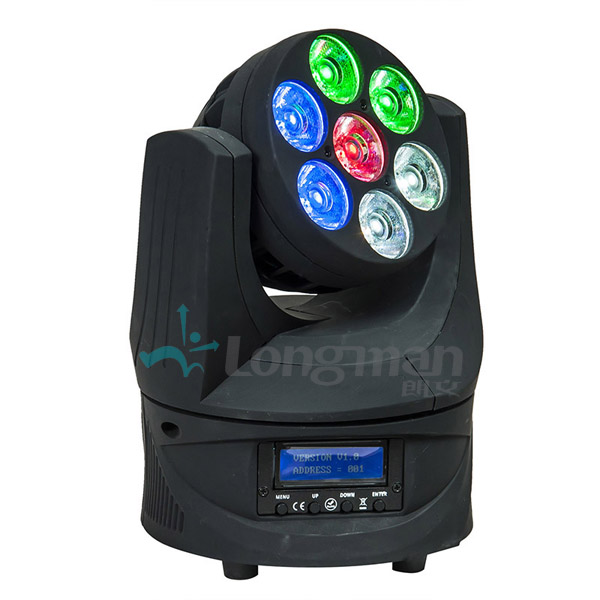

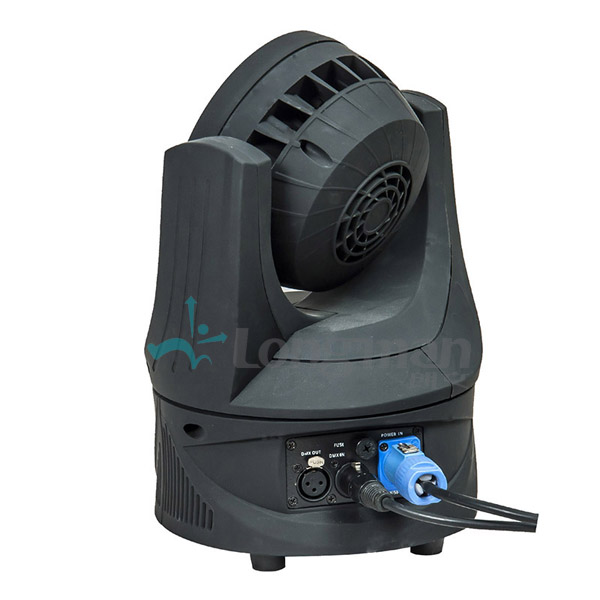

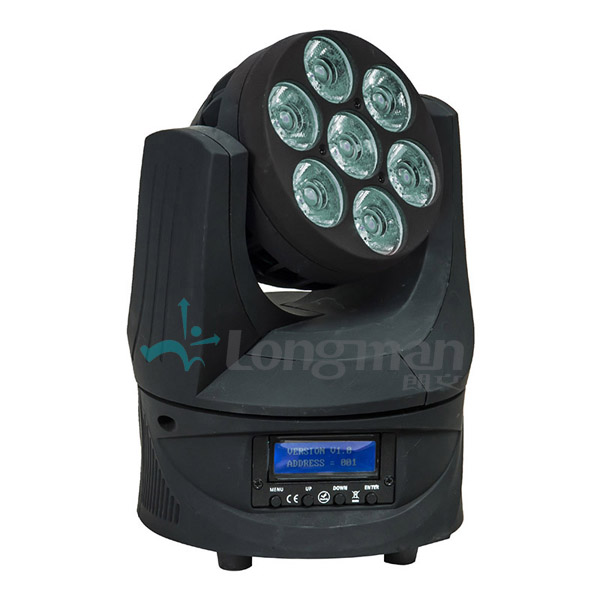

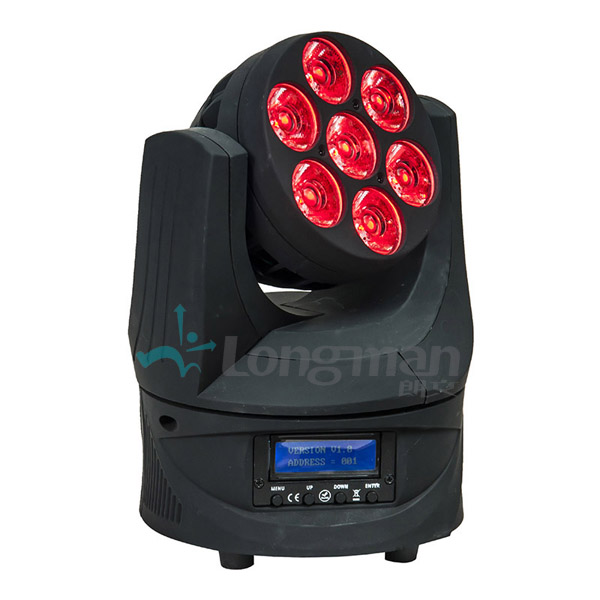

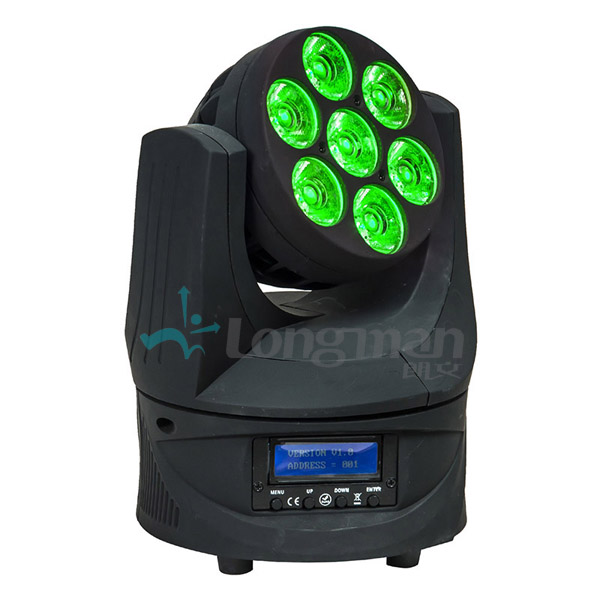

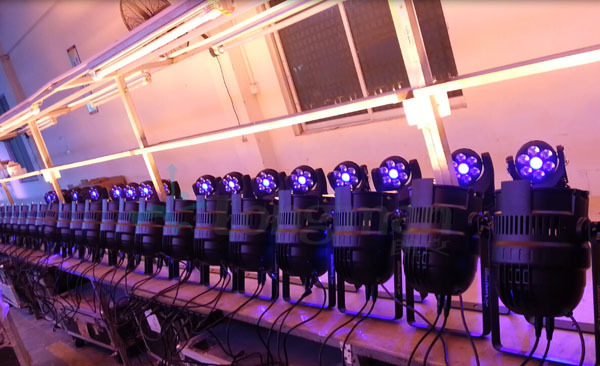

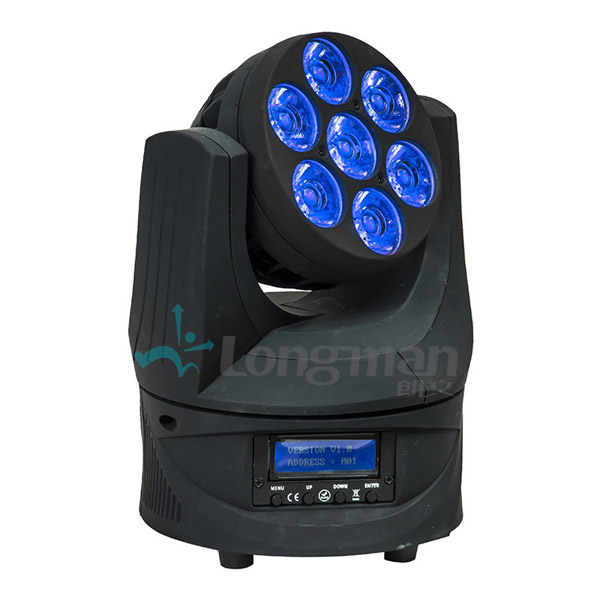

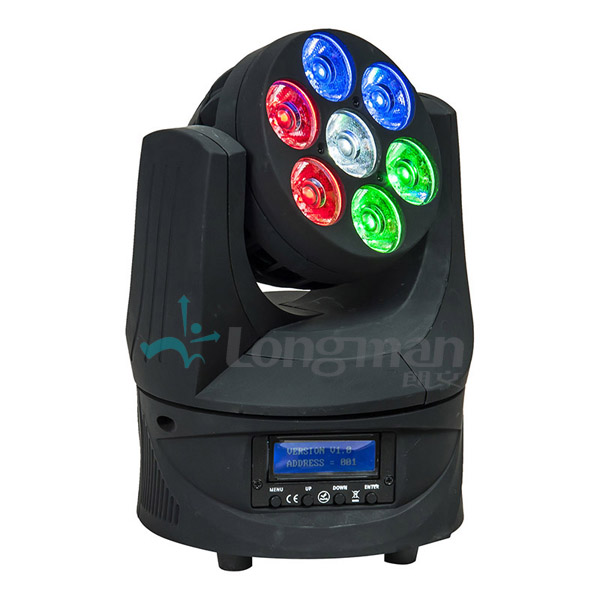

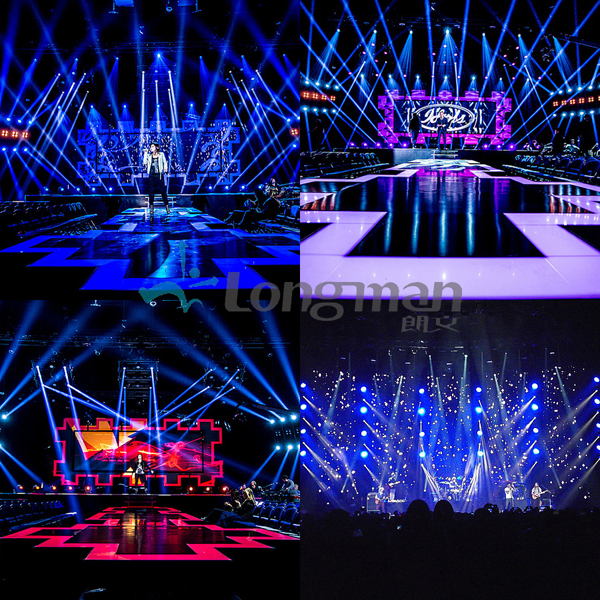

Ledmemove F1 Endless Rotating led Moving Head product pictureLedmemove F1 Endless Rotating led Moving Head production lineLedmemove F1 Endless Rotating led Moving Head real effect
Features:
  • Unlimited pan rotation, offer fast and non-stop light beam.
  • Seven 15W Ostar RGBW LED, narrow beam but even color mixing.
  • With precise honeycomb lens, less light leakage, SDC<0.005.
  • 3358 lumens output from mini body, light output 90% within field angle.
  • Beam angle 9 degree, 620 lux at 10 meter.
  • 32 Bit MCU, Dim 4 square law dimming from 0 to 100%, no visible shock at low DMX value.
  • Display will turn off when no operations and could show DMX signal condition.
  • More than 15000 hours life span for SMPS and main board.
Specification:
Input Voltage AC 100V-240V 47-63Hz PF>0.7
Output Voltage DC 12V, SMPS longevity 15000 hours
Rated Power 120W (106@220V 50Hz)
Luminaire Efficiency >0.9, luminaire efficacy >33.8 lm/W
LED Working Life 50000-100000 hours
Rotation X-axis pan is 16 bit and 360 degree rotation, y-axis is 1.0/255 degree
Light Source 7pcs 15W Full RGBW LED, 4 pixels, 1A driving total 3358 lumens output
LED CCT R=625nm, G=525nm, B=460nm, W=6500K, good color mixing, standard deviation of chromaticity<0.005
Beam Angle(50%) Standard 9°(62135 Cd on axis), wider beams are optional
Control Signal Meet E1.11 - 2004 USITT DMX512-A standard, 25, 27CH both are inside menu
Other Mode stand alone/sound active/master and slave, PWM>1500Hz, flicker free
Dimming There are 5 dimming curves from Dim0 to Dim4, smooth dimming, no vision shock in low DMX value
Operate Temperature -20~+45℃, light board peak temperature is 80℃, fans cooling and with NTC protection
Display LCD could turn off when no operation, could show DMX signals whether come or not
Housing Material ABS, QR235 and ADC12, matte black body color
Safety Appliance Class II, Powercon blue socket, endure 5ms 1.5KV shock, insulated resistance > 2MΩ, flammability rating UL 94 V-1, IP rated IP20
Certificate Product pass CE, RoHS, SMPS pass CQC or UL60950, UL8750

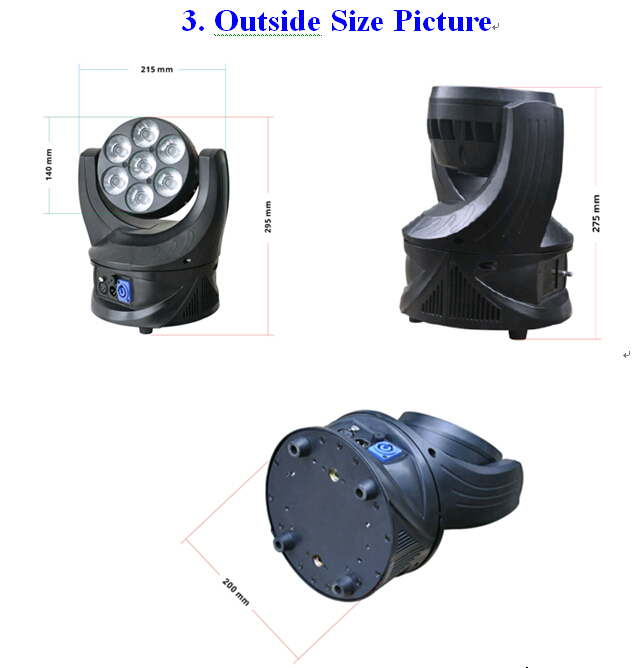

Size 220*200*275 mm
Net Weight 4.1Kg

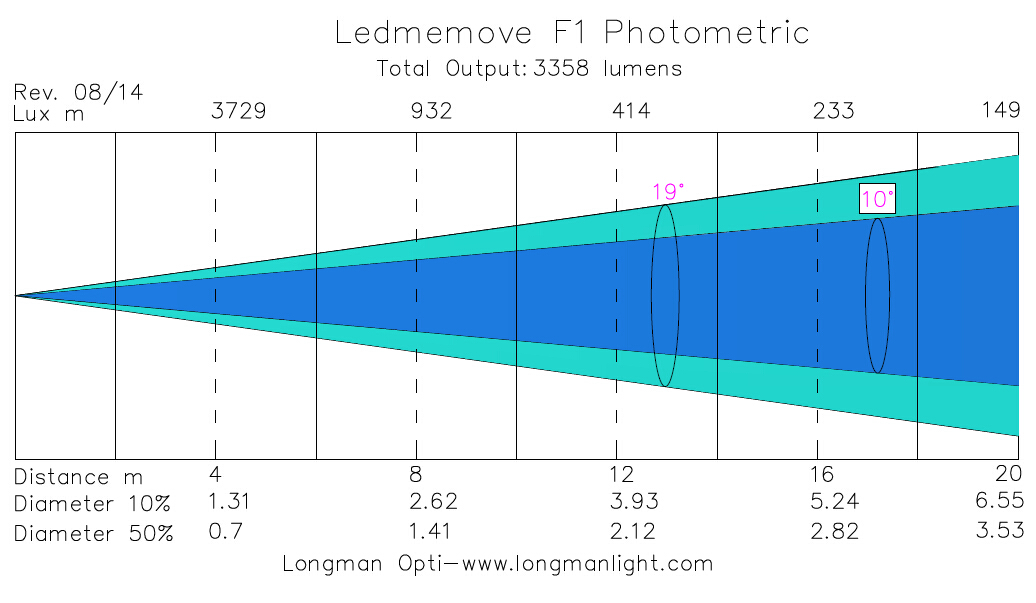

Ledmemove F1 Endless Rotating led Moving Head photometric graph
carton packageflight case package
> Led moving head Ledmemove F1-page Download
