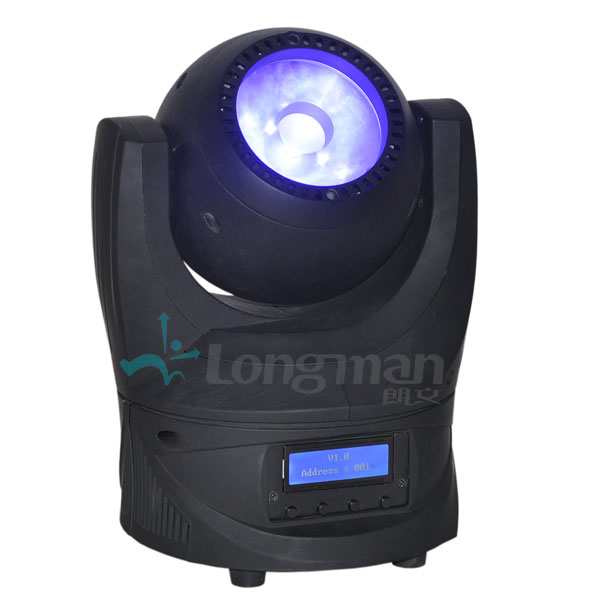

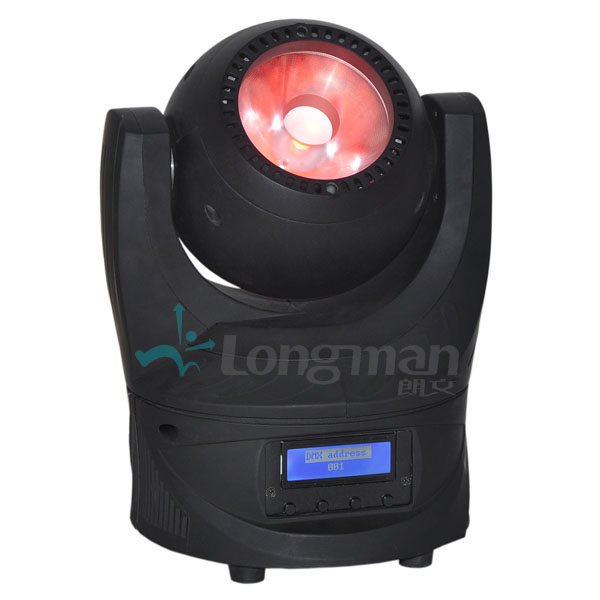

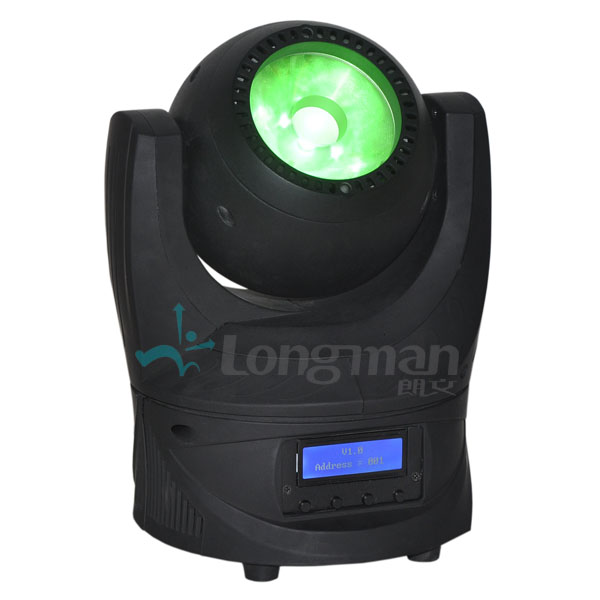

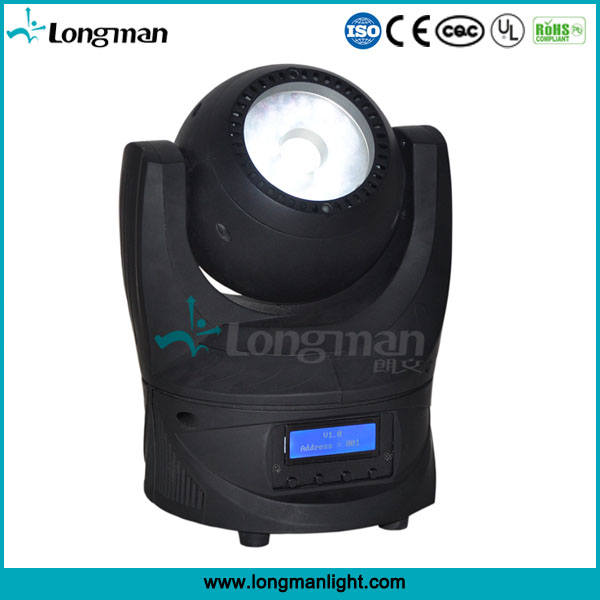

Ledmemove F6-rgbw unrestricted pan rotation Led Moving Head

Brief description：
1. Unrestricted pan rotation
2. 15000 hrs working life
3. One 60W RGBW LED

Size: 225*209*290 mm
Weight: 4.1Kg

Inquiry

Pictures and video Specification User's document

Advantages:

Features:

Unlimited pan rotation.
60 Watt Ostar RGBW LED, narrow beam and even color mixing.

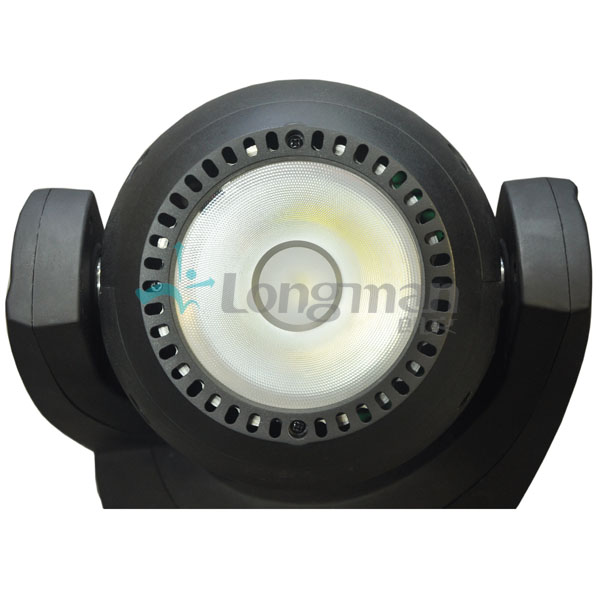

Precise honeycomb lens, less light leakage, SDC<0.005.
524 lumens output from mini body, light efficiency output is 90% within field angle.
Beam angle 3.6 degree, 2720 Lux @ 10 meter full load.
32 Bit MCU, Dim 4 Square law dimming for 0-100%, no visible shock at low DMX Value.
Display auto turn off when no operation and could show DMX signal condition.
Seperated heatsink design between LED and Driving, make sure more than 15000 Hours Longevity for SMPS and Main board.

Specification:

Voltage Input	AC 100V-240V 47-63Hz, PF>0.7
Voltage Output	DC 12V, SMPS life is 15000 hours
Rated Power	100W (86@220V 50Hz)
Luminaire Efficiency	>0.9, luminaire efficacy >29.21 lm/W.
Rotation	Pan 16 bit, 360 degree rotation, tilt fine 1.0/255 degree
Light source	1pcs*60W full RGBW LED, 1 pixels, 4A driving current, total 2524 lumens output
LED CCT	R=625nm, G=525nm, B=460nm, W=6500K, good color mixing, standard deviation of chromaticity<0.01
Beam Angle(50%)	Standard 3.6° (272640 Cd on axis), wider beam optional
Control Signal	Meet E1.11 - 2004 USITT DMX512-A protocol, 13, 15CH both inside menu
DMX Mode	stand alone/sound active/master and slave, PWM>1500Hz, flicker free
Dimming	with Dim0-Dim4, 5 dimming curves, smooth dimming, no vision shock in low DMX value
Display	LCD could intelligent turn off when no operations, could show DMX signals come or not
Housing Material	ABS, QR235 and 6063 extrusion, matte black body color

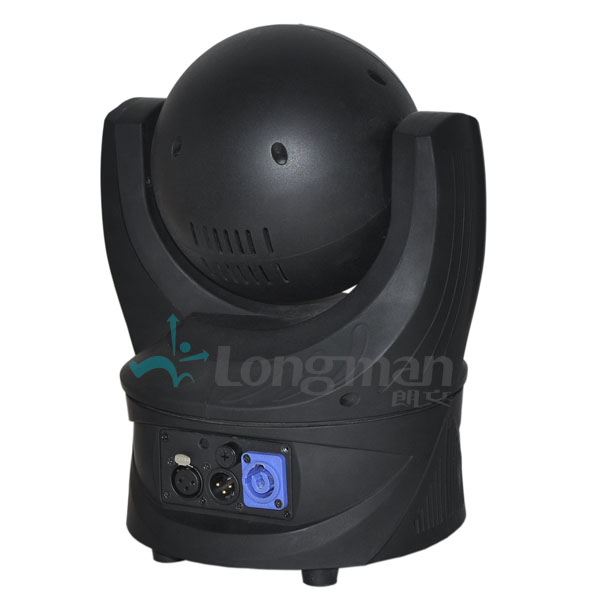

Safety	Appliance Class I, PowerCON blue socket, endure 5ms 1.5KV shock, insulated resistance> 2MΩ, flammability rating UL 94 V-1, IP rating IP20
Operate Temperature	-20~+45℃, Light board peak temperature 80℃ by fans cooling and with NTC protection
Certificate	Product pass CE, RoHS, SMPS pass CQC or UL60950, UL8750

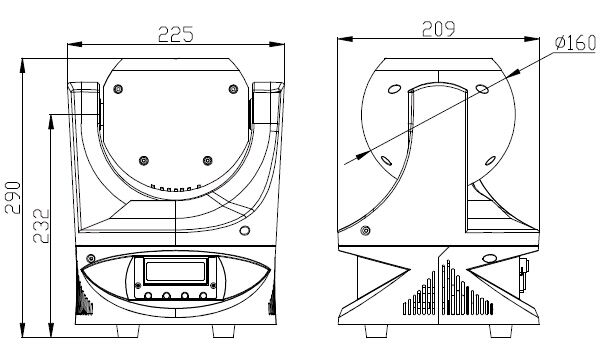

Size	225209290 mm
Weight	4.1Kg
