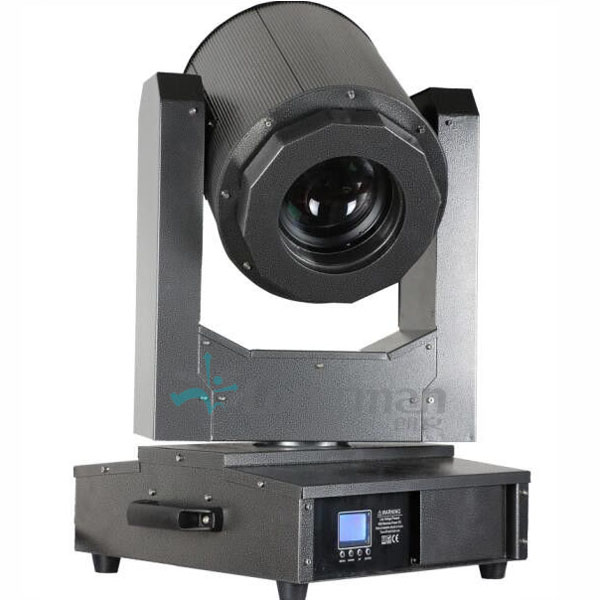

Aurora R500-Outdoor 350W 17r Beam Spot Moving Head Stage Lighting

Aurora R500-Outdoor 350W 17r Beam Spot Moving Head Stage Lighting

Brief description:
1. 17R 350W beam moving head
2. sharp edge imaging, clear punch of beam
3. Ip55
4.17 fixed gobos and void

Size: 650×590×920mm
Weight: 35Kg

Inquiry
moving head beam light
Features:
sharp edge imaging, clear punch of beam
Stop to focus should be more than 20 meters away should not be explosive stuff.
profile and wash dual function, color distribute even
hexadecagon Prism to achieve 16 light beam, as flower blossom
Reset precisely to right position, multi fixtures work asynchronously.



Technical Specification:
Voltage input AC200-240V 47-63Hz, PF>0.7
Voltage output Dual voltage output, SMPS longevity 10000Hours
Rated Power 450W(Typ.424W full load@220V 50Hz)
Bulb  short Arc 17R 350W, 2000hrs longevity
Bulb protect remote activated, Surface temperature≤380ºC
Bulb CCT standard white 7800K, Ra>80, R9>50, Standard Deviation of Chromaticity<0.005
Optical Linear imaging, standard 3.8°, step motorized zooming
Luminaire Efficiency >0.4, output 10670Lumens
Typical Intensity 3.8°(32897000Cd)
Gobos:17 fixed gobos and void
Prism hexadecagon prism, separate main beam to be 16 rotable beams
Colors 14 colors and void
Frosted: could be activated and make the beam a wash rendering
Dimming with Dim0 linear dimming curves, high frequency PWM, video flicker free
XY Moto Pan 540°;Tilt 270°
Display: LCD, could show DMX condition
Control signal Meet E1.11 - 2004 USITT DMX512-A
DMX Chanel 16/20/choose on menu
Strobe ability: could be 0.5-9 F.P.S
Lamp body AL6063+QR235 with steel omega install bracket
Safty Class I, Endure 5ms 1.5KV shock, Insulated Resistance>2MΩ
Flame Rating V-1, Protect Rated IP55.
Operate temperature -20~+45ºC, convect heatsink to air by fans
Certificated Product pass CE, Rohs, Etc
Size 650×590×920mm
Net Weight 35Kg
