Vpower 903-LED indoor stage bar light

Vpower 903-LED indoor stage bar light

Brief description:
1.90pcs*3W RGBAW LED
2.9600 Lumens output
3.Both linear dimming and square law dimming are available
4.32 bit precise dimming

Size and Weight: 1000*275*236.5mm / 11KG

Inquiry

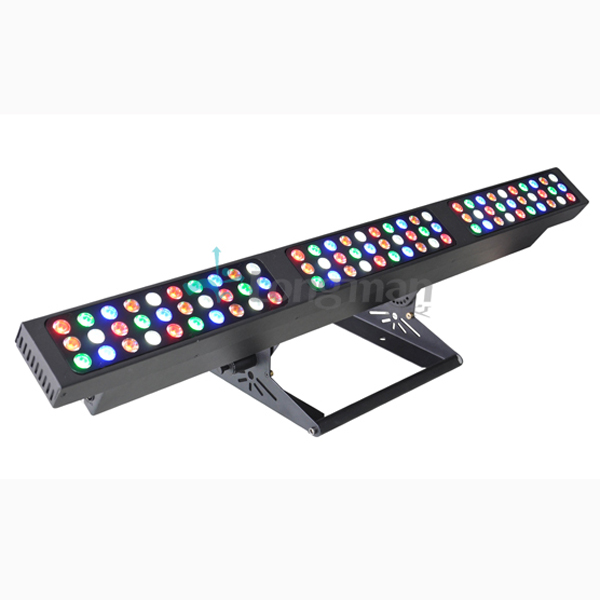

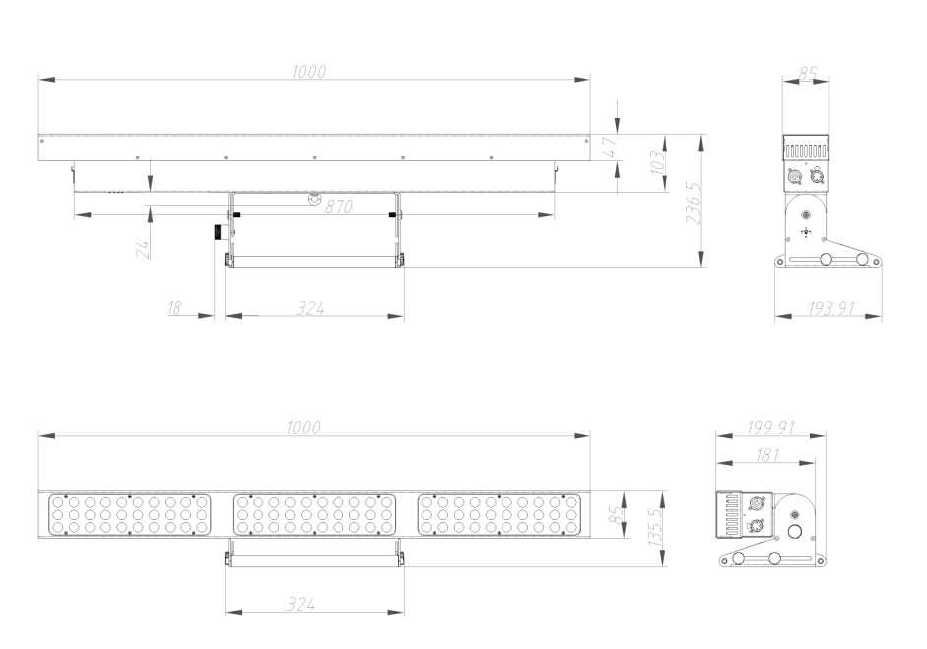

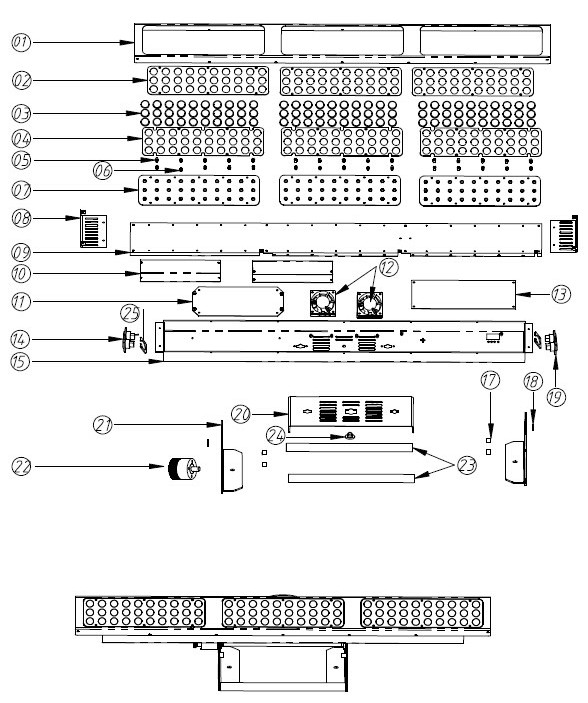

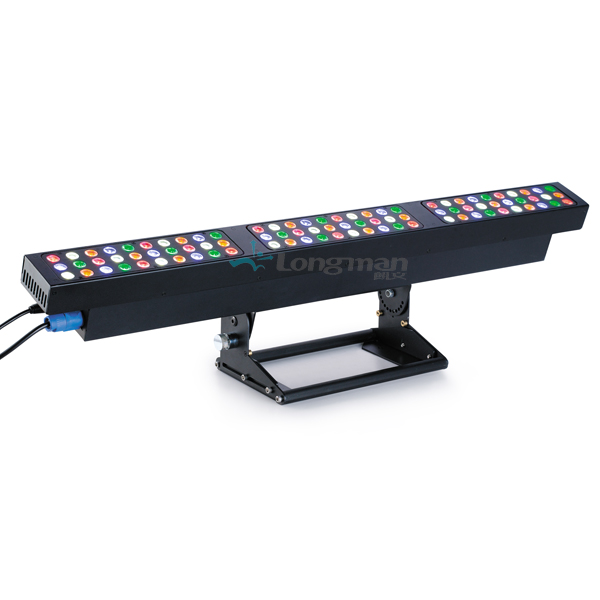

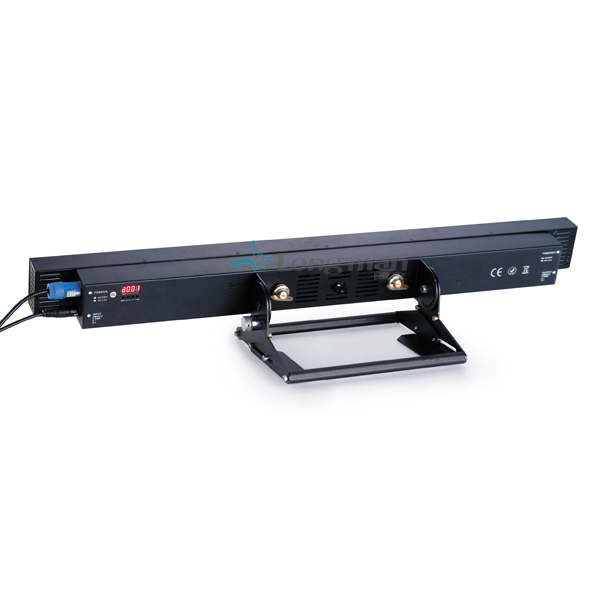

Vpower 903 indoor stage bar light product pictureVpower 903 indoor stage bar light structure picture
Features:
 Unique cooling mode, light source and control completely separated, fan cooling mode
 DMX512 Controller,DMX ID address with 4 digitals display with On/Off function
 Both linear dimming and square law dimming are available, and could be chose even at controller from last channel of each channel configuraction.
 Master slave/interconnected multi-machine control
 Lens degree: 8°、15°、25°、45° 、60° optional, lens easy replaced just need to open lens panel.
 9600 Lumens at full output.
 Using switching power supply to protect the LED to work well
 Strobe、gradual change、jumping change
 Easy package and easy carry, Easy installation and uninstall with fast-do screws.
 PowerCon connector inside, offers to connect 12 PCS in series in 220 VAC and 6 PCS in 100V.


Specification:

Input voltage AC 100-110V or 170-240V AC/50-60HZ
Consume power 270W
Light source 90pcs*3W RGBAW LED, 7520 Lumens output
Lamp Spec R(18PCS), G(18PCS), B(18PCS), A(18PCS), W(18PCS)
LED span 50000~100000 hours
LED PWM dimming frequency >450Hz
Control signal DMX512,32 bit precise dimming, smooth in low DMX Value dimming, not Jumping, no vision shock
Dimming mode nod0 linear dimming, nod4 square law dimming. nod1-3 Delay dimming
Control mode stand alone/ DMX/ master and slaver
Channel 4CH、5CH、6CH、10CH、16CH、20CH
Color effect R、G、B , A, W mixing R=625nm, G=525nm, B=460nm, A=590nm, W=6500K
Function Effect dimmer, strobe, gradual change
Beam Angle 8°, 15°, 25°, 45°, 60°, lens easy replace
Cooling mode Fans  cooling
Anti-electricity intension 1.5KV
Insulation Resistance >2MΩ
Protection rating IP20
Size 1000*275*236.5mm
Net Weight 10KG (With package 11 Kg)
Package Size 107*29*22CM(1 in 1)

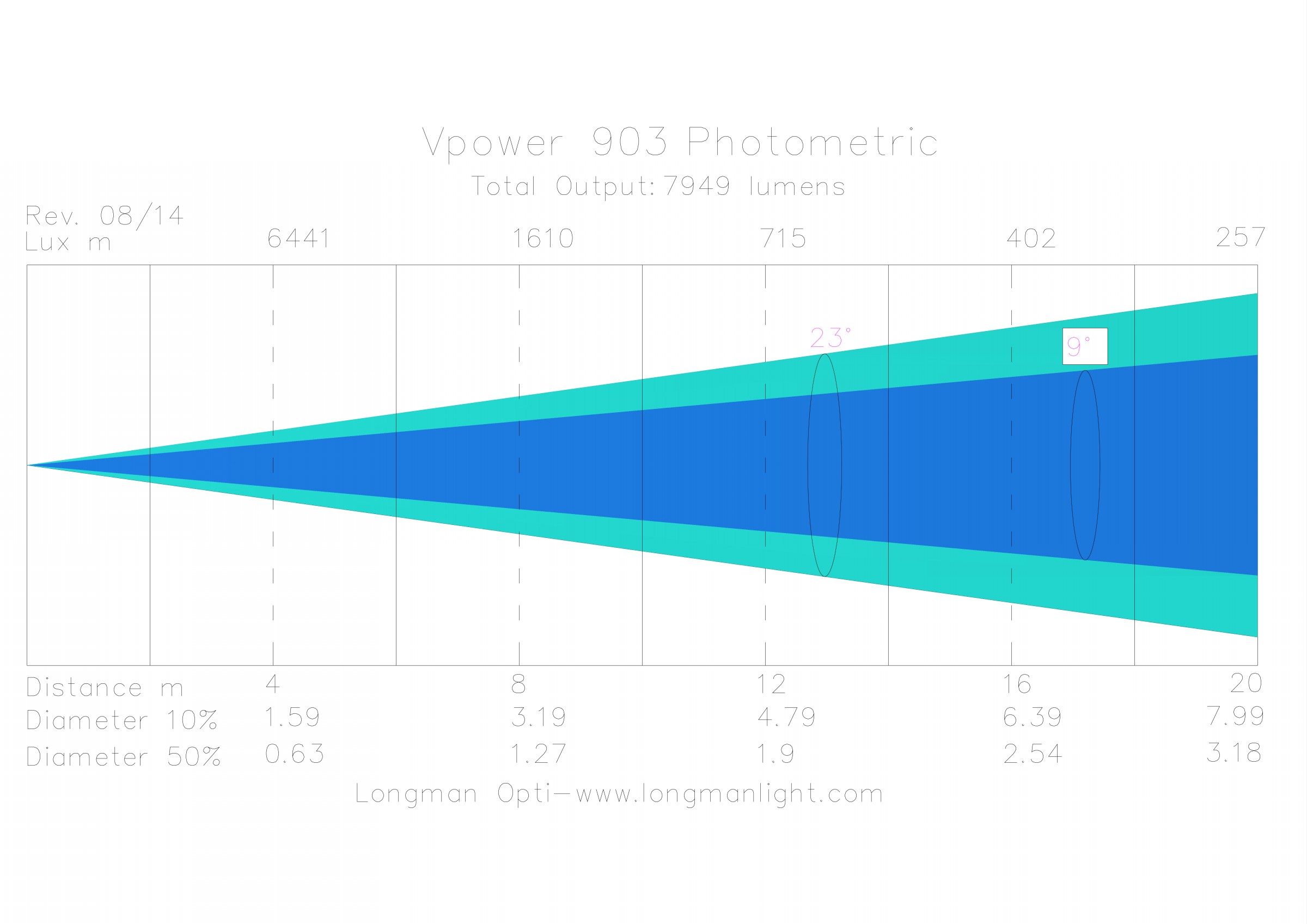

Vpower 903 indoor stage bar light photometric graph
photometric graph light sketch map
