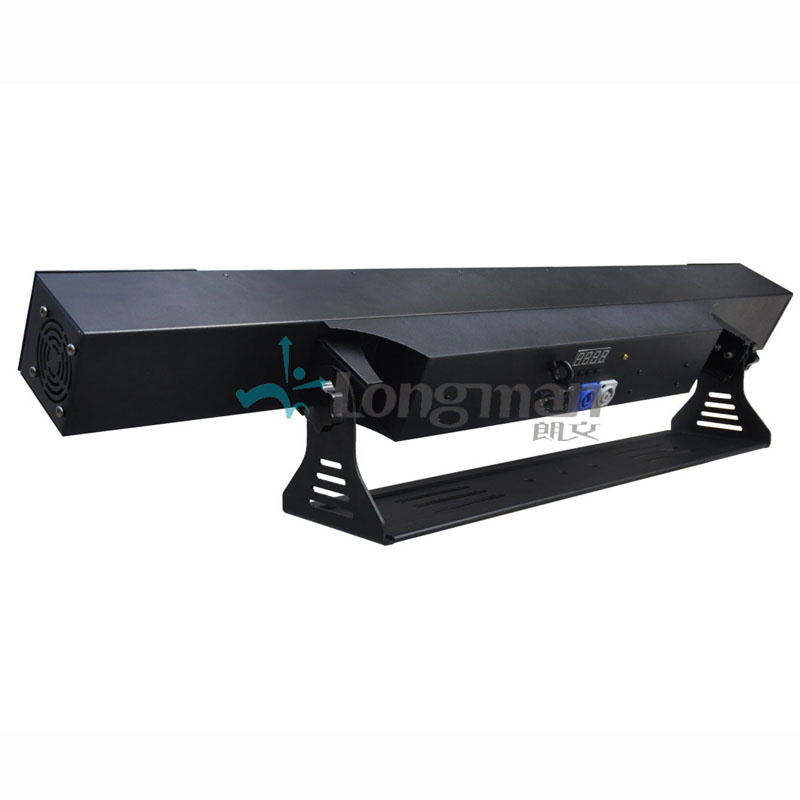

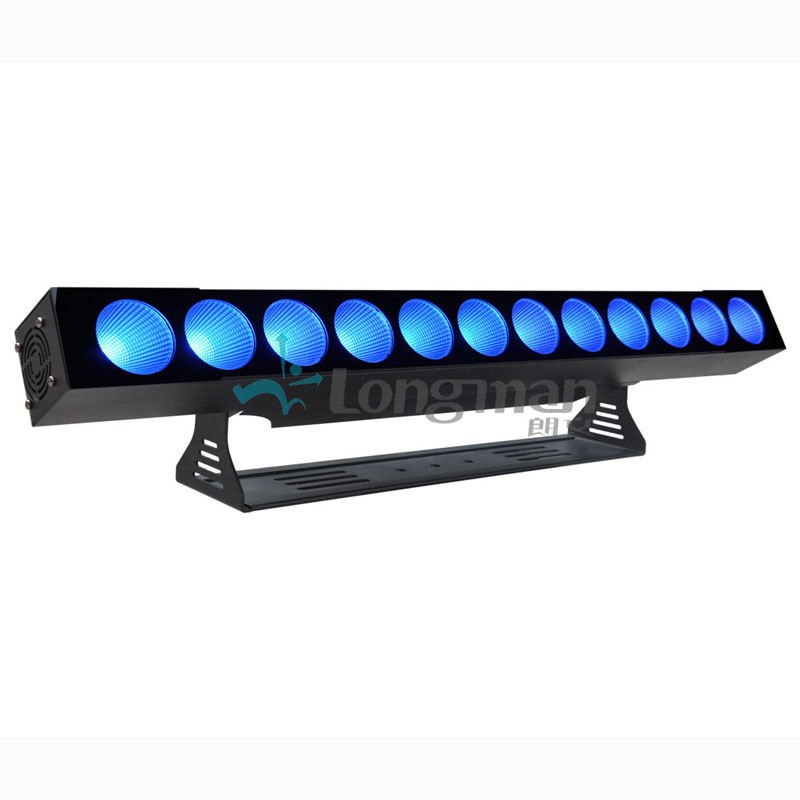

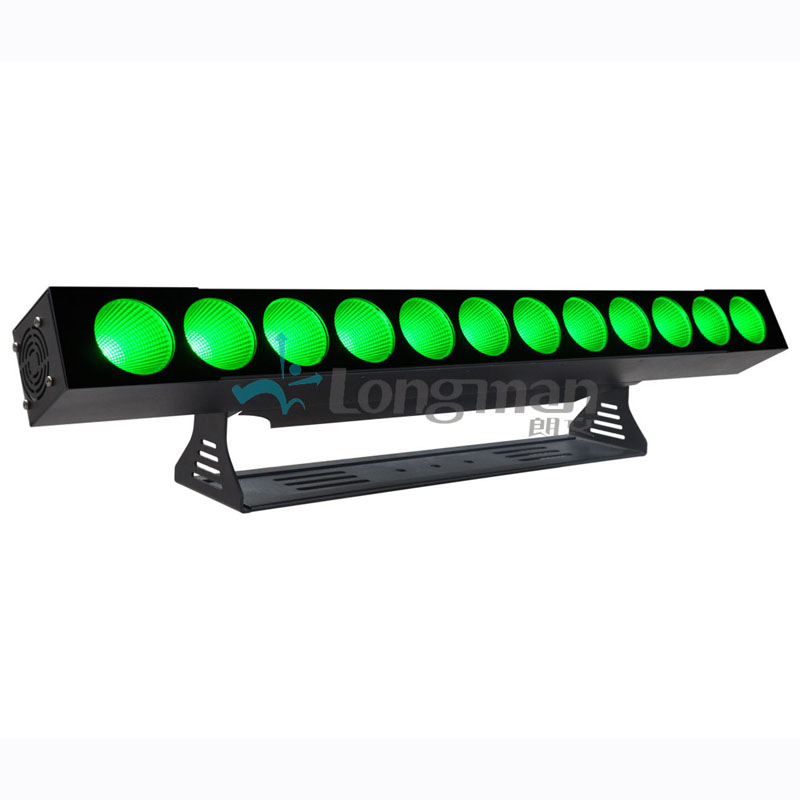

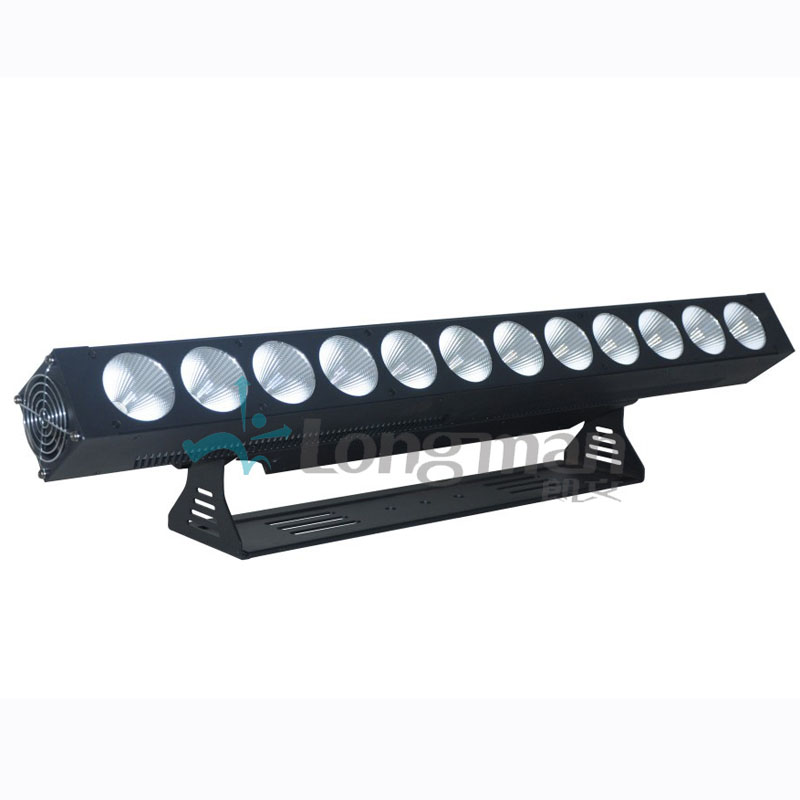

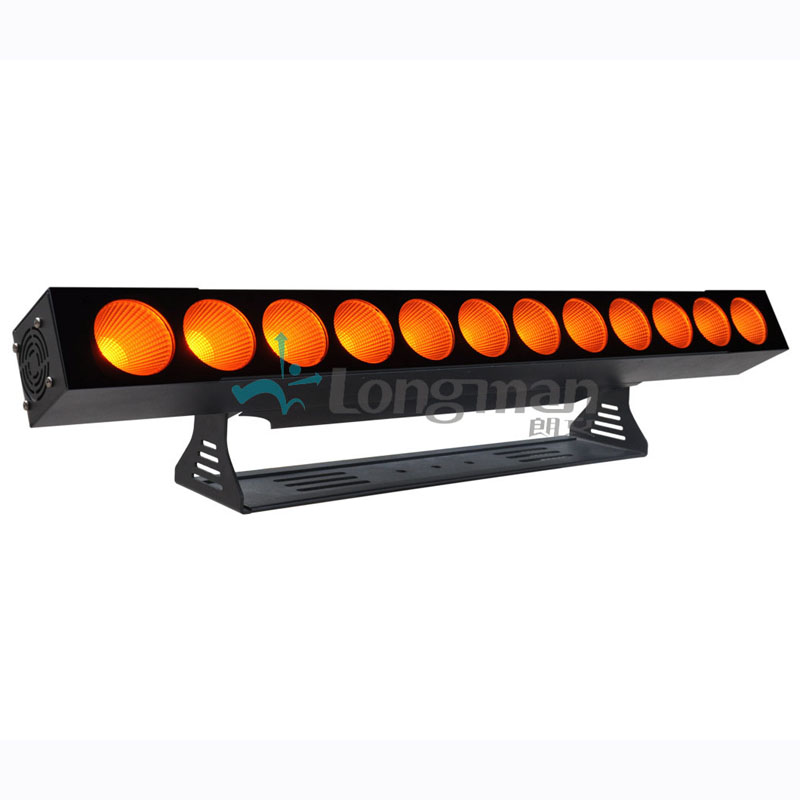

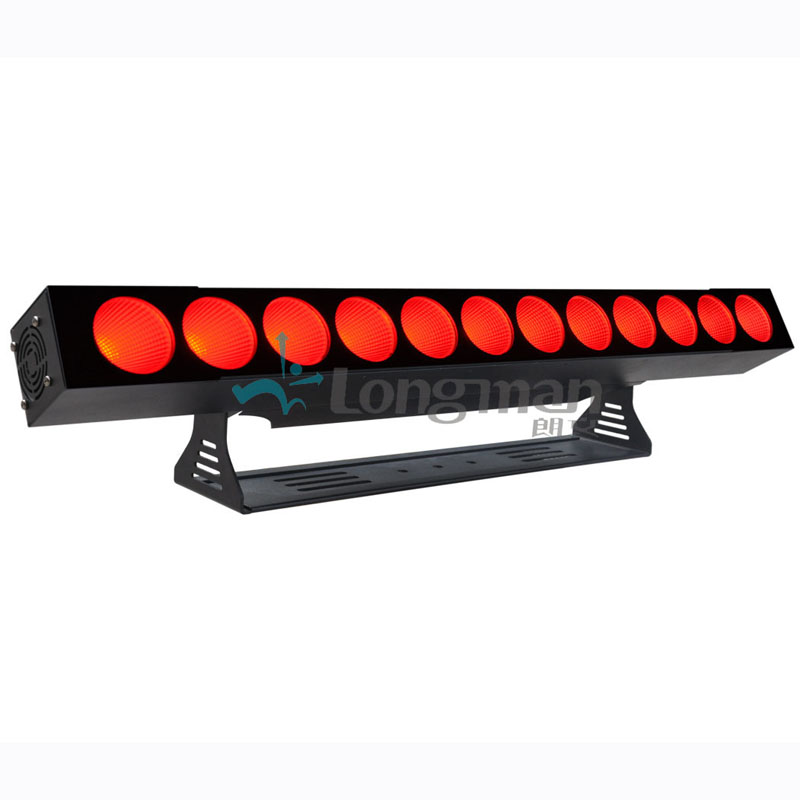

Phenix 300-LED professional wall washer lighting

Phenix 300-LED professional wall washer lighting

Brief description:
1.12pcs*25W Full RGBAW LED
2.22420 Lumens output

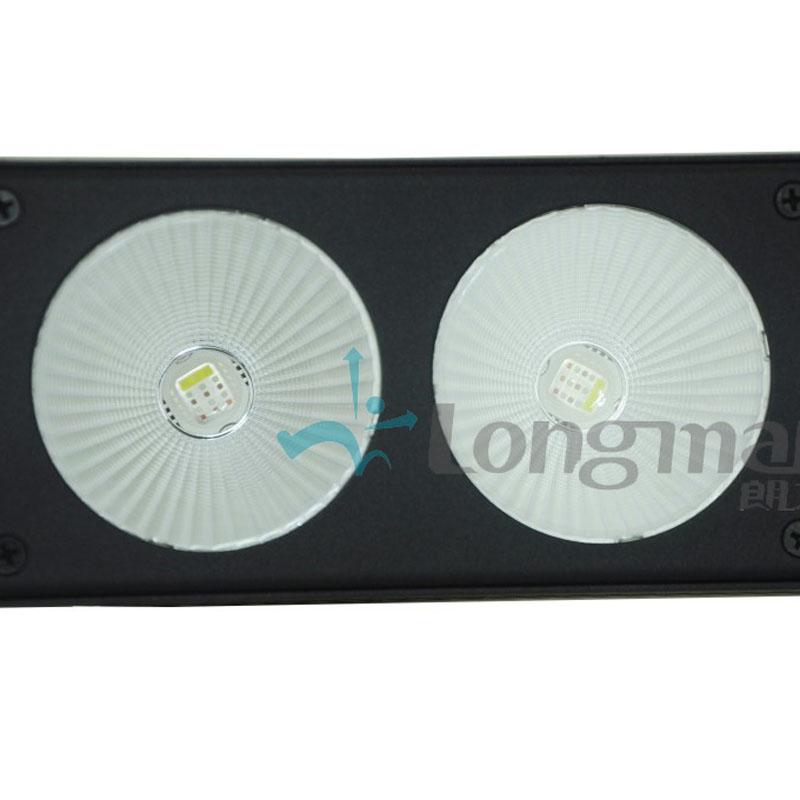

3.Precise Lens curve,better color mixing,SDC<0.005
4.NTC temperature control system inside

Size and Weight: 980*235*136mm / 11KG

Inquiry
Features:
1.High quality LED light source, 25W COB RGBAW
2.Precise Lens curve, better color mixing, SDC<0.005.
3.22420Lumens Output,hight effieciency light output 90% Lumens within 10% Intensity field angle.
4.Adopt 32 Bit MCU, Dim 4 Square law dimming for 0-100%, no visible shock at low DMX Value.
5.Display auto turn off when no operation and Auto show DMX signal come or not
6.Independent circuit driving, each 600mA,even ampere distribute.
7.NTC temperature control system inside, MCU reduce the power output when LED working temperature is too high;
8.Seperated heatsink design between LED and DIriving, make sure more than 15000 Hours Longevity for SMPS and Main board.
9.Field Angle standard 30°,could choose other angle, and also frosted piece and 30x 90° third optical piece.



Specification:
Voltage input AC 100V-240V 47-63Hz PF:>0.9
Voltage output DC36V,longevity 15000Hours
Rated power 360W(290@220V 50Hz)
Luminaire Efficiency >0.9, Light Effiacy >53lm/W
Light source 12pcs*25W Full RGBAW LED each Color 4 chips, 450mA driving total 22420 Lumens output
LED CCT R=625nm,G=525nm,B=460nm,A=590nm,W=6500K,offer multi-Color and many white color,SDC<0.005

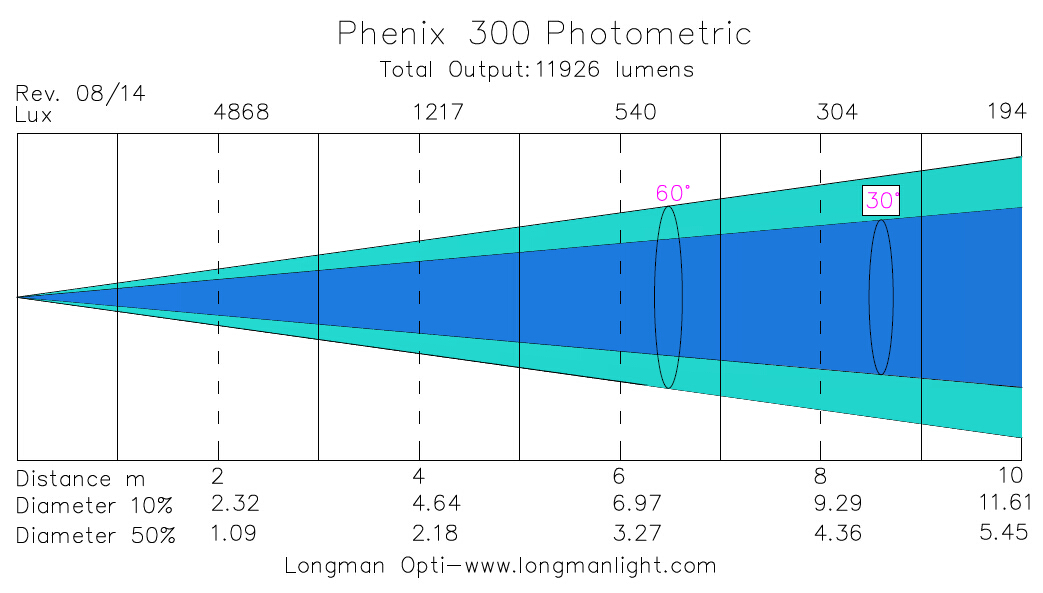

Field Angle(10%) standard 30 °(251100Cd on axis), 45°、60°、90°Etc optional
Control signal DMX512,32 bit Dim4 square law dimming, smooth in low DMX Value, no vision shock,PWM>600Hz,Flicker free
Chanel option 4/5/9/10 CH all inside menu
Control mode DMX1990/DMX512A/stand alone/master and slave/Sound Active
Display Could choose auto turn off no operation, Auto show DMX signal come or not
Housing material QR235 Steel board,Painted Matte balck, customized other color and barndoor
Safty Class II, Powercon Blue and white souket, Endure 5ms 1.5KV shock, Insulated Resistance>2MΩ Flame Rating V-1, Protect Rated IP20
Operate temperature -20~+45℃,Light board peak temperature 80℃ by fans cooling and with NTC protection
Cerficated Product pass CE, Rohs, SMPS pass CQC or UL60950, UL8750
Size 980*235*136mm

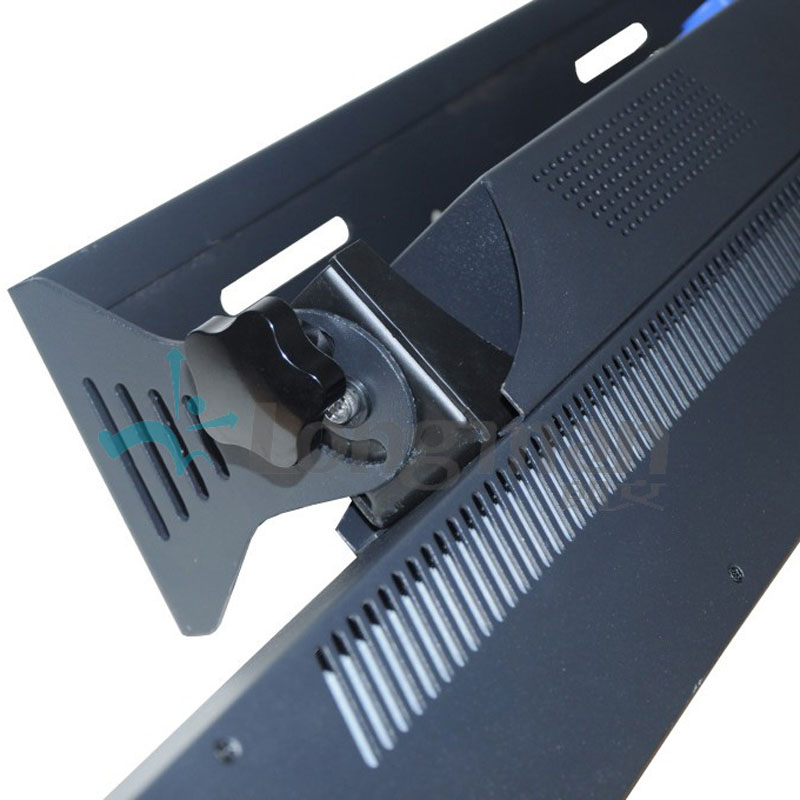

Net Weight 11KG,with 3mm thick bracket
