Pointy Beam 46-led parcan stage lighting

Pointy Beam 46-led parcan stage lighting

Brief description:
1.7PCS*15W Osram Ostar
2.5760 Lumens output
3.Patent new lamp body
4.Good color saturation and brightness

Size and Weight: 27*23*29CM / 3.5KG

Inquiry
Pointy Beam 46 led par can light stage effects
Features:
1.Structure: New die cast model, made by high quality ADC12 aluminum, more stronger; Patent new lamp body is design to support heat sink, with better ventilation, no fans cooling, no noise! Temperature rises 25 degree in the full load; Could customize white/ Black housing.
2.Optic Design: Good color saturation and brightness, strict even color distribution, variegated aperture, white balance; Beam angle (10% intensity) 15 degree, 45 degree, Optional.
3.Electrical: AC 90~240V 47-63 Hz Input, 120 Watt max consumed, power factor 90%;
4.Control: DMX 3CH、4CH、5CH、8CH、9CH optional, buitd-in program, 32 bit linear dimming; PWM driving, Frequency>3K Hz
5.More than 35000 Hours Longevity for SMPS and Main board.
Specification:
Voltage input AC 90-240V 47-63Hz
Max power consumption 120W
PF 0.9
Light source 7PCS*15W Osram Ostar FULL RGBW LED, R=625nm, G=525nm, B=450nm,good saturation; White=6500K,Ra>85, Perfect color rendering;
Light Output 5760 Lumens
LED Life Span 50 000 – 100 000 hours
Beam Angle 8°,only this degree is available
Control signal DMX512
Control mode auto run/sound active/master slave/DMX
Channel 3CH、4CH、5CH、8CH、9CH
PWM Frequency >400Hz, flicker free
Cooling method Natural cooling
Net Weight 3.5Kg
Size 27*23*29CM
IP Rate IP 20

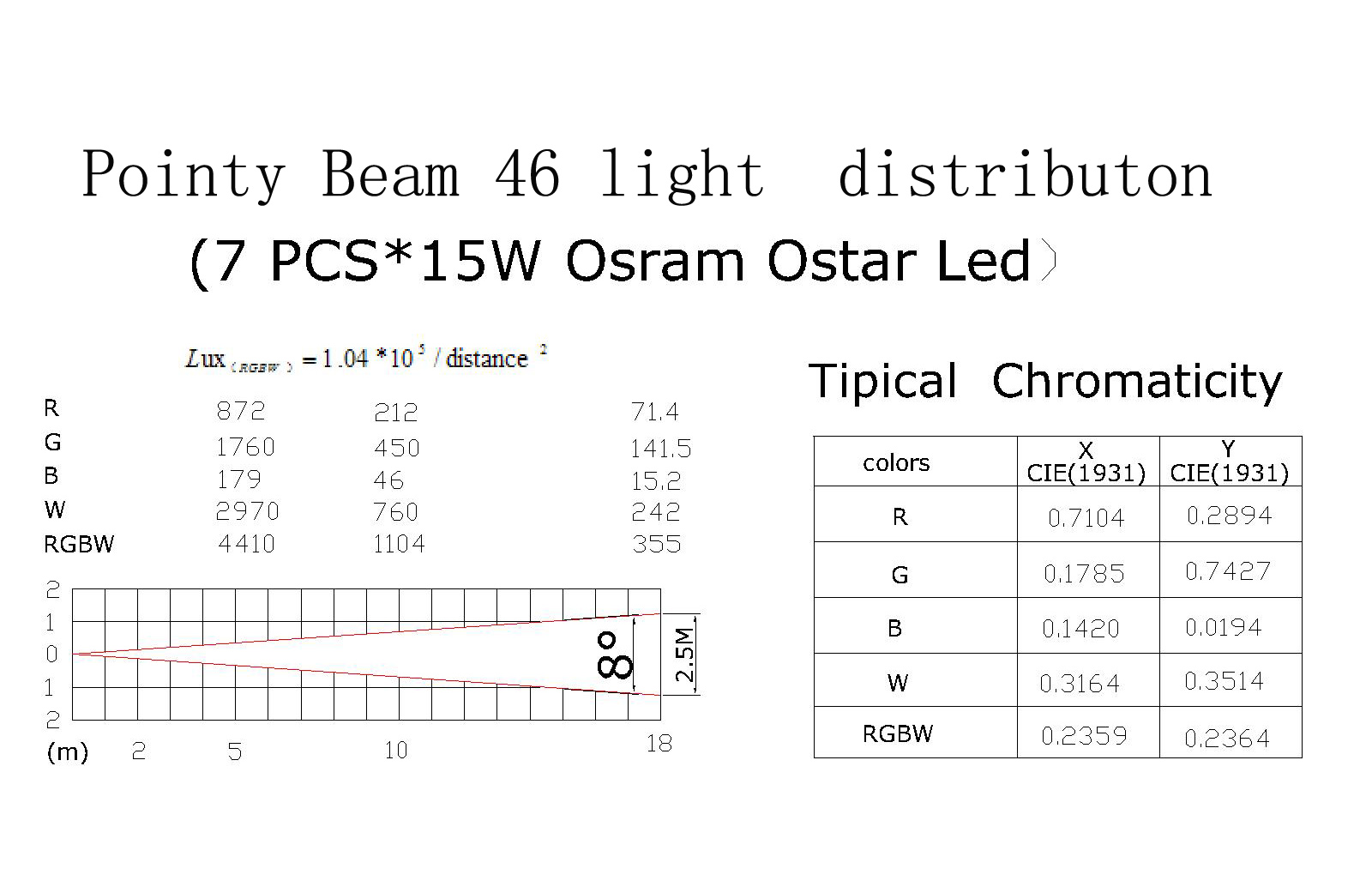

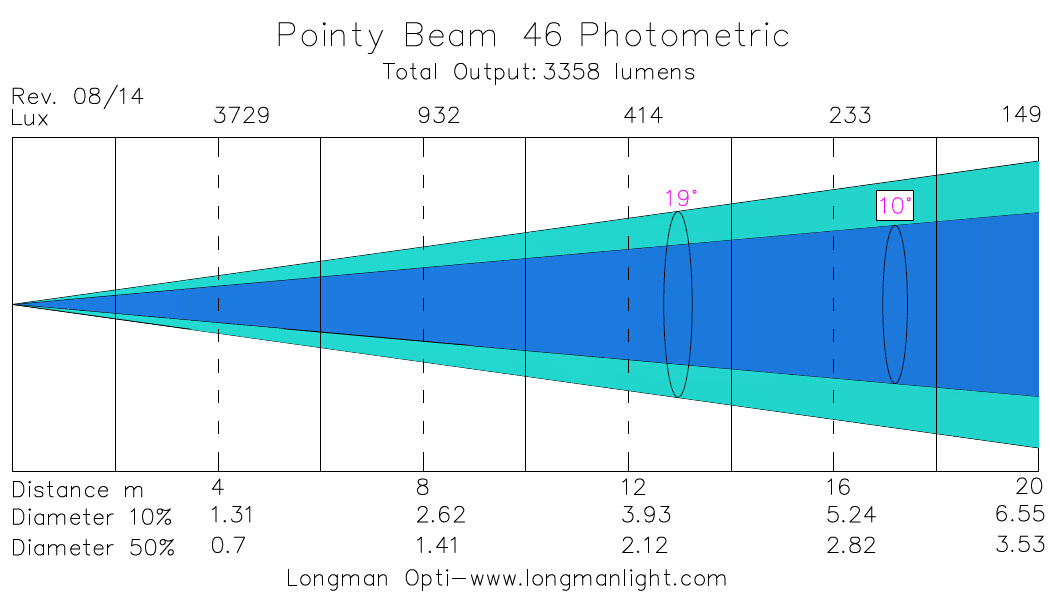

Pointy Beam 46 light distribution figurePointy Beam 46 light photometric graph
> parcan stage lighting Pointy Beam 46-page Download
> Pointy Beam 46-FA17 Download
