Features and Advantage:
1.For Party and Bar application, with side facade lambertian output and one beam up。
2.60AH portable Luminair 1 hours to charge full, and display left batterry percent.
3.Full charge battery support double colors to last 2-4 hours full on.
4.Achieve all color mixing on display board and also could use IR controller.
5.2minutes no operation aotu show left battery percent.
6.Flash Rate Endurance>12Hz Full load/void load flash
7.Could customized W-DMX wireless original and compatible.
8.Show DMX signal situation, Short Atena, easy install and uninstall.
9.Give DMX signal by cable act as emmitter, or else alwayls receiving.
Specifications:
| Input |
AC100-240VAC, 47-63 Hz Rated 100w |
| Output |
DC29.4V 2AH, 60W |
| LED |
6PCS 14W 6-in-1 RGBAWUV |
| Protocal |
WH/T 32—2008 DMX512-A E1.11 - 2004 USITT DMX Univers, and IR |
| MCU |
32Bit Arm Cocred |
| Dimming Curve |
Dim0 Linear, DIM4 Square Law |
| PWM Refresh Rate |
>1.5KHz, Flicker Free |
| Menu |
All easy reading English Menu |
| Display an Button |
4 Buttons and LCD Display |
| IP and Fire Rating |
IP20, V-1 |
| Lampbody |
PC, QR-235 |
| Finish |
Milky white PC and Matt black Metal |

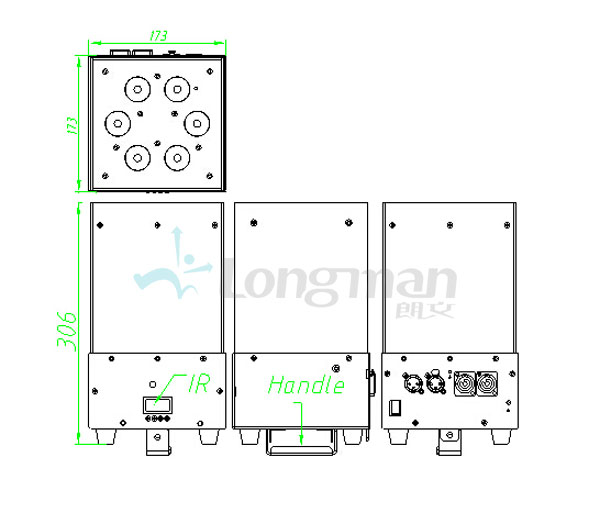

| Size |
173*173*318.8mm |
| Net Weight |
5.2kg |
| Tem/Humidity |
-20ºC ~ +55ºC, RH0%-95% |
| Certificated |
CE, Rohs, FCC, UN38.3 |
| Accessories |
Frosted piece, Milky PC board, LED Lens |
| Connectors |
With Powercon Blue and white connector |
| Soldering |
150~180ºC Low temperature reflow soldering |
